Mushroom processors rarely fail because of bad raw material — they fail because of the process. Low polysaccharide recovery, degraded triterpenes, gummy filtration, scorched extracts and batches that never quite match the previous one are the daily reality of hot-water decoction. The ultrasonic extraction equipment of mushroom built by Xi'an Bioland Instrument Co., Ltd. was designed around exactly these complaints. Using cavitation instead of prolonged heat, our ultrasonic extraction equipment of mushroom ruptures chitinous cell walls at 40–60 °C, lifting yields by 50–500% and cutting extraction time to 24–40 minutes. Fabricated in SUS304/316L, CE and ISO certified, GMP/FDA compliant, and supported by 15 years of extraction engineering, each ultrasonic extraction equipment of mushroom system is delivered as a full process solution — not just a tank.
Fungal cell walls are built from chitin and β-glucan complexes that boiling water simply cannot open efficiently. Many factories run 3–4 hour decoctions twice and still recover only 3–5% crude polysaccharide. The ultrasonic extraction equipment of mushroom attacks the root cause: cavitation bubbles collapse against the hyphal wall, creating micro-jets that fracture the matrix and open direct diffusion paths for β-glucans. Yield rises without extending time or temperature.
Yield optimization is a parameter problem, not a brute-force problem. On Bioland instrument's ultrasonic extraction equipment of mushroom, clients typically run a 1:15 to 1:25 solid-to-liquid ratio, 50–55 °C, 30 minutes, with two extraction passes. For triterpene-rich species such as Ganoderma, 70–95% ethanol is used instead of water. Our engineers supply a validated parameter sheet for each species before the equipment ever leaves our workshop.
A Zhejiang shiitake processor complained that lentinan yield had plateaued at 4.1% after years of tuning boilers. Their pain was simple: more steam, more hours, same result. We installed a 300 L ultrasonic extraction equipment of mushroom with integrated vacuum concentration. Cycle time fell from four hours to 45 minutes, and yield climbed to 6.8% — a 66% increase. Annual output rose by roughly 11 tonnes of dried extract without adding a single new tank. The client calculated payback in under ten months and later ordered a second ultrasonic extraction equipment of mushroom for Tremella polysaccharide.
Single-pass extraction always leaves residue. The Bioland instrument system supports hot reflux circulation: secondary vapour from the evaporator condenses and returns to the extraction tank as fresh solvent, percolating downward through the mushroom bed until the liquor runs colourless. This closed-loop reflux built into the ultrasonic extraction equipment of mushroom squeezes out the last stubborn fraction while recovering ethanol at 92–96%.
Ganoderic acids, ergothioneine, nucleosides and high-molecular-weight β-glucans all suffer under prolonged boiling. Polysaccharide chains depolymerize, molecular weight distribution shifts, and bioactivity drops even when total sugar looks acceptable on paper. Because the ultrasonic extraction equipment of mushroom works at 40–60 °C, thermal stress is minimal. Clients regularly report higher molecular-weight retention and visibly lighter, cleaner extract colour.
A Korean nutraceutical brand found their Ganoderma extract failing HPLC triterpene specs after switching suppliers of equipment. Reflux at 85 °C for three hours was destroying the actives. Bioland instrument proposed a 200 L ultrasonic extraction equipment of mushroom running 95% ethanol at 52 °C for 35 minutes. Total triterpene content rose from 1.9% to 3.4%. The brand kept its premium label claim, avoided reformulation costs, and reduced ethanol consumption by around 28% thanks to integrated solvent recovery.
Extraction is only half the risk — concentration cooks many extracts a second time. Bioland instrument's unit concentrates under −0.085 MPa vacuum, allowing evaporation at 60–100 °C with short residence time. Demisters on both the extraction tank and evaporator vapour outlets prevent carryover. Pairing low-temperature extraction with vacuum concentration is why the ultrasonic extraction equipment of mushroom protects labile compounds end to end.
The same protective logic applies elsewhere. Our clients run the ultrasonic extraction equipment of mushroom platform for goji and jujube actives, tea polyphenols and aromatic oils, propolis flavonoids, quercetin from sophora bud and mulberry leaf, stevia glycosides, chilli oleoresin, and natural pigments including anthocyanins and carotenoids. One platform, many heat-sensitive targets.
Long boiling extracts pectin, protein and starch alongside polysaccharides, creating viscous liquor that blinds filter media. Because cavitation is selective and gentle, the ultrasonic extraction equipment of mushroom produces liquor with visibly fewer impurities. One Fujian client reported filtration time per batch dropping from 90 minutes to 35, with filter cloth replacement frequency halved — a small saving that quietly compounds across 300 batches a year.
Protein-rich mushroom broths foam and scorch against hot jacket walls. Bioland instrument addresses this structurally: three-layer insulation, controlled jacket pressure of 0.09–0.3 MPa, PID temperature control, and stirring matched to broth viscosity. Because the ultrasonic extraction equipment of mushroom never needs an aggressive boil, wall fouling is dramatically reduced, and CIP cycles become shorter and less chemical-intensive.
Ethanol extraction for triterpenes is expensive if solvent is lost. The condenser, cooler, oil separator and oil collector on the ultrasonic extraction equipment of mushroom form a closed recovery chain, returning 92–96% of ethanol per batch. Residual colourless liquor in the extraction tank is reused as the next cycle's solvent, and the entire system can run under negative, atmospheric or positive pressure depending on the process.
Solvent work demands respect. Bioland instrument supplies explosion-proof motors and electrics, nitrogen blanketing, pressure relief, earthing, and interlocked vacuum control for every ethanol-service ultrasonic extraction equipment of mushroom. Operators are trained on seal inspection, transducer temperature monitoring, and mandatory CIP after each campaign. Commissioning support and a documented SOP are included with delivery.
Nutraceutical buyers audit consistency, not peak performance. Variation usually comes from manual valves, guessed endpoints and uneven energy input. Bioland instrument's ultrasonic extraction equipment of mushroom applies fixed ultrasonic power density across the vessel, PID-controlled temperature, and online concentration monitoring so the endpoint is measured rather than estimated. Clients typically report batch-to-batch RSD below 3% after switching.

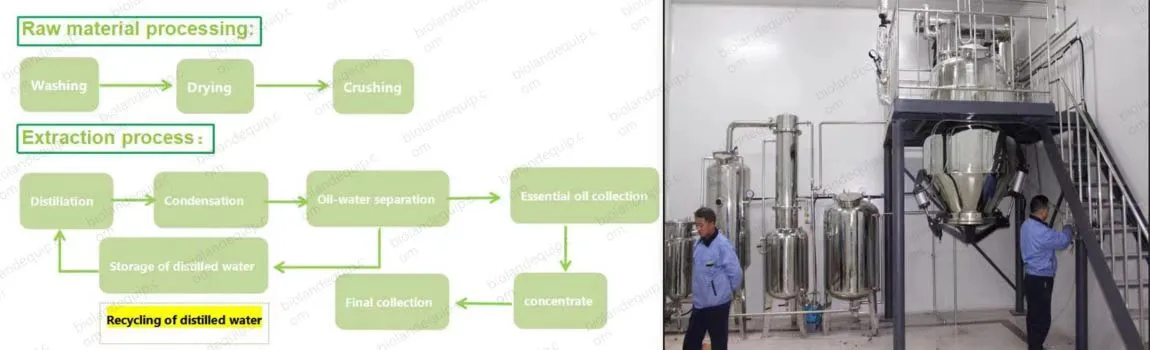

A stable process needs a complete system. Ours comprises the ultrasonic generator and transducers, extraction tank, tubular heater, evaporator, condenser, oil separator, oil collector, liquid pump, metering tank, storage tank, filter, vacuum pump and control cabinet. Demisters sit on both vapour outlets. Where no steam is available, a thermal-oil heating package is added. Every ultrasonic extraction equipment of mushroom is built to GMP and food HACCP requirements.
Standard models run BL-TN-C50L through BL-TN-C500L: volumes 50, 100, 200, 300 and 500 L; evaporation capacity 20, 50, 70, 100 and 200 kg/h; motor power 2.7–3.5 kW; steam consumption 25–250 kg/h; system vacuum −0.085 MPa; compressed air 0.5–0.6 MPa; evaporation temperature 60–100 °C. Larger production-scale ultrasonic extraction equipment of mushroom is engineered to order by our in-house R&D team.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |
All wetted parts are SUS304 or SUS316L with mirror-polished internal surfaces and sanitary tri-clamp fittings. In-line CIP spray balls clean the vessel automatically, and PLC batch records export for audit. For a client supplying a European supplement brand, this documentation package on their ultrasonic extraction equipment of mushroom was the deciding factor in passing a customer GMP audit first time.
A Malaysian Ganoderma factory ran six operators per shift and still lost batches to over-boiling. Manual operation was their bottleneck, not capacity. After commissioning an automated 500 L ultrasonic extraction equipment of mushroom, the PLC managed charging, temperature ramp, ultrasonic timing, transfer, concentration and discharge. Staffing dropped to two per shift. Off-spec batches fell from 7% to under 1%, and utility cost per kilogram of extract dropped roughly 30% because extraction ran at 55 °C instead of near boiling.
Most clients begin with a 50 L or 100 L ultrasonic extraction equipment of mushroom for R&D and small-batch validation, then scale. Bioland supplies matching pilot geometry so parameters transfer cleanly, shortening on-site commissioning to under two weeks. A Southeast Asian project cascaded three 500 L units with a falling-film evaporator to process 1.5 tonnes of dried fruiting body daily.
Beyond extraction, we design pre-treatment and milling, filtration, membrane or resin refining, crystallization reactors, high-shear homogenizers, and vacuum spray or freeze drying. Integrating the ultrasonic extraction equipment of mushroom into one continuous, pipelined flow eliminates intermediate storage, contamination risk and manual transfer losses. This is where Bioland instruemnt shifts from supplier to process partner.
Mushroom demand is seasonal; your capital should not be. The same ultrasonic extraction equipment of mushroom supports ultrasonic low-temperature extraction, ambient extraction, Soxhlet dynamic extraction, hot reflux, water or alcohol precipitation and percolation. Clients alternate between Ganoderma and lentinan seasons by running tincture production, coffee caffeine extraction, wheat germ oil, soy and marine fish protein, rose or peppermint essential oil, and sweet potato polysaccharide.
Customized ultrasonic extraction equipment of mushroom ships in about 30 business days; catalogue units in 5–7 days. Sea, rail and air freight are supported. A dedicated specialist sends weekly photo or video progress updates, full inspection media before dispatch, and clients may schedule a Factory Acceptance Test at our Xi'an facility. Every unit carries a one-year warranty with lifetime maintenance.
Most mushroom extraction problems — weak polysaccharide yield, degraded triterpenes, sticky filtration, inconsistent batches and runaway energy cost — share one origin: too much heat for too long. Bioland instrument's ultrasonic extraction equipment of mushroom replaces that approach with 40–60 °C cavitation, 24–40 minute cycles, 50–500% yield gains, integrated vacuum concentration and 92–96% solvent recovery. Backed by CE and ISO certification, GMP/FDA-compliant SUS304/316L construction, PLC automation and 15 years of engineering, every ultrasonic extraction equipment of mushroom arrives as a validated, documented solution — from 50 L pilot through multi-tonne production lines, with lifetime technical support.
Typically 50–500%, depending on species. Real shiitake cases moved lentinan yield from 4.1% to 6.8%.
Generally 40–60 °C for 24–40 minutes, protecting β-glucans, triterpenes and other heat-sensitive actives.
Yes. Explosion-proof configurations, nitrogen blanketing and 92–96% ethanol recovery are available.
50 L, 100 L, 200 L, 300 L and 500 L as standard, with larger customized production lines on request.
Weekly production updates, optional FAT, commissioning support, one-year warranty and lifetime maintenance.
For over 15 years, Bioland Instrument has engineered extraction, concentration, distillation, reaction, filtration, crystallization and drying systems for clients across Europe and Southeast Asia. Our CE and ISO certified, GMP/FDA-compliant ultrasonic extraction equipment of mushroom is designed by an in-house R&D team around your species, capacity and purity targets — not a generic catalogue spec. Enjoy competitive factory pricing, full OEM/ODM support, weekly photo and video production tracking, optional Factory Acceptance Testing, flexible sea, rail and air shipping, a one-year warranty and lifetime maintenance. Send us your mushroom type, target polysaccharide or triterpene content, and daily throughput, and our engineers will return a tailored process flow, parameter sheet and quotation. Email us at info@biolandequip.com.
1. Zhu, F., Du, B., Bian, Z., & Xu, B. Beta-Glucans from Edible and Medicinal Mushrooms: Characteristics, Physicochemical and Biological Activities. Journal of Food Composition and Analysis.
2. Chemat, F., Rombaut, N., Sicaire, A.-G., Meullemiestre, A., Fabiano-Tixier, A.-S., & Abert-Vian, M. Ultrasound Assisted Extraction of Food and Natural Products: Mechanisms, Techniques, Combinations, Protocols and Applications. Ultrasonics Sonochemistry.
3. Cheung, P. C. K. Mini-Review on Edible Mushrooms as Source of Dietary Fiber: Preparation and Health Benefits. Food Science and Human Wellness.
4. Ruthes, A. C., Smiderle, F. R., & Iacomini, M. Mushroom Heteropolysaccharides: A Review on Their Sources, Structure and Biological Effects. Carbohydrate Polymers.
5. Vilkhu, K., Mawson, R., Simons, L., & Bates, D. Applications and Opportunities for Ultrasound Assisted Extraction in the Food Industry — A Review. Innovative Food Science and Emerging Technologies.
6. Wasser, S. P. Medicinal Mushroom Science: Current Perspectives, Advances, Evidences, and Challenges. Biomedical Journal.
