Poor separation of solids and liquids is rarely caused by a single thing, and fixing the equipment behind it takes much less time than fixing the problem one batch at a time. Xi'an Bioland Instrument Co., Ltd. makes a crystallization filter reactor that is designed to solve this problem. It is a closed, clear, explosion-proof vessel that runs reaction, crystallization, and filtration all at the same time. This way, mother liquor loss, crystal breakage, and cake contamination don't happen between transfer steps because there aren't any left to fail. If your production line is being held back by low purity, low output, or uneven filtering, this guide will show you why separation performance breaks down and how to fix it at its source with the right crystallization filter reactor setup.
Most of the time, bad separation is caused by a cooling rate that is too fast for the crystal growth it is supposed to control. Crystals form quickly and unevenly when a batch is chilled too quickly. This traps mother liquor and impurities inside the crystal mass instead of getting rid of them cleanly. This problem can be fixed by using a crystallization filter reactor with adjustable jacket cooling. This lets operators set a controlled rate, usually 1-2°C per hour, so crystals grow evenly and let impurities escape into the liquid around them instead of keeping them inside.
When stirring isn't strong or even, crystals can stick together and form agglomerates that trap solvent and make filtration much slower. A crystallization filter reactor with programmable agitation keeps the crystal populations evenly distributed and sheared across the batch. This stops the kind of clustering that slows down the filtration step for hours. Once the right crystallization filter reactor is in place, one of the easiest things that can be done is to match the stirring speed to the crystal system that is being made.
Cross-contamination risk goes up every time a lot moves from a reaction tank to a separate crystallizer and then to a separate filter. This is because material is lost and air and wetness are added each time. This doesn't happen with a crystallization filter reactor because it combines reaction, crystallization, and filtration inside a single sealed vessel. This way, the batch stays in a controlled environment until the finished crystal is ready to be discharged, which directly protects both yield and purity.
Poor cake quality is often caused by using a filter medium that is too rough, too fine, or chemically unsuitable with the fluid system. This can be avoided. If you build a crystallization filter reactor with a PTFE sand-core filter that can be switched out for stainless steel or titanium media, you can match the pore size and filter cloth exactly to each crystal system instead of running every batch through the same fixed hardware.
People who work in a crystallization filter reactor made of high-borosilicate glass can see nucleation, crystal growth, and cake formation as they happen. Because techs can see what's going on, they can find problems with separation early, like premature nucleation or uneven crystal color, instead of finding them after filtering has already started. Strong acids and bases can't break down the same glass, so a crystallization filter reactor can handle acidic fluid systems without getting pits, which would hurt the separation performance over time.
Process stability is important for separation, and a crystallization filter reactor with 20L, 30L, 50L, and 100L sizes that can work without exploding keeps high-pressure crystallization runs safe and continuous. A pressure event in the middle of a batch not only poses a safety risk, but it also throws off the controlled cooling and stirring profile that is needed for good separation quality. This is why an approved crystallization filter reactor protects both people and product consistency at the same time.

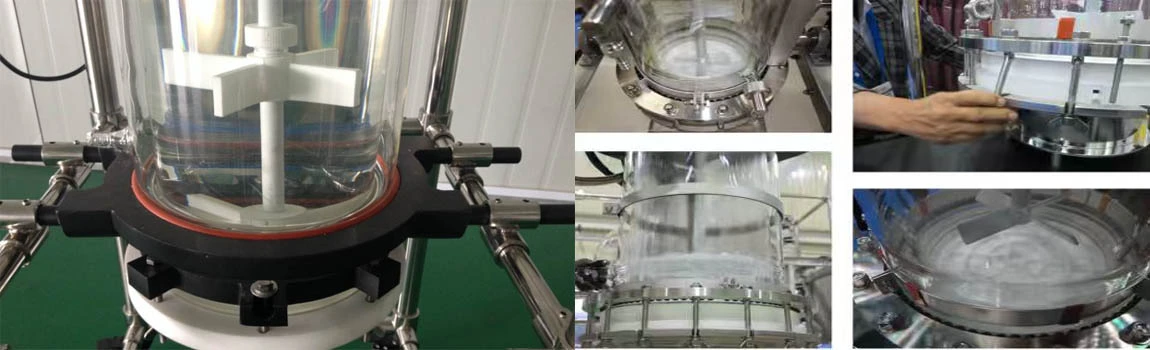

The performance of the separation depends on the filtration base. A crystallization filter reactor with an integrated PTFE sand-core filter at the vessel floor lets filtrate drain directly out of the same tank that was used for reaction and crystallization. In the crystallization filter reactor, the crystal bed never has to be moved to get to the filter. This means that there is no mechanical disturbance that could break fragile crystals or add fines back into the filtrate stream.
How easily a compound crystallizes depends on its solubility, not just how fast it cools. With a paired high-low temperature integrated unit, a crystallization filter reactor with a jacket rated from -20°C to 200°C can be extended even further. This lets operators control the whole solubility curve of a target compound in one vessel, from dissolving to controlled crystallization to final filtration, without having to switch equipment in the middle of the process.
A European pharmaceutical developer working on a chiral API intermediate was struggling with incomplete reactions, low crystal purity, and equipment corrosion from a strongly acidic synthesis route, all made worse by frequent transfers between separate reaction and filtration units.
The team switched to a 100L crystallization filter reactor customized by Bioland Instrument, running the reaction under nitrogen at 0-5°C while the transparent vessel let operators confirm the reaction had gone to completion by watching the solution's color shift directly.
Jacket-controlled cooling at -20°C brought the batch down at roughly 1-2°C per hour, allowing crystals to form uniformly, and the team then switched directly to the built-in PTFE filter for solid-liquid separation without moving the batch at all.
Final crystal purity came in above 99.5%, and yield improved by around 15% compared to the previous multi-vessel process, while the glass construction of the crystallization filter reactor eliminated metal-ion contamination in a solvent system that included both acidic and alkaline steps.
A Polish chemical company developing palladium and platinum catalysts faced low recovery rates, severe equipment corrosion, and catalyst deactivation caused by an inefficient, high-temperature solid-phase reaction and separation process on their existing equipment.
Bioland Instrument supplied a 50L crystallization filter reactor customized for a closed solid-phase-reaction-to-filtration workflow. The reaction ran at 150°C, with the glass vessel tolerating the short high-temperature exposure without the catalyst deactivation the client had seen previously.
Once the reaction finished, the built-in PTFE filter separated the solid catalyst directly, and the customer recovered more than 90% of residual precious metal from the mother liquor, meaningfully reducing raw-material cost per batch.
Filtration speed and cake purity both depend on choosing a filter cloth or membrane pore size that matches the actual crystal size distribution being produced. A crystallization filter reactor supports a wide range of cloth and membrane specifications, letting process engineers fine-tune the filtration step for each new compound rather than accepting whatever flow rate a fixed, one-size filter happens to deliver.
Every transfer step between separate vessels is an opportunity for product loss, and a crystallization filter reactor recovers that lost yield simply by removing the transfers. Running reaction, crystallization, and filtration in one sealed system keeps crystals, mother liquor, and filtrate inside a controlled environment from start to finish, which is often the single largest recovery improvement a production line can make without changing the underlying chemistry at all.
Manual coordination of temperature, agitation, and filtration timing introduces variability that shows up as inconsistent recovery from batch to batch. A crystallization filter reactor equipped with PLC control and a touchscreen interface lets operators store and repeat validated temperature and agitation profiles precisely, so recovery rates achieved during process development carry through reliably into full production runs.
Because recovery bottlenecks differ by industry, a crystallization filter reactor from Bioland Instrument can be configured with electric lifting, full PLC automation, an integrated temperature-control unit, and combined filtration-crystallization-ultrasonic-distillation modules based on the target application. This configurability means a crystallization filter reactor built for pharmaceutical intermediate recovery can look meaningfully different from one built for precious-metal catalyst recovery, even though both start from the same base platform.
Recovery rates achieved on day one do not last without upkeep, and routine care of a crystallization filter reactor protects that performance over time. Monitoring filtration pressure, inspecting the PTFE filter for wear, and cleaning the filter core on a defined schedule prevents the slow decline in flow rate and cake purity that untended equipment eventually shows. Bioland Instrument's after-sales team supports customers with maintenance guidance throughout the working life of every crystallization filter reactor supplied.
Poor separation almost always traces back to uncontrolled cooling, weak agitation, unnecessary transfers, or mismatched filter media, and a properly configured crystallization filter reactor addresses all four at once. As the chiral API and precious-metal case studies show, combining reaction, crystallization, and filtration in one sealed, transparent, temperature-controlled vessel measurably improves purity, yield, and recovery. Bioland Instrument backs this engineering with certification, OEM/ODM customization, and dedicated after-sales support for every crystallization filter reactor supplied.
Uncontrolled cooling rates, weak agitation, excessive material transfers, and mismatched filter media are the most common causes a crystallization filter reactor is designed to eliminate.
By running reaction, crystallization, and filtration inside one sealed crystallization filter reactor, material never leaves a controlled environment, reducing the losses that occur during transfers.
Standard crystallization filter reactor volumes include 20L, 30L, 50L, and 100L, with custom sizes available for specific process requirements.
Yes, the PTFE sand-core filter can be upgraded to stainless steel or titanium, with various cloth and membrane options for each crystallization filter reactor application.
Yes, we offer OEM/ODM customization, including explosion-proof systems, PLC automation, and integrated temperature control, for every crystallization filter reactor we build.
If separation problems are costing you purity, yield, or production time, the fix usually starts with the equipment. Xi'an Bioland Instrument Co., Ltd. brings over 15 years of engineering experience, CE and ISO certification, and flexible OEM/ODM customization to every crystallization filter reactor we build, backed by weekly production tracking, pre-shipment inspection, an optional Factory Acceptance Test, and a one-year warranty with lifetime maintenance support. Whether you're troubleshooting an existing separation bottleneck or designing a new pilot line, our technical team can review your process and recommend the right configuration. Contact us at info@biolandequip.com to discuss your crystallization filter reactor needs and request a quotation.
1. Chemical Engineering Research and Design, "Reactor Design Strategies for Improving Solid-Liquid Separation in Batch Crystallization."
2. Organic Process Research & Development, "Cooling Crystallization Optimization for High-Purity Pharmaceutical Intermediates."
3. Industrial & Engineering Chemistry Research, "Filtration Media Selection and Its Effect on Cake Purity in Crystallization Processes."
4. Separation and Purification Technology, "Agitation and Nucleation Control in Integrated Crystallization-Filtration Systems."
5. Journal of Crystal Growth, "Effect of Cooling Rate on Crystal Morphology and Mother Liquor Entrapment."
6. Powder Technology, "Agglomeration Mechanisms and Their Impact on Downstream Filtration Efficiency."
