How to Size a Jacketed Reactor for Your Application

Undersizing or oversizing a jacketed agitated reactor is one of the most expensive mistakes a process team can make, showing up later as poor heat transfer, wasted capital, or a vessel that can't grow with production demand. Xi'an Bioland Instrument Co., Ltd. approaches sizing as an engineering conversation rather than a catalog lookup, matching batch volume, heat transfer area, agitation requirements, and material compatibility to each customer's actual chemistry before recommending a jacketed agitated reactor configuration. This guide walks through the process questions worth answering before specifying volume, jacket design, and control features, so the equipment you order performs correctly from the first batch rather than requiring costly rework later.

Understanding Reactor Volume and Process Requirements

Starting with Batch Size, Not Vessel Capacity

The most common sizing mistake is choosing a jacketed agitated reactor based on available catalog volumes rather than actual batch requirements. Working backward from target output per cycle, desired batch frequency, and acceptable turnaround time between runs gives a far more accurate starting point. A jacketed agitated reactor sized this way avoids both the wasted solvent and utility cost of an oversized vessel and the throughput ceiling that comes from under-sizing too aggressively at the outset.

Accounting for Working Volume Versus Total Capacity

A jacketed agitated reactor's total volume and its usable working volume are not the same number, and confusing them is a frequent specification error. Most processes require headspace for agitation, foaming, or gas evolution, meaning the practical batch size is typically 70-80% of the vessel's rated capacity. Sizing a jacketed agitated reactor without accounting for this margin often results in a vessel that technically holds the target volume but can't actually run it safely.

Matching Reaction Type to Vessel Configuration

Different reaction types place different demands on vessel geometry. A jacketed agitated reactor used primarily for distillation and reflux benefits from a taller, narrower profile that supports vapor-liquid separation, while a vessel used mainly for slurry reactions or crystallization often performs better with a wider base that supports settling and discharge. Defining the primary process before finalizing dimensions keeps the jacketed agitated reactor matched to its actual duty cycle.

Planning for Multi-Purpose Use from the Outset

Many production teams eventually use a single jacketed agitated reactor across several different processes rather than one fixed application. Specifying modular flange connections, such as a standard five-neck lid configuration, at the sizing stage lets the same vessel later accept condensers, dropping funnels, temperature probes, or vacuum lines without a redesign, protecting the value of the initial equipment investment as process needs evolve.

Key Factors Affecting Jacketed Reactor Sizing

Case Study: Sizing for a South American Fermentation Process

A South American biopharmaceutical company needed a jacketed agitated reactor sized correctly for a fermentation process where undersized agitation had previously limited dissolved-oxygen transfer and extended cycle time.

Bioland Instrument specified a 50L double-layer jacketed agitated reactor with a redesigned agitator geometry matched to the fermentation broth's viscosity and gas-transfer requirements, rather than defaulting to a standard catalog agitator profile.

The correctly sized configuration improved dissolved-oxygen efficiency by roughly 30% and shortened the fermentation cycle, demonstrating how agitator sizing decisions matter as much as overall vessel volume when specifying a jacketed agitated reactor for biological processes.

Chemical Compatibility and Material Selection

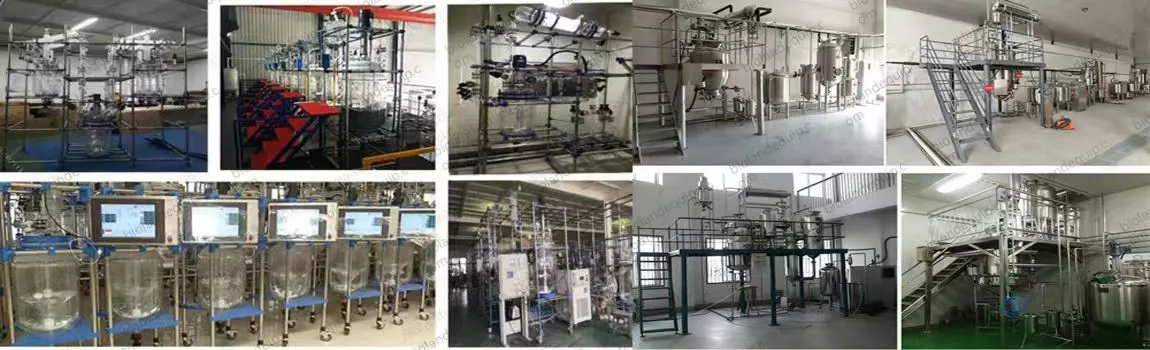

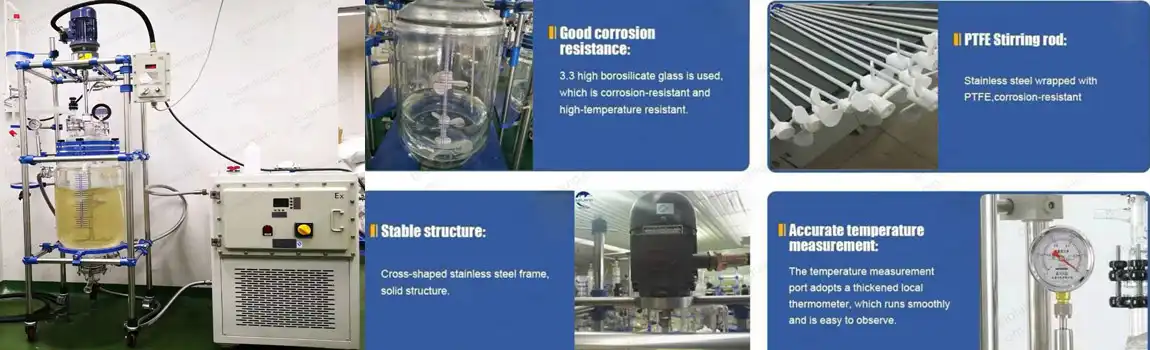

Sizing a jacketed agitated reactor isn't only about volume; material selection directly affects how large a vessel needs to be for a given throughput. GG17 high-borosilicate glass resists strong acid, alkali, and organic solvent attack without introducing metal-ion contamination, which for many pharmaceutical and fine-chemical applications eliminates the need to oversize a vessel to compensate for anticipated corrosion-related capacity loss over its service life.

Explosion-Proof Requirements and Hazard Classification

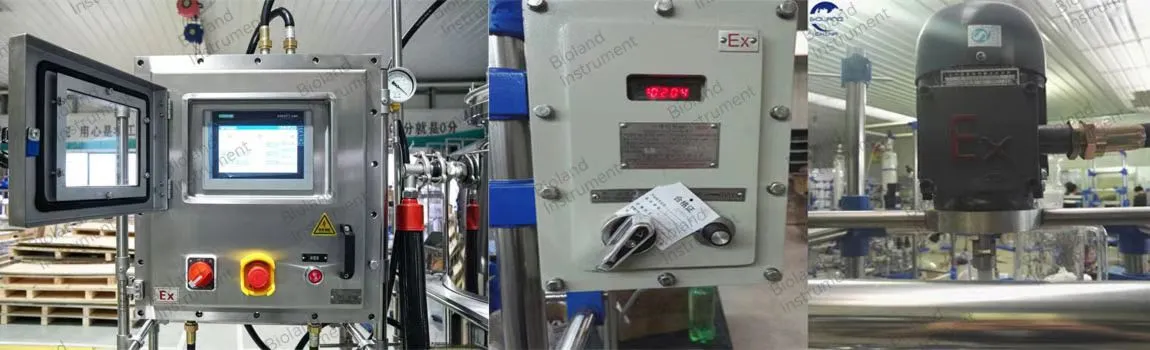

Processes involving flammable solvents or reactive intermediates often require an explosion-proof jacketed agitated reactor rated to standards such as ExdIIBT4, and this classification can influence achievable vessel size and configuration options. Identifying hazard classification early in the sizing process prevents a mismatch between the vessel ordered and the safety rating the actual production environment requires.

Automation Level and Its Effect on Practical Capacity

The level of automation specified for a jacketed agitated reactor, from manual operation through full PLC control, affects how efficiently a given vessel size can actually be run. A highly automated jacketed agitated reactor can often support a tighter batch cycle at a given volume than a manually operated one, meaning automation level and vessel size should be considered together rather than as separate purchasing decisions.

Calculating Heat Transfer Needs for Reactor Design

Jacket Surface Area and Heat Transfer Capacity

Heat transfer capacity depends on jacket surface area relative to batch volume, not on total vessel volume alone. A jacketed agitated reactor with a larger diameter-to-height ratio typically offers more jacket surface area per liter of batch than a tall, narrow vessel of the same volume, which matters significantly for exothermic reactions that need rapid heat removal to stay within a safe operating window.

Temperature Range Requirements Across the Process

Before finalizing jacket design, process teams should map out the full temperature range a jacketed agitated reactor will need to support across every stage of the synthesis, not just the primary reaction step. A vessel rated from -80°C to 300°C gives enough range to handle low-temperature crystallization, ambient-temperature reaction, and high-temperature reflux within a single jacketed agitated reactor, avoiding the need to transfer material between separate temperature-controlled vessels.

Vacuum System Sizing for Evaporation-Dependent Processes

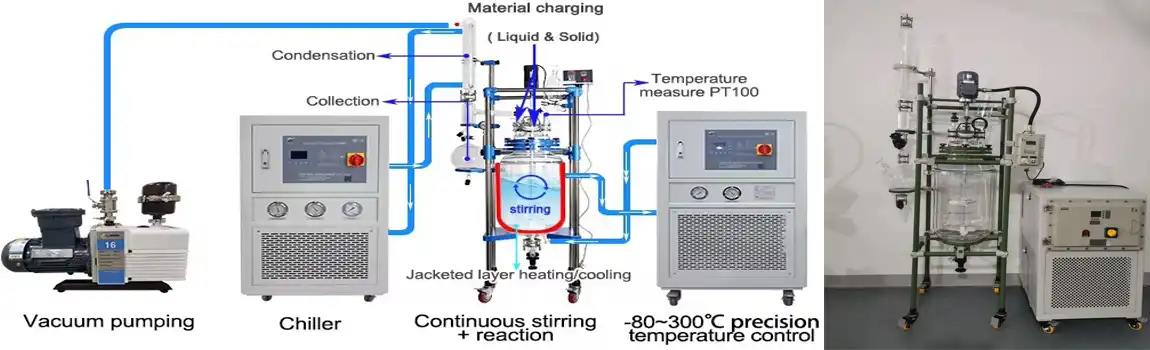

For processes that depend on controlled evaporation or distillation, the vacuum system paired with a jacketed agitated reactor needs to be sized alongside the vessel itself. A system capable of reaching around -0.095 MPa strengthens evaporation and reflux efficiency, and undersizing the vacuum capacity relative to reactor volume is a common reason a properly sized jacketed agitated reactor still underperforms on distillation-heavy processes.

Case Study: Heat Transfer Demands in Precious Metal Extraction

A European precious-metal processor needed jacketed agitated reactor systems sized specifically for the heat transfer demands of a corrosive, high-throughput extraction process that their previous undersized equipment could not support.

Bioland Instrument specified four 200L explosion-proof double-layer jacketed agitated reactors alongside nine 50L rotary evaporators, engineered to ExdIIBT4 standards and sized to match the required extraction throughput and thermal load.

The correctly matched heat transfer capacity helped the customer increase annual capacity by roughly 30% and log more than 1,000 fault-free operating hours, illustrating how heat transfer sizing decisions directly affect long-term production reliability.

Optimizing Reactor Size for Better Performance

Building in Capacity for Future Scale-Up

A jacketed agitated reactor sized only for today's batch volume can become a bottleneck as demand grows. Where budget allows, specifying a vessel with modest headroom above current requirements, alongside modular configuration options, often proves more cost-effective than replacing an undersized jacketed agitated reactor entirely once production scales beyond its original design capacity.

Balancing Agitation Efficiency Against Vessel Size

Larger vessels don't automatically deliver proportionally better mixing, and agitator design needs to scale appropriately with vessel diameter to maintain mixing quality. A jacketed agitated reactor specified with variable-frequency agitation control lets operators fine-tune mixing intensity as batch size changes, keeping performance consistent even as a process moves from a smaller pilot vessel toward a larger production-scale unit.

Customization Pathways for Non-Standard Sizing Needs

Because standard catalog sizes rarely match every process exactly, a jacketed agitated reactor from Bioland Instrument can be customized in size, shape, material, and internal structure to fit specific requirements. Available options include fully explosion-proof systems, PLC-controlled automation, integrated temperature-control units, lifting and rotating designs, filtration and crystallization modules, and fractionating columns, letting engineers size the vessel around the process rather than adjusting the process to fit a fixed size.

Verification and Documentation Before Full-Scale Deployment

Before committing a newly sized jacketed agitated reactor to full production, confirming CE and ISO certification and GMP/FDA-aligned manufacturing practices protects against costly rework later. Bioland Instrument assigns a dedicated specialist to track production weekly with photos or video, offers an optional Factory Acceptance Test at our facility, and backs every jacketed agitated reactor with a one-year warranty and lifetime maintenance access.

Conclusion

Sizing a jacketed agitated reactor correctly means working through batch volume, working-volume margins, heat transfer area, temperature range, and future scale-up needs together rather than in isolation. As the fermentation and precious-metal case studies show, correct sizing directly improves efficiency, throughput, and long-term reliability. Bioland Instrument supports this process with engineering consultation, full customization, and certified manufacturing behind every jacketed agitated reactor delivered.

FAQ

1. How do I determine the right volume for my jacketed agitated reactor?

Start with target batch output, desired frequency, and working-volume margin (typically 70-80% of rated capacity) rather than choosing directly from catalog sizes.

2. What temperature range should I plan for?

Map every process stage first; most jacketed agitated reactor jackets support -80°C to 300°C, covering crystallization through high-temperature reflux in one vessel.

3. Does vessel diameter affect heat transfer performance?

Yes, a wider diameter-to-height ratio typically increases jacket surface area relative to batch volume, improving heat transfer capacity for exothermic reactions.

4. Can a jacketed agitated reactor be resized later through customization?

While the vessel itself is fixed once built, Bioland Instrument can customize configuration, automation, and accessories to extend usable capability as needs change.

5. How does automation level affect practical reactor capacity?

A more automated jacketed agitated reactor can typically support tighter batch cycles at a given volume than a manually operated unit of the same size.
