A glass reactor system is only as good as the people who use it. Any process engineer who has run a synthesis, distillation, or crystallization batch on borosilicate glassware knows this. The five things that most often stop a production run are vacuum leaks, temperature drift, weak stirring, broken vessels, and worn seals. Each of these can slowly lower yield, purity, and safety long before it's noticeable on the shop floor. The glass reactor system line from Xi'an Bioland Instrument is designed to have fewer failure points. Its GG17 borosilicate construction, dual-jacket temperature control from -80°C to 200°C, PTFE double sealing, and explosion-proof, PLC-automated configurations all work together to keep pharmaceutical, fine chemical, and pilot-scale operators running for longer periods of time without stopping. This guide shows you why these five issues happen, how to fix each one, and how designing equipment in the right way can stop most of them from happening in the first place.
A lot of problems happen when a facility tries to use normal glasses for a lab recipe that wasn't made for the higher pressure, temperature, or acidic load. For high-vacuum solvent recovery or strong-acid synthesis, a glass reactor system that is made for simple aqueous mixing doesn't work well. This mismatch shows up as leaks, cracked flanges, or inconsistent yields in the first few production cycles.
There are different types of wear and tear on the mechanical, thermal, and vacuum parts of glass reactor systems. Small problems, like a PTFE seal that is tightening up or a ground-glass joint that is just a little loose, can add up to full stoppages when maintenance is reactive instead of planned. Most wear and tear is caught before it affects a lot by eye checks done once a week and a written maintenance log.
Glass jars, on the other hand, need to be heated and cooled at controlled rates, clamps need to be tightened to the right pressure, and filling must be done carefully to avoid stress points. Operators who have only worked with metal reactors tend to overtighten valves or raise the temperature too fast, which are two of the main reasons for the five issues below.

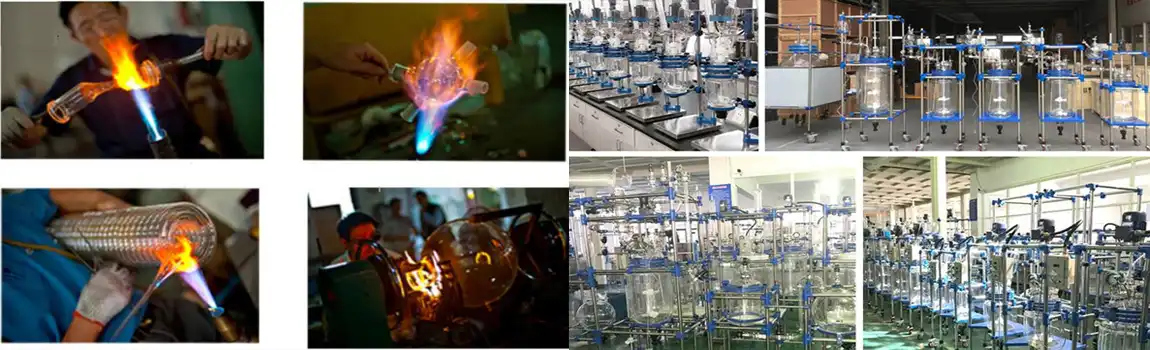

With more than 15 years of experience, Xi'an Bioland Instrument Co.,Ltd. is a professional company that designs and makes equipment for drying, heating, cooling, isolating, separating, filtration, purification, crystallization, emulsification, mixing, and distillation. They also sell equipment for vacuums, heating, and concentration. Many clients use non-standard duty cycles, like constant reflux, oxygen-sensitive synthesis, or repeated freeze-thaw cycling. This makes equipment that wasn't designed for those specific rhythms much more likely to break down in the ways this piece talks about.
Most problems with glass reactor systems are caused by vacuum leaks, which usually happen at ground-glass joints, PTFE stopcocks, or flange gaskets instead of the vessel itself. A pressure hold-test, which involves separating the system and watching the pressure drop over ten to fifteen minutes, quickly pinpoints the leak to a certain area before any parts are taken apart.
A biotech company in South America wanted a synthesis line that was close to fermentation and could keep a deep vacuum without letting air in. Bioland Instrument made a 50L double-layer glass reactor system just for us. It has a better stirrer design and stronger PTFE double closing. The new seals improved the accuracy of controlling dissolved oxygen and shortened the fermentation cycle. This gave the client a consistent, clean environment for making sensitive intermediates.
Standard rubber O-rings break down quickly in solvents, so a properly designed glass reactor system uses PTFE or fluoroelastomer seals that are right for the chemicals being used. When you tighten flange bolts in a star pattern instead of going around the circumference one by one, the clamping force is spread out evenly and there are no micro-gaps that let vacuum escape slowly over weeks of use.
Facilities that log vacuum hold-time weekly catch seal degradation long before it interrupts a batch. Bioland's dual-jacket glass reactor systems are rated to below -0.095 MPa, and clients who track this figure against baseline readings can schedule seal replacement proactively rather than after a failed run.
Temperature inaccuracy usually stems from an undersized heat-transfer fluid circuit, a poorly insulated jacket connection, or a sensor placed too far from the reaction zone. In a glass reactor system, the double-jacket design should carry oil or ethanol as the heat-transfer medium in a closed loop, and any air pocket or restriction in that loop causes uneven temperature response across the vessel wall.
Bioland's glass reactor system uses a dual-jacket structure supporting a working range of -80°C to 300°C, paired with PT100 sensors mounted close to the reaction mass rather than only in the jacket line. This combination lets operators track true batch temperature instead of jacket temperature, which is critical for exothermic reactions where a few degrees of lag can trigger runaway conditions.
A European precious-metals client needed reliable low-temperature control for solvent extraction and refining but was limited by older equipment offering only narrow, imprecise temperature bands. Bioland Instrument delivered four sets of customized 200L explosion-proof double-layer glass reactor systems along with nine 50L explosion-proof rotary evaporators, rated to ExdIIBT4 explosion-proof standards. The precise -80°C to 200°C control let the client run corrosive, high-value extraction batches with confidence, cutting delivery time by 40% through modular production and bringing the client into operation fifteen days ahead of schedule.
Rapid temperature swings stress both the glass and the reaction chemistry. Programming gradual ramp rates through a PLC-integrated glass reactor system protects against thermal shock cracking while also improving reaction selectivity and product consistency batch after batch.
Poor mixing typically traces back to an agitator geometry mismatched with fluid viscosity, an underpowered variable-frequency motor, or a shaft seal that has begun to bind. In a glass reactor system, visible swirling patterns through the transparent vessel wall make this diagnosis far easier than with an opaque stainless tank, since operators can watch dead zones form in real time.
Anchor, paddle, and turbine impellers each suit different viscosity ranges, and Bioland's glass reactor system line offers configurable stirrer types precisely so that low-viscosity solvent recovery and high-viscosity paste mixing can both be handled without buying separate equipment. A spark-free, variable-frequency motor further allows fine speed adjustment to match evolving batch conditions.
Returning to the South American fermentation project referenced above, the client's original agitator geometry could not achieve adequate dissolved-oxygen transfer for their biological synthesis step. Bioland's engineering team redesigned the impeller profile within the same 50L double-layer glass reactor system footprint, improving dissolved-oxygen efficiency by roughly 30% and directly shortening total cycle time while protecting the purity of oxidation-sensitive intermediates.
Ceramic bearings and mechanical seals on the stirrer shaft resist wear and prevent contamination from entering the reaction mass, but only if inspected on a fixed interval. Scheduling a quarterly check of shaft alignment and coupling tightness keeps agitation performance consistent across the reactor's service life.
Cracked or chipped glass components are almost always traceable to thermal shock from rapid heating or cooling, or to mechanical stress from over-tightened clamps and misaligned lifting mechanisms. Because a glass reactor system is a transparent, all-in-one platform for reaction, distillation, extraction, condensation, and vacuum operation, any structural weakness in one component can compromise the integrity of the entire assembly.

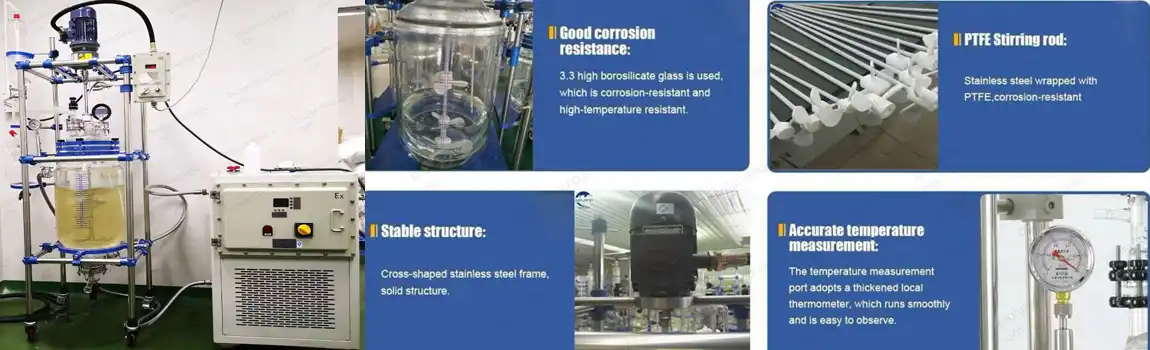

Bioland's glass reactor system is built from GG17 borosilicate glass, chosen specifically for resistance to strong acids, strong bases, and organic solvents without leaching metal ions into the batch — an essential property for pharmaceutical intermediates and other high-purity synthesis work. Combined with programmed temperature ramping, this construction dramatically reduces the incidence of stress cracking over years of repeated heating and cooling cycles.
A chemical intermediates manufacturer needed vessels able to withstand continuous exposure to nitric acid and acidified glycerin lines without pitting or contamination. Bioland's customized glass reactor systems, built around GG17 construction, have since supported this client's nitric acid production line, an acidified glycerin process, and downstream production for overseas pharmaceutical partners, demonstrating consistent corrosion resistance across multiple aggressive chemistries.
Bioland's lifting and rotating structural design simplifies loading, unloading, and cleaning, which removes much of the manual handling risk that causes chips and hairline cracks in older manual systems. Using load-rated clamps sized to the specific flange, rather than generic hardware, further protects the glass from uneven stress during routine operation.
Slow vacuum decay, a faint burning smell near the stirrer motor, or a gradual rise in agitator noise are the earliest indicators of seal or bearing wear in a glass reactor system. Catching these signs during routine visual inspection avoids the more costly failure of a seized shaft or a mid-batch seal blowout.

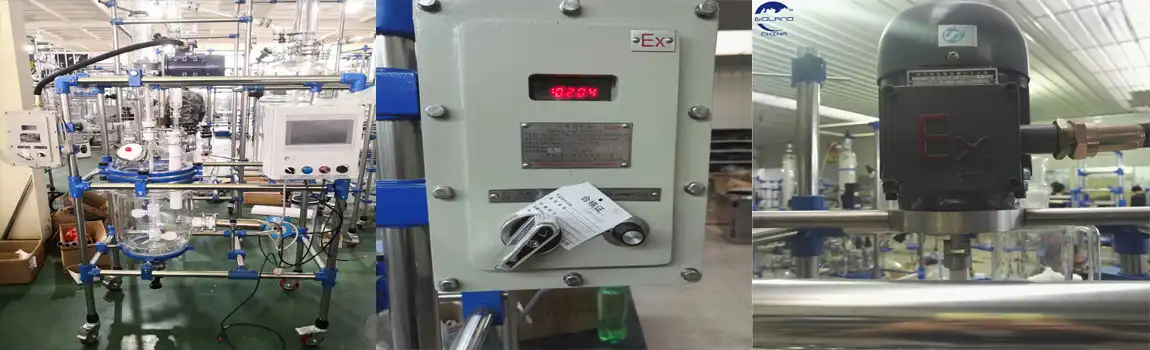

Bioland's glass reactor system pairs PTFE double sealing with a spark-free, low-noise variable-frequency motor, a combination that extends component life while meeting safety requirements for flammable-solvent environments. Because PTFE resists nearly all process chemistries used in synthesis and extraction, seal replacement intervals are longer and more predictable than with standard elastomer seals.
A practical maintenance rhythm includes weekly visual inspection of seals and gaskets, monthly vacuum hold-time testing, and an annual full teardown of the agitator shaft and bearing assembly. Facilities that follow this cadence on their glass reactor system consistently report fewer unplanned stoppages and longer intervals between part replacement.
Our company is CE and ISO certified, with an in-house R&D team boasting years of engineering experience, and every customized glass reactor system comes with a one-year quality warranty plus lifetime maintenance support. During production, a dedicated specialist tracks progress weekly with photos or videos so clients can follow build quality before shipment, and clients may also schedule a Factory Acceptance Test at our facility once the equipment is ready for inspection.
Because customized products typically carry a lead time and non-customized spare parts are generally available faster, keeping a small inventory of PTFE gaskets, O-rings, and stopcock seals on-site prevents a worn component from turning into extended downtime while a replacement part ships.
A glass reactor system delivers its full value only when vacuum integrity, temperature accuracy, agitation, glass condition, and seal health are actively managed rather than left to chance. Bioland Instrument's GG17 borosilicate construction, dual-jacket temperature control, PTFE double sealing, and customizable agitator and automation options are engineered to prevent these five problems from recurring, while our weekly production updates, one-year warranty, and lifetime maintenance support keep pharmaceutical, chemical, and pilot-scale operators running with fewer interruptions and greater confidence in every batch.
Most leaks originate at ground-glass joints, stopcocks, or flange gaskets rather than the vessel itself, and are usually resolved with correctly matched PTFE seals and even bolt-torque sequencing.
It circulates heat-transfer fluid around the vessel independently of the reaction mass, allowing precise control from -80°C to 300°C and reducing the lag that causes overshoot or drift.
Yes, Bioland offers anchor, paddle, and turbine impeller options so agitation can be matched to fluid viscosity without changing the reactor footprint.
GG17 resists strong acids, bases, and solvents without leaching metal ions, which protects purity in pharmaceutical and fine chemical synthesis.
Weekly visual checks, monthly vacuum hold-time tests, and an annual bearing and shaft inspection catch wear before it causes unplanned downtime.
If vacuum leaks, temperature drift, weak mixing, glass damage, or seal wear are slowing down your production line, Bioland Instrument can help you solve it with a customized glass reactor system built around your exact chemistry, volume, and duty cycle. With more than 15 years of manufacturing experience, CE and ISO certification, GMP/FDA-compliant construction, and full OEM/ODM support, our engineering team designs reactors that are easier to maintain and far less prone to the five issues covered in this article. Every order includes weekly production updates with photos or videos, a one-year quality warranty, lifetime maintenance support, and the option to schedule a Factory Acceptance Test before shipment.
Whether you need a single benchtop 5L unit or a fully automated, explosion-proof 200L pilot-scale system, our team will help you specify the right configuration at a competitive price. Contact Bioland Instrument today at info@biolandequip.com to discuss your process challenges and get a customized glass reactor system solution built for reliable, long-term operation.
