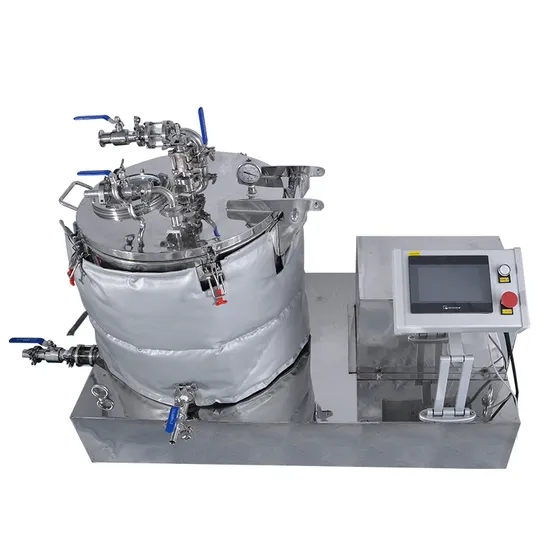

Xi'an Bioland's hemp extraction centrifuge is a big step forward in the way plants are processed by separating solids from liquids. Our method uses both high-speed rotational force and cryogenic ethanol extraction to get CBD, THC, and terpenes back very efficiently. With SS316L material-contact parts and electrical systems that can't explode, this product can keep temperatures between -50°C and 50°C and collect more than 97% of the solvent. With speeds of up to 4000 rpm and processing rates of 15 to 220 lbs per batch, you'll get more done in less time, need less winterization, and consistently produce high-purity crude oil. Our fully sealed, closed-loop PLC-controlled technology keeps operators safe in dangerous settings.
When you work with Xi'an Bioland Instrument, you get more than just tools. You get a committed partner with over 15 years of experience extracting plants.
CE & ISO Certified Excellence
The way we handle quality meets standards around the world. You can feel safe knowing that every unit goes through strict tests before it is sent out.
Customization That Fits Your Process
There are no two mining activities that are the same. Our in-house research and development team works with you to make changes to the materials, temperatures, limits, and levels of automation. We'll build a solution for you, whether you need help with cold winterization or gentle terpene preservation modes.
Transparent Production Tracking
You'll always know where your order is. Our hardworking experts send weekly picture and video updates while the products are being made. You can either plan a Factory Acceptance Test at our site or get all the paperwork you need to sign off on before the shipment.
Fast Turnaround & Flexible Logistics
It takes 5–7 days to ship standard models. In 30 working days, you can get customizations. We plan your sea, train, and air freight so that it gets to you on time.
Lifetime Support Commitment
All of our parts are covered by our one-year guarantee, and we offer upkeep services for life. You can get technical help by email, which will make sure that your business goes smoothly every year.
|
Main parameters |
BL-C15 |
BL-C30 |
BL-C50 |
BL-C110 |
BL-C160 |
BL-C220 |
|
Vessel diameter(inch) |
12 |
18 |
24 |
32 |
40 |
47 |
|
Vessel volume(L) |
18 |
48 |
110 |
251 |
393 |
565 |
|
batch（lbs） |
15 |
30 |
50 |
110 |
160 |
220 |
|
Alcohol solvent (L) |
57 |
110 |
201 |
377 |
546 |
745 |
|
Standard Max speed(r/min) |
3000 |
2000 |
1500 |
1000 |
900 |
700 |
|
Optional 1： speed |
4000 |
3000 |
2000 |
1500 |
1200 |
1000 |
|
Main motor power (kw) |
2.2/3 |
3/4 |
5.5/7.5 |
7.5/11 |
11.0/15 |
18.5/22 |
|
Vessel load-bearing (lbs) |
25 |
50 |
100 |
320 |
450 |
540 |
|
Dimension (L*W*H)mm |
850*610*900 |
980*680*1000 |
980*680*1000 |
1700*1200*1500 |
1970*1400*1500 |
2200*1700*1500 |
|
Machine weight(kg) |
300 |
500 |
800 |
1400 |
1900 |
2500 |
|
Optional functions are as follows: |
||||||
|
Optional 1 |
Speed can be increased, depending on customer needs. |
|||||
|
Optional 2 |
Fully automatic type: Replace all electric valves, electric encoders, gas control cabinets, etc. For specific technology |
|||||
|
Optional 3 |
PLC operation screen. explosion-proof requirements, electric control cabinet |
|||||
|
Optional 4 |
Whole machine use 316L material. |
|||||
The hemp extraction centrifuge operates on advanced solid-liquid separation mechanics optimized for botanical compounds.
Phase 1: Cryogenic Washing
Alcohol that has already been chilled to -40°C to -80°C fills the biomass room. The system starts a gentle two-way mixing motion, which brings the liquid and plant material into close touch. With this controlled instability, cannabinoids and terpenes are stripped away, and the freezing temperature keeps fats and waxes solid, so they don't dissolve.
Phase 2: High-Speed Separation
When the extraction is done, the Variable Frequency Drive speeds up to its highest speed. The cannabinoid-rich liquid is pushed through the filter mesh by centrifugal forces (1000–2000 x g), which also press the biomass against the room wall. The mechanical process squeezes the remaining solvent out of the plant fibres, recovering more than 97% of the liquid.
Phase 3: Discharge & Recovery
The cleaned extract drains into your gathering jar through the valve at the bottom. The used biomass stays dry and small in the filter bag, and it can be easily removed by opening the zipper. All vapour is collected by the closed-loop design, which keeps your team safe and your liquid store full.

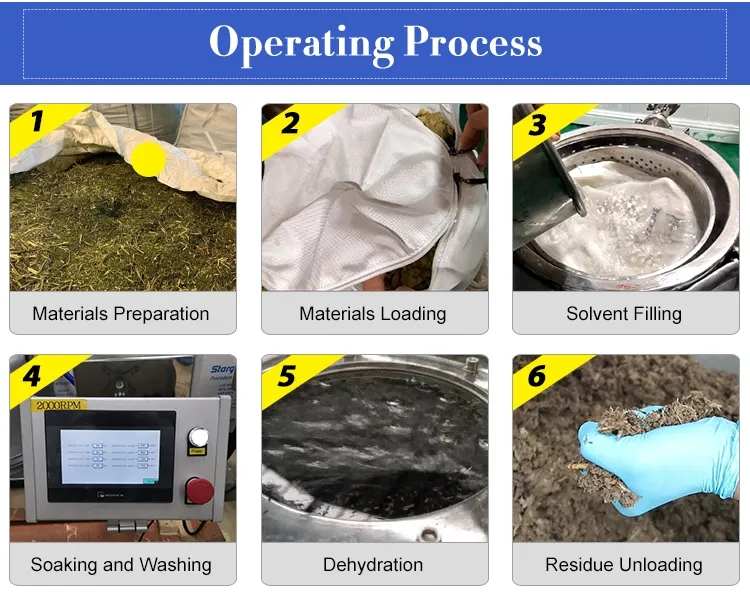

Step 1: Preparation
Put the dried, ground hemp material into the filter bag with the zipper. Close the lid and put the bag inside the jacketed room.
Step 2: Solvent Introduction
Chill your ethanol ahead of time to the temperature you want. Add liquid to the chamber until all of the biomass is covered with it. You can check coverage in the viewing window.
Step 3: Extraction Cycle
On the PLC interface, set the wash time, which is usually between 5 and 15 minutes. The system does preset forward and backward spins at a slow speed, which maximizes compound transfer without picking up too much chlorophyll.
Step 4: Separation Cycle
When the VFD senses high-speed spin, it speeds up instantly. Look out the window to see the liquid clear up and drain. Vibration sensors constantly check the balance and make any necessary adjustments automatically.
Step 5: Biomass Removal
You can open the lid and take the filter bag off. The dry biomass cake comes out easily and can be thrown away or used for more processing.
Step 6: CIP Cleaning
Use the built-in spray tubes to fill the chamber with new cleaning or chemical solution. This keeps GMP compliance between runs without having to scrub by hand.
Your product excels across diverse production scenarios:
Industrial CBD/THC Manufacturing
In high-volume operations, several units work together to handle hundreds of pounds per shift. The short cycle time and high liquid recovery have a direct effect on your bottom line, lowering your costs and raising your output.
Craft Full-Spectrum Production
Full-spectrum oils that are high in terpenes are what boutique brands want. To get hold of delicate chemical compounds, work at very low temperatures with gentle stirring. The strain descriptions on your high-end vape cartridges and medicines will be accurate.
Cryogenic Winterization
The centrifuge is used for further preparation of fresh extracts. Keeping cold chains from breaking makes sure that temperature-sensitive waxes and lipids stay solid during separation. This means that cleaner winterized oil can be obtained with fewer runs.
Herbal Supplement Extraction
In addition to cannabis, you can prepare plant materials to make food, cosmetics, and supplements. The design is clean and meets food-grade standards, and the settings can be changed to fit different plant patterns.
Research & Development
Lab-scale method creation is helped by small-batch models. Before scaling up to production, test different types of solvents, temperatures, and time factors to make sure the technology shift goes smoothly.
We at Xi'an Bioland Instrument are committed to meeting foreign manufacturing standards, as shown by our CE and ISO quality management system certifications. For pharmaceutical and food-grade uses, all of the equipment follows GMP/FDA standards.
Our electrical systems are safe to use in dangerous places with explosive solvents because they meet NEC Article 500 (Class 1, Division 1) and IECEx zone standards.

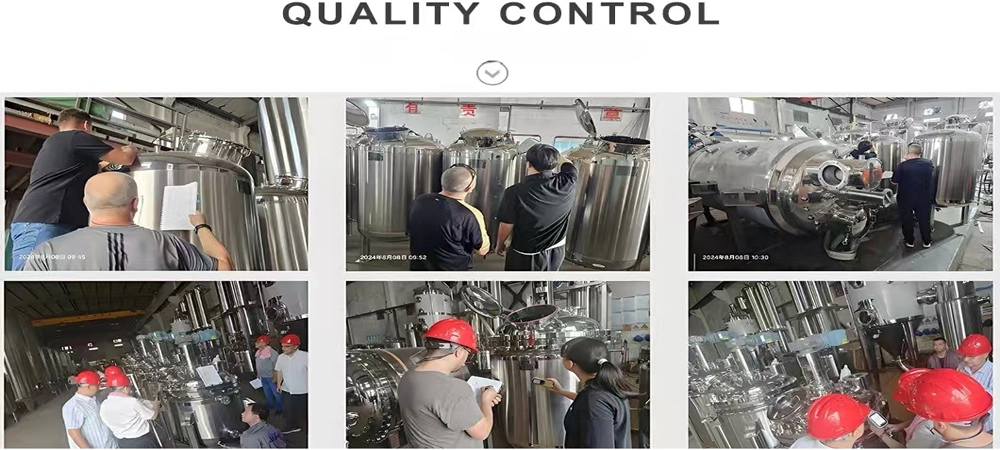

Before it is shipped, every unit goes through a thorough process called "Factory Acceptance Testing." Detailed records are kept for regulatory compliance and equipment proof.
Q: What solvents can I use with this centrifuge?
A: The system is optimized for ethanol but also handles isopropanol, methanol, and hydrocarbon blends. Material selection (SS316L) provides excellent chemical resistance.
Q: How do you prevent biomass imbalance during high-speed spinning?
A: Advanced suspension systems (pneumatic or spring-dampened) and vibration sensors interface with the PLC. If imbalance exceeds safety thresholds, the system automatically slows or stops for redistribution.
Q: Can I integrate this with my existing extraction line?
A: Absolutely. We'll provide custom inlet/outlet configurations, automation protocols, and mounting specifications to match your facility layout and control architecture.
Q: What's included in the one-year warranty?
A: All mechanical, electrical, and control components are covered. We provide replacement parts and remote troubleshooting. Lifetime maintenance ensures long-term support beyond warranty expiration.
Q: Do you offer training for operators?
A: Yes. We provide detailed operation manuals, video tutorials, and can arrange on-site or remote training sessions to ensure your team operates the equipment safely and efficiently.
Q: How do I maintain cryogenic temperatures during operation?
A: The jacketed vessel connects to your facility chiller. Vacuum insulation minimizes heat transfer. We'll specify the required cooling capacity based on your batch size and cycle time.
