Thick slurries, polymer melts, and thick fermentation broths are hard on standard reaction equipment. Agitators stop working, heat transfer slows down, and mixing becomes uneven before the batch even gets to its finish. A lot of companies don't find out about these limits until after a standard reactor fails at a viscous process it wasn't made to handle. For these tough conditions, a borosilicate glass reactor with dual-jacket heat transfer, stronger stirring, and GG17 glass construction is the best choice. For more than 15 years, Xi'an Bioland Instrument Co., Ltd. has been working on a borosilicate glass reactor platform that can handle high-viscosity processing in biotech, pharmaceutical, and chemical settings. It combines chemical resistance with agitator designs that work well with thick, tough-to-mix materials. This article talks about the problems that high-viscosity materials cause, the design features that fix those problems, how to choose the best agitation and temperature system, and the long-term dependability factors you should look at before you buy.
When the viscosity is high, flaws are revealed that aren't seen in reactions with a lower viscosity. For example, paddle agitators stop working well, heat has a hard time moving through a thick mass, and dead zones form near the vessel wall where nothing moves at all. If the borosilicate glass reactor wasn't made with these problems in mind, it won't always work as well as its rated capacity says it should. This is because specs tested with fluids like water don't always translate directly to thick, difficult materials.
A borosilicate glass reactor with a standard low-shear paddle often can't create enough shear to keep a thick slurry or polymer melt moving in a regular way. This can cause areas where reaction conditions are different from the rest of the batch to stay still. This uneven mixing leads to uneven product quality, as some parts of the batch may not react enough while other parts respond too much.
We need a more aggressive jacket and circulation design for a borosilicate glass reactor that processes high-viscosity content so that the material doesn't overheat near the vessel wall while the rest of it moves more slowly. This is because thick materials take longer to conduct heat than thin liquids. One of the most common reasons why side reactions happen in viscous synthesis is this difference in temperature between the wall and the core.
For high-viscosity reactions, a borosilicate glass reactor needs a motor with the right rating and a stronger sealing system than one designed for thin liquids. This is because thick materials put more torque demand on the agitator drive and more stress on the shaft seals than normal low-viscosity reactions. In viscous applications, equipment often fails too soon because the load was not estimated correctly.
A biotech business in South America had problems with not enough dissolved oxygen and long fermentation cycles. This was partly because the soup became thicker as the cell density rose. Bioland customized a 50-liter double-layer borosilicate glass reactor with a new agitator that worked better with the thickening broth. This improved the efficiency of dissolved oxygen by about 30%, shortened fermentation cycles, and kept the conditions clean and precisely controlled.
Once the problems are known, the right borosilicate glass reactor design takes care of all of them by choosing the right stirrer, jacket size, and structural support made for thick materials that are hard to work with. If you choose a borosilicate glass reactor that doesn't have these extra features, you'll probably only find the flaw after the equipment is already in use.

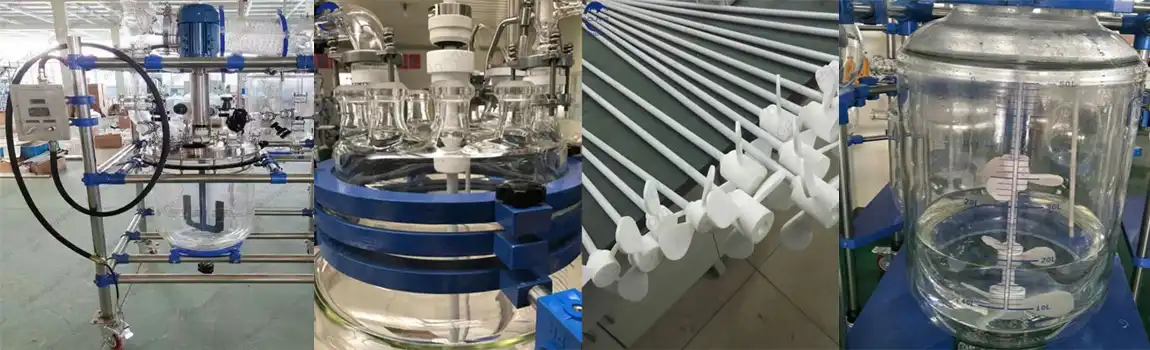

Bioland customizes stirring paddle geometry to the viscosity and reaction type of each client's process, since a paddle tuned for low-viscosity solvent extraction will underperform badly in a thick slurry or polymer mass. A borosilicate glass reactor built for high-viscosity applications typically uses anchor, helical, or multi-blade designs that scrape the vessel wall and push material through the full volume rather than relying on a simple flat paddle.
Because viscous material resists heat movement, a borosilicate glass reactor handling high-viscosity content benefits from a larger jacket surface area relative to batch volume, moving more heat through the vessel wall to compensate for the reaction mass's slower internal conductivity. Bioland's dual-jacket design supports temperatures from roughly -80°C to 300°C, giving enough thermal capacity to manage both the reaction and the added heat transfer resistance of thick material.
High-viscosity batches are harder to load, discharge, and clean than free-flowing liquids, so a borosilicate glass reactor intended for this work benefits from a wide-neck flange and lift-and-rotate lid structure that simplifies handling thick material without excessive manual scraping. This design detail matters as much for daily operation as the agitator itself, since cleaning downtime adds up quickly with sticky or viscous residues.

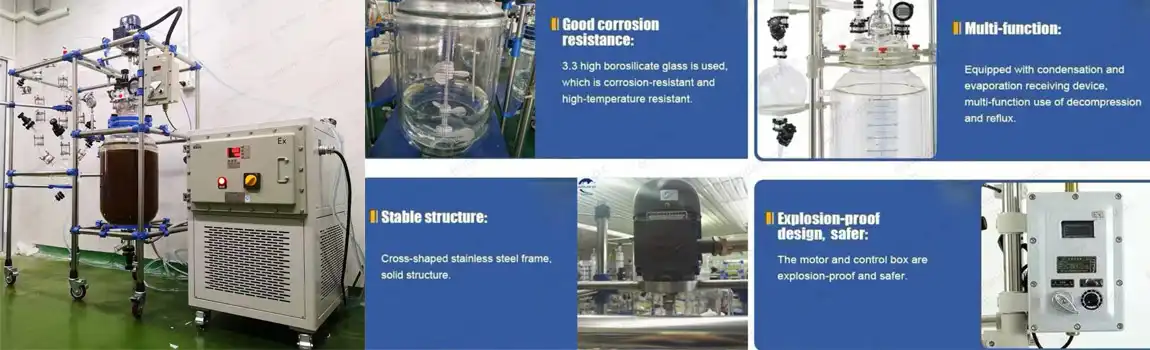

Many high-viscosity processes also involve corrosive solvents or reagents, and GG17 borosilicate glass resists strong acids, strong bases, and organic solvents without leaching metal ions into the product. A borosilicate glass reactor combining this chemical resistance with reinforced agitation covers both the viscosity and corrosion challenges that appear together in fine chemical and pharmaceutical intermediate synthesis.
Matching agitation and temperature control to the specific viscosity and heat sensitivity of a process is where most equipment-selection mistakes happen, since a configuration that works well for one viscous material may underperform for another with different flow behavior. Buyers evaluating a borosilicate glass reactor for the first time often assume a single standard configuration will handle any viscous process, which is rarely true.
Some viscous materials behave as shear-thinning fluids that become easier to mix once agitation begins, while others resist flow more uniformly regardless of shear rate, and a borosilicate glass reactor needs an impeller matched to that specific behavior rather than a generic default. Bioland's engineering team reviews client process data before recommending paddle geometry, since the wrong impeller choice can waste motor capacity without actually improving mixing.
A borosilicate glass reactor processing high-viscosity material needs a motor sized for the actual torque demand of the thickest stage in the process, not just the average viscosity across the batch, since undersized motors stall or overheat when material thickens unexpectedly during reaction or cooling. Bioland's variable-frequency, spark-free drive motors are selected based on projected peak viscosity rather than average conditions.
For processes where crystallization or cooling increases viscosity as the batch proceeds, a borosilicate glass reactor needs cooling and agitation systems that scale together, since a jacket cooling faster than the agitator can handle the resulting thicker material will create uneven crystal formation or localized freezing near the vessel wall. Coordinating these two systems is essential for any process where viscosity changes significantly during the run.
A European precious-metals producer needed to process highly corrosive, increasingly viscous solvent extraction streams that traditional equipment could not scale or mix effectively. Bioland supplied four 200-liter explosion-proof double-layer borosilicate glass reactor units engineered to ExdIIBT4 standards, with agitation and jacket capacity matched to the process's viscosity profile, cutting delivery time by roughly 40% and reaching 1,000+ fault-free operating hours after startup.
Beyond initial process fit, buyers should evaluate how a borosilicate glass reactor will hold up mechanically and operationally across years of repeated high-viscosity production runs. A borosilicate glass reactor that performs well in an initial trial can still fail prematurely if seal quality and drive sizing were not built for sustained, high-torque duty.
Because high-viscosity processing places more strain on shaft seals than typical operations, a borosilicate glass reactor built for long-term reliability should use double-protection sealing — PTFE combined with mechanical seals — to reduce leakage risk and extend service life between maintenance intervals. Skimping on seal quality is one of the most common causes of unplanned downtime in viscous production environments.
Bioland customizes each borosilicate glass reactor in size, shape, material, and internal structure according to a client's specific viscosity range and production volume, including explosion-proof systems, PLC-based automation, integrated temperature control, and lift-and-rotate design configured to order. This non-standard customization matters more for high-viscosity applications than standard reactions, since off-the-shelf configurations rarely match a specific thick-material process well.
Xi'an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider for R&D, production, and sales of distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, and drying equipment, alongside supporting heating, cooling, and vacuum devices, with more than 15 years of experience in the field. Every borosilicate glass reactor carries ISO safety certification and CE marking, is built to GMP/FDA-aligned standards, and is backed by a dedicated specialist tracking weekly production progress with photos or video, plus optional Factory Acceptance Testing before shipment.
A borosilicate glass reactor running high-viscosity production benefits from a maintenance schedule that checks seal condition, agitator wear, and jacket performance more frequently than a standard low-viscosity setup, since mechanical components degrade faster under sustained high-torque operation. Bioland supports this with a one-year warranty, lifetime maintenance access, and sea, rail, or air freight options for replacement parts.
Selecting a borosilicate glass reactor for high-viscosity processing means matching agitator geometry, jacket capacity, and seal durability to the specific material and process rather than defaulting to a standard configuration. Bioland's borosilicate glass reactor platform combines GG17 chemical resistance, reinforced agitation, and dual-jacket heat transfer, backed by 15-plus years of engineering experience and CE/ISO/GMP/FDA-aligned manufacturing, giving pharmaceutical, chemical, and biotech clients equipment built to handle demanding, viscous production reliably.
A: Anchor, helical, or multi-blade designs typically outperform standard flat paddles.
A: Yes, GG17 glass resists strong acids, bases, and solvents while supporting reinforced agitation.
A: Typically -80°C to 300°C depending on jacket configuration.
A: Yes, Bioland customizes size, agitator geometry, and motor capacity per client process.
A: Yes, explosion-proof configurations are available to ExdIIBT4 standards.
If thick slurries, polymer melts, or viscous fermentation broths are pushing your current equipment past its limits, a borosilicate glass reactor from Xi'an Bioland Instrument Co., Ltd. can be engineered specifically for your material. With more than 15 years of experience, CE and ISO certification, and GMP/FDA-aligned manufacturing, we customize agitator geometry, drive motor torque, jacket surface area, and sealing systems around your actual viscosity profile rather than shipping a generic configuration.
Every borosilicate glass reactor order is tracked weekly by a dedicated specialist with photos or video, and Factory Acceptance Testing is available before shipment. Whether you're scaling a viscous fermentation process, handling corrosive high-viscosity solvents, or replacing equipment that keeps stalling under thick material, our engineers can recommend the right configuration for your production volume and budget, backed by full OEM/ODM support. Contact our team at info@biolandequip.com to discuss your process requirements and request a quote on your next borosilicate glass reactor.
1. Paul, E. L., Atiemo-Obeng, V. A., and Kresta, S. M. (Eds.). Handbook of Industrial Mixing: Science and Practice. John Wiley & Sons.
2. Chhabra, R. P., and Richardson, J. F. Non-Newtonian Flow and Applied Rheology. Butterworth-Heinemann.
3. Perry, R. H., and Green, D. W. (Eds.). Perry's Chemical Engineers' Handbook. McGraw-Hill.
4. Incropera, F. P., DeWitt, D. P., Bergman, T. L., and Lavine, A. S. Fundamentals of Heat and Mass Transfer. John Wiley & Sons.
5. Nienow, A. W., Edwards, M. F., and Harnby, N. (Eds.). Mixing in the Process Industries. Butterworth-Heinemann.
6. Levenspiel, O. Chemical Reaction Engineering. John Wiley & Sons.
