Industrial-grade vacuum nutsche filter systems are made by Xi'an Bioland Instrument Co., Ltd. for use in medicinal, chemical, and fine chemical processes. Our closed-system filter equipment separates solids from liquids, washes, and dries by vacuum all in one tank. We have been making high-performance units with negative pressure powers below 0.095 MPa and accurate filtration control for more than 15 years. To meet a range of process needs, these systems are made from high borosilicate glass, ceramic, SS316L/304, or titanium metal. Filtration efficiency goes up a lot, and handling time and prices go down at the same time. GMP-compliant design makes sure that your important applications are safe and that you follow the rules.
Vacuum nutsche filter is my company according to the actual needs of the general biological pharmaceutical development company, on the basis of the existing single-layer glass reaction kettle to improve development of derivative products, mainly used for liquid-liquid extraction, and can be used in normal temperature reaction. Through actual use, superior performance, by experts, professor of Chinese academy of sciences, new drug research and development the user's consistent high praise.

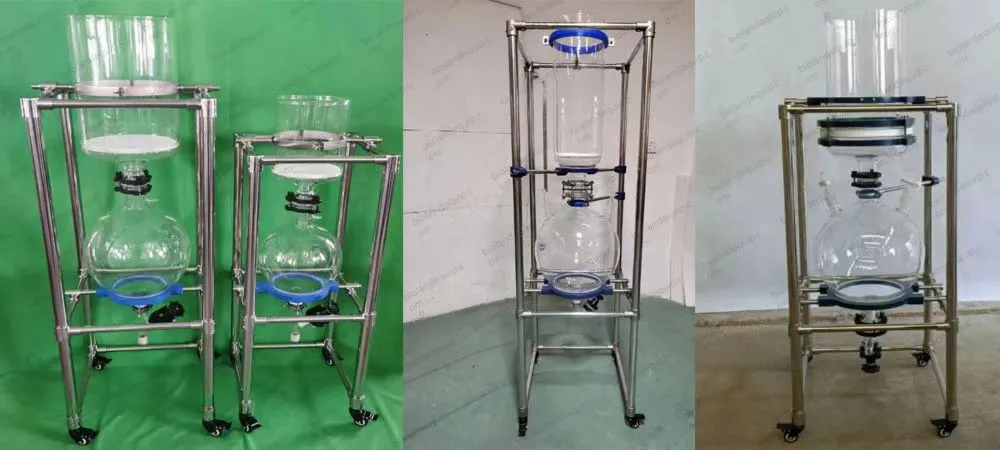

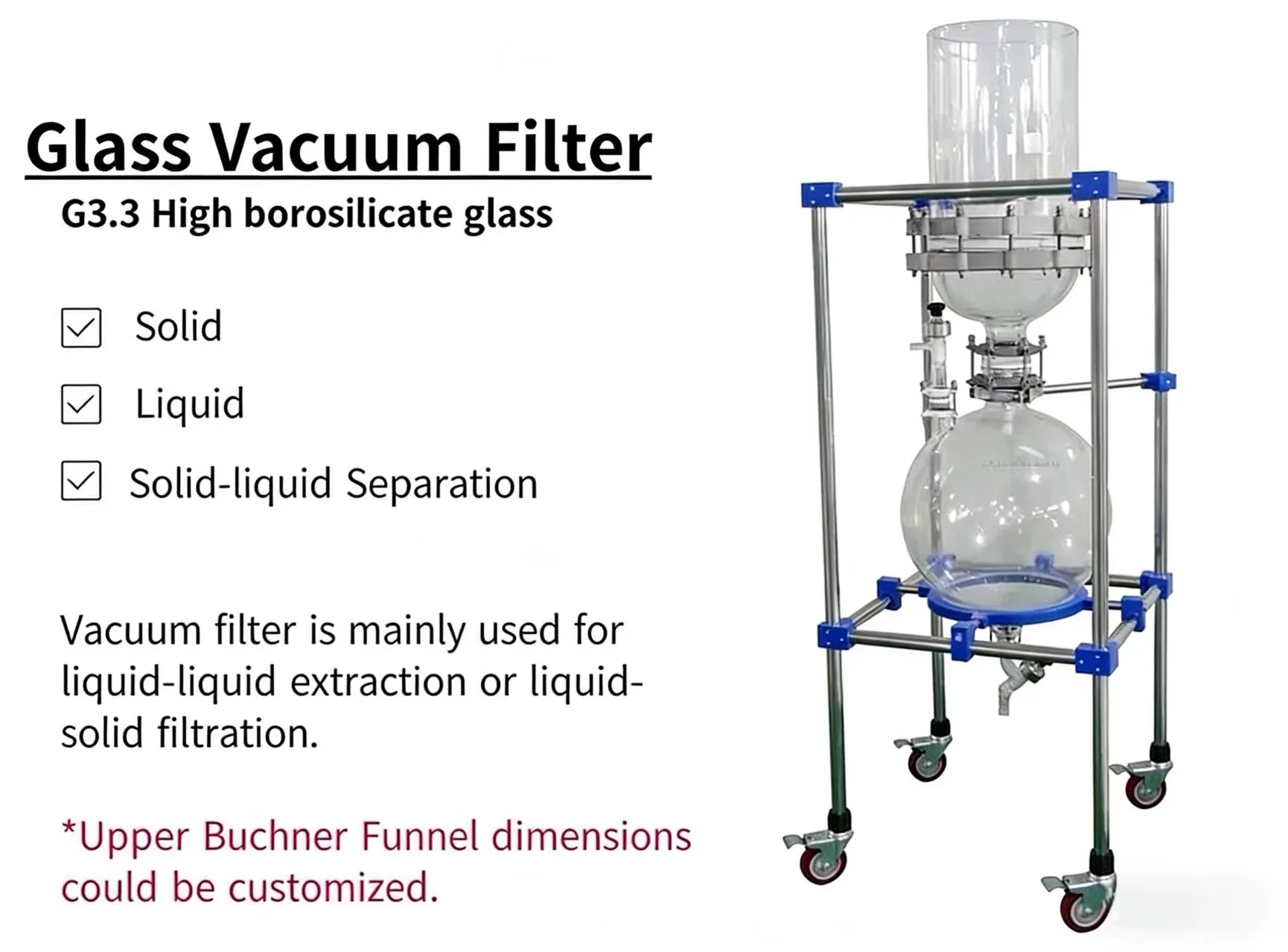

The vacuum nutsche filter is mainly used for liquid-solid filtration under vacuum condition.
Through filtration can be done simply with gravity, more often vacuum filtration is employed because the filtration speed is much faster with high vacuum.
Liquid poured into a funnel passes through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold.
1. High quality Borosilicate glass 3.3 with excellent physical and chemical properties for glass parts
2. Perfect sealing property and no dead corner design for charging solution or power more easily
3. One vacuum valve for connecting vacuum pump for processing vacuum filtration
4. Cost-saving modular design and can be customized by clients'requirements
5. Safe in operation, easy to move around with lockable casters.
Why Choose Us?
ISO & CE Certified Manufacturer
Our extensive quality certifications mean that you can rely on the efficiency of our tools. We protect your investment with a one-year guarantee and free upkeep for life.
Customization Expertise
Our in-house research and development team comes up with custom solutions that meet the needs of your business. You get equipment that is perfectly set up for your needs in terms of size, structure, and filter membranes.
Fast Delivery Timeline
Products that are standard ship in 5 to 7 days. In 30 work days, you can get product pieces that are made just for you. The plan for making things stays on track.
Comprehensive Service Support
We assign specialized specialists to oversee your project from the first meeting through installation and beyond. You get reports on your progress every week with photos or movies.
Flexible Shipping Options
We set up air, rail, and sea freight depending on your price and how quickly you need it. For your peace of mind, Factory Acceptance Testing can be done before the shipment.
OEM & ODM Capabilities
No matter if you need small changes or completely new ideas, our experienced engineering team can make solutions that work perfectly for you.
|
Glass Material |
high borosilicate glass or 304/316SS |
high borosilicate glass or 304/316SS |
high borosilicate glass or 304/316SS |
high borosilicate glass or or 304/316SS |
|
Filter Funnel Size |
φ180*280mm |
φ240*280mm |
DN300x310mm |
DN300x450mm |
|

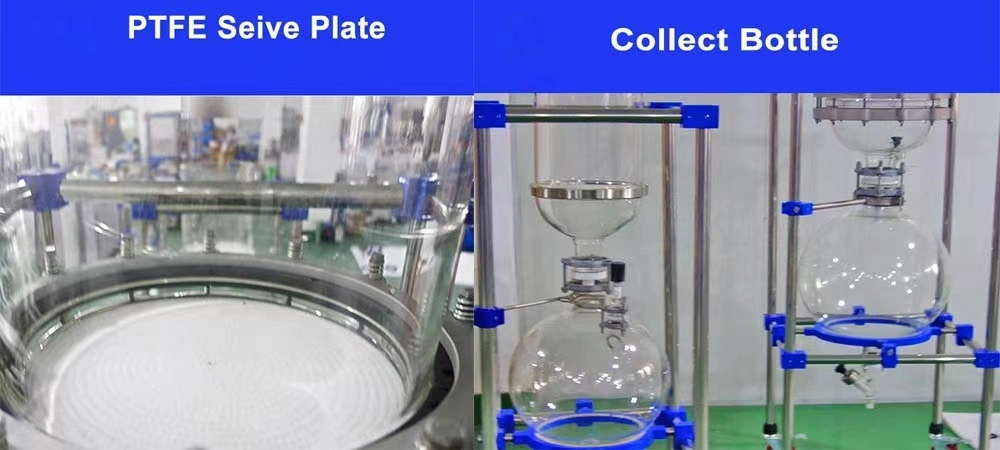

Material and Size of Seive Plate |
PTFE/φ165 |
PTFE/φ230 |
PTFE/φ300 |
PTFE/φ300 |
|
Spherical Collecting Bottle |
10L |
20L |
30L |
50L |
|
Suction Port |
DN50 |
DN50 |
DN50 |
DN50 |
|
Exhaust Port |
φ35 |
φ35 |
DN25 |
DN25 |
|

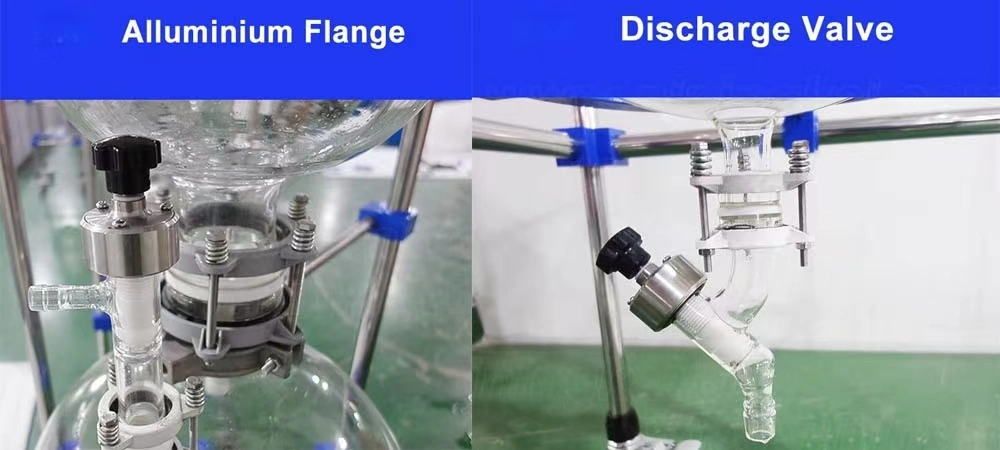

Discharge Value |
DN25 |
DN25 |
DN25 |
DN25 |
|
Discharge Value Distance from Ground |
250mm |
300mm |
300mm |
300mm |
|
Vacuum Degree |
-0.098Mpa |
-0.098Mpa |
-0.098Mpa |
-0.098Mpa |
|
Frame Material |
SUS304 movable framework |
SUS304 movable framework |
SUS304 movable framework |
SUS304 movable framework |
|
The speed of material filtration is related to the following factors: |
||||
|
1.Material characteristics (such as: the size of the material and the fluidity of solid-liquid mixing) |
||||
|
2.The pore size of the filter paper or filter cloth (the pore size is too small to block the flow rate of the filtrate) |
||||
|
3.The size of the filter sieve plate. |
||||
|
4.The vacuum degree of the system. |
||||
Pharmaceutical Industry
Processing Active Pharmaceutical Ingredients (APIs) needs clean surroundings. Our vacuum nutsche filter systems work in a closed system that keeps valuable chemicals safe and meets strict government standards.
Fine Chemicals
Precise control over filtering and material suitability are helpful in the production of specialty chemicals. You get high amounts of purity with little product loss.
Agrochemical Processing
Strong control is needed when working with dangerous chemical intermediates. Your workers stay safe and keep up a high level of output.
Food & Beverage
Food-grade standards are met when extracts are cleaned and ingredients are processed. The stainless steel structure makes sure that the process is clean.
Cosmetics Manufacturing
Filtration and drying at low temperatures are used to keep the qualities of delicate chemicals. The standard of your goods stays high.
New Materials Research
Research and development (R&D) for new materials is helped by lab and pilot-scale units. Configurations that can be changed to fit testing methods.
Our manufacturing facility holds ISO quality management certification and CE safety compliance. Every unit undergoes rigorous testing before shipment:
Your equipment arrives with complete documentation and test certificates. We maintain full traceability for regulatory audits.
Q: How does this equipment differ from traditional open filtration?
A: Closed-system design prevents solvent evaporation and operator exposure. You gain safety, efficiency, and environmental compliance in one unit.
Q: Can the system handle different product types?
A: Yes. Quick-change filter media and material options allow flexible campaign changes. Your production adapts easily to different formulations.
Q: What maintenance does the unit require?
A: Modular construction simplifies disassembly for cleaning. Routine inspection of seals and media maintains optimal performance. Your downtime stays minimal.
Q: How do you ensure the seal doesn't contaminate products?
A: Double mechanical seals with nitrogen barriers trap any wear particles. Your product remains pure and meets GMP standards.
Q: What determines drying speed?
A: Heat transfer area, vacuum depth, and agitation effectiveness combine for rapid drying. Our design heats the jacket, plate, and agitator for maximum efficiency.
Q: Do you provide installation support?
A: Absolutely. Our technical team guides installation and commissioning. Training ensures your operators use the equipment effectively.
Ready to enhance your filtration process with vacuum nutsche filter? Contact our team at info@biolandequip.com for customized solutions and technical consultation today.
