Jul 20, 2026
Peptide chemists running solid-phase synthesis in open glass flasks or basic round-bottom vessels know the routine: manual coupling checks, repeated transfers between reaction and filtration steps, and inconsistent results whenever a different technician runs the process. Every extra transfer also adds cleaning validation and documentation overhead that slows an already demanding synthesis schedule. A peptide synthesizer reactor changes that equation by combining reaction, filtration, washing, and temperature control inside one sealed, PTFE-filtered vessel. Xi'an Bioland Instrument Co., Ltd. has spent more than 15 years building peptide synthesizer reactor systems for thymosin peptide preparation, antimicrobial peptide screening, and peptide carrier material synthesis, using explosion-proof, GG17 glass construction rated for 20L, 30L, 50L, and 100L volumes. This article compares a peptide synthesizer reactor against traditional manual synthesis methods across automation, accuracy, scalability, and cost, with real customer cases showing where the difference actually shows up on the production floor.
In traditional peptide synthesis processes, operators have to move resin slurry by hand between a reaction flask and a separate filter tube for each coupling and deprotection cycle. This increases the time it takes to do each step and the chance of contamination. The chance of resin loss goes up with each extra filter and wash cycle. This is especially true for longer processes with dozens of steps that need to be done over and over again. Most of that physical work is done by a peptide synthesizer reactor, which does reaction, filter, and washing all in one protected room.
In a normal setup, resin moves from the vessel to the filter to the wash station several times during the synthesis cycle. Each time it moves, there is a chance to lose material or bring in contamination. A peptide synthesizer reactor keeps the resin in one chamber during the whole coupling, deprotection, and wash steps. This reduces the number of steps that need to be done by hand by a large amount compared to open glassware methods.
Bioland's peptide synthesizer reactor uses a standard PTFE sintered-disc filter, with stainless steel, titanium, or custom filter cloth and membrane options available, so filtration happens on the same plate where the reaction just occurred. Traditional methods typically require a separate sintered-glass funnel and vacuum setup, adding equipment and setup time to each cycle that a peptide synthesizer reactor eliminates.
It is possible to set motion and temperature control across a range of -20°C to 200°C in a peptide synthesizer reactor. This means that techs don't have to change a heating plate or ice bath by hand for each turn. This ability to be programmed is one of the most obvious ways that this method is more efficient than traditional bench-scale synthesis, where reaction conditions rely on how careful the operator is and can change significantly from one shift to the next.
A biotech company running antimicrobial peptide screening needed faster turnaround between candidate sequences without sacrificing coupling completeness. Bioland supplied a peptide synthesizer reactor with programmable stirring and integrated PTFE filtration, letting the team cycle through candidates faster while keeping wash and filtration steps consistent across every screening run.
In peptide synthesis, accuracy depends on making sure that each coupling reaction is fully finished before moving on to the next step. This is much easier to check visually and thermally in a peptide synthesizer reactor than in traditional equipment that isn't clear or isn't tightly controlled. There are dozens of coupling cycles, so even small improvements in accuracy at each step can make a big difference in the purity of the final peptide. This is especially true for longer sequences where one incomplete coupling can affect the whole rest of the synthesis.
Because a peptide synthesizer reactor uses clear GG17 borosilicate glass, technicians can see the color change and resin swelling in real time to make sure a coupling reaction is complete before moving on. This is much harder to do with traditional reactor vessels that are opaque. Because of this, there is less guessing, which can lead to broken unions and shortened sequence leftovers.
Sensitive peptide chemistries, like chiral or oxidation-sensitive intermediates, often need tight low-temperature control, which a dual-jacket peptide synthesizer reactor provides much more reliably than an ice bath or basic cooling jacket. Keeping the temperature between 0°C and 5°C during a reaction step protects the yield and lowers the risk of racemization in sensitive sequences.
Traditional multi-vessel synthesis increases the odds that residual reagent or resin from a previous step affects the next cycle, while a peptide synthesizer reactor's quick-release PTFE filter assembly allows fast, thorough cleaning between cycles without disassembling the whole system. This directly protects the purity of the final peptide product batch after batch.
A European biopharmaceutical company developing a chiral peptide intermediate faced incomplete reactions, low crystallization purity and yield, and cross-contamination risk from frequent transfers in a corrosive synthesis system. Bioland supplied a customized 100-liter glass peptide synthesizer reactor to run reaction, crystallization, and filtration as one sequence under nitrogen protection at 0-5°C, lifting crystal purity above 99.5% and improving yield by roughly 15%.
Traditional bench-scale peptide synthesis methods rarely scale cleanly into pilot or production volumes, since equipment sized for a few grams behaves differently once batch size grows into kilograms. Mixing patterns, heat transfer, and filtration speed all change with vessel geometry, so a process validated in a small flask often needs significant rework before it performs the same way at pilot scale. A peptide synthesizer reactor is designed from 20L up to 100L and beyond specifically to bridge that gap without changing the underlying process chemistry.
Bioland offers a peptide synthesizer reactor in 20L, 30L, 50L, and 100L configurations, letting clients validate a process at small scale and then move to a larger vessel using the same reaction, filtration, and washing sequence rather than redeveloping the method from scratch. This volume flexibility is one of the biggest scalability advantages over glassware sized for single-use lab experiments.

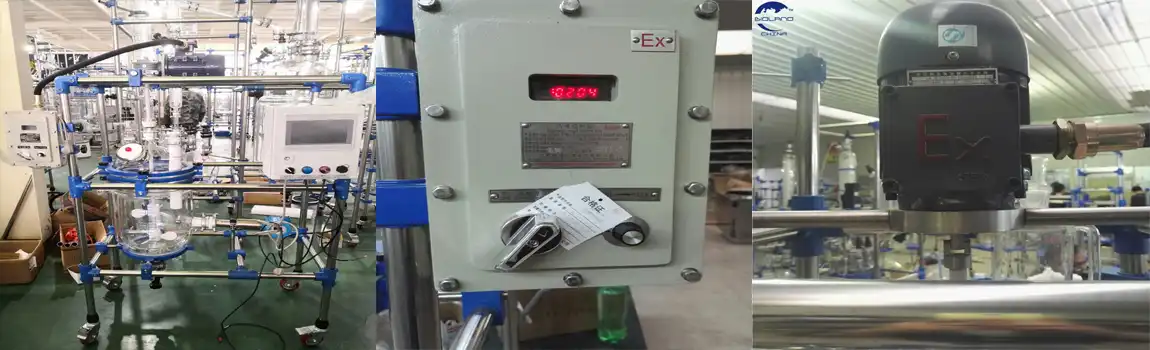

Peptide synthesis often involves flammable solvents like DMF or DCM, and Bioland's peptide synthesizer reactor can be built with explosion-proof, industrial-grade safety construction and precise pressure control to handle high-pressure synthesis environments safely. Traditional open-bench setups typically lack this level of engineered protection, limiting how much solvent volume can safely be handled per batch.
A peptide synthesizer reactor can be paired with a stainless steel high-low temperature integrated unit, giving precise heating and cooling across a wide range without a separate chiller and heater setup that traditional labs often cobble together. This modular design keeps the whole system compact and easier to scale as production volume increases, and it also simplifies maintenance since technicians service one integrated control loop instead of coordinating multiple standalone units.
A Polish chemical manufacturer developing palladium and platinum catalysts faced low recovery rates, corrosive material attacking standard equipment, and catalyst deactivation from high-temperature solid-phase reactions. Bioland supplied a customized 50-liter glass peptide synthesizer reactor to run solid-phase reaction at 150°C followed by direct in-vessel filtration, recovering more than 90% of residual precious metal and lowering overall production cost.
A peptide synthesizer reactor costs more upfront than basic glassware, but the comparison changes once labor, rework, solvent recovery, and contamination-related batch failures are factored in across dozens or hundreds of production cycles. Bioland works with clients to size the right configuration rather than defaulting to the most expensive option, comparing projected batch volume, process sensitivity, and regulatory documentation needs before recommending a specific reactor size or automation level.
Traditional synthesis methods require an operator present for nearly every transfer and filtration step, while a peptide synthesizer reactor's integrated design reduces the hands-on time needed per batch, freeing technicians to manage multiple runs or other lab work simultaneously. Over a full production campaign, this labor reduction is often the single largest cost offset against the equipment's purchase price, particularly for contract manufacturers running similar sequences repeatedly for different clients.
Because filtration happens inside the same peptide synthesizer reactor used for the reaction, mother liquor and wash solvent can be recovered and reused directly from the vessel rather than lost during transfer to separate equipment, improving solvent economy across a production run. For high-value reagents and catalysts, this recovery pathway meaningfully lowers per-batch raw material cost.
Xi'an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider for R&D, production, and sales of distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, and drying equipment, alongside supporting heating, cooling, and vacuum devices, with more than 15 years of experience in the field. Every peptide synthesizer reactor is manufactured under ISO safety standards, carries CE certification, and is built to GMP/FDA-aligned standards, with full OEM/ODM customization support including electric lift mechanisms and PLC-based automation for clients running validated pilot production.
Bioland assigns a dedicated specialist to track each peptide synthesizer reactor order weekly with photos or video, and clients may schedule a Factory Acceptance Test at the factory once the unit is ready. Customized peptide synthesizer reactor units typically ship within 30 business days, standard configurations in 5–7 days, supported by sea, rail, or air freight and a one-year warranty with lifetime maintenance. This level of production transparency gives clients confidence long before the equipment arrives on site, reducing the uncertainty that often comes with sourcing specialized process equipment internationally.
Traditional peptide synthesis methods still work for small, occasional lab trials, but a peptide synthesizer reactor delivers clear advantages in automation, reaction accuracy, scalability, and long-term cost once production volume grows. Bioland's peptide synthesizer reactor platform combines transparent GG17 glass, integrated PTFE filtration, explosion-proof construction, and full customization support, backed by 15-plus years of engineering experience and CE/ISO/GMP/FDA-aligned manufacturing for pharmaceutical and biotech clients scaling from bench to pilot production.
A: Standard sizes include 20L, 30L, 50L, and 100L configurations.
A: Yes, the integrated PTFE filter plate performs filtration in the same chamber.
A: Typically -20°C to 200°C depending on jacket and process needs.
A: Yes, explosion-proof and PLC-automated configurations are available.
A: Yes, units are built to GMP/FDA-aligned standards with full documentation support.
If manual transfers, inconsistent coupling reactions, or scale-up uncertainty are limiting your peptide production, a peptide synthesizer reactor from Xi'an Bioland Instrument Co., Ltd. can solve more than one bottleneck at once. Backed by 15-plus years of engineering experience, CE and ISO certification, GMP/FDA-aligned manufacturing, and full OEM/ODM customization, our team tracks every peptide synthesizer reactor build weekly and offers Factory Acceptance Testing before shipment. Contact us at info@biolandequip.com to discuss your process and request a quote on your next peptide synthesizer reactor.
1. Chan, W. C., and White, P. D. (Eds.). Fmoc Solid Phase Peptide Synthesis: A Practical Approach. Oxford University Press.
2. Merrifield, R. B. "Solid Phase Peptide Synthesis." Journal of the American Chemical Society.
3. Behrendt, R., White, P., and Offer, J. "Advances in Fmoc Solid-Phase Peptide Synthesis." Journal of Peptide Science.
4. Isidro-Llobet, A., Kenworthy, M. N., et al. "Sustainability Challenges in Peptide Synthesis and Purification." Journal of Organic Chemistry.
5. Perry, R. H., and Green, D. W. (Eds.). Perry's Chemical Engineers' Handbook. McGraw-Hill.
6. Wakeman, R. J., and Tarleton, E. S. Solid/Liquid Separation: Principles of Industrial Filtration. Elsevier.
