The best ways to extract curcumin use both advanced industry technology and the best processing settings. More and more, modern facilities depend on specialized equipment that combines different extraction methods into streamlined processes. When compared to traditional methods, a professional Curcumin Extraction Machine made for pharmaceutical and nutritional uses can produce 50–500% more curcumin.
Most of the time, these systems use ultrasonic-assisted extraction (UAE), supercritical CO2 technology, or multi-stage ethanol solvent extraction. They all work at controlled low temperatures between 40°C and 60°C to keep the biological integrity of curcuminoids. The extraction cycle only takes 24–40 minutes, which cuts the time needed for processing by more than two-thirds while still meeting the standards for accuracy and purity needed in GMP-compliant production settings.
Curcumin extraction turns raw turmeric rhizomes into concentrated bioactive substances that can be used to make medicines, useful foods, and supplements. The amount of natural curcumin in dried turmeric is usually between 2 and 5 percent, so getting the most out of it is very important for making the business work.
Industrial extraction methods get around the problems that come with isolating curcumin, like the fact that it doesn't dissolve well in water and breaks down easily when heated. Unlike lab-scale sets, production-grade equipment precisely controls factors like the flow rates of solvents, the temperature profiles, and the changes in pressure. The jacketed vessels and exact thermal control in these machines make sure that the extract keeps its yellow color and medicinal qualities throughout the processes.

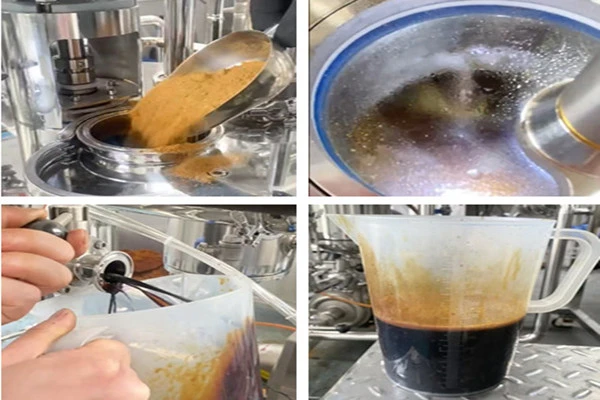

To prepare the material, dried turmeric powder is first ground into particles that are 20–60 mesh in size. This gives the solvent as much surface area as possible to stick to. The ready-made material goes into the extraction room, where it interacts with the solvent in a controlled way. In this phase, the curcuminoids mix with the liquid, but the unwanted lipids and cellulose don't breakdown very well. The rough extract that is made then goes through stages of filtering that separate the solid waste from the liquid that is high in curcumin. After that, steps of concentration and liquid recovery make an oleoresin that is either pure or a crystalline powder, based on what comes next.
Modern systems for extraction make changes that can be seen in a number of performance measures. Equipment designed with two condenser systems improves liquid recovery rates above 95%, which greatly lowers operating costs and negative effects on the environment. Adding automated controls to batch processing gets rid of human mistake and makes sure that results can be repeated, which is important for legal paperwork. Explosion-proof electrical setups and pressure release systems keep people safe when they are working with dangerous organic solvents. These benefits directly lead to better throughput, lower costs per kilogram of production, and compliance with foreign quality standards, such as FDA and EU rules.
Figuring out how well different extraction methods work helps technical decision-makers match the powers of equipment with the goals of output. From doing things by hand to using automated industrial systems is a big step forward in terms of both speed and ability to grow.
For traditional ways that are done by hand, ground turmeric is soaked in ethanol or other fluids at room temperature for several days during long maceration times. This method doesn't always produce good results; it usually produces less than 1.5% curcumin because the cell walls aren't broken down all the way and mass transfer isn't done as well as it could be. Temperature changes that happen during hand processing can break down heat-sensitive curcuminoids, which lowers their color and effectiveness. Because they require a lot of work and take a long time to process, standard methods are not cost-effective for middle to large-scale businesses that want to control quality and output.
Modern industrial methods use chemical and physical processes that greatly speed up the extraction process. Ultrasonic-assisted extraction uses high-frequency sound waves (20–40 kHz) to make cavitation bubbles that break down plant cell walls and release curcumin from inside the cells into the solvent. This technology works best at temperatures between 40°C and 50°C, keeping the material from breaking down and completing the extraction process in 30 minutes.
Microwave-assisted extraction uses electromagnetic energy to quickly heat the combination of liquid and biomass. This creates pressure inside the mixture that makes it easier for the curcuminoid to be released. Carbon dioxide above its critical point (31°C, 73 bar) is used as an adjustable solvent in supercritical CO2 extraction. This method has high selectivity and makes solvent-free extracts that can be used in high-end applications.
Semi-automatic systems can handle facilities that make 50 to 200 kg of extract per month because they only need an operator to add raw materials and move intermediate products between steps of processing. Fully automatic units have PLC control systems that handle the whole process, from bringing in raw materials to releasing finished goods.
These platforms, including the Curcumin Extraction Machine, can produce more than 500 kg per month with little control, which saves money on labor costs and makes sure that each batch is the same. Which level of automation to use relies on the amount of work that needs to be done, the funds, and the technical knowledge that is available in the facility.
To choose the right extraction tools, you need to carefully weigh the technical specs against the needs of the job and your budget. Long-term operational costs, production ability, and product quality will all be affected by this choice.
Small research labs and new nutraceutical companies usually need tools with an extraction tank capacity of 10 to 50 liters that can handle 20 to 100 kg of raw turmeric per day. Systems that hold 100 to 300 liters and can handle 200 to 600 kg per day are useful for mid-sized drug companies that work with clinical trial materials or serve the area market. Large factories that sell their goods all over the world need 500- to 2000-liter extraction lines that can handle several tons of biomass per day and often run nonstop with automatic systems for moving the materials.
The efficiency of extraction is directly linked to the processes that break up cells and the improvement of mass transfer. Simple agitation systems don't get as good of results as equipment with ultrasound probes or immersion sensors. When used on an industrial scale, energy use becomes noticeable. Machines with heat recovery systems and well-tuned heating and cooling processes can cut electricity costs by 30–40%. Accessibility for maintenance affects downtime. Designs with quick-opening vessel closures, modular pump systems, and seals that are easy to change cut down on service times and the output loses that come with them.
For quality extraction systems, you have to spend a lot of money. Lab-scale units cost around $30,000, and complete commercial lines cost over $500,000. When figuring out the total cost of ownership, you need to look at things like warranty coverage, the ease of getting new parts, and how responsive the maker is. Suppliers with a good reputation will give you a lot of paperwork, like IQ/OQ procedures, material certifications for SS316L contact parts, and help with validation for regulatory reports. Technical training for operators and support staff should be part of the purchase deal. This will make sure that technology is transferred smoothly and that the equipment is used in the best way possible.
Manufacturers with more than 15 years of experience in the field show a better understanding of the problems that come up in specific applications. Their ideas for tools include improvements they've learned from working on different projects in the food preparation, pharmaceutical, and botanical extract industries. This knowledge is very helpful when optimizing the process and fixing problems.
To get the most out of extraction, you need to pay close attention to operational factors, preventative repair schedules, and energy management strategies. These methods make tools last longer and lower the cost of making one unit.
When fluid movement rates aren't fast enough, concentration gradients form that make it take longer for Curcumin Extraction Machine to dissolve curcumin, which lowers yield and increases extraction time. When pump seals are old or filters are partly clogged, flow rates drop, which hurts the performance of the equipment. Problems with temperature control caused by dirty heat exchanger surfaces or broken sensors lead to conditions that are not ideal for extraction. Problems with moving the materials, like not spreading the powder evenly in the extraction tube, cause tunneling effects where the solvent skips over some of the biomass, leaving curcumin unextracted.
Using structured maintenance procedures stops surprise downtime and keeps extraction performance steady. Once a week, you should check the integrity of the seals, the accuracy of the temperature sensors, and the right operation of automatic valves. Every month, you have to do things like calibrate pressure transducers, check ultrasound transducers for erosion damage, and test electrical links that can't explode. Full service every three months includes checking the motor on the pump, cleaning the condenser, and replacing the filter element. Keeping thorough records of repair tasks and extraction parameters allows for trend analysis that finds parts that are breaking down before they stop production.
In places where power rates are based on time of use, scheduling extraction batches during off-peak hours can lower energy costs. When variable frequency drives are added to circulation pumps, the motor speed is adjusted based on the process needs instead of running at full capacity all the time. Insulating the outside of vessels and pipes cuts down on heat loss, which lowers the amount of energy needed to keep the process temperature steady. Solvent recovery systems with heat integration get heat back from condensation processes. This warms up the cold solvent before it comes in and lowers the total heating load by 25–35%.
As time goes on, the plant extract business keeps moving toward greener methods, more automated systems, and improvement based on data. These changes change the way competition works and open up new possibilities for makers who are willing to think ahead, especially with the integration of Curcumin Extraction Machine, which exemplifies how specialized equipment can drive efficiency and sustainability in this evolving landscape.
Environmental laws and customer tastes are pushing for more safe ways of making things. Bio-based liquids made from green resources are being used in new technologies instead of ethanol or hexane made from petroleum. Cellulase and pectinase are used in enzyme-assisted extraction to specifically break down plant cell walls without using harsh chemicals. It works at room temperature with little energy input. Pulsed electric field extraction uses fast, high-voltage bursts to break down cell walls. This makes it easier for curcumin to be released while using less solvent. These methods fit with companies' efforts to be more environmentally friendly, and they might even lower their running costs by lowering the cost of buying things and getting rid of trash.
Next-generation extraction systems use machine vision to automatically check the quality of arriving raw materials and change the process settings based on the amount of curcumin and turmeric in the material. Real-time HPLC integration lets you keep an eye on the mix of extracts while they're being processed, which lets you change the time of extraction and the amount of liquid used to get the best results.
Predictive maintenance programs look at patterns of sound, temperature, and power use to figure out when a part will break days or weeks in advance. They then schedule repairs for planned downtime instead of having to fix things when they break down unexpectedly. Connecting to the cloud allows for online tracking and technical support, which speeds up the time it takes to get help when it's needed.
When dealing with fast-changing technology, procurement managers should choose equipment bases that can be upgraded in modules over systems that are all one piece and need to be replaced. Building connections with manufacturers that are committed to ongoing research and development (R&D) makes sure that you can get speed upgrades and retrofit choices as new technologies come out. Joining industry groups and professional workshops is a great way to learn about new technologies before they become widely used. Companies can keep their competitive edge while controlling technical risk by investing in systems that have been shown to work and adopting only a few new ideas that have been tested and proven to work.
For curcumin extraction to work well, the right technology must be carefully combined with the right process factors, and operations must be managed in a planned way. The economics of making botanical extracts have changed a lot because modern extraction tools, such as a Curcumin Extraction Machine, can increase yields by 50–500% compared to old ways. The best way to make pharmaceutical-grade curcumin right now is with ultrasonic-assisted methods that can finish extraction in 24 to 40 minutes while keeping the bioactivity at 40 to 60°C.
Companies can grow in the competitive nutraceutical and pharmaceutical markets if they choose equipment that meets their unique production needs and is backed by experienced makers who offer full technical support. The coming together of green extraction technologies, advanced automation, and data analytics will continue to change this industry. Companies that spend wisely in flexible, high-performance extraction platforms will be rewarded.
Modern ultrasonic-assisted extraction methods can usually get between 3.5% and 4.5% curcumin content from good dry turmeric, which is about 80% to 95% of the curcuminoids that are available. Supercritical CO2 systems give slightly lower yields (2.8–3.5%) but are more pure and don't leave behind any solvent leftovers. When the conditions are the same, traditional soaking methods usually only get 1.2 to 2.0%.
Ultrasonic equipment has higher starting capital costs ($45,000 to $150,000, based on scale), but it has better running economics because it cuts extraction time by a huge amount and increases yield. When labor, energy, and liquid use are taken into account, processing costs per kilogram of extract are usually 30–40% lower than with traditional methods for production amounts over 1,000 kg per year.
Quality suppliers will fully install and commission their products at your plant. They will also train your production and repair staff on how to use the products and give you thorough paperwork that includes standard operating procedures (SOPs) and validation methods. You can expect quick technical help over the phone and videoconferencing, clear wait times for replacement parts, and preventative maintenance services once a year. The warranty should cover both parts and work for manufacturing flaws for at least 12 months after the machine is put into service.
BIOLAND INSTRUMENT has designed extraction methods that solve the technical and business problems that pharmaceutical and nutrition companies have when they try to process plants. Our ultrasonic-assisted platforms have been shown to increase yields by up to 400% compared to traditional maceration. Extraction rounds can be finished in just 30 minutes, and your production setting stays in GMP compliance at all times. Each system has 316 stainless steel contact surfaces, built-in solvent recovery that works 96% of the time, and PLC automation that makes operation easier while keeping group stability.
Because we've been a seller of Curcumin Extraction Machines for over 15 years to the botanical extract business, we know what it takes to go from lab research to pilot production to full commercial production. Our engineering team offers complete solutions that include choosing the right equipment, installing it, making it work, teaching operators, and providing ongoing technical support. BIOLAND can make customizable systems that work best for your feedstock, goal purity levels, and throughput needs, whether you're adding new capacity or improving current infrastructure.
Get in touch with our technical experts at info@biolandequip.com to talk about your curcumin extraction goals and get a full quote that fits your production needs. You can look at our full line of equipment and successful case studies at biolandequip.com. These show that our equipment works well in a wide range of situations, from R&D in the lab to large-scale industrial production.
1. Mandal, V., Mohan, Y., & Hemalatha, S. (2007). Microwave assisted extraction—An innovative and promising extraction tool for medicinal plant research. Pharmacognosy Reviews, 1(1), 7-18.
2. Prasad, S., Gupta, S. C., Tyagi, A. K., & Aggarwal, B. B. (2014). Curcumin, a component of golden spice: From bedside to bench and back. Biotechnology Advances, 32(6), 1053-1064.
3. Kumoro, A. C., Alhanif, M., & Wardhani, D. H. (2020). A critical review on tropical natural herb extraction using ultrasound-assisted technique: Performance and opportunities. Pertanika Journal of Science & Technology, 28(1), 1-22.
4. Raman, G. & Gaikar, V. G. (2002). Extraction of piperine from Piper nigrum (black pepper) by hydrotropic solubilization. Industrial & Engineering Chemistry Research, 41(12), 2966-2976.
5. Sodeifian, G., Sajadian, S. A., & Ardestani, N. S. (2016). Extraction of oil from Pistacia khinjuk using supercritical carbon dioxide: Experimental and modeling. Journal of Supercritical Fluids, 110, 265-274.
6. Chemat, F., Rombaut, N., Sicaire, A. G., Meullemiestre, A., Fabiano-Tixier, A. S., & Abert-Vian, M. (2017). Ultrasound assisted extraction of food and natural products. Mechanisms, techniques, combinations, protocols and applications. Ultrasonics Sonochemistry, 34, 540-560.
