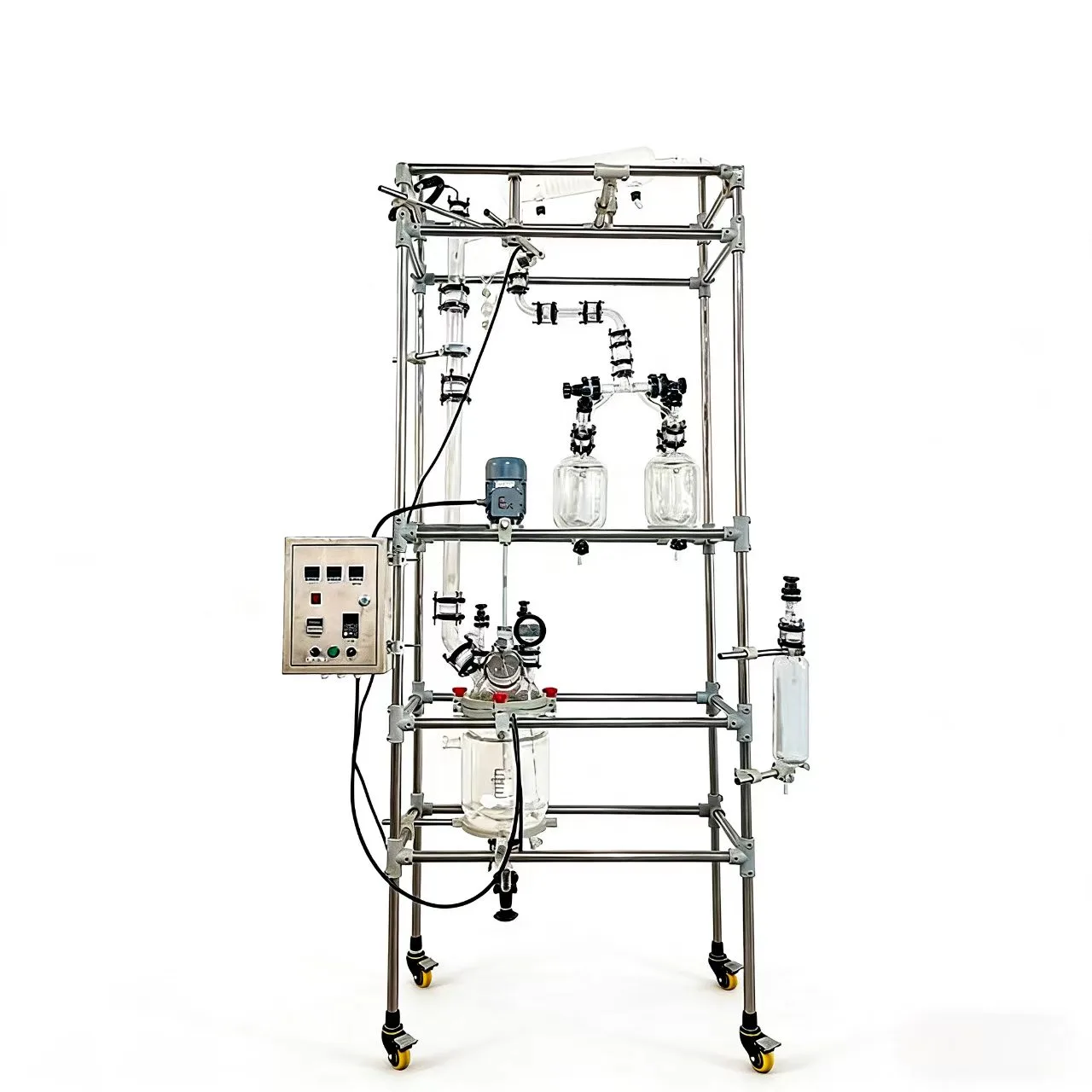

The chemistry fractionating column from Xi'an Bioland Instrument is a high-quality distillation machine designed to precisely separate liquid mixes based on differences in their boiling points. Our columns can reach HETP values as low as 10cm, which is made possible by PID-controlled temperature management and a better balance between vapour and liquid. Each unit comes with a high borosilicate glass 3.3 construction and a 5L to 100L capacity. For acidic uses, a SUS316L stainless steel jacketing is available as an option. The system works well in an atmosphere as low as 0.1mbar and can handle temperatures from room temperature to 300°C. Our product is certified by CE, ISO, and GMP, and it works well for separating natural products, processing petrochemicals, and purifying medicinal APIs.

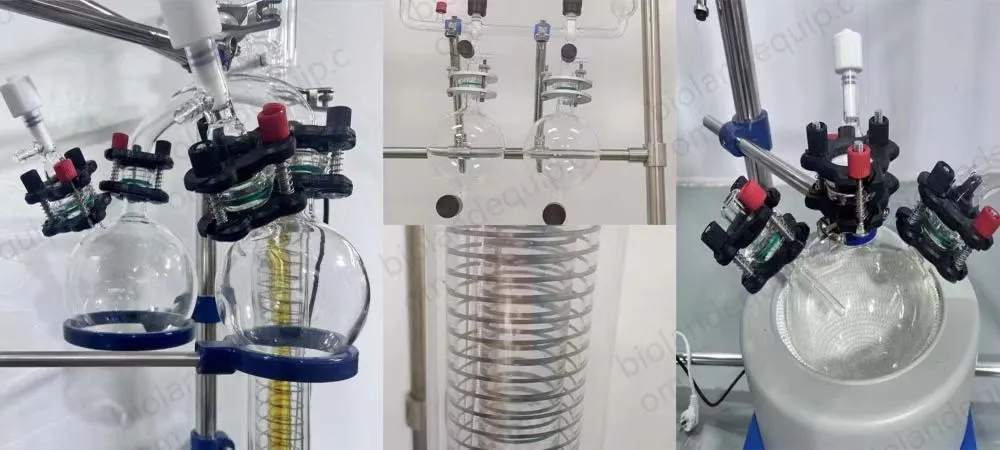

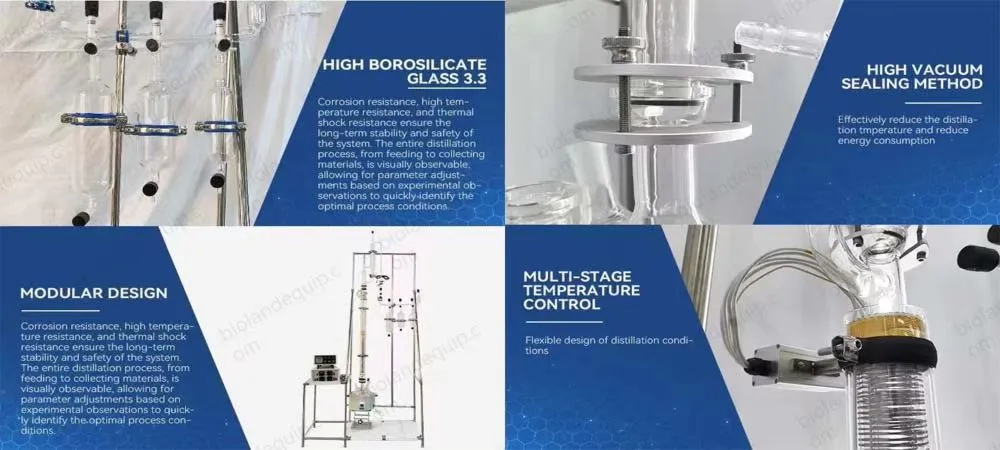

With its clear glass tower form, you can see how the distillation is going in real time. The method combines several imaginary plates by precisely packing them with things like Raschig rings, glass springs, and rings made of stainless steel. Our columns give you the speed and control your process needs, whether you need to separate complicated chemical mixes or get back valuable solvents.

Why Choose Xi'an Bioland Instrument?

15+ Years of Specialized Engineering Experience

Our focused R&D team has been working on chemical separation technology for more than 15 years. We know what problems you're having with separation, like partial purification and managing azeotropes, and we can help you find answers that work.

Comprehensive Certification Portfolio

There are international quality guidelines for every product, and they are all certified by CE, ISO, UL, SGS, ATEX, and IEC. Our designs are GMP-compliant, which means they are ready for production right out of the box for both food and medicine.

Custom Engineering Capabilities

Need a certain tower height, width, or heating setup? Experts at customizing things that aren't normal. Our team makes sure that the equipment we sell fits your exact needs for volume, pressure, and overflow ratio. Usually, customized solutions are sent out within 30 business days.

Superior Material Selection

Choose from premium materials suited to your application:

• High borosilicate glass 3.3 for chemical resistance and visual monitoring
• SUS304/316L stainless steel for industrial-scale operations
• Titanium alloy for highly corrosive environments





Transparent Production Tracking

Your dedicated project specialist provides weekly progress updates through photos and videos. Before shipment, you receive comprehensive documentation for inspection or can schedule a Factory Acceptance Test at our facility.

Complete After-Sales Support

We provide installation, commissioning, operation training, and lifetime technical support. Original spare parts remain in stock to minimize downtime and ensure continuous operation.

Technical Parameters

Working Principle

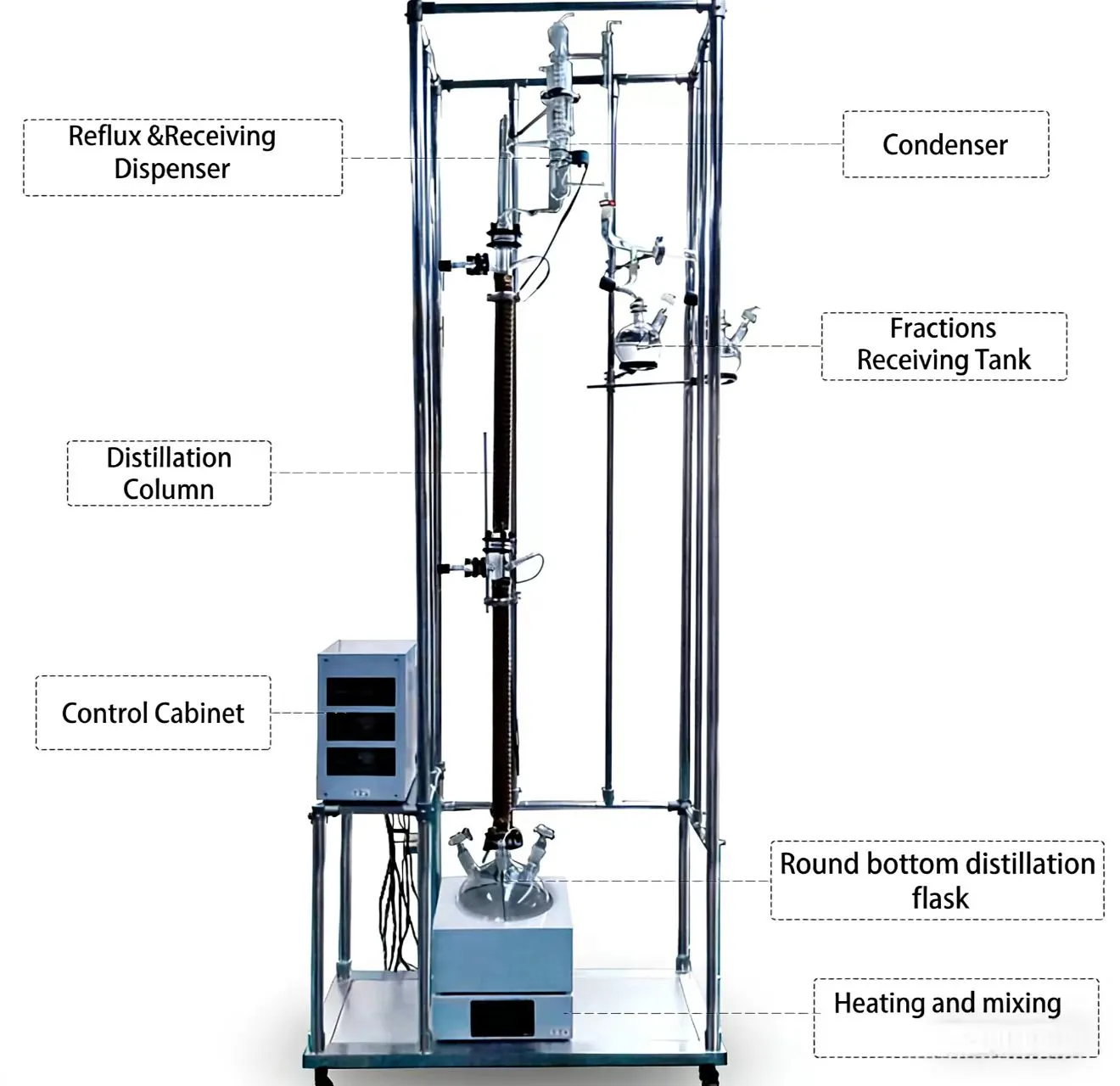

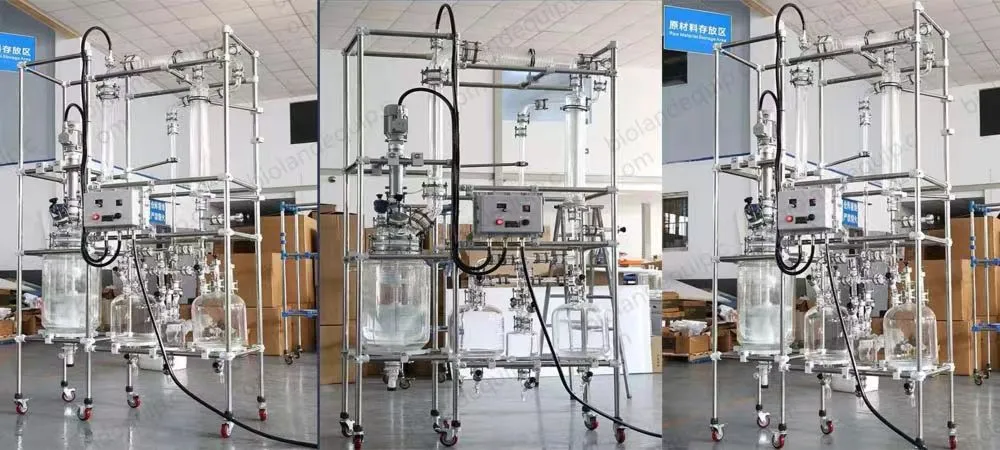

The chemistry fractionating column works by going through constant rounds of vapour and liquid balance. This is how you clean up your mixture:

Vaporization Stage: Your liquid blend goes into the bottom generator, which is heated in a controlled way to make vapour. Parts that have lower boiling points tend to evaporate first.

Ascending Vapour Path: As hot vapours rise through the dense column, they meet cooler liquids that are falling, which is called reflux. This makes a lot of touch points where mass can move.

Vapours collect in the cooling system at the top of the column. This is called reflux. Some of it goes back to the column as reflux liquid, which moves lighter components to the top and heavier ones to the bottom.

Theoretical Plates Work: Each layer of packing acts like a theoretical plate and goes through one cycle of melting and condensation. It is more pure when there are more plates. Our precise packing increases surface area while keeping the right amount of empty space to avoid floods.

Phase of Collection: The light fraction that has been cleaned gathers at the top receiver, while the larger fraction stays in the bottom reactor. PID temperature control makes sure that the separation stays fixed during the whole process.

Operation under vacuum: For chemicals that break down easily in heat, the built-in vacuum system lowers the boiling point. This stops thermal breakdown and keeps the separation efficiency high.

Process Flow

1. Feed Preparation → Load your mixture into the bottom reactor vessel

2. System Setup → Set target temperatures, reflux ratio, and vacuum level via PLC control panel

3. Heating Initiation → Activate heating system (electric/oil/steam) to reach operating temperature

4. Vapor Generation → Monitor vapor rise through transparent glass tower body

5. Reflux Establishment → Adjust reflux ratio for optimal separation versus throughput balance

6. Steady-State Operation → PID control maintains constant temperature zones throughout column

7. Product Collection → Draw purified fractions from designated collection points

8. Monitoring & Adjustment → Real-time observation through glass design allows immediate process optimization

9. Completion & Recovery → Collect residual fractions and prepare system for next batch

Application Fields

Petrochemical & Refining

Separate crude oil into precise fractions including naphtha, kerosene, and diesel. Our columns handle high thermal loads and corrosive sulfur compounds in True Boiling Point (TBP) distillation conforming to ASTM D2892 standards.

Pharmaceutical Production

Purify Active Pharmaceutical Ingredients (APIs) to exacting standards. Recover expensive solvents like dichloromethane and ethyl acetate while removing synthesis by-products. Vacuum operation protects thermolabile compounds from degradation.

Essential Oils & Natural Products

Fractionate terpenes and oxygenated compounds in essential oils. Separate components like limonene from citral, achieving purities exceeding 99.9% while minimizing thermal exposure to delicate organic molecules.

Fine Chemical Synthesis

Process polysilicon precursors (TCS/DCS), produce high-purity chemical reagents, and isolate intermediates. The corrosion-resistant design handles aggressive acids, halogens, and organic solvents at elevated temperatures.

Food & Beverage Industry

Produce food-grade flavor compounds, recover ethanol, and purify food additives. GMP-compliant construction ensures your products meet regulatory requirements.

Research & Development

Support laboratory-scale process development with visual monitoring capabilities. Test separation parameters before scaling to production volumes.

Quality Certification

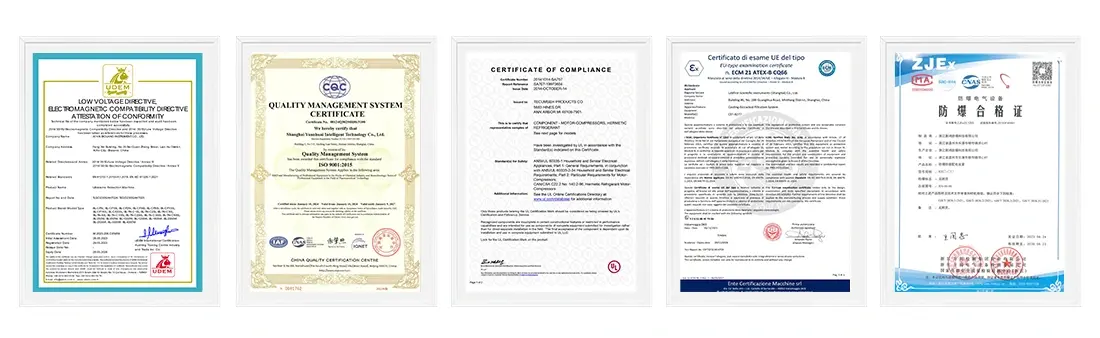

Xi'an Bioland Instrument maintains rigorous quality assurance protocols. Our manufacturing facility holds ISO 9001 certification for quality management systems. All equipment carries CE marking for European market compliance.

Our products meet GMP (Good Manufacturing Practice) standards for pharmaceutical and food applications. Material certifications confirm compliance with FDA regulations for contact with process streams.

Safety certifications include ATEX for explosive atmosphere compatibility and IEC electrical safety standards. Third-party validation through SGS and UL testing laboratories ensures independent verification of performance claims.

Each column undergoes comprehensive quality inspection before shipment, including vacuum leak testing, dimensional accuracy verification, and polariscope stress analysis for glass components.

FAQ

Q: What separation efficiency can I expect from your columns?

A: Separation efficiency depends on your packing choice and column height. Our structured packing achieves HETP values as low as 10cm. For components with boiling point differences under 5°C, we recommend taller columns with more theoretical plates. We'll calculate the exact number needed based on your mixture's relative volatility.

Q: How do I prevent flooding during operation?

A: Flooding happens when vapor velocity exceeds the column's capacity, filling it with liquid. Prevent this by reducing your heat input to lower the boil-up rate. Our PID control system helps maintain optimal vapor velocity. The transparent design lets you spot flooding immediately—you'll see liquid accumulation rather than clear vapor flow.

Q: Can your system separate azeotropic mixtures?

A: Standard distillation cannot break azeotropes like the 95% ethanol-water mixture. However, our vacuum capability enables pressure swing distillation, which shifts the azeotropic composition. For certain applications, we can integrate entrainer addition ports. Contact our technical team to discuss your specific azeotrope challenge.

Q: Which packing type should I choose?

A: Glass spring packing offers good efficiency and easy cleaning but lower capacity. Raschig rings are economical and robust but have higher HETP. Stainless steel θ rings provide the best balance of efficiency, capacity, and durability for most industrial applications. Avoid packed columns if your feed contains particulates—they'll cause fouling.

Q: What's included in your after-sales support?

A: We provide complete installation guidance, on-site commissioning (if required), and operator training. Technical support continues throughout your equipment's lifetime. Original spare parts ship quickly from our warehouse. Your dedicated specialist remains available for troubleshooting and process optimization advice.

Q: How do vacuum capabilities improve separation?

A: Operating under vacuum lowers boiling points significantly. This protects heat-sensitive compounds from decomposition while maintaining separation efficiency. Our systems reach 0.1mbar, allowing distillation of high-boiling materials at moderate temperatures. This extends equipment life and improves product quality.
