Packed Fractionating Column - High-Efficiency Separation Equipment

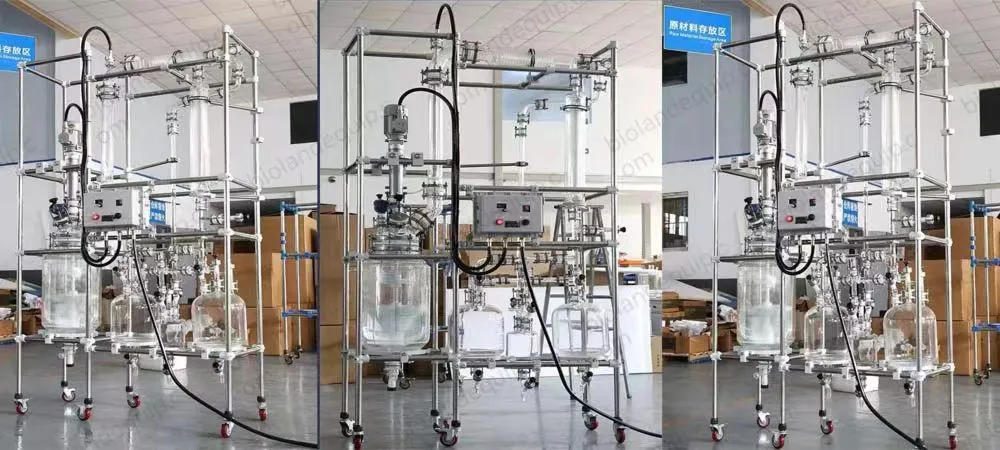

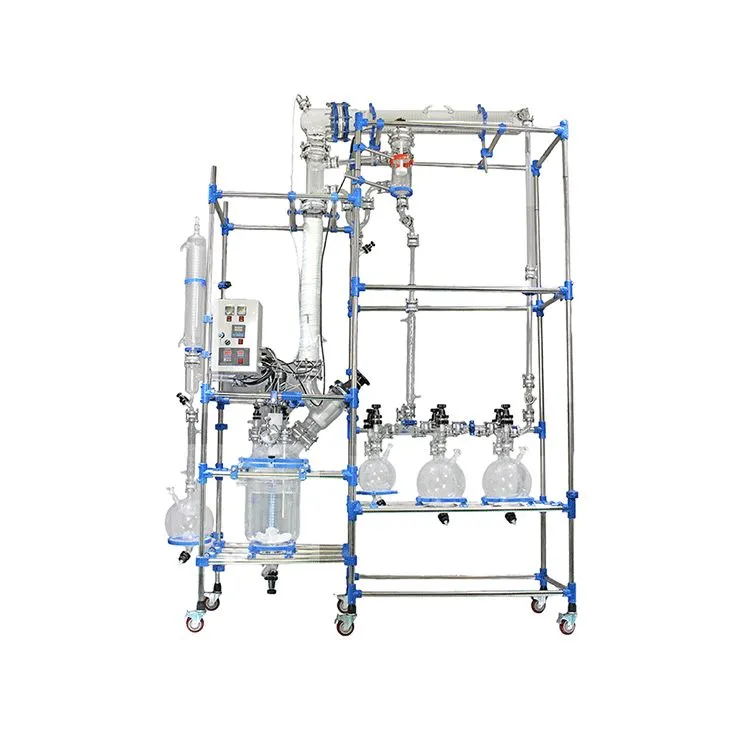

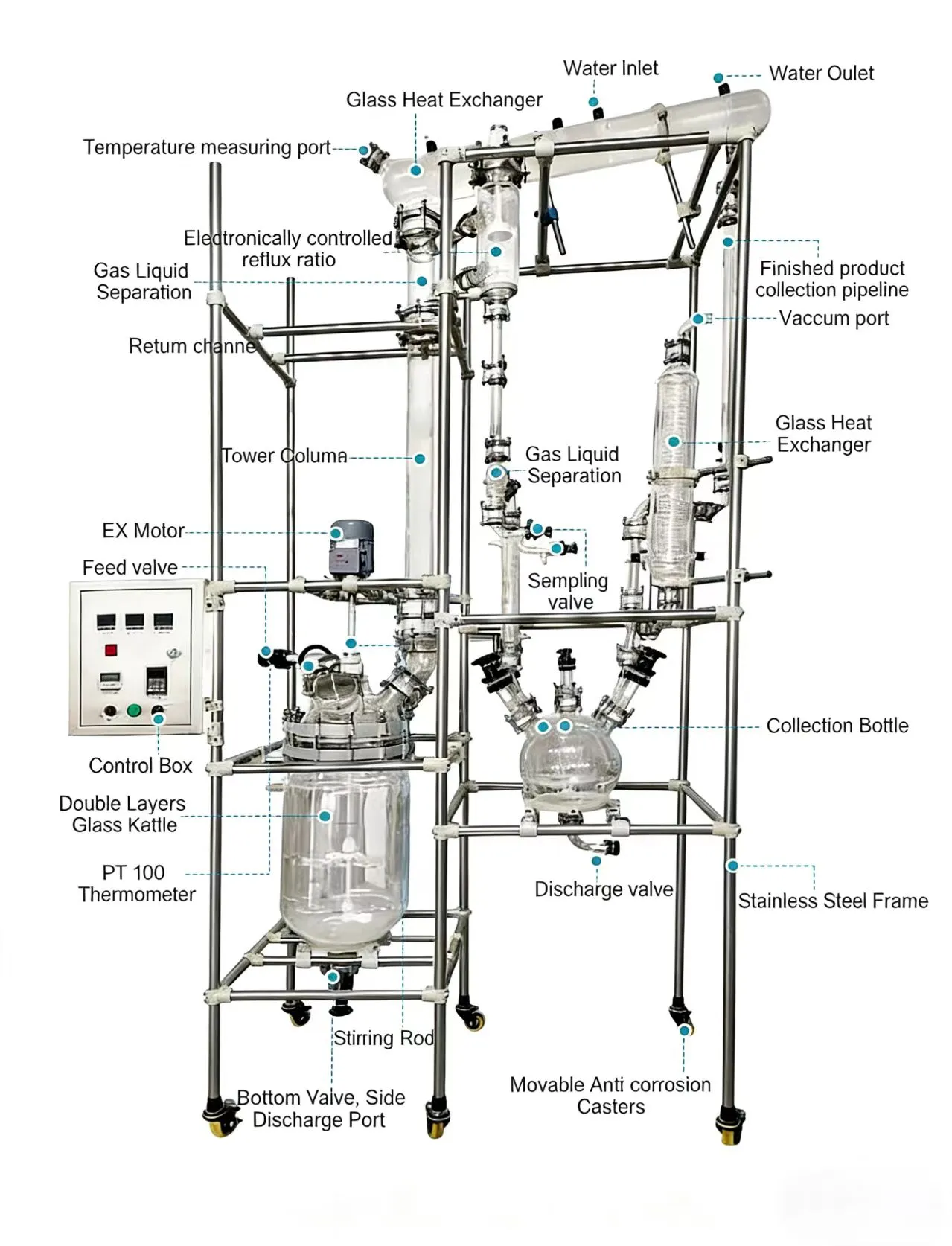

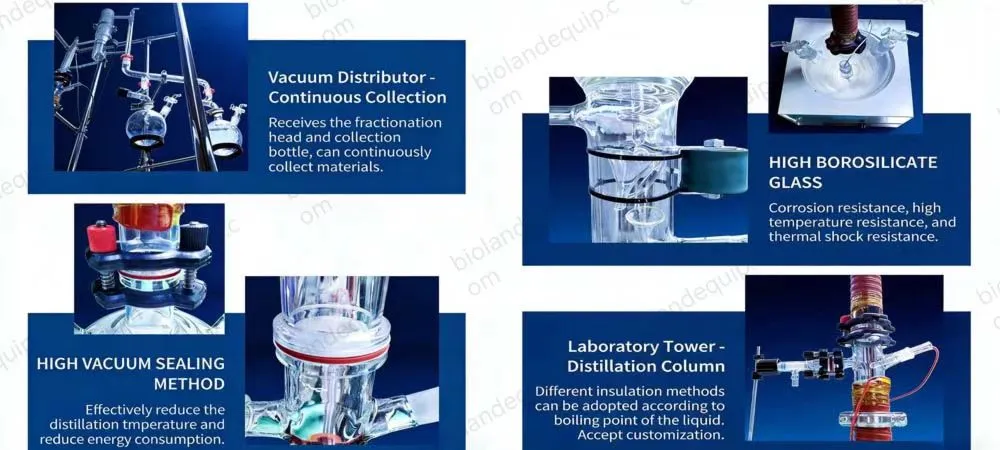

The packed fractionating column from Xi'an Bioland Instrument is a high-performance differential-contact separation device designed for accurate liquid mixture fractionation. With structured packing, our columns can reach HETP values as low as 0.3 to 0.5 m, which means they separate things very well while keeping pressure drops below 1 mbar per theoretical stage. These systems are made of high borosilicate glass and SUS304/316L stainless steel. They can work in vacuums as low as 0.098 mbar and with temperatures from room temperature to 300°C. Each product comes in capacities ranging from 5L to 100L (customizable) and has PID intelligent temperature control, clear glass tower bodies for monitoring the process in real time, and the ability to work with different types of packing, such as β-ring, glass spring, and Raschig ring configurations, to ensure the best vapor-liquid contact.

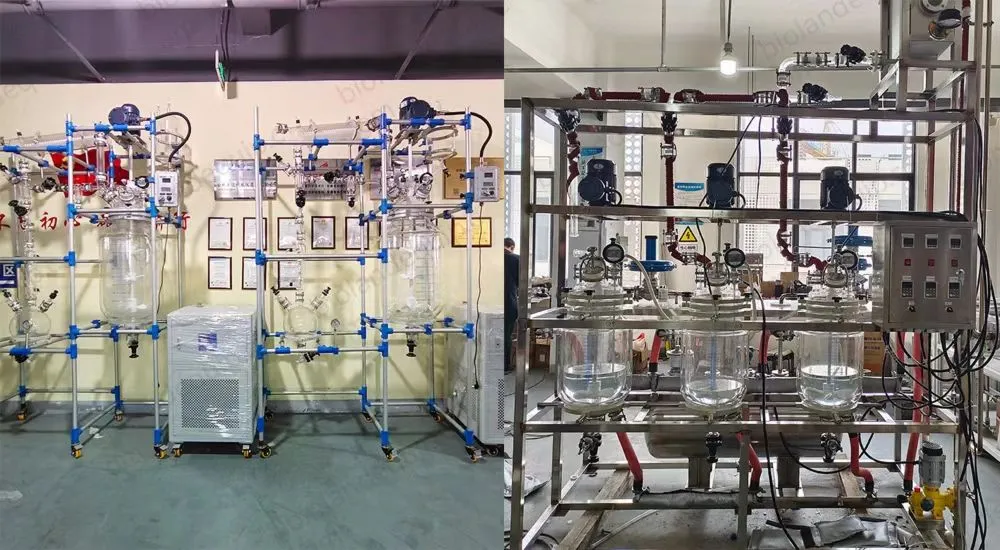

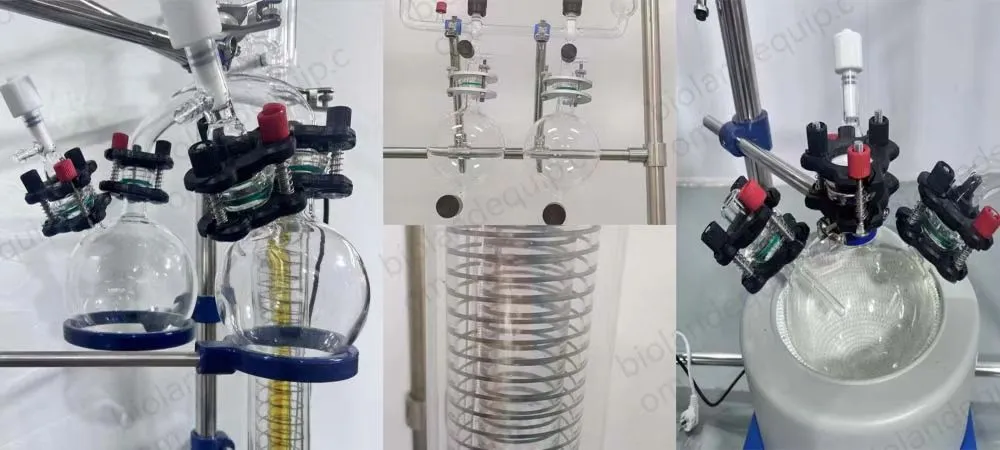

The packed fractionating column can be designed to be double layer glass reactor or triple jacketed reactor . The reaction solvent can be put into the inner layer to do stirring , inter-layer can be connected with cold and heat source to do circulating heating or cooling reaction. Under the setting of constant temperature , in sealed glass reaction , stirring reaction can be carried out at atmospheric pressure or negative pressure conditions according to the operating , and also can carry out reflux and distillation of the reaction solution. This machine is an ideal production equipment for the modern fine chemical , pharmaceutical and biological synthesis of new materials.

Why Choose Us?

You deserve a partner who knows how hard it is to be apart from your ex. We can bring tried-and-true engineering solutions to your production floor because we've been making distillation tools for more than 15 years.

Certified Excellence You Can Trust

Our gear is certified by CE, ISO, UL, SGS, ATEX, and IEC. As long as each unit meets GMP/FDA standards, it can be used right away in medicinal and food-grade settings.

Customization That Fits Your Process

We don't think that one size fits all. Our R&D team works with you to make changes to the tower's height, width, cooking methods, reflux ratios, and pressure requirements. We design titanium alloy to fit your exact needs, whether you need it for corrosive services or certain packing setups.

Quick response time and clear communication

It takes 5 to 7 business days to ship standard units. It takes 30 business days to get custom options ready. During production, your personal project specialist will send you picture and video updates every week. Before we ship anything, we either give you all the paperwork to sign off on or ask you to our site for Factory Acceptance Testing.

Partnership for Lifetime Help

There is a one-year warranty and lifetime maintenance help to protect your property. We keep a collection of original spare parts and can help you with installation, setup, operation training, and technical problems at any time.

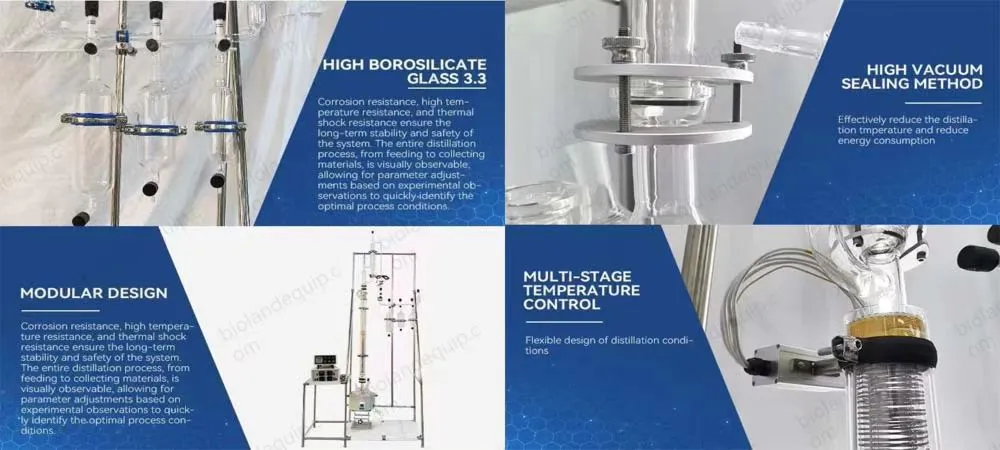

Technical Parameters

Working Principle

The product operates on differential volatility separation. Here's how your system works:

Vapor-Liquid Contact Mechanism

The feed mixture goes into the column, where it is cooked in the bottom reactor. As vapours rise through the continuous packing bed, they meet liquids that are falling (reflux). The packing makes thousands of tiny touch points where lighter parts move to the vapour phase more easily and heavy parts condense into liquid.

Reflux Control

Volatiles go through a condenser at the top of the column. A part comes back as overflow liquid, making the vaporization-condensation cycle happen over and over again. Our PID processor changes the reflux ratio automatically, so you have exact control over how pure the separation is compared to how much it can process.

Temperature Gradient Management

The shape of the clear glass lets you see the difference in temperature. Lighter parts gather in the cooler upper parts, while larger parts stay in the hotter lower parts. Digital temperature monitors placed at different heights give real-time information that helps improve the process.

Vacuum Operation Advantage

The method works in a vacuum when working with materials that are sensitive to heat. This makes the boiling points much lower, which lets you separate thermolabile substances without breaking them down. This is very important for essential oils, fatty acids, and reactive monomers.

Process Flow

Step 1: Feed Preparation

Your liquid mixture loads into the jacketed glass reactor at the column base. Select your heating method (electric/oil/steam) based on your material properties.

Step 2: Vaporization

Controlled heating vaporizes the mixture. The stirring system (adjustable speed) ensures uniform temperature distribution and prevents local overheating.

Step 3: Column Ascent

Vapors rise through the packing bed. The high specific surface area (up to 500 m²/m³ in structured packing) maximizes gas-liquid interface for efficient mass transfer.

Step 4: Fractional Condensation

As vapors ascend, they encounter cooler zones. Higher boiling components condense and flow downward while volatile components continue upward—this is the heart of fractionation.

Step 5: Reflux Regulation

Condensed vapors at the top split into product takeoff and reflux return. You adjust this ratio digitally to balance purity requirements with production rate.

Step 6: Collection

Purified fractions collect in designated receivers. The transparent design allows you to monitor liquid levels and clarity throughout the operation.

Step 7: Bottom Product Discharge

Heavy components remaining in the reactor discharge through the bottom valve for further processing or disposal.

Application Fields

Your packed fractionating column solves real-world separation challenges across industries:

Pharmaceutical & Biopharmaceutical

Purify active pharmaceutical ingredients (APIs) with close boiling points. The GMP-compliant design and vacuum capability preserve sensitive compounds during drug synthesis and pharmaceutical intermediate production.

Fine Chemical & Petrochemical

Separate polysilicon TCS/DCS, refine specialty solvents, and fractionate hydrocarbon streams. The corrosion-resistant materials handle aggressive chemical environments while delivering the theoretical plates needed for tight separations.

Food & Beverage Processing

Distill essential oils, fractionate fatty acids, purify flavor compounds, and concentrate extracts. The food-grade materials and gentle vacuum distillation maintain the sensory properties your customers expect.

Essential Oil & Fragrance Industry

Isolate specific terpenes and aromatic compounds without degrading delicate olfactory profiles. Achieve 99%+ purity isolates in compact column heights using structured packing.

Cosmetic Manufacturing

Purify natural extracts, separate carrier oils, and refine active ingredients. The transparent operation lets you monitor product quality in real-time.

Laboratory R&D

Scale up separation processes from bench to pilot production. The 5-10L models provide the theoretical plate data you need for industrial design while the customizable larger units facilitate pilot trials.

Quality Certification

Xi'an Bioland Instrument maintains comprehensive quality management systems:

• CE Certification: European safety and health standards compliance
• ISO Certification: Quality management system certification
• GMP/FDA Standards: Equipment designed for pharmaceutical production requirements
• UL, SGS, ATEX, IEC: Additional safety and performance certifications

Our quality control process includes hydraulic testing of liquid distributors (±5% flow variation), Positive Material Identification (PMI) via XRF analysis, dimensional inspection of packing elements, column verticality laser alignment (within H/1000 tolerance), and comprehensive pressure drop testing against theoretical hydraulic performance.

FAQ

Q: When should I choose a packed column over a tray column?

Choose our product when you need low pressure drop for vacuum applications, handle heat-sensitive materials, or require high efficiency in columns under 600mm diameter where trays become cost-prohibitive.

Q: How do you prevent channeling in the packing?

We install precision liquid distributors at the top and redistributors every 3-6 meters of bed height. Our installation protocols ensure uniform packing density, eliminating preferential flow paths.

Q: What does HETP mean for my separation?

HETP (Height Equivalent to a Theoretical Plate) determines your column height. If you need 20 theoretical plates and select packing with 0.5m HETP, your packed bed will be 10 meters tall. We help you select packing that balances efficiency with practical height constraints.

Q: Can you handle fouling services?

For processes with suspended solids or polymerization risks, we recommend random packing (Pall rings or θ-rings) rather than structured packing. These designs resist plugging and simplify cleaning.

Q: How does vacuum operation benefit my process?

Vacuum reduces boiling points dramatically. This lets you separate temperature-sensitive compounds like essential oils or fatty acids without thermal degradation—preserving product value and yield.

Q: What's included in your after-sales support?

We provide installation and commissioning at your site, hands-on operation training for your team, troubleshooting support, preventive maintenance guidance, and maintain spare parts inventory for immediate availability.

Contact Us

Ready to optimize your separation process with packed fractionating column? Our engineering team is here to discuss your specific requirements. Reach us at info@biolandequip.com for technical consultation and quotation.
