Mushroom polysaccharides are high-value bioactive compounds, but traditional hot-water extraction often delivers low yields and long processing times. If you want to boost efficiency while preserving bioactivity, upgrading to ultrasonic technology is the key. The ultrasonic mushroom extraction equipment from Xi’an Bioland Instrument Co.,Ltd. leverages powerful cavitation to break tough fungal cell walls at low temperatures, increasing extraction rates by 50-500% and cutting time by over 65%.
Built with SUS304/316L stainless steel, GMP compliance, and intelligent PLC control, our ultrasonic mushroom extraction equipment is not just a machine but a complete turnkey solution. Xi’an Bioland Instrument Co.,Ltd. is a professional manufacturer and solution provider for R&D production and sales of distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices. It's been more than 15 years in such field.
Mushroom cell walls are rich in chitin and glucans, which are highly resistant to conventional extraction. To achieve commercial yields, you need a physical force that can disrupt this matrix without harsh chemicals. Our ultrasonic mushroom extraction equipment is engineered specifically for this challenge, using controlled cavitation to deliver consistent, high-purity polysaccharides for functional foods and pharmaceuticals.
Many producers still rely on 3-6 hour boiling, which consumes huge energy and degrades heat-sensitive compounds. One client producing Lion's Mane extract reported only 8% yield and dark, bitter extracts with many impurities. The long high-temperature exposure also made purification difficult and increased solvent waste significantly.
The core industry problem is poor mass transfer. Hot water cannot penetrate dense mycelial structures effectively. This leads to incomplete release and batch-to-batch variation. Our ultrasonic mushroom extraction equipment solves this by creating micro-jets that force solvent deep into the material, ensuring thorough extraction in one cycle.
The working principle of our ultrasonic mushroom extraction equipment is based on acoustic cavitation. High-frequency ultrasonic waves generate millions of microbubbles that implode instantly, producing localized high pressure and shear forces. This physically breaks or deforms plant cell tissue, allowing intracellular polysaccharides to dissolve rapidly into the solvent.

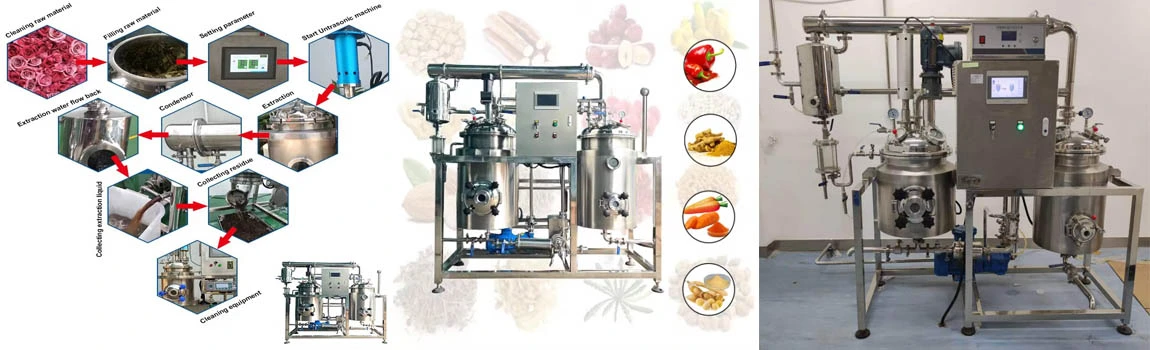

This process occurs at just 40-60°C, protecting bioactivity. The system includes an ultrasonic system, extraction tank, tubular heater, evaporator, condenser, oil-water separator, liquid pump, and vacuum pump. Extraction and concentration are integrated, so the secondary steam is condensed and refluxed as fresh solvent for continuous, efficient circulation.
Application Scenario: A health supplement company in South Korea focused on Ganoderma lucidum polysaccharide for immune products.
Client Pain Point: Their traditional extraction yield was only 6.5%, with high impurity content that clogged filters.
Solution: We provided a customized 200L ultrasonic mushroom extraction equipment line with online concentration monitoring and three-layer insulation.
Actual Benefit: Yield jumped to 18.2% within 35 minutes, impurity reduced by 40%, and final powder purity reached 92%. ROI was achieved in 5 months.
Unlike lab sonicators, our industrial ultrasonic mushroom extraction equipment ensures uniform cavitation distribution in large volumes. The PLC intelligent control system monitors ultrasonic power, temperature, and vacuum degree (-0.05 to -0.09MPA) in real time. With automatic feeding, discharging, and CIP online cleaning, it supports continuous operation and full GMP compliance for scale-up.
Achieving the highest polysaccharide yield is not about maximum power; it is about precision. Our experience with over 200 extraction lines shows that optimized parameters are the difference between 10% and 25% yield. The ultrasonic mushroom extraction equipment offers full parameter control to help you find the sweet spot for every mushroom species.
Too much ultrasonic power can create excessive foam, while too little fails to break cells. For most mushrooms, optimal extraction is achieved in 24-40 minutes at 2.7-3.5KW motor power. Our ultrasonic mushroom extraction equipment allows you to adjust frequency and power density, and the PLC records every batch for repeatable SOPs. This data-driven approach eliminates guesswork and ensures stable quality.
We recently helped a client producing extraction of polysaccharides from sweet potato and shiitake. By fine-tuning time to 30 minutes and vacuum to -0.085 MPa, they improved consistency. The intelligent system automatically stops when online concentration reaches the target, preventing over-extraction and saving energy.
High temperature is the biggest enemy of polysaccharide structure. Our ultrasonic mushroom extraction equipment operates at an optimal 40-60°C, compared to 100°C for traditional methods. This low-temperature protection is critical for heat-unstable, easily hydrolyzed or oxidized active ingredients. It also significantly reduces energy consumption and preserves natural color and flavor.
This same low-temperature advantage is proven in our tea extraction machine and Coffee Extraction Machine projects. For green tea, we extract tea polyphenols, aromatic oils, and amino acids at 50°C, preserving antioxidant activity. The principle directly applies to mushroom polysaccharides, ensuring higher biological potency.
Solvent-to-solid ratio directly affects yield and concentration cost. Our ultrasonic mushroom extraction equipment supports water extraction, ethanol extraction, and solvent recovery in one unit. The metering tank and liquid pump precisely control solvent addition, while the evaporation capacity ranges from 20 kg/h to 200 kg/h across models from 50L to 500L
The automated concentration pipeline means extract is continuously transferred to the evaporator. This closed-loop design, built to GMP/FDA standards, prevents solvent loss and operator error. It is the same automation used in our successful stevia extraction machine line for extracting stevioside from leaves, stems, and roots.
Application Scenario: A Japanese food ingredients company producing shiitake polysaccharide for functional soups.
Client Pain Point: Their 4-hour hot water process created bottlenecks, limiting daily output to 2 batches.
Solution: We installed a 300L ultrasonic mushroom extraction equipment with continuous feeding and vacuum concentration.
Actual Benefit: Extraction time dropped to 38 minutes per batch, daily output increased to 6 batches, and electricity cost fell by 30%. The client later added our mushroom polysaccharide production line for goji berry polysaccharides using the same equipment.
Yield means nothing if the polysaccharide loses its bioactivity. Many high-yield methods destroy the triple-helix structure that provides immune benefits. Our ultrasonic mushroom extraction equipment is designed to maximize both quantity and quality through gentle processing and integrated purification.
Traditional decoction causes thermal degradation and Maillard reactions. Our ultrasonic mushroom extraction equipment avoids this with jacketed temperature control (0.09~0.3 MPa jacket pressure) and evaporation temperature of 60-100°C under vacuum. The defoamer at the top of the extraction tank and evaporator prevents overflow and protects delicate molecules during boiling.
This gentle approach is also critical for extraction of flavonoids from ginkgo leaves and ultrasound assisted extraction of quercetin from sophora japonica. Clients extracting quercetin from larch, celery, and mulberry leaves report higher antioxidant retention because the low-temperature ultrasonic method prevents oxidation.
After extraction, concentration is where many polysaccharides are damaged. Our ultrasonic mushroom extraction equipment integrates a vacuum evaporator and condenser. The concentrated liquid temperature is precisely set, and secondary steam is recovered and reused. This negative pressure, normal pressure, and positive pressure compatible operation ensures the extract is concentrated into the required specific gravity ointment without scorching.
The main products include ultrasonic plant extraction machine, Ethanol extraction machine, extraction concentration unit, co2 extraction machine, supercritical fluid extraction equipment, essential oil distillation equipment, batch chemical reactor, jacketed glass reactor, chemistry vacuum filtration, fractional distillation column, crystallization chemical reactor, filter reactor, Nutche filter reactor, high shear homogenizer mixer, mixing tank, vacuum spray dryer, freeze dryer, ultrasonic homogenizer, etc. It’s widely used in laboratory research, biopharmaceuticals, food & beverage, and cosmetics.
The extract from ultrasonic mushroom extraction equipment has fewer impurities and is easy to separate and purify. Because cavitation is selective, less fiber and pigment are dissolved compared to prolonged boiling. Combined with our vacuum filtration and filter reactor options, you can achieve water precipitation and alcohol precipitation in the same system to remove starch and protein.
One client using our tincture extraction machine for ethanol extraction of medicinal herbs found that the ultrasonic pre-treatment reduced downstream filtration time by 50%. The same benefit applies to mushroom polysaccharides, lowering purification costs and improving final clarity for beverage applications.
To consistently boost yield, you must control variables beyond the machine itself. As a process solution expert, we help clients optimize the entire workflow. Our ultrasonic mushroom extraction equipment is designed with broad adaptability to handle these variables, whether you process reishi, cordyceps, or tremella.
Different mushrooms have vastly different cell wall densities and polysaccharide contents. Reishi is woody and hard, while silver ear fungus is soft and gelatinous. Our ultrasonic mushroom extraction equipment is not limited by component polarity or molecular weight, making it suitable for almost all types of mushrooms and their components. We provide customized ultrasonic probe layouts for each material.
This adaptability is proven in our pigment extraction from plants projects, where we extract orange peel pigment and anthocyanins from berries. The same flexible design that handles delicate anthocyanins also powers through tough reishi, making one machine suitable for multiple product lines and increasing your ROI.
Water is standard for polysaccharides, but some clients use ethanol-water mixtures to co-extract triterpenes. Our ultrasonic mushroom extraction equipment supports both, with SUS316L options for solvent resistance and an oil separator for essential oil recovery. The system can perform ultrasonic low-temperature extraction, solvent extraction, Soxhlet dynamic extraction, and hot reflux extraction as needed.
For example, our propolis extraction machine uses ultrasonic-assisted ethanol extraction to efficiently separate flavonoids and phenolic acids. Similarly, our Chilli Oleoresin Extraction Plant extracts capsaicin and chili oleoresin using tailored solvent systems. This multi-function extraction capability protects your investment for future products.
Cross-contamination kills GMP certification. Our ultrasonic mushroom extraction equipment is manufactured with SUS304/316L stainless steel, equipped with CIP online cleaning, three-layer thermal insulation, and GMP-compliant design. The automatic cleaning system ensures no residue between batches of different mushrooms or between polysaccharide and other extracts like plant protein or soybean protein.
Our products are also exported to Europe and Southeast Asia and other regions. We have ISO safety guarantee and CE certification give you excellent quality promise. This compliance was decisive for a European client who needed to switch from food-grade to pharmaceutical-grade mushroom extracts without buying new equipment.
Smart investors want equipment that does more than one job. Our ultrasonic mushroom extraction equipment is also ideal for plant protein, wheat germ oil, jujube and goji active substances, rose essential oil, mint essential oil, caffeine, and functional food actives like polyphenols and flavonoids. This versatility turns a single machine into a profit center for multiple seasons.
We have delivered successful lines including stevia production line, tea polyphenol extraction line, chili extraction line, mushroom polysaccharide line, goji polysaccharide extraction line, natural plant pigment and anthocyanin extraction line, and propolis line. This proven track record shows we are not just selling equipment, but delivering profitable process solutions.
Moving from laboratory to industrial scale is where many extraction projects fail. Power density drops, heating becomes uneven, and yields collapse. Our ultrasonic mushroom extraction equipment is specifically designed for linear scale-up, ensuring your lab results translate directly to production profits.
We offer five standard models: BL-TN-C50L, 100L, 200L, 300L, and 500L, with evaporation capacity from 20 to 200 kg/h. A university lab can start with a 50L pilot, validate parameters, and then directly scale to a 500L production line with the same PLC recipe. The system vacuum remains stable at -0.085 MPa across all sizes, ensuring identical extraction kinetics.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |

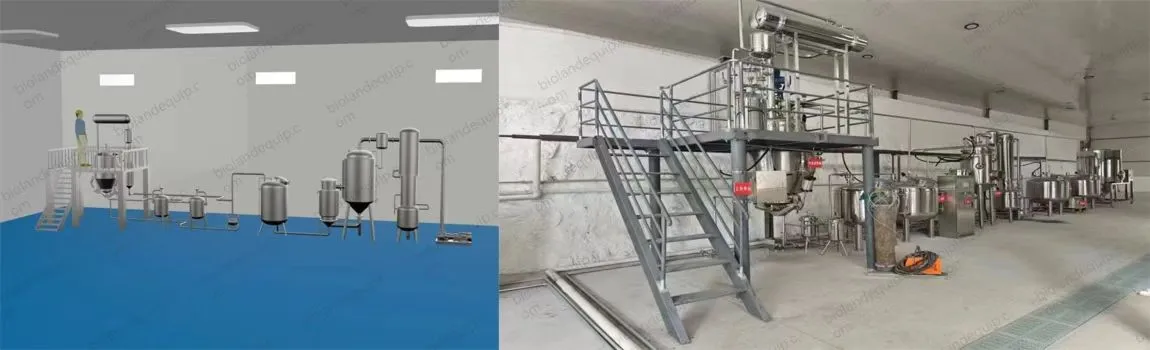

The ultrasonic mushroom extraction equipment structure is modular, including extraction tank, evaporator, condenser, and distribution cabinet. For clients without steam, we can add a thermal oil heating system. This flexible configuration was used for a US client scaling up ultrasonic extraction mushrooms from pilot to full-scale without re-optimizing the process.
No two factories are the same. Our company is CE and ISO certified, with an in-house R&D team boasting years of engineering experience. We offer customized equipment and production lines tailored to client requirements, ensuring satisfaction through OEM/ODM services. Customized products typically have a lead time of 30 business days, while non-customized products are generally ready in 5–7 days.
Whether you need explosion-proof design, higher automation, or integration with existing spray dryers and freeze dryers, our TECHNICAL TEAM has senior engineers dedicated to strict quality control and thoughtful customer service. Our mission is to provide innovative products, valuable insights, comprehensive solutions and real-time support to customers, enabling them to gain first-class equipment with lowest price.
We guarantee high quality, supported by excellent pre-sales and after-sales service. Our professional team closely monitors production, assigning a dedicated specialist each week to track progress with photos or videos, keeping you fully informed. Upon completion, detailed photos or videos are provided for your inspection, and shipment is arranged after your approval.
Alternatively, clients may schedule a Factory Acceptance Test (FAT) at our facility once the goods are ready. We support sea, rail, and air freight options and provide a one-year quality warranty with lifetime maintenance. All products comply with GMP/FDA standards. This transparent process is why clients trust our ultrasonic mushroom extraction equipment for critical production.
Application Scenario: A Canadian startup wanted to produce organic mushroom extracts for cosmetics.
Client Pain Point: They were quoted $180,000 for a European system with 12-week delivery and no customization.
Solution: We offered a 100L ultrasonic mushroom extraction equipment with OEM branding, CE certification, and 7-day delivery for standard units at 40% lower price.
Actual Benefit: They launched three months earlier, saved $70,000, and used the savings to add a vacuum spray dryer from us. The price advantage and fast delivery directly accelerated their market entry and profitability.
Boosting mushroom polysaccharide yield requires more than stronger boiling; it requires smarter cavitation, precise low-temperature control, and integrated concentration. The ultrasonic mushroom extraction equipment delivers this by breaking cell walls in 24-40 minutes, protecting bioactivity at 40-60°C, and scaling seamlessly from 50L to 500L. With GMP-compliant design, PLC automation, and proven success across mushroom, stevia, chili, and tea lines, it transforms extraction from a bottleneck into a competitive advantage.
A: Most clients see 50-500% increase versus hot water methods. For example, Ganoderma polysaccharide yield rose from 6.5% to 18.2% in our case study.
A: Yes. Our system includes an oil-water separator and supports water, ethanol, and solvent recovery, ideal for mushrooms, rose oil, and pigment extraction from plants.
A: Absolutely. All units are built with SUS304/316L, CIP cleaning, and have ISO and CE certification, fully compliant with GMP/FDA standards.
A: Standard 200L units ship in 5-7 days. Customized OEM/ODM solutions typically require 30 business days with weekly video updates and FAT options.
A: Yes. We provide turnkey solutions including extraction, concentration, filtration, freeze dryer, and spray dryer, as proven in our tea, stevia, and propolis lines.
Stop losing yield to outdated boiling methods. Bioland Instrument is not just an equipment vendor; we are your process solution partner with 15+ years of expertise, CE/ISO certification, GMP-compliant design, and unbeatable price advantage. Our ultrasonic mushroom extraction equipment has already helped clients worldwide increase polysaccharide yields by up to 180%, cut extraction time by 65%, and launch new product lines quickly. Whether you need a 50L lab pilot or a 500L industrial line, we offer OEM/ODM customization, 5-7 day fast delivery, one-year warranty, and lifetime support with weekly progress tracking and FAT. Contact our expert team today at info@biolandequip.com to get your tailored extraction solution and quotation.
1. Zhang, Y., et al. Ultrasonic-assisted extraction of polysaccharides from medicinal mushrooms: Optimization and bioactivity evaluation.
2. Chen, X., & Wang, L. Effects of cavitation on cell wall disruption and polysaccharide release in Ganoderma lucidum.
3. Li, H., et al. Comparison of hot water and ultrasound-assisted extraction for shiitake polysaccharides: Yield, structure, and immunomodulatory activity.
4. Sari, M., & Kaur, R. Low-temperature ultrasonic extraction for preservation of bioactive polysaccharides: A review.
5. Huang, Q., et al. Scale-up of ultrasonic extraction processes for fungal polysaccharides: From laboratory to industrial production.
6. Wu, D., et al. Structural characterization and antioxidant activity of polysaccharides extracted by ultrasound from edible mushrooms.
