Sep 8, 2026

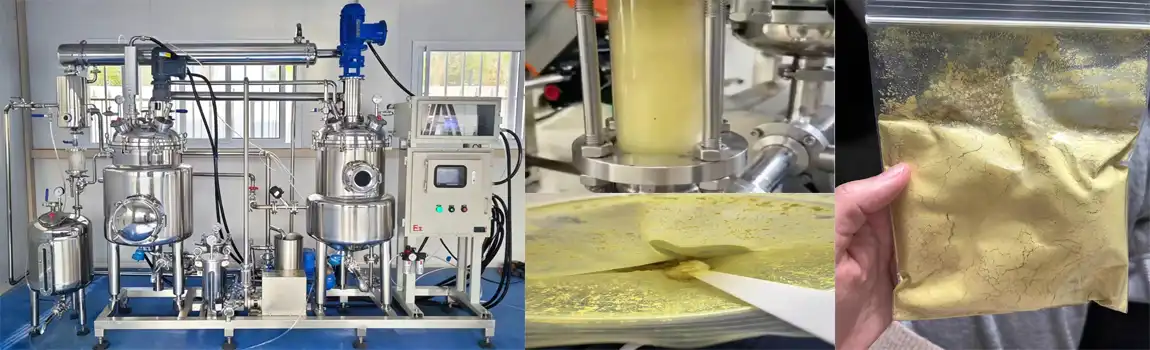

Safety is not an afterthought when running a stevia extraction machine in any high-volume production facility. Operators face solvent vapors, hot surfaces, pressurized tanks, and moving parts. Bioland’s stevia extraction machine is engineered with stainless steel construction, vacuum concentration, PLC interlocks, and CIP cleaning to prevent these hazards before they occur. This guide explains how to choose, operate, and maintain a stevia extraction machine that protects workers while delivering higher yields of steviol glycosides from leaves, stems, and roots. We combine practical risk prevention with real application cases to show that safe operation can also be profitable.
Ethanol is commonly used in a stevia extraction machine to dissolve steviol glycosides. When heated, ethanol vapors can accumulate inside the tank and in the surrounding work area. If the condenser fails or the vacuum seal leaks, flammable vapor may reach ignition sources. A professional stevia extraction machine should include a closed-loop condenser, an exhaust vent, and a gas detector. Operators must also wear appropriate PPE and avoid opening the tank while solvent is still evaporating. Bioland’s design uses a demister on the vapor outlet to reduce carryover and maintain a safe atmosphere. In a real customer project, a 200 L stevia extraction machine was installed with a vapor detection alarm, and the operator reported zero solvent smell in the production room after the first month of use.
Stevia extraction machines often run at 40–60°C for ultrasonic extraction, but jacket pressure can reach 0.3 MPa. Overheating may cause sudden vapor expansion, leading to structural stress. A robust stevia extraction machine must have a pressure relief valve, a vacuum pump with a check valve, and a temperature sensor linked to an alarm. In one case, a stevia processor found that an old unit overheated and damaged gaskets. After switching to Bioland’s three-layer insulated vessel, jacket pressure remained stable, and no thermal incident occurred over a full year. The vacuum system holds at -0.05 to -0.09 MPa, which also protects heat-sensitive steviol glycosides from degradation. This is especially important when the same stevia extraction machine is used for tincture extraction or propolis extraction.
Electrical panels, stirrers, and pumps create additional dangers. A stevia extraction machine with a motor power of 2.7–3.5 kW needs proper grounding, overload protection, and IP-rated enclosures. Wires exposed to solvent vapors can spark. Bioland’s stevia extraction machine uses CE-certified electrical parts and enclosed cabinets. The PLC system automatically disconnects power when a fault is detected. Operators should lock out power before maintenance. In a large stevia line, the same unit also handles ethanol recovery and mushroom polysaccharide extraction, making safe electrical design critical for multipurpose use. A Chinese functional food producer used this stevia extraction machine for both tea polyphenol extraction and stevia extraction, and the automation package allowed one operator to supervise two units safely.
Most safety incidents are caused by inadequate training, not hardware failure. New staff must understand how the stevia extraction machine works, what alarms mean, and how to stop a cycle safely. Bioland provides an operation manual and remote video support. A dedicated technician explains the sequence of solvent addition, extraction, vacuum concentration, and CIP cleaning. When a producer in Shandong expanded from tea extraction to stevia, they used the same stevia extraction machine for tincture extraction. The training covered solvent compatibility and emergency procedures, reducing human error and downtime. Monthly refresher sessions also ensure that workers remember what to do when the extraction tank remains under vacuum after a power interruption.
Prevention starts with heating system design. A good stevia extraction machine should have a jacket with adjustable pressure for steam or thermal oil. The recommended evaporation temperature is 60–100°C, but low-temperature ultrasonic extraction at 40–60°C is safer for heat-sensitive steviol glycosides. Bioland’s machine uses a vacuum system that keeps boiling points low. This reduces the chance of thermal runaway. One customer using a 200 L stevia extraction machine reported that batch time fell by more than two-thirds, with no operator exposed to high-temperature splashes. Temperature is monitored with a PT100 probe and displayed on the PLC touchscreen. If the temperature exceeds the recipe limit, the heater automatically switches off. The same unit has been used for ultrasound assisted extraction of quercetin, proving that gentle heat can also handle other botanical actives.
Vacuum operation reduces boiling temperature, but it also creates pressure differences. The stevia extraction machine must maintain vacuum at -0.05 to -0.09 MPa during concentration. If a sight glass or gasket fails, air can rush in and break glass. A strong unit uses borosilicate or stainless steel components with integrated relief valves. Bioland equips the system with a vacuum pump, a buffer tank, and a check valve to prevent solvent backflow. In a plant that also produced chilli oleoresin, the same stevia extraction machine handled ethanol recovery under vacuum. Operators found the system held vacuum stable for eight hours without leakage. A safety relief valve is installed on the jacket side, so even a sudden spike in heating medium pressure can be discharged safely.
Ethanol, methanol, or water may be used depending on the recipe. The stevia extraction machine must have a sealed solvent addition port and a condenser that recovers solvent for reuse. Proper grounding prevents static electricity. The extraction tank should also have an explosion-proof design if flammable solvents are handled. Bioland’s equipment can be configured with an explosion-proof motor and a closed-loop glycol cooling system. A stevia producer in Anhui switched from open tank extraction to a Bioland stevia extraction machine and recovered 95% of ethanol. This lowered chemical cost and fire risk, and the recovered solvent was reused in the next batch. The same system also works as a pigment extraction from plants unit, where ethanol is used to separate carotenoids and anthocyanins.
In the event of a leak, higher temperature, or pump failure, the stevia extraction machine should automatically stop the heater and close the isolation valve. Bioland’s PLC includes interlocks for jacket pressure, vacuum level, motor overload, and condenser water flow. The operator can press an emergency stop button that cuts all power. During an audit, a beverage company praised this feature because it enabled one person to safely manage two stevia extraction machines at the same time. The system also provides a visual alarm and fault message, which helps the operator solve problems quickly without guessing. When the same machine is later used for stevia leaves, mushroom polysaccharides, or coffee extraction, the interlock logic remains in place, protecting every new recipe.

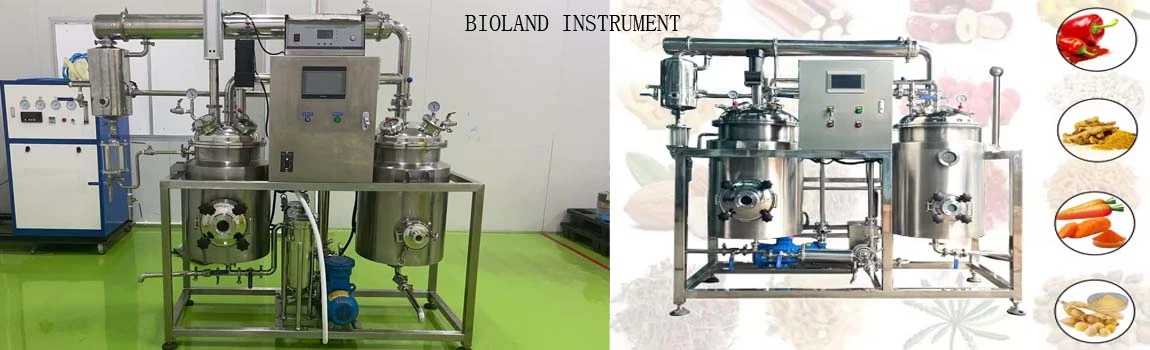

Safety begins with material selection. A quality stevia extraction machine is built from SUS304 or SUS316L stainless steel with a polished inner surface that resists bacterial growth. Welds should be smooth and free from cracks. Bioland designs the vessel with three-layer insulation, CIP spray ball, and sanitary fittings. The equipment can be cleaned without dismantling. One nutraceutical company used the same stevia extraction machine to process mushroom polysaccharides and stevia in different shifts. GMP design made changeover simple and avoided cross-contamination. The extraction tank, evaporator, condenser, and oil separator are all made of food-grade stainless steel. This is also important for customers who need a chilli oleoresin extraction plant in the same facility.
Cleaning plays a central role in safe operation. If the stevia extraction machine is not cleaned properly, residues can ferment, cause pressure buildup, or attract pests. Bioland’s CIP system automatically sprays hot water and dilute alkali into the tank, then rinses thoroughly. The cleaning cycle can be programmed on the PLC. After a polyphenol extraction run, the same stevia extraction machine can be flushed and used for tea polyphenols. A food-grade line with HACCP compliance requires this repeatable cleaning route. Operators should never enter the tank before confirming it is cool, ventilated, and locked out. CIP reduces the need for manual cleaning and keeps workers from being exposed to chemical detergents or hot residual liquor.

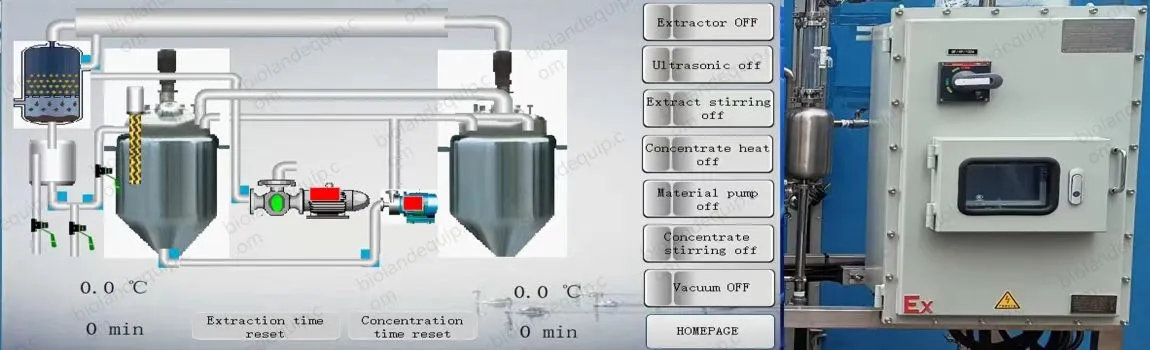

Automation reduces operator exposure. A closed stevia extraction machine with a PLC screen lets workers monitor temperature, pressure, vacuum, and stirring speed without opening ports. Bioland offers online concentration monitoring and automatic discharge, so the operator does not have to sample manually during a run. This feature is particularly useful for tincture extraction machine operations. In one project, a Chinese customer used a stevia extraction machine for a full extraction and concentration cycle; the PLC recorded all parameters, which simplified quality control. Automated records also help with GMP audits and food safety inspections. The system can also integrate automatic discharge and feed pumps, allowing continuous operation with minimal operator contact.
Certification is not just paperwork. CE and ISO certificates confirm that the stevia extraction machine has been designed according to electrical safety, pressure equipment, and quality management standards. Bioland Instrument holds CE and ISO certification and follows GMP/FDA guidelines. Each unit is pressure-tested and leak-tested before shipment. Customers can schedule a Factory Acceptance Test (FAT) at the manufacturer’s facility. A vitamin producer in Europe insisted on FAT before accepting the stevia extraction machine. Bioland provided detailed photos and a performance test report, including the evaporation capacity and vacuum hold time. This gave the customer complete confidence that the equipment would operate safely at their site.
Before every shift, the operator should inspect the stevia extraction machine: check solvent levels, cooling water flow, condensate drain, and seal integrity. The extraction tank lid must be tight. The vacuum pump must start only after the condenser receives water. Bioland provides a standard operating procedure that lists these checks step by step. In a Chinese sweetener factory, three technicians were responsible for one 100 L stevia extraction machine. They performed a five-minute checklist each morning and recorded it in the shift log. This routine reduced unplanned stops by 40%. The same checklist also applies when the machine is used for extraction of flavonoids from chrysanthemum or mulberry leaves.
Concentration endpoint is critical. A stevia extraction machine with online concentration monitoring can measure the density of the extract in real time. If concentration goes too high, sugar crystals may block pipes and raise pressure. Temperature must also stay within the set range. Bioland’s unit displays all parameters on a touchscreen and triggers an alarm if a value moves outside the tolerance. In a multi-functional extraction line, the same stevia extraction machine was used for propolis extraction and pigment extraction. The monitoring system allowed the operator to switch between recipes without guessing. This ensures product consistency and safety, especially when producing high-value steviol glycosides for the food and beverage industry.
Operator training should include both emergency procedure and daily operation. Bioland’s technical team supports customers with remote video instruction and on-site FAT. New staff need to know how to stop the stevia extraction machine, isolate solvent, and clean the filtration system. A company that used the machine for tincture extraction found that after two training sessions, error rates fell by 60%. The same staff could also use the equipment for extracting flavonoids from plants. Building operator competency is a continuous process. Monthly refresher training should cover solvent handling, lockout/tagout, and spill cleanup. We also recommend appointing one safety champion per shift, who knows exactly how to handle the stevia extraction machine when the alarm sounds.
A large American nutraceutical plant faced a serious issue: they were losing ethanol vapor from their old stevia extraction machine. The manager contacted Bioland because they needed a closed system and better condenser efficiency. Bioland proposed a 100 L stevia extraction machine with an oil separator, a high-efficiency condenser, and a PLC-controlled vacuum system. After installation, ethanol loss dropped from 12% to below 2% per batch, and no worker was exposed to vapor. The plant later used this unit for coffee extraction and ultrasound-assisted extraction of quercetin. The payback period was under eight months. The client also praised Bioland’s weekly photo updates during production, which let them track every weld and valve before shipment.
After each batch, the stevia extraction machine should be rinsed with warm water, then cleaned with CIP solution. Filters must be removed and checked. The sight glass should be wiped clean, and the vacuum pump oil level checked. Bioland provides a maintenance schedule with a daily checklist. For a small stevia production workshop, a 50 L stevia extraction machine was cleaned in 20 minutes. This prevented residue buildup and kept the extraction efficiency high. Routine cleaning also extends seal life and avoids costly repair. When the same unit is used for stevia extraction and stevia purification, a clean surface prevents the carryover of chlorophyll and other pigments that could affect product color.
Gaskets, O-rings, and mechanical seals wear out over time. The stevia extraction machine should include easily replaceable sanitary seals. We recommend replacing them at least once a year, or every six months if alcohol is used daily. Filters should be inspected weekly. A customer using a Bioland stevia extraction machine for stevia and mushroom extraction found that replacing the filter screen every two months maintained flow and prevented overheating. Bioland offers spare parts and can provide a list of consumables with each order. Using original parts ensures that safety interlocks and pressure ratings continue to match the original design.
Even with good maintenance, the stevia extraction machine should undergo a full performance check every year. This includes vacuum hold test, heating efficiency test, and safety interlock verification. Bioland invites customers to arrange a Factory Acceptance Test at the Xi’an plant. During the test, we run the machine with water and measure evaporation capacity, solvent recovery, and pressure stability. A tea polyphenol producer did this before buying a 100 L stevia extraction machine and confirmed that the unit could handle a complete extraction and concentration cycle within one shift. This verification gives long-term confidence and also highlights any worn component before it can become a safety problem.
If something fails, fast support is essential. Bioland Instrument is a professional manufacturer and solution provider for extraction, concentration, filtration, and ancillary equipment. The company has over 15 years of experience and exports to Europe and Southeast Asia. We provide one-year warranty and lifetime maintenance. A dedicated specialist tracks production weekly and sends photos or videos to the customer. Customized products are ready in 30 business days; standard units ship in 5–7 days. Customers can email info@biolandequip.com for spare parts. This responsive support keeps the stevia extraction machine running safely and gives buyers peace of mind from installation to daily operation.
Operating a stevia extraction machine safely requires a partner who understands process risks. Bioland’s equipment combines stainless steel build, vacuum protection, PLC interlocks, and CIP cleaning to prevent thermal, pressure, and chemical hazards. With CE/ISO certification and GMP-compliant production, it helps manufacturers achieve high yields of steviol glycosides while protecting workers. Whether you process stevia leaves, mushrooms, tea polyphenols, or plant pigments, the right system and training reduce downtime and make extraction repeatable. Regular maintenance, operator training, and FAT verification ensure that this stevia extraction machine continues to meet safety standards over its entire life. With a 50–500 L range and OEM/ODM support, Bioland provides a total process solution for safe and profitable extraction.
A: Pressure relief, vacuum control, PLC interlocks, CIP cleaning, and CE-certified electrical parts.
A: Yes, it handles mushroom polysaccharides, tinctures, tea polyphenols, propolis, and plant pigments.
A: 40–60°C for ultrasonic extraction and up to 100°C for concentration under vacuum.
A: Schedule a Factory Acceptance Test (FAT) at Bioland’s facility or review photos/videos after production.
A: Daily cleaning, filter inspection, seal replacement annually, and a full performance test each year.
Take control of your extraction safety today. Xi’an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider with over 15 years of experience in distillation, concentration, reaction, extraction, and filtration. Our stevia extraction machines are CE and ISO certified, meet GMP/FDA standards, and are built from SUS304/316L stainless steel with PLC automation and CIP cleaning. We offer OEM/ODM support, a one-year warranty, and lifetime maintenance. Let our R&D team help you design a complete production line that meets your recipe and safety requirements. Standard units ship in 5–7 days; customized lines take 30 business days. Email info@biolandequip.com today for a free consultation. Bioland Instrument is your trusted partner for safe and profitable extraction.
1. Goyal, S. K., Samsher, & Goyal, R. K. (2010). Stevia (Stevia rebaudiana): A bio-sweetener. Journal of Food Science and Technology, 47(1), 1–10.
2. Geuns, J. M. C. (2003). Stevioside. Phytochemistry, 64(5), 913–921.
3. Ahluwalia, S. S., & Kaur, G. (2015). Extraction and purification of steviol glycosides from Stevia rebaudiana: A review. Journal of Food Processing and Preservation, 39(6), 1134–1144.
4. Periche, A., Castelló, M. L., Heredia, A., & Escriche, I. (2015). Influence of extraction conditions on the recovery of steviol glycosides. Food Chemistry, 170, 103–109.
5. Kovyazin, A. V., & Kolesnikov, I. M. (2018). Safety aspects of solvent extraction in food processing. Food Engineering Reviews, 10(4), 194–208.
6. Zhang, H., Li, X., & Wang, Y. (2020). Process safety management in ultrasonic-assisted extraction of bioactive compounds. Industrial Chemist, 32(2), 145–156.
