Selecting the right reactor used in chemical industry is essential for controlling reaction temperature, pressure, mixing, residence time, product purity, and production efficiency. It is easy to use Bioland Instrument's glass reactor systems for research in the lab, pilot validation, and custom production. Their GG17 borosilicate glass is very clear, doesn't rust, can control temperatures precisely, has modular ports, can work in vacuum, and can be seen to work help engineers understand and improve complicated processes. This equipment is more than just a tank; it can be used for reaction, distillation, extraction, condensation, filtration, crystallisation, and concentration all on one flexible base.
For companies that make chemicals, the best reactor isn't always the biggest or most automatic one. It's the method that works best with the chemicals, batch sizes, working conditions, safety needs, and plan for future expansion. This guide talks about common types of reactors, how to choose one, common industrial uses, and current technological trends. It also shows how Bioland Instrument helps customers by providing whole process solutions instead of just equipment.
A batch reactor used in chemical industry is charged with raw materials, operated for a defined period, and discharged after the reaction is complete. This configuration is widely used for specialty chemicals, pharmaceutical intermediates, catalyst testing, and products manufactured in different formulations or campaigns. Batch operation allows engineers to adjust temperature, agitation speed, feed rate, vacuum, and reaction time between batches.
Bioland’s batch and jacketed glass reactors are especially useful when operators need to observe color changes, precipitation, phase separation, foaming, or crystallization. A transparent vessel helps reduce black-box operation and improves process repeatability. Depending on the design, the vessel can include a condenser, dropping funnel, temperature probe, vacuum connection, gas inlet, and sampling port.
A continuous reactor used in chemical industry receives feedstock and discharges products at a controlled rate. Continuous stirred-tank reactors, plug-flow reactors, tubular reactors, and packed-bed reactors are common examples. These systems can provide steady production, consistent residence time, and efficient use of labor when the process is well established.
Continuous designs are often selected for large-volume chemicals, polymer production, catalytic processing, gas reactions, and petroleum-related operations. However, continuous operation requires stable raw materials, accurate metering, reliable heat transfer, and effective control of start-up and shutdown procedures. Many companies first use a batch or pilot glass reactor to define the chemistry before investing in a continuous production line.

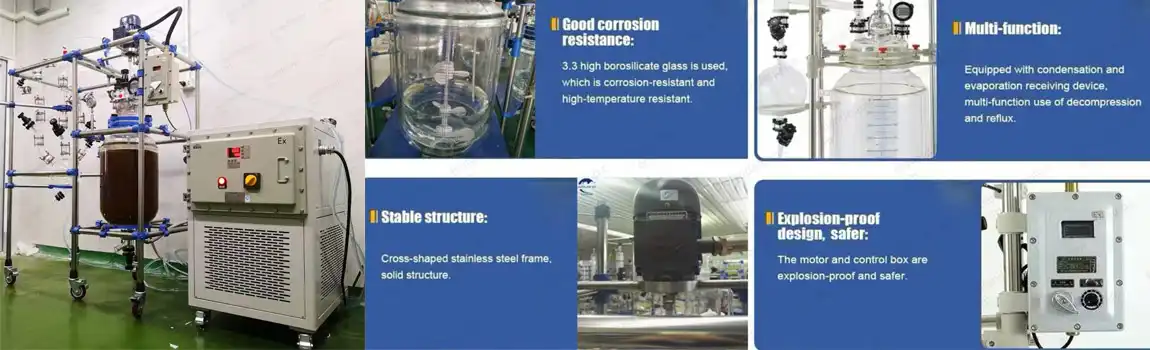

A glass reactor used in chemical industry is valued for chemical compatibility, visual monitoring, and low contamination risk. GG17 borosilicate glass can resist many strong acids, bases, and organic solvents and does not normally introduce metal ions into the reaction system. These properties are valuable in pharmaceutical synthesis, biological-material development, fine chemicals, and high-purity intermediates.
A double-jacket structure can support heating and cooling through circulating fluids. According to the selected configuration, Bioland systems can support low-temperature condensation around -80°C and high-temperature reactions up to approximately 300°C. Vacuum operation may reach approximately -0.095 MPa, subject to model specifications, operating conditions, and engineering confirmation.
Some processes require a reactor to perform more than chemical conversion. Filter reactors, crystallization reactors, ultrasonic crystallization systems, and Nutche filter reactors combine reaction with solid-liquid separation or product recovery. A reactor used in chemical industry can also be connected to a fractional distillation column, rotary evaporator, extraction unit, or vacuum filtration device.
This integrated approach reduces material transfer, shortens processing routes, and makes it easier to maintain a controlled environment. Bioland can design systems with filtration, crystallization, ultrasonic treatment, tail-gas absorption, purification, concentration, and rectification modules according to the customer’s process.
Temperature affects reaction rate, selectivity, viscosity, solubility, crystallization, and final product quality. A jacketed reactor used in chemical industry transfers heat through a controlled medium surrounding the reaction vessel. Heating and cooling can be adjusted during charging, reaction, reflux, concentration, and discharge.
Bioland’s glass reactor platform combines the jacket with temperature sensors, circulating heating or cooling equipment, and an adjustable agitator. This arrangement is useful for exothermic reactions, low-temperature condensation, solvent recovery, catalytic reactions, and crystallization. Accurate control also generates more reliable data for pilot-scale validation and GMP process development.
The agitator is a central part of any reactor used in chemical industry because it determines how effectively materials are mixed and how evenly heat is distributed. Anchor, paddle, turbine, dispersing, and customized agitators may be selected according to viscosity, solids content, shear sensitivity, and gas-liquid requirements.
Variable-frequency drive motors allow operators to change the mixing speed during different stages. Lower speeds may be suitable for gentle crystallization, while higher speeds may improve dispersion or mass transfer. Bioland’s engineering team can evaluate the material characteristics and process goals before recommending the agitator shape, motor power, shaft configuration, and seal arrangement.
A modular reactor used in chemical industry can be adapted as process requirements change. A standard five-port lid, for example, may accommodate a condenser, temperature probe, vacuum line, feed funnel, gas inlet, or sampling device. Additional ports and customized flanges can be added when the process requires special sensors, liquid addition, filtration, or gas treatment.
This flexibility allows one reactor to perform multiple operations. A typical sequence may involve charging raw materials, adding a catalyst, heating under controlled agitation, introducing a reagent gradually, applying vacuum, condensing solvent, cooling for crystallization, and discharging the final slurry. Each step can be configured around the customer’s actual production method.
For processes involving flammable solvents or hazardous atmospheres, an explosion-proof reactor used in chemical industry may be configured with suitable motors, electrical components, control cabinets, sensors, and grounding arrangements. PLC control can automate temperature programs, agitation, feeding, vacuum sequences, alarms, and emergency shutdown functions.
Bioland also supports lifting and rotating structures that simplify loading, unloading, cleaning, and inspection. The final design should be based on a process risk assessment and confirmed operating limits. Appropriate pressure protection, ventilation, inert-gas management, and operator training remain essential parts of a complete system.
A European precious-metal producer needed higher capacity and improved separation efficiency. Existing equipment was too small for the planned solvent-extraction line and could not adapt easily to corrosive, hazardous materials.
Bioland supplied four 200 L explosion-proof double-layer glass reactors and nine 50 L explosion-proof rotary evaporators. The integrated reactor used in chemical industry solution supported reaction, extraction, distillation, and concentration. The equipment met Exd IIB T4 requirements, reduced the reported delivery cycle by 40%, enabled production 15 days earlier, increased annual capacity by approximately 30%, and achieved more than 1,000 hours of trouble-free operation.
The first question when selecting a reactor used in chemical industry is whether the vessel and all wetted components are compatible with the feedstock. Engineers should evaluate acids, alkalis, solvents, catalysts, oxidizers, concentration, temperature, pressure, and cleaning agents. Glass, PTFE, stainless steel, nickel alloys, and other materials may be appropriate for different process conditions.
GG17 glass is attractive for corrosive and high-purity applications because it resists many chemical media and minimizes metal-ion contamination. PTFE sealing components and mechanical seals can provide reliable containment when correctly specified. Material selection should always be confirmed by technical review rather than based on a general chemical-resistance table alone.
The capacity of a reactor used in chemical industry must match current production while leaving room for future process development. A laboratory vessel may be appropriate for reaction screening, while a 50 L or 200 L system may be more suitable for pilot validation or small-batch manufacturing.
Scale-up changes heat-transfer area, agitator performance, mixing time, addition rate, discharge behavior, and vapor residence time. For GMP pilot validation, the reactor should also support repeatable cleaning, sampling, drainability, documentation, and controlled operation. Bioland provides customized volumes, shapes, structures, and layouts to help customers transfer laboratory knowledge into pilot and production environments.
A reactor used in chemical industry must be designed around the complete operating envelope, not only the normal reaction temperature. Engineers should consider heating rate, cooling rate, vacuum level, pressure fluctuations, reflux conditions, condensation temperature, and emergency scenarios.
Bioland’s double-layer glass systems can be integrated with vacuum devices, condensers, and temperature-control units. A typical configuration may support vacuum operation close to -0.095 MPa and a wide temperature range from low-temperature condensation to high-temperature reaction. Actual limits depend on vessel size, glass design, pressure conditions, accessories, and the approved technical specification.
A well-designed reactor used in chemical industry should be easy to inspect, clean, maintain, and operate. Transparent glass surfaces make it easier to identify residue, discoloration, deposits, or damage. Lifting and rotating mechanisms can simplify feeding, discharge, cleaning, and access to the vessel.
Operators should inspect glass surfaces, clamps, seals, valves, hoses, temperature probes, agitator alignment, and vacuum performance before use. The reactor must remain within its rated temperature and pressure limits. Preventive maintenance, appropriate personal protection, safe chemical handling, and written operating procedures help preserve equipment reliability.
A chemical producer required a customized vessel for a nitric-acid-related acidified glycerol production line. The customer’s main concerns were corrosion resistance, temperature management, visible monitoring, and safe integration with the existing process.
Bioland designed a customized reactor used in chemical industry with glass construction, suitable sealing, controlled heating and cooling, and modular process connections. Operators could observe mixing and reaction behavior directly, while the customized layout supported integration with the production line. This project illustrates how equipment should be engineered around process difficulties rather than selected from a standard size chart.
A reactor used in chemical industry is the core vessel for organic synthesis, inorganic reactions, catalyst evaluation, and specialty-chemical manufacturing. Raw materials are charged, mixed, heated or cooled, reacted for a defined period, and then separated or concentrated. With a condenser and vacuum system, the same platform can support reflux, solvent recovery, evaporation, and purification.
Transparent glass is useful during development because researchers can see color development, solid formation, phase separation, and changes in viscosity. These observations help engineers adjust the addition rate, agitation speed, temperature profile, and reaction time before establishing a standard operating procedure.
In pharmaceutical production, a reactor used in chemical industry may be used for active pharmaceutical ingredients, intermediates, crystallization, solvent exchange, catalyst studies, and formulation development. High chemical resistance helps support strong-acid and strong-base systems, while transparency improves process understanding.
A sealed design can support inert-gas protection for oxidation-sensitive materials. Temperature control and controlled agitation help improve selectivity and purity. For GMP-oriented pilot validation, customers may request customized connections, cleanable structures, controlled discharge, documented materials, and automated process records.
A reactor used in chemical industry is also useful in food and cosmetic applications, including heating, cooking, mixing, emulsification, fermentation, concentration, dehydration, extraction, and formulation trials. The vessel can provide a visible environment for monitoring viscosity, dispersion, phase stability, and color changes.
Bioland’s wider portfolio includes ultrasonic plant extraction machines, ethanol extraction machines, CO₂ extraction equipment, essential-oil distillation equipment, high-shear homogenizers, mixing tanks, vacuum spray dryers, freeze dryers, and ultrasonic homogenizers. These products can be combined with a glass reactor to create a more complete extraction, concentration, or formulation line.
In petroleum processing, a reactor used in chemical industry can support catalytic reactions, polymer synthesis, solvent recovery, and chemical analysis. In metallurgy, it may be used for mineral leaching, metal refining, precious-metal extraction, and evaluation of corrosive process solutions.
Agricultural-chemical producers can use reactors for pesticide intermediates and formulation development. New-material companies may apply them to coatings, functional materials, nanomaterials, controlled precipitation, and crystallization. The correct configuration depends on feedstock properties, reaction kinetics, heat demand, solids content, and downstream separation requirements.
A South American biopharmaceutical company faced low dissolved-oxygen efficiency, long fermentation cycles, unstable process control, and inconsistent product purity. Oxygen-sensitive materials also required a protected reaction environment.
Bioland supplied a customized 50 L double-layer reactor used in chemical industry with an optimized agitator design. Dissolved-oxygen efficiency improved by approximately 30%, and the transparent vessel allowed real-time observation of color and precipitation. Sealed operation supported inert-gas protection and more consistent intermediate synthesis.
Many industrial projects require a sequence rather than one unit operation. A reactor used in chemical industry may be connected to a fractionating column, condenser, rotary evaporator, filter reactor, vacuum filtration system, crystallizer, or dryer. The general process route may include raw-material charging, controlled reaction, cooling, extraction, phase separation, concentration, crystallization, filtration, washing, drying, and packaging.
Bioland’s role is to help customers select and connect the equipment required for the complete route. This approach reduces unnecessary transfers and helps align temperature, vacuum, material compatibility, and control requirements across the process.
The future reactor used in chemical industry will increasingly combine sensors, PLC systems, data recording, and automated decision support. Temperature, pressure, agitation speed, feed rate, vacuum, and gas flow can be monitored in real time. Alarms and interlocks can protect the process when measured values move outside the approved range.
For research and pilot plants, data logging is especially important because it makes experiments easier to compare and reproduce. Automated profiles also reduce operator variation. Bioland supports PLC-controlled systems and integrated temperature-control solutions tailored to specific production requirements.
Manufacturers increasingly need flexible equipment that can support several products or process stages. A modular reactor used in chemical industry can be equipped with replaceable condensers, feed systems, filters, crystallization components, extraction accessories, and purification modules.
This approach is valuable for contract manufacturers, universities, pharmaceutical developers, and specialty-chemical companies. It reduces the need for multiple dedicated vessels and makes future expansion easier. Modular design also supports OEM/ODM development when the customer has unusual materials, restricted floor space, or a unique process sequence.
Future reactor development will focus on safer operation, lower energy use, solvent recovery, gas treatment, and reduced material waste. Explosion-proof systems, inert-gas protection, automated shutdown, efficient jackets, improved insulation, and tail-gas absorption can contribute to safer process design.
A reactor used in chemical industry may also be integrated with vacuum concentration, heat recovery, filtration, crystallization, and drying systems to reduce repeated heating and cooling. Transparent glass platforms help researchers optimize operating conditions before scaling, reducing failed batches and unnecessary pilot campaigns.
Standard products remain useful, but customized engineering is becoming more important for GMP pilot verification and specialized production. Bioland can customize vessel dimensions, shapes, materials, ports, agitators, lifting and rotating structures, PLC control, temperature integration, filtration, ultrasonic crystallization, rectification, tail-gas absorption, purification, and concentration.
Xi’an Bioland Instrument Co., Ltd. has more than 15 years of experience providing process equipment and technical solutions. The company serves customers in Europe, Southeast Asia, and other regions and supports OEM/ODM orders. CE and ISO certification, an in-house R&D team, professional engineers, and detailed production follow-up help customers manage quality from design through delivery.
Modern reactor technology includes technical consultation, process design, factory testing, installation support, maintenance, and long-term service. Bioland generally offers a one-year quality warranty and lifetime maintenance. Standard products may be prepared within 5–7 days, while customized systems typically require around 30 business days, depending on the specification.
During manufacturing, a dedicated specialist provides weekly photographs or videos of production progress. Once the system is finished, detailed inspection materials are supplied for customer approval. Customers may also arrange a Factory Acceptance Test at the factory before shipment. This service model helps turn equipment purchasing into a controlled engineering project.
The right reactor used in chemical industry should match the chemistry, capacity, temperature range, pressure or vacuum conditions, mixing needs, safety requirements, and downstream process. Batch, continuous, glass, crystallization, filter, and customized reactors each serve different manufacturing objectives. Bioland Instrument’s transparent GG17 glass systems provide strong corrosion resistance, accurate temperature control, modular integration, and visible operation for laboratory and pilot applications. With OEM/ODM engineering, CE and ISO quality assurance, GMP-oriented customization, automation, explosion-proof options, and complete after-sales support, Bioland helps customers move from process research to reliable chemical production with a practical, scalable solution.
It is equipment designed to control chemical reactions through temperature, mixing, pressure, vacuum, feeding, and residence-time management.
They provide high visibility, strong resistance to many corrosive chemicals, and low risk of metal-ion contamination.
Yes. Bioland supports customized sizes, structures, materials, agitators, automation, explosion-proof systems, filtration, crystallization, and purification modules.
Yes. Customized systems can support laboratory research, GMP-oriented pilot verification, and small-scale production.
Bioland offers production tracking, inspection videos, optional FAT, a one-year warranty, and lifetime maintenance support.
The best reactor used in chemical industry is the one that solves a defined production problem. Whether your challenge involves corrosive media, unstable temperature, poor mixing, difficult crystallization, solvent recovery, pilot-scale validation, or limited production flexibility, Bioland Instrument can help you plan the complete process route.
With more than 15 years of experience, Bioland provides equipment for reaction, distillation, extraction, separation, concentration, filtration, purification, drying, crystallization, emulsification, mixing, heating, cooling, and vacuum processing. Its product range includes batch chemical reactors, jacketed glass reactors, crystallization reactors, filter reactors, Nutche filter reactors, extraction systems, distillation equipment, homogenizers, drying systems, and customized production lines. Tell us your material, batch volume, operating temperature, pressure or vacuum requirement, target product, and current process difficulty. Contact Bioland Instrument at info@biolandequip.com for a tailored recommendation and turn your reactor requirement into a complete, practical chemical-processing solution.
1. Fogler, H. Scott. Elements of Chemical Reaction Engineering. Pearson.
2. Levenspiel, Octave. Chemical Reaction Engineering. John Wiley & Sons.
3. Towler, Gavin, and Sinnott, Ray. Chemical Engineering Design. Elsevier.
4. Perry, Robert H., and Green, Don W. Perry’s Chemical Engineers’ Handbook. McGraw-Hill.
5. Seader, J. D., Henley, Ernest J., and Roper, D. Keith. Separation Process Principles. John Wiley & Sons.
6. Walas, Stanley M. Chemical Process Equipment: Selection and Design. Butterworth-Heinemann.
