In the demanding fields of pharmaceutical synthesis and fine chemical manufacturing, precise temperature control is the cornerstone of product quality, yield, and safety. A slight temperature fluctuation can lead to undesired byproducts, compromised crystal morphology, or even catastrophic failures. This is where our jacketed filter glass reactor excels, offering an unparalleled solution for precise thermal management. Our jacketed filter glass reactor integrates reaction, filtration, distillation, and vacuum operations into a single, intelligent platform. Constructed with high-borosilicate glass for superior chemical stability and high transparency, the jacketed filter glass reactor allows operators to visually monitor the entire process while maintaining exact thermal profiles. By utilizing an advanced jacket design paired with programmable temperature control systems, our jacketed filter glass reactor ensures uniform heat distribution and rapid thermal response, making it the ultimate choice for laboratory research, pilot scaling, and GMP-compliant production.

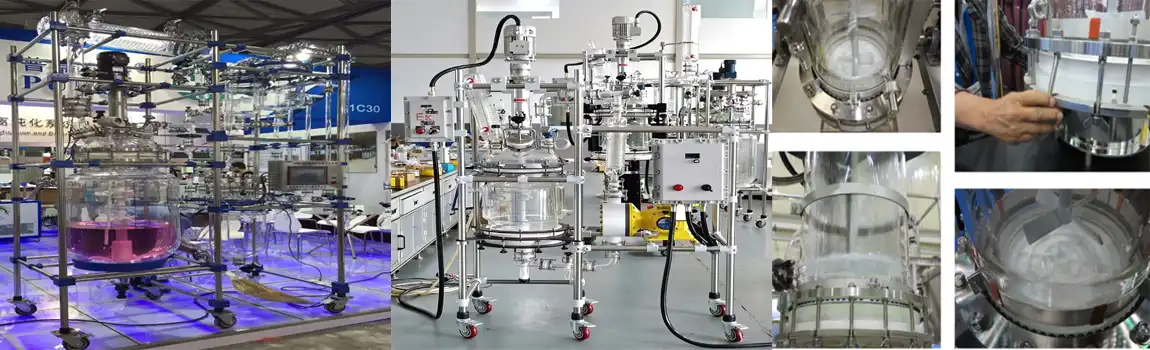

The innovative double-layer jacket design of our jacketed filter glass reactor is what makes it so good at controlling temperature. It is possible for thermal fluids, such as thermal oil used for heating or ethylene glycol used for cooling, to move thru the space between the inner and outer layers of glass. The jacketed filter glass reactor starts a uniform thermal envelope around the reaction vessel by moving these fluids thru the jacket. This gets rid of the hot spots and cold spots that normally happen in regular reactors. The jacketed filter glass reactor's continuous flow dynamics make sure that heat transfer is smooth and quick. This lets the system quickly reach and stay at the right temperature, which is very important for delicate organic synthesis and crystallization processes.
The choice of material is very important for both safety and energy efficiency. Our jacketed filter glass reactor is made of high-quality borosilicate glass, which is known for being very strong and resistant to thermal shock. This material doesn't break when the temperature changes quickly, so it can be used safely in a wide range of temperatures, from -20°C to 200°C. The great clarity of the glass used in the jacketed filter glass reactor also lets workers see the reaction and crystallization processes inside the reactor clearly and in real time. The low thermal expansion coefficient of the material and the fact that it can be seen make sure that the jacketed filter glass reactor provides accurate temperature control and complete safety during difficult chemical operations.

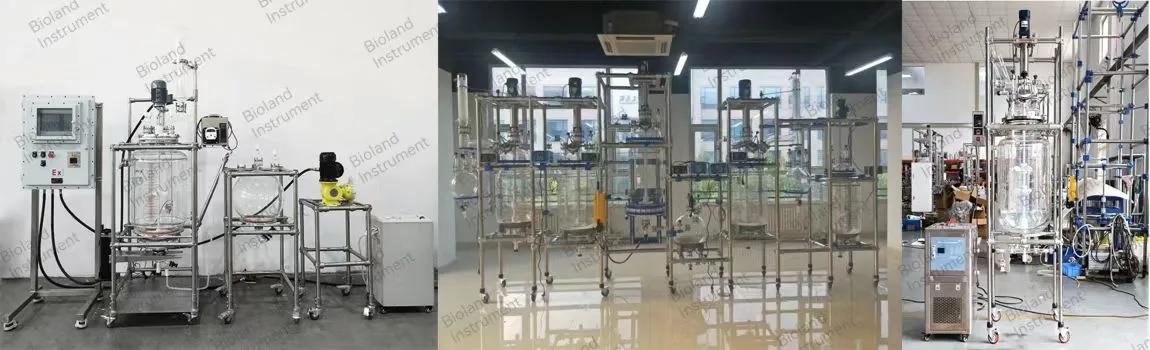

Achieving precise temperature control requires a seamless integration between the reactor vessel and the external temperature control units. The jacketed filter glass reactor is designed to pair perfectly with stainless steel high-low integrated temperature control machines. This modular design ensures that the jacketed filter glass reactor and the circulator operate in harmony, providing a wide temperature range and precise heating and refrigeration control. The integrated pumping and piping network ensures that thermal fluids are delivered efficiently to the jacket, allowing the jacketed filter glass reactor to rapidly adjust to changing thermal demands. This closed-loop circulation system within the jacketed filter glass reactor minimizes energy loss and guarantees that the desired temperature is maintained with high accuracy throughout the entire synthesis or crystallization process.
A European biopharmaceutical company faced severe challenges in chiral API intermediate purification. Their reaction process lacked completeness, and the crystallization yield was unacceptably low. Furthermore, highly corrosive strong acid and alkali synthetic systems frequently damaged their equipment, and frequent material transfers led to severe cross-contamination risks.
They adopted our customized 100L jacketed filter glass reactor to integrate their reaction, crystallization, and filtration processes into a single operation. During the reaction phase, under nitrogen protection at 0-5℃, the transparent vessel of the jacketed filter glass reactor allowed real-time observation of color changes, ensuring complete reaction.
In the crystallization phase, the jacketed filter glass reactor cooled the solution at a strict 1-2℃/hour rate by circulating -20℃ coolant through the jacket, preventing impurity inclusion. Finally, the PTFE filtration system seamlessly separated the crystals, achieving a purity of 99.5% and a 15% yield increase. The jacketed filter glass reactor effectively eliminated cross-contamination.
The glass material avoided metal ion pollution, perfectly adapting to the strong acid and base synthesis system. The visual monitoring optimized process parameters, and the integrated design reduced material transfers.
Modern pharmaceutical synthesis demands more than just manual temperature adjustments; it requires intelligent, automated control. Our jacketed filter glass reactor is equipped with advanced control systems, typically featuring programmable logic controllers (PLC) combined with intuitive touch-screen interfaces. This automation allows operators to pre-program complex temperature profiles, including ramp rates, hold times, and cooling sequences. The PLC continuously monitors the internal temperature of the jacketed filter glass reactor and automatically adjusts the flow and temperature of the circulating fluids. This level of automation in the jacketed filter glass reactor ensures high repeatability from batch to batch, eliminating human error and ensuring that the thermal environment remains perfectly optimized for the specific chemical reaction or crystallization process at hand.
The versatility of a reactor is often defined by its operational temperature range. Our jacketed filter glass reactor boasts a wide temperature capability, spanning from -20℃ to 200℃, making it suitable for a vast array of chemical processes. Whether you are performing a low-temperature crystallization to induce the precipitation of a pure solid, or a high-temperature reaction to accelerate synthesis kinetics, the jacketed filter glass reactor handles it with ease. By precisely controlling the temperature of the circulating medium within the jacket, the jacketed filter glass reactor can manipulate the solubility curve of the substances inside, effectively driving crystallization or maintaining optimal reaction speeds. This broad thermal range ensures that the jacketed filter glass reactor is a versatile workhorse in any pharmaceutical or chemical laboratory.
Temperature control is not solely dependent on the jacket design; internal mixing plays an equally critical role. The jacketed filter glass reactor features a highly engineered stirring and mixing unit that is essential for maintaining thermal uniformity throughout the vessel. Without proper agitation, thermal stratification can occur, where temperatures vary significantly between the vessel walls and the center of the mixture. The jacketed filter glass reactor utilizes programmable stirring controls to ensure that the contents are continuously and uniformly mixed, rapidly distributing the heat absorbed from or released to the jacket. This uniform distribution is particularly crucial for controlling crystal growth morphology and promoting even distribution of reactants, ensuring that the jacketed filter glass reactor delivers consistent and high-quality results every time.
A chemical enterprise in Poland struggled with the recovery of precious metal catalysts like palladium and platinum. Their existing equipment suffered from severe corrosion, and high-temperature solid-phase reactions caused catalyst deactivation.
Additionally, their solid-liquid separation efficiency was dismal, equipment cleaning and maintenance costs were high, and the precision of process parameter control was entirely insufficient. They implemented our customized 50L jacketed filter glass reactor to create a closed-loop system for solid-phase reaction and filtration recovery.
During the high-temperature solid-phase reaction at 150℃, the robust glass material of the jacketed filter glass reactor withstood the extreme conditions without degrading the catalyst, ensuring precise thermal regulation. Following the reaction, the PTFE filtration device directly separated the solid catalysts within the jacketed filter glass reactor. This innovative approach increased the recovery rate of residual precious metals in the mother liquor to over 90%.
The jacketed filter glass reactor proved its immense value in harsh chemical environments. The double-layer glass structure achieved precise temperature control, and the quick-release design of the filtration device facilitated easy cleaning.
The precise temperature control of a jacketed filter glass reactor is not isolated from the chemical properties of the materials being processed. Solvent selection and concentration significantly impact thermal stability and process accuracy. Different solvents have varying heat capacities and thermal conductivities, which affect how quickly they absorb or release heat through the reactor jacket. When operating a jacketed filter glass reactor, it is crucial to select appropriate solvents and carefully control temperature and concentration to ensure solid substances dissolve fully and crystallize efficiently. The jacketed filter glass reactor provides the precise thermal environment necessary, but operators must optimize their chemical formulations to fully leverage the reactor's capabilities, ensuring that the physical barriers and filtration media perform optimally without thermal-induced failures.
Thermal stability in a jacketed filter glass reactor is intrinsically linked to the management of internal pressure and vacuum. Many chemical reactions and distillations require operation under specific vacuum conditions to lower boiling points or remove volatile byproducts. The jacketed filter glass reactor is engineered to handle these demanding vacuum operations safely. By integrating high-performance vacuum pumps and precise pressure sensors, the jacketed filter glass reactor maintains the necessary vacuum level, which directly influences the temperature at which solvents evaporate or reactions occur. This precise coordination between temperature control via the jacket and vacuum control within the vessel allows the jacketed filter glass reactor to perform complex operations like low-temperature distillation and extraction with exceptional accuracy, making it an ideal intelligent equipment for laboratory and pilot-scale applications.
While the jacket of the jacketed filter glass reactor controls the bulk temperature, the filtration process itself can introduce thermal variations if not managed correctly. The jacketed filter glass reactor is equipped with a high-performance PTFE filtration device, featuring a standard PTFE sand-core, with options for stainless steel, titanium, and various filter cloths and membranes. The choice of filter media affects the flow rate and pressure drop across the filter bed. Rapid filtration can cause evaporative cooling, while restricted flow can lead to pressure buildup. The jacketed filter glass reactor allows operators to carefully monitor filtration speed and pressure parameters, ensuring that the thermal equilibrium achieved during the reaction and crystallization phases is maintained during the solid-liquid separation process, thereby preserving crystal purity and yield.
The ultimate test of a reactor's temperature control is its ability to perform seamless crystallization and filtration within a single vessel. By circulating heating or cooling mediums through the jacket, the jacketed filter glass reactor can precisely decrease the solubility of the target substance, causing it to crystallize out of the solution. Once the crystallization is complete, the integrated PTFE filtration device immediately separates the pure crystals from the mother liquor without the need to transfer the mixture to a separate filtration unit. This seamless transition is critical because it prevents the temperature from fluctuating during transfer, which could lead to the crystals re-dissolving or impurities being trapped. The jacketed filter glass reactor ensures that the entire sequence—from reaction to crystallization to filtration—occurs under strictly controlled thermal conditions, maximizing both yield and purity.
When dealing with high-pressure synthesis environments, especially in the presence of volatile organic solvents, safety is paramount. Our jacketed filter glass reactor is built on an industrial-grade safety standard, featuring explosion-proof performance certified by authoritative bodies. The jacketed filter glass reactor utilizes a high-strength pressure-bearing structure and a precise explosion-proof control system, allowing it to confidently handle high-pressure synthesis environments in volumes ranging from 20L to 100L. This robust construction ensures that the precise temperature management of the jacketed filter glass reactor is never compromised by safety risks. By eliminating industrial production hazards from the source, the jacketed filter glass reactor ensures stable and worry-free batch synthesis operations, making it suitable for laboratory research, pilot experiments, and pharmaceutical manufacturing where both precision and safety are non-negotiable.

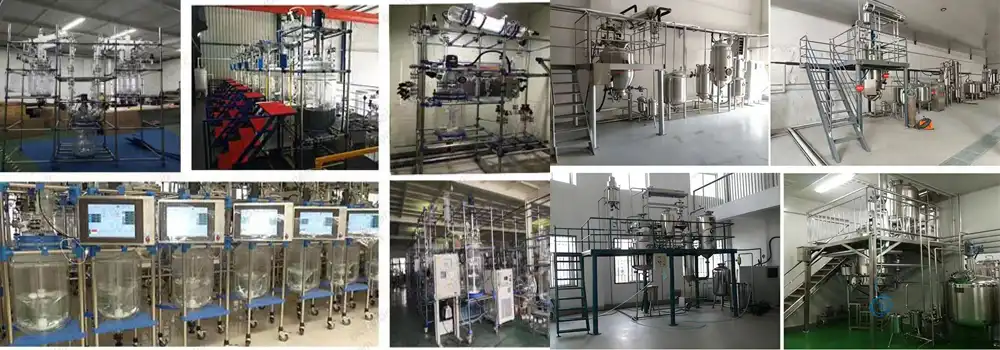

Transitioning processes from the laboratory bench to pilot-scale production requires equipment that is both scalable and adaptable. The jacketed filter glass reactor features a modular design that ensures safe and efficient combination with various temperature control units and auxiliary equipment. This modularity means that as your production needs grow, your jacketed filter glass reactor can be easily integrated into larger, more complex systems. The precise temperature control capabilities of the jacketed filter glass reactor are consistent across different scales, ensuring that the thermal parameters optimized in a small-scale laboratory setting can be directly applied to pilot and production scales. This scalability, combined with our commitment to GMP and FDA standards, makes the jacketed filter glass reactor an invaluable asset for pharmaceutical research and development, ensuring efficient and safe scale-up of complex chemical processes.
Maintaining precise temperature control over the long term requires regular maintenance and expert technical support. Our TECHNICAL TEAM consists of R&D personnel and highly-trained professionals dedicated to strict quality control and thoughtful customer service. Our company is CE and ISO certified, with an in-house R&D team boasting years of engineering experience. Customized jacketed filter glass reactor products typically have a lead time of 30 business days, while non-customized products are generally ready in 5–7 days. We support sea, rail, and air freight options and provide a one-year quality warranty with lifetime maintenance. All products comply with GMP/FDA standards.
Our professional team closely monitors production, assigning a dedicated specialist each week to track progress with photos or videos, keeping you fully informed. Upon completion of your jacketed filter glass reactor, detailed photos or videos are provided for your inspection, and shipment is arranged after your approval. Alternatively, clients may schedule a Factory Acceptance Test (FAT) at our facility once the goods are ready. Our mission is to provide innovative products, valuable insights, comprehensive solutions and real-time support to customers, enabling them to gain first-class equipment with lowest price, expand their businesses, and enhance their production capabilities.
The jacketed filter glass reactor stands as a paragon of precision in pharmaceutical and chemical synthesis. Through its innovative double-layer jacket design, high borosilicate glass construction, and advanced PLC-controlled temperature regulation, the jacketed filter glass reactor ensures unparalleled thermal stability and process accuracy. By seamlessly integrating reaction, crystallization, and filtration, this equipment eliminates cross-contamination and maximizes yield. Whether for complex peptide synthesis or high-pressure catalytic reactions, our jacketed filter glass reactor provides the ultimate solution, ensuring your production processes are safe, efficient, and precisely controlled.
A1: The jacketed filter glass reactor operates precisely within a wide temperature range of -20℃ to 200℃.
A2: It features a standard PTFE sand-core filter, with options for stainless steel, titanium, and various filter cloths.
A3: Yes, it features a certified explosion-proof design and high-strength pressure-bearing structure for safe high-pressure synthesis.
A4: Standard volumes include 20L, 30L, 50L, and 100L, with custom sizes available via OEM/ODM.
A5: It uses a programmable logic controller (PLC) and touch screen for automated, precise thermal adjustments.
Are you ready to eliminate thermal fluctuations and achieve flawless synthesis results? Partner with Bioland Instrument and leverage our state-of-the-art jacketed filter glass reactor to solve your most complex process challenges. With our extensive OEM/ODM capabilities, ISO/CE certifications, and dedicated engineering support, Bioland Instrument guarantees high-quality equipment tailored to your exact needs. We don't just sell reactors; we deliver comprehensive solutions that enhance your production capabilities. Contact us today at info@biolandequip.com to discuss your requirements and discover how our expertise can transform your laboratory or pilot-scale operations!
