Most CBD isolate producers start with a standard jacketed glass reactor, and most of them eventually hit the same wall: crystals form, but they cannot be recovered cleanly, washed properly, or reproduced batch after batch. A purpose-built CBD crystallization reactor is a different machine entirely. Xi'an Bioland Instrument Co., Ltd. engineers its CBD crystallization reactor as a closed reaction–crystallization–filtration–drying platform: high-borosilicate glass for full visual control, a standard PTFE sintered filter plate (stainless steel, titanium, cloth and membrane options available), a jacket capable of holding tightly controlled cooling ramps, programmable agitation, vacuum operation, and optional explosion-proof and PLC automation. Available in 20 L, 30 L, 50 L and 100 L with full OEM/ODM customization, CE and ISO certification, GMP/FDA-compliant materials and factory-direct pricing, it is built for the one thing a standard reactor cannot do — finish the job. This review compares the two head to head.

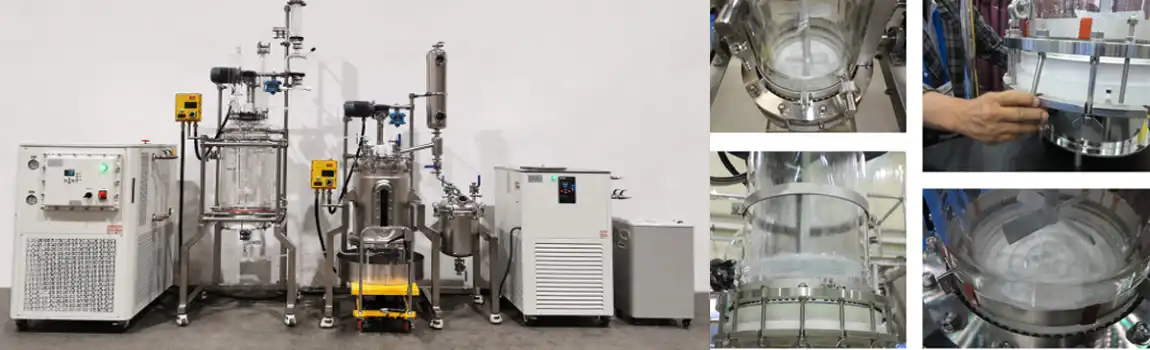

The defining structural difference is the bottom. A standard reactor has a discharge valve; a CBD crystallization reactor has a large-diameter filter plate integrated into the base, sealed beneath the vessel and connected to a vacuum receiver. That single design choice converts a mixing vessel into a separation platform. When crystallization finishes in a standard reactor, the slurry must be drained, pumped or scooped into a Büchner funnel or external filter — and CBD slurry at -20°C is viscous, sticky and prone to redissolving during transfer. In a CBD crystallization reactor, the mother liquor simply drains through the plate while the crystal bed stays exactly where it formed, untouched by air, moisture or handling loss.
CBD crystallizes from ethanol, pentane or heptane systems within a narrow metastable window. Cool too fast and you nucleate a cloud of fines that traps mother liquor and impurities; cool too slowly and cycle time balloons. A standard reactor jacket is designed for heating and general temperature holding, and its thermal response is often too coarse to hold a 1–2°C per hour ramp. The double-jacket on a Bioland CBD crystallization reactor is dimensioned for high circulation velocity and pairs with a stainless-steel high-low temperature circulator, giving stable control across a wide operating span and the fine ramp resolution that large, filterable CBD crystals actually require.
A standard reactor stirs to homogenize. A CBD crystallization reactor stirs to control crystal habit. Programmable speed control lets operators run gentle agitation during nucleation to avoid secondary nucleation by attrition, then adjust during growth to keep the suspension uniform without shattering crystals. The agitator can also be lowered to smooth the cake before washing and to sweep product toward discharge afterwards. This multi-role blade function has no equivalent in a plain reaction vessel, and it is the reason isolate producers report visibly larger, whiter crystals from the same solvent system.
Both reactor types use borosilicate glass, but only in a CBD crystallization reactor does transparency directly serve the separation step. Operators watch the first nucleation cloud appear, judge whether the batch is seeding too early, observe the cake surface crack during washing, and confirm the bed is dry before releasing vacuum. In a standard reactor, everything downstream of the drain valve happens out of sight. Bioland customers consistently say this visibility is what shortened their process development from months of blind trials to a handful of instrumented batches.
Purity in CBD isolate is rarely lost during crystallization itself — it is lost during transfer and washing. Every pour, pump and scoop introduces atmospheric moisture, terpene re-dissolution and mechanical loss. A CBD crystallization reactor eliminates those steps by keeping reaction, crystallization, filtration, washing and vacuum drying inside one sealed body. The result is a mass balance that closes properly and a product that meets 99%+ potency specifications consistently rather than occasionally. Xi'an Bioland Instrument Co., Ltd. has spent more than 15 years building exactly this kind of integrated distillation, concentration, reaction, extraction, separation, filtration, purification and crystallization equipment.
A standard reactor gives you no washing option at all once the slurry leaves. A CBD crystallization reactor supports both displacement washing — pushing cold solvent through an intact cake to sweep out surface mother liquor — and reslurry washing, where the blade is lowered to remix the cake with fresh solvent before re-filtering. Reslurry washing is the reliable answer to occluded impurities and residual colour bodies. Because the whole operation stays under vacuum and nitrogen if required, oxidation and CBN formation are minimized.
The same architecture is used well beyond cannabinoids. A European biopharmaceutical developer struggled with an incomplete reaction, low crystal purity and yield, corrosive acid-base media damaging metal equipment, and cross-contamination risk from repeated transfers.
Bioland supplied a customized 100 L glass filter-crystallization reactor for one-vessel operation. The catalytic step ran at 0–5°C under nitrogen, with the transparent body confirming reaction completion by colour change.
Crystallization followed with -20°C jacket coolant and a strict 1–2°C/hour cooling ramp, producing uniform crystals free of trapped impurities. Filtration switched directly to the PTFE plate. Mother liquor was recycled, final purity exceeded 99.5%, and yield rose 15% with zero intermediate transfers.
Stability is a documentation problem as much as an engineering one. Manual standard reactors leave process parameters to operator judgement. A PLC-equipped CBD crystallization reactor stores recipes, executes cooling ramps automatically, logs jacket temperature, agitator speed, vacuum level and step duration, and exports batch records suitable for GMP pilot validation. Bioland provides material certificates, pressure and vacuum test reports and calibration data with every unit, which shortens IQ/OQ work considerably for licensed processors.
A typical isolate campaign in a CBD crystallization reactor runs as a defined sequence. Crude distillate and solvent are charged and dissolved with jacket heating and moderate agitation. The solution is clarified if needed, then cooled through the metastable zone at a controlled ramp with optional seeding. Crystals grow under gentle stirring. Vacuum is then applied in stages — light suction first to build a supporting bed on the PTFE plate, increasing gradually for deliquoring. Cold solvent washing follows, then in-situ vacuum drying with mild jacket heat and slow blade rotation to break clumps. Discharge is by lowered, reversed agitator. Seven unit operations, one CBD crystallization reactor, no exposure.
Pulling maximum vacuum immediately is the classic error. Fines compact against the plate and blind it within minutes. Best practice on any CBD crystallization reactor is staged vacuum: gentle initially, stronger only once a cake has formed. Media selection matters equally. The standard PTFE sintered disc suits well-formed CBD crystals; finer or needle-shaped material may need a filter cloth overlay or membrane. Because Bioland uses a quick-release filter assembly, swapping media between development batches takes minutes rather than a workshop visit.
For processors chasing tighter crystal size distribution, Bioland can integrate ultrasonic crystallization into the CBD crystallization reactor, using controlled sonication to trigger uniform primary nucleation instead of relying on unpredictable spontaneous events. Other available modules include electric lifting for effortless cake access, integrated rectification columns for solvent recovery, tail-gas absorption, and fully explosion-proof construction for ethanol and hydrocarbon environments — an important consideration when a standard reactor would place a sparking motor in a solvent-rich room.
A Polish fine-chemicals producer developing palladium and platinum catalysts faced low metal recovery, corrosive attack on equipment, catalyst deactivation at high temperature and slow, expensive separation.
Bioland delivered a customized 50 L glass filter-crystallization reactor forming a closed reaction-and-recovery loop. Precursors reacted with organic ligands at 150°C; the borosilicate body tolerated the short high-temperature exposure without deactivating catalyst.
The PTFE filter assembly then separated solid catalyst directly in-vessel. Over 90% of residual precious metal in the mother liquor was recovered. Double-jacket control spanned -80°C to 200°C, and the quick-release filter prevented residue carryover between batches.
Honesty helps selection. If you only dissolve, react and decant — no solids to recover — a standard jacketed reactor is perfectly adequate and cheaper. The moment your product is a solid that must be washed, dried and weighed at defined purity, the economics invert. A CBD crystallization reactor costs more up front and returns that difference through recovered yield, eliminated external filtration equipment, reduced solvent consumption and far less operator labour per batch.
Bioland offers the CBD crystallization reactor in 20 L, 30 L, 50 L and 100 L standard volumes, with custom sizes on request. Geometric ratios are kept consistent across the range, so cooling profiles, cake height and washing volumes validated at 20 L transfer predictably to 100 L. As a working rule, keep cake height between roughly 30% and 60% of the space above the plate so the blade can still smooth, wash and discharge effectively. Overfilling is the most common cause of poor washing at scale.
Glass rewards discipline. Ramp jacket temperature no faster than about 3–5°C per minute, pre-condition solvents before charging, never exceed the rated pressure, and verify clamp torque and frame level before each campaign. Check seal integrity daily by pulling vacuum on the empty CBD crystallization reactor and confirming the gauge holds for ten minutes. PTFE plus mechanical dual shaft sealing is standard, spare seal kits are stocked, and a changeout takes about twenty minutes. Between products, remove and backflush the filter plate — glass walls hold no crevices, so CIP restores a validated clean state quickly.
Non-standard is routine at Bioland. Volume, port layout, filter material and pore rating, jacket configuration, lifting mechanism, automation level and downstream modules on a CBD crystallization reactor are all built to specification under OEM and ODM terms. Customized units ship in about 30 business days, catalogue units in 5–7 days, with sea, rail and air freight supported, a one-year warranty and lifetime maintenance. A dedicated specialist sends weekly photo or video production updates; final inspection footage is supplied before shipment, or clients may attend a Factory Acceptance Test at the Xi'an facility.
Compared side by side, a standard reactor handles chemistry while a CBD crystallization reactor handles the whole product journey — dissolution, controlled cooling, nucleation, growth, filtration, washing and in-situ vacuum drying without a single transfer. That integration is where purity, yield and reproducibility actually come from, as Bioland's field results show: 99.5% purity, 15% yield gain, over 90% recovery. With CE and ISO certification, GMP/FDA-compliant construction, PTFE filtration, explosion-proof and PLC options, and 15+ years of engineering experience, Bioland Instrument supplies a CBD crystallization reactor as a complete process solution, not merely a vessel.
Transfers cause loss, moisture pickup and re-dissolution. In-vessel filtration protects yield and purity.
A PTFE sintered plate, with stainless steel, titanium, filter cloth and membranes available in various pore ratings.
Roughly 1–2°C per hour through the metastable zone for large, easily filterable crystals.
20 L, 30 L, 50 L and 100 L standard; custom volumes, explosion-proof builds and PLC automation on request.
Yes — vacuum drying with mild jacket heat and slow agitation completes the batch inside the vessel.
If your isolate yield disappears during transfer, your crystals trap colour, or your batches refuse to repeat, Bioland Instrument can engineer the fix. Xi'an Bioland Instrument Co., Ltd. designs every CBD crystallization reactor around your solvent system, cooling profile, crystal habit target and throughput — including explosion-proof construction, PLC automation, electric lifting, ultrasonic crystallization and integrated solvent recovery. You get CE and ISO certified quality, GMP/FDA-compliant materials, factory-direct pricing, weekly photo and video production updates, optional Factory Acceptance Testing, one-year warranty and lifetime maintenance. Catalogue units ship in 5–7 days; fully customized systems in 30 business days. Send your process details to info@biolandequip.com and our engineers will return a tailored solution and quotation.
1. Mullin, J. W. Crystallization, 4th Edition. Butterworth-Heinemann.
2. Myerson, A. S., Erdemir, D., Lee, A. Y. Handbook of Industrial Crystallization, 3rd Edition. Cambridge University Press.
3. Tarleton, E. S., Wakeman, R. J. Solid/Liquid Separation: Equipment Selection and Process Design. Butterworth-Heinemann.
4. am Ende, D. J. Chemical Engineering in the Pharmaceutical Industry: R&D to Manufacturing. Wiley.
5. ElSohly, M. A., Gul, W. "Constituents of Cannabis sativa," in Handbook of Cannabis. Oxford University Press.
6. Perry, R. H., Green, D. W. Perry's Chemical Engineers' Handbook, Section 18: Liquid-Solid Operations and Equipment. McGraw-Hill.
