Aug 4, 2026
One of the most important decisions a biotech facility can make is which peptide synthesizer reactor to use. This is because the equipment directly affects how well the reactions work together, how pure the products are, and how easily they can be scaled up. To handle the difficult solid-phase peptide synthesis cycle of deprotection, coupling, washing, and cleavage, a good peptide synthesizer reactor needs to be chemically inert, have precise thermal management, and have filtration built in. Every peptide synthesizer reactor made by Xi'an Bioland Instrument Co., Ltd. is made from high-borosilicate GG17 glass and has PTFE filtration systems, adjustable stirring, and jacketed temperature control from -20 °C to 200 °C. Bioland has over 15 years of experience in process engineering, CE and ISO certification, and a peptide synthesizer reactor that solves real production bottlenecks, such as making sure that resin swelling is uniform and solvent recovery, at prices that are the lowest in the industry and can be fully customized for OEM/ODM orders.
Before you choose a peptide synthesizer reactor, you need to know how much you want to make. This is because a unit that works well for 50 mg research-scale couplings will fail horribly when you ask it to make multi-gram experimental runs. Small models (1–5 L) are good for early sequence screening, while pilot-scale systems (20 L to 100 L) make the kilogram amounts needed for safety studies that allow an IND to be issued. Bioland's peptide synthesizer reactors work with all of these different types of molecules. And because the shape of the vessels grows appropriately, process parameters that were developed on a 5 L unit can be used reliably on a 50 L system without the yield drops that happen with non-linear scaling. By matching capacity to real flow needs, you can avoid both wasting money on unnecessary investments and putting too much on dangerously small ships during important campaign runs.
Some of the most dangerous chemicals in organic chemistry are used in peptide synthesis. These include trifluoroacetic acid, piperidine, dichloromethane, and N-methylpyrrolidone. Under these conditions, a peptide synthesizer reactor made of stainless steel will rust quickly, releasing metal ions that lower the purity of the product and cause regulatory rejections. Bioland's reactor has a Pyrex glass body that doesn't mix with any popular SPPS liquids or chemicals across the full pH range. This means that even after thousands of synthesis cycles, there will be no metal contamination. When choosing a peptide synthesizer reactor, make sure that all of its wet parts—the vessel body, the filter disc, the seals, and the agitation shaft—are chemically compatible with the coupling chemistry you need. This is especially important if your sequences need non-standard reagents like hydrogen fluoride or strong Lewis acids that break down metal more quickly.
Coupling rates in solid-phase peptide synthesis rely on temperature a lot; a change of just 5 °C can make deletion-sequence impurities several percentage points higher. So, a peptide synthesizer reactor needs to be able to precisely and evenly control the temperature of the whole resin bed, not just the wall of the jacket. Bioland's dual-jacket system moves thermal fluid from an outside stainless steel heating-cooling pump, keeping the temperature stable within ±1 °C of -20 °C to 200 °C. This accuracy is very important for Fmoc deprotection at room temperature, tough couplings that need high heat, and cold TFA cleavage steps where exothermic runaway needs to be actively stopped. When you're looking at a peptide synthesizer reactor, you should insist on seeing documented data on temperature uniformity instead of single-point sensor readings, which might not show the conditions at the center of the vessel where the resin concentration is highest.
It's not enough to just match the resin filling to the vessel capacity when choosing the volume for a peptide synthesizer reactor. You also have to think about the liquid swelling ratios, the air needed for nitrogen blanketing, and the volumetric expansion that happens during exothermic coupling steps. As a general rule, choose a reactor that has at least 40% headspace above the swollen resin bed to keep the mixture from overflowing when it is stirred very hard. Bioland has peptide synthesizer reactor models in sizes of 20 L, 30 L, 50 L, and 100 L. Each one is made with the best height-to-diameter ratios to make sure that the solvent is evenly spread through the resin matrix. If a facility plans to grow in the future, choosing a unit that is a bit too big now will save them the cost and hassle of replacing equipment when demand rises above what was expected.
In the field of peptide synthesis, where product purity standards don't allow for metallic pollution, the discussion over whether to build reactors out of glass or metal is mostly over. A glass peptide synthesizer reactor doesn't have the problem of iron, chromium, and nickel leaching that happens in stainless steel vessels when TFA is exposed for a long time during the cleavage steps. Bioland's borosilicate reactor is very clear, which is also very useful for operations: operators can see how the color of the resin changes during Fmoc deprotection, how it swells during solvent exchanges, and how it channels or clumps, which they wouldn't be able to see in a metal vessel that isn't clear. With this real-time view, the peptide synthesizer reactor goes from being an inactive container to an active process-monitoring tool that makes batches more consistent and speeds up fixing during complicated multi-step reactions.

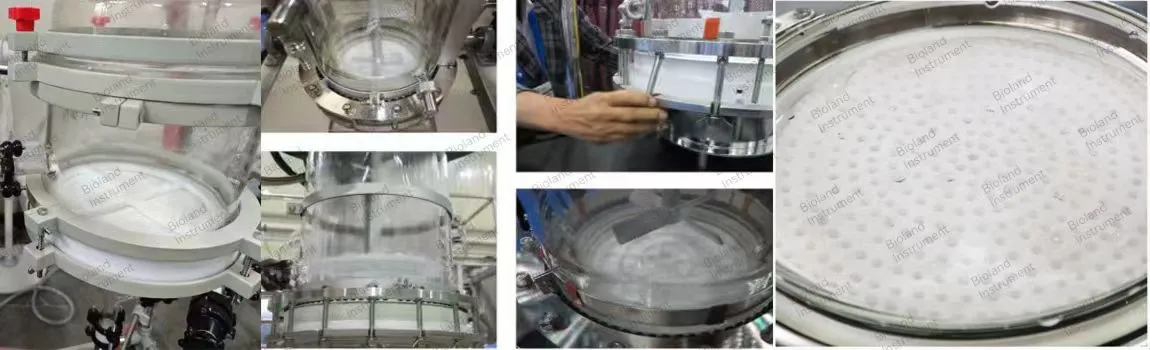

It's possible that the most important feature of a peptide synthesizer reactor is its ability to filter. This is because each cycle of synthesis needs several quick solvent exchanges through the resin bed without losing any small particles. Bioland gives every unit a large-diameter PTFE sintered filter disc as standard. Customers can also ask for other media like titanium screens, stainless steel mesh, or custom-porosity membranes to fit the size distribution of the resin particles. The high-speed filtration design gets rid of all the solvents in seconds instead of minutes, which cuts cycle times by a huge amount for long peptide sequences that might need 30 or more coupling iterations. The peptide synthesizer reactor has quick-disassembly filter housings that make cleaning and replacing media between campaigns easier. This keeps facilities that switch between different therapeutic peptide programs from getting contamination.
A flexible peptide synthesizer reactor needs to be able to hold many different devices, like condensers, chemical addition tubes, temperature probes, nitrogen inlets, vacuum lines, and sampling valves, without damaging the tank itself. Bioland's reactor has standard multi-neck flange lids with three to five ports. Each port can accept ground-glass joints or PTFE adapters so that the reactor can be quickly set up for the next step in the process. Because it is adaptable, the same peptide synthesizer reactor can be used as a simple coupling tank for normal synthesis and then change into a reaction-filtration-crystallization platform for cleavage and purification steps further down the line. When choosing equipment, it's best to choose models with standard port geometries that can accept industry-standard accessories. This will ensure long-term compatibility as your process changes and new unit operations are added to the development workflow over time as the clinical phases progress.
In large-scale peptide synthesis, incomplete coupling is most often caused by not mixing enough. This is because resin beads settle quickly in thick DMF solutions, leaving dead zones where the concentration of reagents drops below the level needed for a quantitative reaction. Bioland's peptide synthesizer reactor solves this problem with a variable-frequency drive motor that lets you control the speed without any steps and a PTFE-coated anchor impeller that keeps the resin suspension even without creating too much shear, which could break the polymer beads that are fragile. Programmable motion patterns let the system switch between high-speed mixing when adding reagents and gentle spinning during long coupling periods. This improves mass transfer while keeping the resin's integrity over many synthesis cycles. This level of control is necessary when scaling tough sequences that have a lot of hydrophobic residues that tend to stick together.
The large amounts of DMF, DCM, and acetonitrile used in peptide synthesis pose serious explosion risks at both the test and production levels. For this reason, any peptide synthesizer reactor must be safety certified. The explosion-proof design of Bioland meets industrial safety standards. It has flameproof motors, intrinsically safe sensors, anti-static wiring, and a high-strength glass body that can handle the needs of 20 L to 100 L synthesis settings. The electric lifting mechanism makes it easier to remove the head assembly for adding resin while keeping the process covered during synthesis. The dual PTFE-mechanical seal system stops solvent mist from escaping, which could cause a spark in the atmosphere. Choosing an explosion-proof peptide synthesizer reactor protects both workers and the purity of the product in places that handle large amounts of flammable liquids. This makes sure that regulations are followed and production keeps going.
A European biopharmaceutical company working on a chiral API intermediate had trouble with low crystallization yield and a lot of cross-contamination when moving the mixture between different reactors and filters. Strong acid and base synthesis media wore down their stainless steel equipment, adding metal impurities that lowered the purity of the enantiomers below the 99 percent regulatory level.
Bioland designed a 100 L peptide synthesizer reactor that can do all three steps (reaction, crystallization, and filter) at the same time. This way, all the material exchanges can be done in a single tank. During the reaction phase, which took place in nitrogen at 0–5 °C, the clear body was used to see in real time that the change was complete.
During the key crystallization stage, controlled jacket cooling at 1–2 °C per hour made crystals that were all the same and didn't have any impurities in them. With PTFE filtration, the product was 99.5 percent pure, and the yield went up by 15 percent. The mother liquor was reused in the next batch cycle.
A Polish chemistry company that made palladium and platinum catalysts had a hard time recovering valuable metals and keeping their equipment from rusting because the acidic media were so strong. Solid-phase reactions at high temperatures made the catalyst less useful, and regular filter systems got jammed after just a few hours of constant use, which stopped production and cost a lot of money.
Bioland sent a custom 50 L peptide synthesizer reactor with borosilicate glass that can handle high temperatures and a quick-release PTFE filter system to get things done quickly. The solid-phase reaction happened at 150 °C, and the glass body was able to handle the sudden change in temperature while keeping the structure of the catalyst intact throughout the process.
After the reaction, the large-diameter PTFE disc was used to filter out the mother liquor and recover over 90% of the precious metals. This greatly reduced the cost of the raw materials. The quick-disassembly design of the filter cut cleaning time by 60%, got rid of batch-to-batch carryover, and helped the facility run for over 1,000 hours without any problems in the first year.
For biotech companies that are developing peptide medicines for patients, the peptide synthesizer reactor has to meet strict GMP validation requirements that go beyond just making sure the equipment works. Bioland makes every unit according to GMP and FDA standards. They provide full material tracking paperwork, pressure-test certificates, and surface-finish verification reports that make regulatory checks easier and shorten the time it takes to validate products. The borosilicate glass and PTFE-covered surfaces are naturally easy to clean and won't come off. This makes cleaning validation processes easier and lowers the risk of carryover between campaigns. Clients can schedule a Factory Acceptance Test at Bioland's Xi'an facility to make sure that the peptide synthesizer reactor meets all performance requirements before it is shipped. This avoids the need for expensive rework after installation and speeds up the critical path to GMP production readiness for making clinical supplies.
Off-the-shelf equipment can't handle the unique problems that come up with each peptide synthesis process, such as using odd glue chemicals, non-standard solvent systems, specific cleavage conditions, or integrating with filtration trains further down the line. Bioland is an expert at designing and building peptide synthesizer reactors that are exactly what each client needs. These reactors can have non-standard vessel sizes, special filter media, built-in ultrasonic crystallization probes, and fully automated PLC control with the ability to manage multiple recipes. OEM and ODM orders are welcome, and branding, documentation, and the user interface can be changed to fit your company's needs. Standard models are shipped within 5 to 7 business days, and fully customized setups are usually finished within 30 business days. This way, you can be sure that buying equipment will never cause your most time-sensitive peptide projects to miss important development goals or regulatory filing deadlines.
There is a lot more to a peptide synthesizer reactor's value than just the price you paid for it. There is installation help, training for operators, spare parts availability, and responsive long-term maintenance. Bioland gives each order its own project expert and sends weekly production updates with photos and videos so clients know everything that's going on during the manufacturing process. When the job is done, full inspection media is sent to the customer for review before it is shipped, and there are choices for remote or on-site FAT to make sure the equipment works exactly as planned under realistic process conditions. Your peptide synthesizer reactor will work reliably for as long as it's operational, thanks to a one-year quality warranty, lifetime maintenance support, and global service coverage that includes Europe, Southeast Asia, and the Americas. This will maximize your return on investment and reduce unplanned downtime during important production campaigns.
To make sure that the biotech process works well together, you need to carefully consider the peptide synthesizer reactor's size, chemical compatibility, temperature accuracy, filter performance, and regulatory compliance. For GMP-compliant performance from lab to pilot scale, Bioland's peptide synthesizer reactor is made of borosilicate glass, has PTFE filtration, programmable control, and explosion-proof safety. With more than 15 years of experience, CE/ISO certification, and full OEM/ODM design, Xi'an Bioland Instrument Co., Ltd. helps biotech clients around the world find real process problems, speed up development times, and make sure their products are as pure as possible.
Bioland offers models from 20 L to 100 L, covering lab through pilot-scale peptide production needs.
Yes, the borosilicate glass body and PTFE components resist all common SPPS solvents without contamination.
Every peptide synthesizer reactor meets GMP/FDA standards with full material traceability and FAT support.
Standard PTFE sintered discs are included; stainless-steel, titanium, and custom membranes are also available.
Custom orders require approximately 30 business days; standard models ship in 5–7 days.
Is your facility struggling with incomplete couplings, metal-ion contamination, or slow filtration cycles that delay critical peptide batches? Xi'an Bioland Instrument Co., Ltd. delivers high-performance peptide synthesizer reactor solutions engineered to solve these exact production bottlenecks. With CE/ISO certification, GMP compliance, and over 15 years of process engineering expertise, Bioland Instrument provides fully integrated reaction-filtration platforms featuring borosilicate glass construction, PTFE filtration, explosion-proof safety, and programmable PLC control. We welcome OEM/ODM orders with rapid lead times, weekly production tracking, and lifetime maintenance support. Contact our engineering team today for a free process consultation and discover how a custom peptide synthesizer reactor can transform your biotech production efficiency. Email us at info@biolandequip.com to get started.
1. Merrifield, R. B. Solid Phase Peptide Synthesis: The Synthesis of a Tetrapeptide, Journal of the American Chemical Society, vol. 85, no. 14, 1963.
2. Behrendt, R., White, P., and Offer, J. Advances in Fmoc Solid-Phase Peptide Synthesis, Journal of Peptide Science, vol. 22, no. 1, 2016.
3. Amblard, M., Fehrentz, J. A., Martinez, J., and Subra, G. Methods and Protocols of Modern Solid Phase Peptide Synthesis, Molecular Biotechnology, vol. 33, no. 3, 2006.
4. Bray, B. L. Large-Scale Manufacture of Peptide Therapeutics by Chemical Synthesis, Nature Reviews Drug Discovery, vol. 2, no. 7, 2003.
5. Jarasch, N., Knappe, S., and Hoffmann, R. Scale-Up Considerations for Solid-Phase Peptide Synthesis in Pharmaceutical Manufacturing, Organic Process Research and Development, vol. 19, no. 11, 2015.
6. Albericio, F., and Kruger, H. G. Solid-Phase Peptide Synthesis: From Standard Procedures to the Synthesis of Difficult Sequences, Nature Protocols, vol. 2, no. 12, 2007.
