The vessel is the first part of a bioprocess line that works, and a lab scale pyrolysis reactor is still the best choice for labs and pilot plants that need to see, control, and repeat every step of the reaction. Each glass biological reactor made by Xi'an Bioland Instrument Co., Ltd. is made from GG17 (3.3) borosilicate glass. This gives customers a platform that is completely clear, doesn't rust, and can be precisely controlled in temperature. This platform combines reaction, distillation, extraction, condensation, and vacuum operation into a single smart system. A glass biological reactor is better than stainless steel tanks because engineers can see color change, precipitation, and phase separation happen in real time. This takes away the need for "black box" guesswork that slows down process troubleshooting. This guide shows you how to properly set up, clean, tune, and take care of a glass biological reactor. It also includes real project data from clients who were able to turn production problems into measurable gains.
The only choice that affects everything that happens afterward is the size and shape of the jacket in the glass biological reactor. Bioland has double- and triple-layer vessels ranging from 2L benchtop units to 200L pilot-scale systems. All of them come with standard flange lids that can hold condensers, dropping funnels, temperature probes, and vacuum lines. When the goal batch size is matched to the vessel volume, stirrer shape, and jacket surface area, heating capacity is not lost and mixing is even once real fermentation or synthesis broths are added to the vessel.
Because no two production lines are the same, Bioland customizes each glass biological reactor to the specific chemistry of each client instead of using a standard catalog specification. People can ask for explosion-proof housings, full automation based on PLCs, integrated temperature control loops, lift-and-rotate lid designs, in-line filter or crystallization modules, ultrasonic crystallization aid, tail-gas absorption units, and rectification columns that are connected. With this flexible approach to customization, a lab scale pyrolysis reactor can go from a feasibility test in the lab to a GMP pilot run without having to switch providers or start over with the process.
A biotech company from South America came to Bioland with a common problem: the amount of dissolved oxygen moving through their fermentation tank was too low, batches were taking too long, process parameters changed between runs, and oxygen-sensitive intermediates kept becoming less pure. Bioland designed and built a 50L double-layer glass biological reactor with a new agitation blade shape that was made to work with their special soup viscosity.
This led to a 30% increase in the efficiency of dissolved oxygen transfer, a shorter fermentation cycle, and a sealed, inert-gas-capable space that was perfect for making drug intermediates in a sterile, temperature-controlled way. Because the vessel is completely clear, workers could see how the color and clarity changed during fermentation and make changes to the conditions before a batch went off track, which protected both yield and purity.
Before adding raw materials to a glass biological reactor, the operators should make sure that the PTFE gaskets and mechanical seals are in the right place, that the PT100 temperature probe reads within the calibration tolerance, that there are no air pockets in the jacket circuit, and that the vacuum system holds down to the rated -0.095 MPa. When this short check process is done before every starting, seal wear or sensor drift is caught early. This saves both the product quality and the borosilicate tank itself from damage caused by heat shock.
The closing method of a glass biological reactor used for biological and medicinal work is just as important as the quality of the glass itself. Bioland vessels have PTFE covers and magnetic-fluid or mechanical double locks. This lets workers fill the headspace with nitrogen or argon and keep it that way for several hours while the reaction happens. The South American biopharma client was able to do chiral intermediate synthesis in their lab scale pyrolysis reactor because it sealed well. This kept the batch safe from oxidative side reactions.
Sterility inside a glass biological reactor starts with a cleaning-in-place process that can be used between batches. This includes running a hot cleaning solution through the jacket and vessel, then a verified rinse, and if needed, steam-in-place sterilization through the lid ports. Borosilicate glass, which is used in all Bioland vessels, doesn't let strong acids, strong alkalis, or organic solvents pass through it. This means that workers can use harsh cleaning products without worrying that they will contaminate the next batch.
One benefit that stainless steel tanks don't have is that you can see into them right away. Instead of waiting for a lab sample that is late, technicians watch inside a glass biological reactor for foaming, color changes, or unexpected precipitates and act as soon as they show up. This makes it easier to make choices about sterile processing because there is less feedback loop. This cuts down on the number of aseptic sample events that need to happen, which lowers the risk of contamination across the run.
Bioland's lab scale pyrolysis reactor control panels and PLC systems automatically record temperature, pressure, and agitation data. This is because customers in the pharmaceutical and biological manufacturing industries usually need to be able to track every batch. Digital records that are the same from run to run make GMP audits and moving technology from pilot to production much easier because operators don't have to figure out the process history from handwritten logs.
A double- or triple-layer lab scale pyrolysis reactor jacket can handle coolant or heat-transfer fluids from -80°C to 300°C. This means that process engineers can use the same vessel for cryogenic crystallization, ambient fermentation, and high-temperature reflux without having to switch out any equipment. With a vacuum system that can go as low as -0.095 MPa, the same tank makes evaporation and reflux more efficient for tasks that involve a lot of distilling.

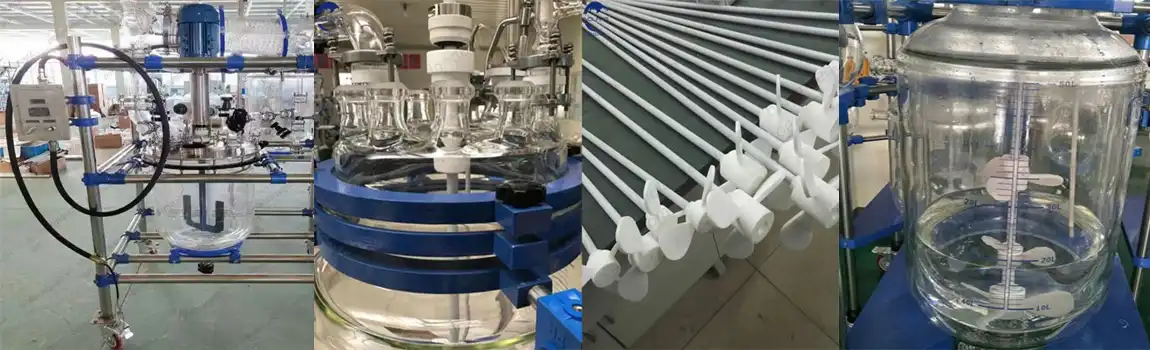

Agitator geometry inside a glass biological reactor has a direct effect on dissolved oxygen transfer, shear sensitivity, and mixing time, especially for viscous fermentation broths or shear-sensitive biological cultures. Bioland's engineering team selects blade pitch, count, and shaft speed based on the customer's actual rheology data rather than a generic default, which is exactly the adjustment that delivered the 30 percent oxygen transfer gain for the biopharmaceutical client described above.
Frequency-controlled, spark-free motors paired with PLC automation let a glass biological reactor hold temperature, agitation speed, and vacuum level within tight tolerances across every batch, removing the variability that comes from manual control. This repeatability matters most during scale-up, when a process validated on a bench-top unit needs to behave identically on a 50L or 200L pilot vessel before it reaches full production.
A precious metals processor in Europe needed to replace older equipment that could not handle their required batch volume or corrosive extraction chemistry, and their existing supplier lacked the customization capability for a new production line. Bioland supplied four 200L explosion-proof double-layer glass biological reactor units alongside nine 50L explosion-proof rotary evaporators, engineered to ExdIIBT4 explosion-proof standards for high-hazard extraction and refining work.
Modular manufacturing cut delivery time by 40 percent, letting the client start production 15 days ahead of schedule. Annual capacity rose by 30 percent, and the installed glass biological reactor units logged more than 1,000 hours of fault-free operation. Precise jacket control from -80°C to 200°C, combined with full visual access to strongly corrosive material, let operators monitor mixing and reaction progress without the impurity risk that metal equipment introduces.
Because a lab scale pyrolysis reactor is often shared across multiple product lines in contract manufacturing settings, disciplined cleaning between runs is essential. Flushing the vessel and jacket with compatible solvents, inspecting flange surfaces for residue, and verifying the discharge valve seals fully closed all belong in a standard changeover checklist for any glass biological reactor handling sensitive biological or pharmaceutical intermediates.
The PTFE double seals and mechanical seals on a glass biological reactor should be inspected on a fixed schedule, since seal wear is the most common cause of vacuum loss or jacket leaks over time. Replacing gaskets before they fail, rather than after a batch is compromised, keeps the vessel running at rated vacuum and pressure specifications for years of continuous service.
Lift-and-rotate lid mechanisms, wide-mouth flange access, and bottom discharge valves are built into Bioland's glass biological reactor line specifically to simplify charging, discharging, and cleaning. These structural choices reduce manual handling time and lower the physical strain on operators who service the vessel daily, extending the working life of the glass biological reactor overall.
Every customized glass biological reactor ships with dedicated after-sales support: a specialist tracks production weekly with photos or video updates, detailed inspection footage is shared before shipment, and clients can schedule a Factory Acceptance Test at Bioland's facility once the equipment is ready. This level of transparency carries through the equipment's working life, with a one-year quality warranty and lifetime maintenance support backing every glass biological reactor sold.
A lab scale pyrolysis reactor earns its place in pharmaceutical, biotech, chemical, and food production lines by combining visual transparency, chemical resistance, wide-range temperature control, and flexible customization in a single platform. From a South American fermentation upgrade to a European precious metals scale-up, Bioland Instrument's project data shows measurable gains in yield, capacity, and uptime. Careful preparation, sterile handling, tuned agitation, and disciplined maintenance keep every glass biological reactor performing reliably across its service life.
A glass biological reactor lets operators see reaction progress directly, avoids metal-ion contamination, and resists strong acids, alkalis, and solvents that would corrode steel tanks over time.
Standard double-layer jackets run from about -80°C to 300°C, giving one vessel the flexibility to handle cryogenic crystallization and high-temperature reflux alike.
Yes, Bioland builds explosion-proof housings, PLC automation, and GMP-compliant configurations to order, as demonstrated in the European precious metals project.
Customized units typically ship within 30 business days, while standard non-customized products are ready in 5 to 7 days.
Bioland provides a one-year warranty, lifetime maintenance, weekly production progress updates, and an optional Factory Acceptance Test before shipment.
If dissolved oxygen limits, corrosion risk, or inconsistent batch parameters are holding back your production line, talk to the team that has already solved these problems for biopharmaceutical and precious metals clients around the world. Xi'an Bioland Instrument Co., Ltd. has spent more than 15 years engineering distillation, concentration, reaction, extraction, filtration, and drying equipment, including a full glass biological reactor lineup backed by CE and ISO certification, GMP/FDA-compliant design, and an in-house R&D and engineering team.
Whether you need a standard vessel or a fully customized, explosion-proof, PLC-automated glass biological reactor, Bioland's OEM/ODM program, competitive factory-direct pricing, and dedicated weekly production tracking make scaling from lab bench to pilot plant straightforward. Contact our technical team at info@biolandequip.com to discuss your specifications, request a quotation, or schedule a Factory Acceptance Test, and let Bioland Instrument turn your next process challenge into your next production milestone.
1. Doran, P.M. Bioprocess Engineering Principles. Academic Press.
2. Chisti, Y. "Fermentation Technology, Bioprocessing, Scale-up and Manufacture." Biotechnology: The Science and the Business.
3. Rathore, A.S., and Sofer, G. Process Validation in Manufacturing of Biopharmaceuticals. CRC Press.
4. Kamm, B., Gruber, P.R., and Kamm, M. Biorefineries: Industrial Processes and Products. Wiley-VCH.
5. Shuler, M.L., and Kargi, F. Bioprocess Engineering: Basic Concepts. Prentice Hall.
6. Villadsen, J., Nielsen, J., and Lidén, G. Bioreaction Engineering Principles. Springer.
