You can get exactly what you need from our peppermint oil extraction machine. This machine, made by Xi'an Bioland Instrument Co., Ltd., uses both steam distillation technology and smart automation to get the best oil output and purity. With more than 15 years of experience as engineers, we've come up with a method that keeps the temperature stable from room temperature to 100°C while recovering 95–99% of the essential oil that is available. Food-grade SS304/316L is used to build our tools, and they meet GMP/FDA guidelines and have CE and ISO certifications. Our product keeps heat-sensitive terpenes from breaking down while maximizing menthol and menthone recovery, no matter if you're working with 50L test runs or 5000L or more of commercial production.
15+ Years of Proven Expertise
We're not new here. For more than fifteen years, our team has worked to improve extraction technology. Over time, you gain information that keeps you from making mistakes that cost a lot of money.
Certified Quality You Can Trust
Each unit has certificates from CE, ISO, UL, and SGS. The gear you're getting meets safety and quality standards around the world.
Factory-Direct Pricing
Not a middleman. Not a markup. You save a lot of money on your capital investment because you get enterprise-level tools at factory prices.
Complete Customization Options
Your business is one of a kind. We offer OEM/ODM options that are made to fit your exact needs, from the amount of automation to the type of warmth (electric or steam).
Transparent Production Tracking
Concerned about delays in production? We give you a dedicated expert who sends you photos and movies every week. At every step, you'll know exactly where your gear is.
Rapid Delivery Timeline
Need tools right away? Most units are sent out in 5 to 7 days. Changes to the settings? It only takes 30 business days from acceptance to delivery.
Multi-Method Compatibility
One machine, several ways to remove. Ultrasonic-assisted extraction (UAE), steam distillation (SD), and supercritical CO₂ (SFE-CO₂) can all be done with our tools.
Lifetime Support Guarantee
Your cash will be safe. We offer a guarantee that lasts for one year and free upkeep for life. When you need help, our expert team gets back to you quickly.
|
Parameter |
|||||
|
Type |
Voltage |
Volumn (L) |
Heating Method |
Cooling Area(m2) |
Power (kw) |
|
BL-JT-50 |
Three-phase 380/220V |
50 |
Electric heating |
1 |
10 |
|
BL-JT-100 |
|
100 |
|
1.5 |
12 |
|
BL-JT-200 |
|
200 |
|
2 |
18 |
|
BL-JT-300 |
|
300 |
|
3 |
25 |
|
BL-JT-500 |
|
500 |
Steam heating |
4 |
2.2 |
|
BL-JT-1000 |
|
1000 |
|
8 |
3 |
|
BL-JT-2000 |
|
2000 |
|
15 |
4 |

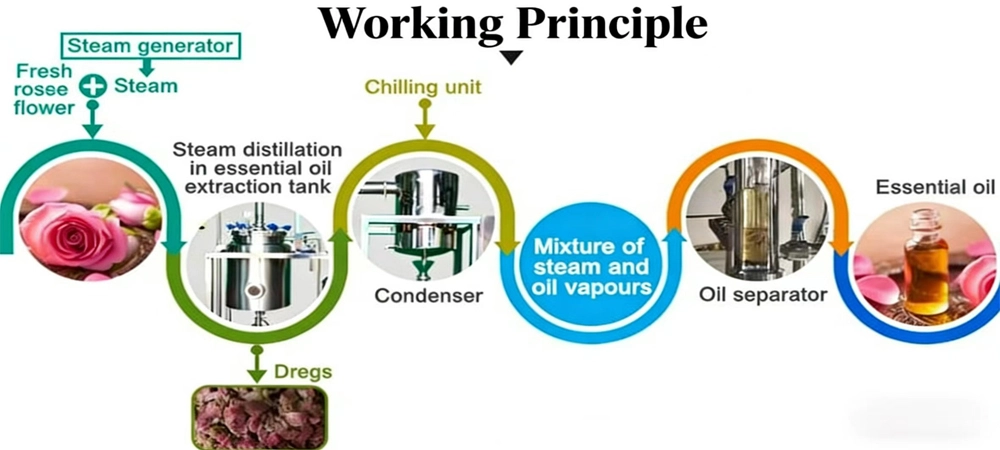

Being able to better use your tools means knowing how it works. The science in simple terms:
Steam Distillation Process
Peppermint biomass, either fresh or dry, is put into the extraction box. Either directly or through a jacket heating device, steam is added. When steam goes through plant matter, it breaks open oil glands and lifts volatile chemicals like menthol, menthone, and terpenes into the air.
Vapor Condensation
The oily steam rises to a condenser that has a drainage system for cool water. Vapour turns back into liquid when the temperature drops quickly. There is both vital oil and water in this vapour.
Intelligent Separation
The liquid goes into a Florentine flask separator as it moves. It floats to the top because peppermint oil is not as thick as water. The divider instantly pulls up clean oil while water drains out of the bottom.
Temperature Protection
Our jacketed lining keeps menthol from crystallizing while it's being moved. The whole device keeps the oil fluid at the right temperature until it can be collected.
Closed-Loop Efficiency
Nothing gets away to the weather. Our high-efficiency condensers can catch even the most volatile aromatic chemicals, so you can get the most out of each batch.
Step 1: Material Preparation
Load fresh or dried peppermint leaves into the extraction vessel. Optimal moisture content is 10-15% for best results.
Step 2: Heating Initialization
Select your heating method (electric or steam). The system gradually raises temperature to distillation point while pressure stabilizes.
Step 3: Steam Generation
Steam penetrates plant material evenly. The dual extraction system supports both water-separate and co-water methods depending on your product requirements.
Step 4: Vapor Collection
Oil-rich vapors rise through the column and enter the condensation unit. Temperature sensors ensure optimal cooling rates.
Step 5: Continuous Separation
Condensate flows automatically to the separator. Pure peppermint oil collects in the upper chamber while water drains continuously.
Step 6: Quality Collection
Transfer purified oil to storage containers. The transparent design lets you visually monitor oil clarity and color throughout the process.
Step 7: CIP Cleaning
After extraction, activate the Clean-In-Place system to prepare equipment for the next batch and prevent cross-contamination.
Pharmaceutical Manufacturing
Make very pure menthol for pain killers, muscle rubs, cold medicines, and medicines for the lungs using a peppermint oil extraction machine. Meeting USP/BP pharmacopeia standards, our controlled extraction keeps liquid leftovers to a minimum.
Food & Beverage Industry
Make natural flavourings for ice cream, gum, sweets, toothbrushes, drinks, and gum. Terpene profiles that don't change mean that your goods will taste the same from batch to batch.
Cosmetics Production
Get the best oil out of the plant to use in shampoos, lotions, soaps, and skin care items. Running at low temperatures protects delicate fragrance chemicals that customers love.
Aromatherapy Products
Make essential oils that are healing quality for use in diffusers, massage oils, and other health goods. The original peppermint experience is kept by preserving the smell completely.
Industrial Fragrances
Give businesses the ingredients they need to make air fresheners, cleaning products, and scented items. Get more done without lowering the quality.
Research & Development
Perfect for labs that want to test new formulas or look into how to get the most out of extraction. Results that are representative of output come from pilot-scale units.
We don't just claim quality—we prove it:
ISO 9001 Certification
International quality control standards are very strict when it comes to how we make things. Every unit goes through a formal check.
CE Compliance
All of the equipment meets European standards for health and safety, as well as those for protecting the environment. In controlled markets, you can be sure of your business.
GMP/FDA Standards
Good Manufacturing Practices are in line with production standards. The oil you remove will meet the standards for medicinal and food use.
Pressure Vessel Testing
At 1.5 times the original pressure, each unit is put through a hydrostatic pressure test. Before any equipment ships, we make sure that the structure is sound.
Material Verification
Positive Material Identification (PMI) helps us be sure of the type of stainless steel. No changes made. No quick fixes. Your goods will only be touched by approved materials.
Factory Acceptance Testing
We do full trial extractions before birth. You can either book an on-site FAT at our facility or get full documentation of how the system works.
Q: Can this machine extract oils from other plants besides peppermint?
Absolutely. Our steam distillation system works with lavender, lemongrass, eucalyptus, rosemary, and dozens of other aromatic plants. Just ensure thorough CIP cleaning between different botanicals to prevent scent cross-contamination.
Q: What yield should I expect from fresh peppermint?
Typical peppermint contains 0.3-1.0% essential oil by weight. Our optimized condenser design ensures you recover 95-99% of that available oil, preventing vapor loss that reduces profitability.
Q: Do I need a separate steam boiler?
For commercial units above 500L, an external steam boiler is standard industry practice and more energy-efficient. Smaller pilot units can use integrated electric heating. We'll recommend the best solution for your scale.
Q: How do you prevent menthol crystallization during extraction?
Our jacketed piping and temperature-controlled separators maintain optimal heat throughout the process. The oil stays fluid from distillation through collection, eliminating blockage issues.
Q: What's the difference between electric and steam heating?
Electric heating offers precise control and suits smaller operations without boiler access. Steam heating is more economical for large-scale production and faster heat-up times. Both deliver excellent results.
Q: Can I see the machine before it ships?
Yes. We provide detailed photos and videos upon completion. You can also schedule a Factory Acceptance Test at our Xi'an facility to personally inspect and approve your equipment before shipment.
Q: What maintenance does the machine require?
Regular CIP cleaning after each batch, periodic gasket inspection, and annual calibration of temperature sensors. We provide comprehensive maintenance guidance and lifetime technical support.
Q: How long does one extraction batch take?
Typically 3-6 hours depending on biomass moisture content, vessel capacity, and desired oil quality. Our PLC automation option monitors and optimizes timing automatically.
