Xi'an Bioland Instrument sells industrial-grade cinnamon oil extraction machines that are made to get high-purity cinnamon oil out of cinnamon bark and leaves. Our tools can remove between 1% and 2.5% of the material. It works with multiple processes, such as Supercritical CO₂, Ultrasonic-Assisted Extraction (UAE), and Steam Distillation (SD). Our machines, which are made of SUS316L stainless steel and have PID temperature control (within 0.5°C of accuracy), solve important problems like oil-water separation and heat breakdown. With CE and ISO approvals, more than 15 years of experience making things, and successful use in 500L to 1000L production lines, we offer fully customizable solutions that are in line with GMP and FDA rules for the makeup, pharmaceutical, and food and beverage industries.
Over 15 Years of Extraction Technology Expertise
The tools you use should work as hard as you do. We at Xi'an Bioland know the unique problems you face when you try to get cinnamon oil out of cinnamon. Just so you know, our product is full of features that will help you meet your business goals.
Factory-Direct Advantages You'll Appreciate:
After installation, our in-house R&D team doesn't go away. You'll get progress reports every week with photos and movies while the product is being made. From order to delivery, we give your job a dedicated expert to keep an eye on it. We also offer a one-year guarantee and upkeep for life, so you'll never be alone.
Here's what you can expect from our standard configuration:
|
Parameter |
|||||
|
Type |
Voltage |
Volumn (L) |
Heating Method |
Cooling Area(m2) |
Power (kw) |
|
BL-JT-50 |
Three-phase 380/220V |
50 |
Electric heating |
1 |
10 |
|
BL-JT-100 |
|
100 |
|
1.5 |
12 |
|
BL-JT-200 |
|
200 |
|
2 |
18 |
|
BL-JT-300 |
|
300 |
|
3 |
25 |
|
BL-JT-500 |
|
500 |
Steam heating |
4 |
2.2 |
|
BL-JT-1000 |
|
1000 |
|
8 |
3 |
|
BL-JT-2000 |
|
2000 |
|
15 |
4 |
How Your Cinnamon Oil Gets Extracted:
The thermodynamics of our machine help it carefully separate volatile chemicals from plant matter without hurting the delicate aromatic molecules.
Steam Distillation Process:
As steam moves through baskets with holes in them, they pick up cinnamon bark or leaves. Plant cell walls are broken by the heat, letting out chemicals that make essential oils. The oil and steam mix rises to a high-efficiency condenser, where cold water quickly turns it back into a liquid.
The Critical Difference:
Our specialist oil separator can handle the heavier-than-water density of cinnamon oil, which isn't possible with regular essential oil tools. The oil gathers at the bottom of the filter, and the hydrosol flows back through the system. This keeps the product from going to waste, which happens with other systems.
Temperature Protection:
Accurate PID controls keep the extraction temperatures at the best levels. This keeps cinnamaldehyde from turning into cinnamic acid, which keeps the healing value and market value of your oil.
Your Step-by-Step Extraction Journey:
Step 1: Put dried cinnamon bark chips or crushed leaves into the pan made of stainless steel. Between 5 and 10 mm is the best grain size for letting the most steam in.
Step 2: Put the system together by starting the cooking process and closing the tank. Our product's jacketed shape spreads heat out evenly, stopping hot spots.
Step 3: The water in the room at the bottom turns into steam, which rises through the plant matter through controlled pressure
Step 4: This is to extract the vapour. Oily steam moves through wires that connect to the condenser unit.
Step 5: When cold water flows through the condenser at 15 to 20°C, it turns the vapours back into liquid.
Step 6: The condensate is put into our special florentine flask, and the cinnamon oil falls to the bottom, where it can be gathered.
Step 7: Drain the pure cinnamon oil through the bottom valve. You can restore or gather hydrosol for secondary goods.
Step 8: Post-Processing: Filter the oil that has been collected through 200-mesh screens before putting it away in amber glass boxes.
Where Our Machines Make an Impact:
Pharma Manufacturing: Get pharmaceutical-grade cinnamaldehyde that is more than 85% pure from a cinnamon oil extraction machine for making anti-diabetic and antimicrobial vitamins. Our CIP-compatible design meets the FDA's certification standards for cleanrooms.
Industry of Flavour and Fragrance: Handle large amounts for companies that make drinks, bakeries, and food additives. With automated residue release, downtime between runs is kept to a minimum.
Personal Care and Cosmetics: Make cinnamon oils that are safe for the skin that can be used in perfumes, soaps, and aromatherapy items. With multistage rectification, you can separate the harmful chemicals while keeping the healing benefits.
Making essential oils for wellness brands, food supplements, and traditional medicine uses is part of natural health products.
Research & Development: Units on a laboratory scale (50L to 100L) help universities and R&D centres develop new products and test their quality.
Credentials You Can Trust:
Our quality control methods for manufacturing are backed by CE and ISO certifications. Our goods meet GMP/FDA standards for tools used in pharmaceuticals. UL and SGS verification for goods and safety systems are two more approvals.

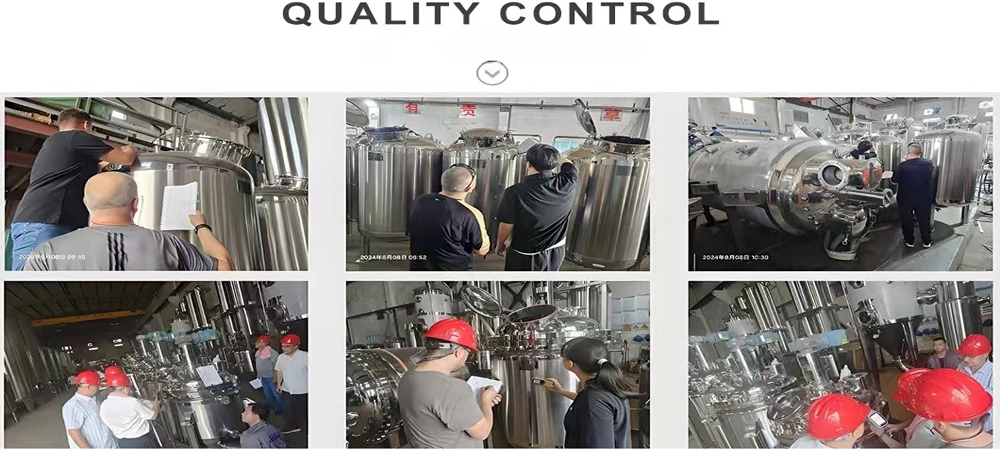

Before being sent out, every machine goes through plant acceptance testing. You can set up an on-site FAT at our Xi'an office to check your tools in person before we send it to you.
Q: Can this machine handle both cinnamon bark and leaves?
A: Sure thing. Because bark is so thick, it takes longer to remove (4-6 hours) and more steam pressure. Leaves give off eugenol more quickly (2–3 hours). With our changeable frequency drives, you can change the settings for each type of material.
Q: How do you prevent material from burning during extraction?
A: Insulated indirect heating is what we use instead of direct fire. Through the outer jacket, steam or thermal oil flows, making sure that heat is transferred gently and evenly. This stops the oil from burning and keeps its quality.
Q: What's the difference between your oil separator and standard designs?
A: Separators usually work on the idea that oil floats on water. It sinks because cinnamon oil is heavier (1.05 g/cm³). We don't lose any product because our reverse-flow divider takes oil from the bottom drain and reuses water from the top.
Q: Should I choose steam distillation or CO₂ extraction?
A: Steam distillation is cost-effective for bulk essential oil production. Choose supercritical CO₂ if you need solvent-free pharmaceutical extracts with zero thermal degradation. We can help you calculate ROI based on your production volume.
Q: How often does the condenser need maintenance?
A: Flush the condenser monthly with hot ethanol to remove waxy deposits from cinnamon bark. Our machines include dedicated cleaning ports for quick maintenance without disassembly.
Q: Do you provide installation and training?
A: Yes. We offer remote guidance for standard installations or can dispatch engineers to your facility for complex setups. Operation training is included with every purchase.
Ready to upgrade your extraction capabilities with our cinnamon oil extraction machine? Reach out today: info@biolandequip.com. Let's discuss your specific requirements!
