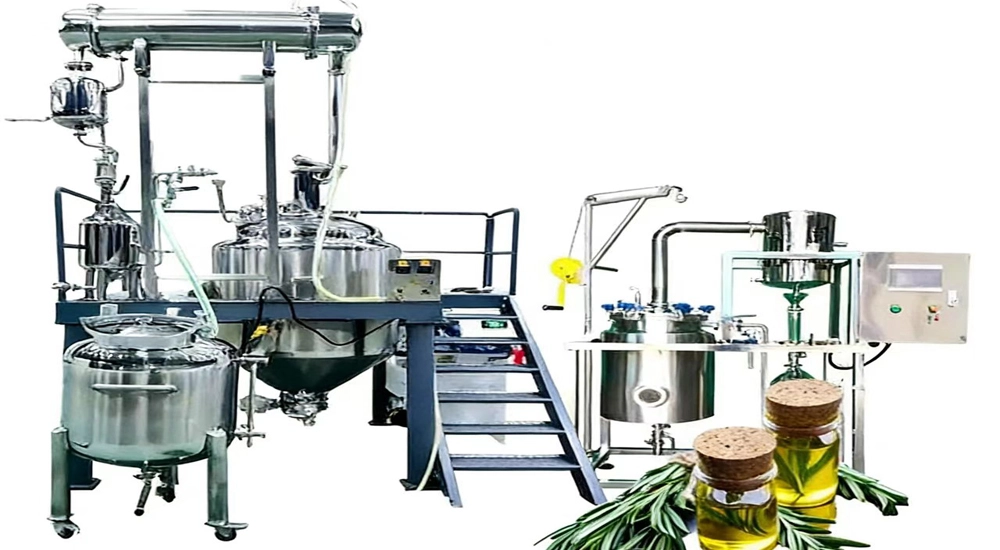

The sandalwood oil extraction machine from Xi'an Bioland Instrument works well and has been used successfully in the past. Advanced technologies like Steam Distillation (SD), Ultrasonic-Assisted Extraction (UAE), and Supercritical CO₂ (SFE-CO₂) help our system deal with the very dense heartwood of sandalwood. With an extraction rate of more than 98% and temperature accuracy of within ±0.5°C, you can keep chemicals like alpha-santalol and beta-santalol that are sensitive to heat. Our machines can run nonstop for 48 to 72 hours without breaking down due to heat. They are made from SS316/316L medical-grade stainless steel that is certified by CE, ISO, UL, and SGS. It can hold anywhere from 50 litres in a lab to 2000 litres on an industrial production line, making it great for use in fragrance, medicine, and aromatherapy.
Intelligent PID temperature control systems, explosion-proof designs for industrial areas, and optional PLC programming are all features of our equipment. The visual extraction process lets you keep an eye on every step, and the two heating options (electric or steam) give you more control over how the machine works. Each machine has high-efficiency shell-and-tube condensers and special oil-water filters that make sure none of the oil is lost.
When you pick the right partner for your product, you're putting in quality, dependability, and help. The thing that makes Xi'an Bioland Instrument unique is:
15+ Years of Proven Expertise
For more than 15 years, we've been making extraction tools. Our tech team knows how hard it can be to work with dense heartwood and keep the important sesquiterpenes.
Complete Certification Portfolio
All of the machines are approved by CE, ISO, UL, and SGS. Our production follows GMP/FDA rules, which means that the oil we get from you meets international Pharmacopoeia standards.
Factory-Direct Pricing
Not a middleman. You can get good prices without sacrificing quality.
Customization Capabilities
Need a certain amount of space? Different ways to heat? We can do OEM and ODM work for you. It takes 30 business days to ship custom tools, but only 5–7 days for standard types.
Multi-Technology Platform
We can do steam distillation, ultrasonic-assisted extraction, or supercritical CO₂, depending on your needs. Change methods based on what you need to make.
Real Success Stories
We sent processing lines for 500L of lavender and 1000L of lemongrass. Your sandalwood job will be better because of this track record.
Transparent Production Tracking
Your dedicated specialist sends weekly progress updates with photos and videos. You'll receive detailed inspection materials before shipment or can schedule an on-site Factory Acceptance Test (FAT).
Lifetime Support
Enjoy a one-year warranty plus lifetime maintenance. Our technical team stands ready to assist whenever you need guidance.
|
Parameter |
|||||
|
Type |
Voltage |
Volumn (L) |
Heating Method |
Cooling Area(m2) |
Power (kw) |
|
BL-JT-50 |
Three-phase 380/220V |
50 |
Electric heating |
1 |
10 |
|
BL-JT-100 |
|
100 |
|
1.5 |
12 |
|
BL-JT-200 |
|
200 |
|
2 |
18 |
|
BL-JT-300 |
|
300 |
|
3 |
25 |
|
BL-JT-500 |
|
500 |
Steam heating |
4 |
2.2 |
|
BL-JT-1000 |
|
1000 |
|
8 |
3 |
|
BL-JT-2000 |
|
2000 |
|
15 |
4 |

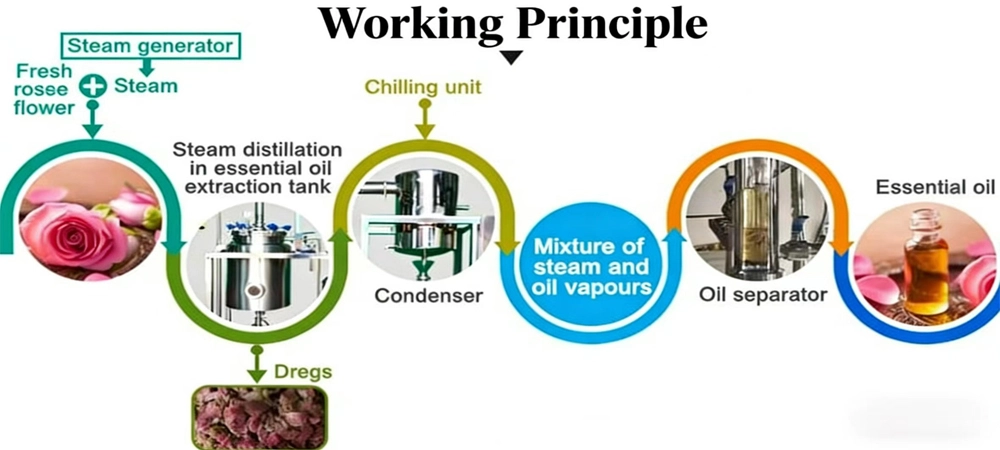

Understanding how your equipment works helps you optimize production:
Steam Distillation Mode
The extraction basket is full of 20 to 40 mesh chips of sandalwood heartwood. In 48 to 72 hours, low-pressure, high-volume steam makes its way through the dense lignocellulosic matrix. Heat lets volatile sesquiterpenes out from deep inside the wood cells. Voids that are rising go into the shell-and-tube condenser, where they cool down and separate. Because sandalwood oil has different densities, the special Florentine flask form can collect both lighter and heavier oil parts. With this method, you can get the standard sandalwood scent that you know from traditional perfumes.
Ultrasonic-Assisted Extraction (UAE)
Ultrasonic waves with a high frequency make cavitation bubbles that break down cell walls. This pre-treatment cuts down on extraction time by a huge amount, and it can be used with steam or liquid ways to get even better results.
To protect your important raw materials, all of the systems have automatic temperature ramping and emergency stop procedures.
Step 1: Raw Material Preparation
Source quality sandalwood heartwood (Santalum album or spicatum). Chip or grind to 20-40 mesh for optimal surface area without causing channeling issues.
Step 2: Loading
Fill the extraction basket evenly. The multi-layer basket design ensures uniform steam or solvent exposure throughout the load.
Step 3: Heating Initiation
Select your heating method (electric or steam). The PID controller gradually raises temperature to your set point with ±0.5°C precision.
Step 4: Extraction Cycle
Steam circulates continuously , The agitation system prevents dead zones. Monitor the visualized process through transparent sections.
Step 5: Condensation
Vapors pass through oversized condensers with 1:1.5 surface area ratio. Near-zero loss of volatiles ensures maximum yield.
Step 6: Separation
The specialized oil-water separator collects all fractions through dual-tap outlets. Heavy and light oil components are captured separately.
Step 7: Collection & Quality Control
Pure sandalwood oil collects in food-grade storage containers. Test alpha-santalol (≥41%) and beta-santalol (≥16%) ratios to confirm pharmaceutical grade.
Step 8: Discharge & Cleaning
Electric lift platform simplifies spent material removal. Mirror-finish interior surfaces clean easily to prevent cross-contamination between batches.
Your sandalwood oil extraction machine works with a number of high-value fields, such as
Luxury Perfumery & Fine Fragrance
Get oil of the "Absolute" grade for expensive perfumes. The CO₂ method keeps the fixative properties while avoiding burnt notes. This makes it the best way for designer perfumes to build their base notes.
Pharmaceutical Manufacturing
Make therapeutic-grade oil that always has the right amounts of alpha-santalol (>41%) and beta-santalol (>16%). GMP-compliant equipment makes sure that anti-inflammatory and antibacterial formulas can be made over and over again.
Traditional Attar Production
Work on thick heartwood logs in rounds that last for 72 hours straight. Water recycling devices keep the environment as safe as possible in places with limited water while collecting the strongest sesquiterpenes.
Aromatherapy & Wellness Products
Make pure essential oils that can be used in diffusers, massage oils, and skin care items. People who buy green products like solvent-free extraction.
Cosmetics Industry
Add sandalwood oil to high-end skin care lines. The anti-aging and skin-soothing qualities make it worth a lot of money.
Research & Development
Universities and R&D centres can use laboratory-scale units (50–100L) to test different extraction factors and new types of sandalwood.
Quality assurance protects your investment in expensive raw materials:
International Safety Standards
For sales in Europe, our equipment has CE approval, ISO 9001 for quality control, UL for electrical safety in North America, and SGS third-party verification.
Pressure Vessel Compliance
At 1.5 times the working pressure, all extraction tanks are put through ASME VIII Div 1 hydrostatic testing. Every weld seam is checked with Non-Destructive Testing (NDT), which includes radiographic (RT) and dye penetrant (PT) testing.
Material Verification
Positive Material Identification (PMI) testing proves that the building is real SS316/316L, which keeps iron from getting into the oil and changing its colour.
Hygiene Standards
To stop bacteria from growing, the interior surface roughness must be Ra ≤ 0.4µm (mirror finish). GMP/FDA compliance makes sure that work settings are safe for pharmaceuticals.
Factory Acceptance Testing
Before shipping, we do full test runs to make sure the PLC is working correctly and following safety rules for temperature control, pressure maintenance, and PLC accuracy. You are welcome to come to our Xi'an facility and see FAT.
Q: What's the typical yield from sandalwood heartwood?
A: Yield varies by wood age and quality, typically 3-6% by weight. Our system's 98% extraction efficiency means you capture virtually all available oil from your raw material.
Q: How long does each extraction cycle take?
A: Sandalwood requires 48-72 hours due to its dense structure. Our machines feature continuous-duty motors and oversized cooling systems specifically designed for these extended cycles.
Q: Can I extract other essential oils with the same machine?
A: Absolutely. The same equipment handles lavender, lemongrass, rose, and other botanicals. The mirror-finish interior prevents cross-contamination between batches.
Q: What's the energy consumption?
A: Electric heating models consume approximately 12-18 kW for 500L capacity. Steam heating is more efficient for large-scale production. We'll calculate exact specs for your operation.
Q: Do you provide installation and training?
A: Yes. We offer on-site installation guidance and comprehensive operator training. Remote video support is also available for international customers.
Q: What maintenance does the machine require?
A: Steam units need monthly gasket inspections. CO₂ units require high-pressure seal replacement every 1,500 operating hours. We supply all wear parts and provide maintenance schedules.
Q: Can the equipment handle powder or only chips?
A: Both. However, 20-40 mesh sizing optimizes flow without channeling. Pair your extractor with our slow-speed granulator for consistent particle size.
Q: Is financing available for large orders?
A: We work with several equipment financing partners. Contact us to discuss payment terms that fit your budget.
Sandalwood oil extraction machine ready to start producing quality sandalwood oil? Our team will assist you choose the right setup. Contact info@biolandequip.com for thorough quotes and technical advice.
