A jacketed agitated reactor is the most important part of modern chemical production because it allows for accurate synthesis, distillation, extraction, and crystallization in conditions that can be seen by anyone. A jacketed agitated reactor is much more clear than dark metal tanks. This means that workers can see color changes, the formation of precipitates, and phase separation in real time, without the risks of "black box" processing. With more than 15 years of experience in engineering, Xi'an Bioland Instrument Co., Ltd. offers high-borosilicate jacketed agitated reactor options that are resistant to rust, can handle temperatures from -80 °C to 300 °C, and can be expanded in modules. Whether your company needs a 5 L lab unit or a 200 L pilot-scale glass reactor system, Bioland's CE- and ISO-certified equipment meets GMP/FDA standards and has the best prices in the industry. You can also fully customize the equipment with OEM/ODM options.
The best thing about a glass reactor system is that its body is made of borosilicate, which is completely clear. This lets users see every step of a chemical process. In the process of making pharmaceutical intermediates, even a small change in color or haze can be a sign of an unwanted side effect. A glass reactor system takes the guesswork out of things because it lets chemists see when precipitation starts, when an emulsion breaks, and when reflux happens without having to open the vessel. This clear feedback loop makes it much easier to repeat results from one batch to the next and cuts down on the time needed to optimize the process. The GG17 high-borosilicate jacketed agitated reactor from Bioland keeps its optical clarity even after being exposed to harsh solvents for a long time. This means that monitoring quality never changes over the life of the equipment.

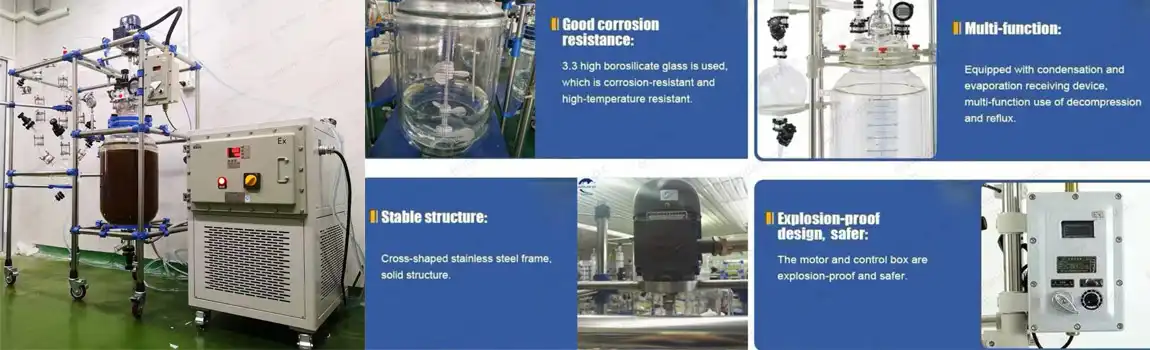

Strong acids, caustic alkalis, and aggressive organic solvents that quickly corrode stainless steel or alloy reactors are used all the time in chemical plants. A jacketed agitated reactor made of GG17 borosilicate glass is very resistant to chemical attack. This keeps metal ions from getting into the system and contaminating the product, which can happen in biotech and fine-chemical settings. The jacketed agitated reactor is the best way to make chiral intermediates, active pharmaceutical ingredients, and high-purity electronic-grade chemicals because it doesn't add any metallic impurities. Bioland's jacketed agitated reactor comes in single-layer, double-layer, and triple-layer options. Each is designed to stay chemically inert across pH ranges from 1 to 14. This makesjacketed agitated reactor essential for facilities that make more than one product and use a variety of reaction chemicals.

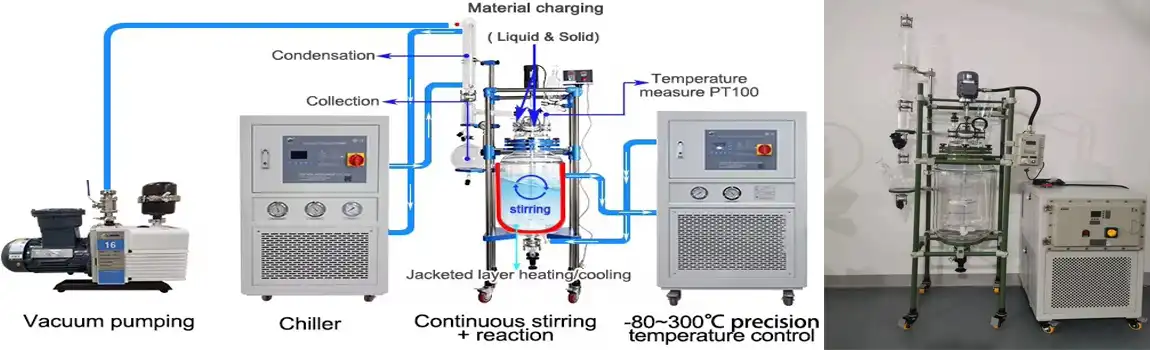

It is very important to be accurate with the temperature in exothermic polymerizations, cryogenic lithiation reactions, and high-temperature esterifications. Bioland makes a double-jacketed jacketed agitated reactor that can work continuously from -80 °C to 300 °C and can also work in a vacuum down to -0.095 MPa. This large heat shell lets a single jacketed agitated reactor take the place of several separate units, which saves money and floor room. The built-in jacket moves thermal fluid from an outside heater or chiller, and a PT100 probe inserted through a standard flange port tells the controller the temperature in real time. You can use the jacketed agitated reactor for a low-temperature Grignard reaction or a high-heat polycondensation. It is stable to within ±1 °C, which protects yield and selectivity.
A modern jacketed agitated reactor is more than just a container for reactions; it's an entire platform for the process. Standard multi-neck flange lids with three, four, or five ports make it easy to connect condensers, addition funnels, distillation columns, vacuum filters, and crystallization modules. Because it is flexible, one jacketed agitated reactor can be used for both batch synthesis and fractional distillation, making the best use of all the necessary tools. Bioland engineers make sure that every jacketed agitated reactor has standard ground-glass joints and PTFE adapters. This way, customers can go from a simple reaction setup to a full reaction-distillation-extraction train without having to replace the core vessel.
For heat transfer, mass transfer, and even distribution of reagents, mixing must work well. Bioland's jacketed agitated reactor all have a variable-frequency drive motor that lets you change the speed without any steps from 0 to 600 rpm. This lets you mix biologics gently for shear-sensitive reactions or quickly for heterogeneous catalysis. The PTFE-coated rotor doesn't rust, and the mechanical seal keeps the vacuum strong during reduced-pressure distillation. When used with a vacuum pump, the glass reactor system speeds up the removal of solvents and lowers the boiling points of substances. This saves up to 40 percent of the energy needed for atmospheric evaporation. The jacketed agitated reactor can be used in both R&D labs and test plants because it can precisely stir things up and control the pressure.
It gets harder and harder to keep parameters constant as a process goes from the bench to the test to full production. Bioland has a fully automated jacketed agitated reactor with PLC-based control panels that can change the temperature, the speed of the stirring, the level of vacuum, and the amount of reagents used all at the same time. The HMI with a touch screen saves process data for GMP batch paperwork, and alarm levels can be changed for each recipe. With this automatic feature, a regular jacketed agitated reactor can be turned into a fully functional production cell that reduces the chance of mistakes made by operators and makes sure that all regulations are met. When clients switch from manually controlled to PLC-controlled jacketed agitated reactor setups, batch accuracy goes up by up to 25% and labor costs go down by a lot.
In its drug-intermediate synthesis line, a South American biopharmaceutical company had problems with low dissolved oxygen efficiency, long fermentation cycles, and low product purity. Chiral chemicals that were easily oxidized broke down quickly in regular stainless steel reactors, leading to batch failures that cost the company more than $200,000 a year.
The engineers at Bioland made a custom 50 L double-layer jacketed agitated reactor with an improved anchor-impeller shape that made 30 percent more dissolved oxygen transfer. The clear glass container let workers see the stages of cell growth and change the air flow in real time.
The client cut the time it took to brew each batch by 18 hours within three months of adding the jacketed agitated reactor. They also reached 99.2 percent intermediate purity. Metal ions could not get on the inert glass surface, and the PTFE dual-seal system allowed nitrogen blanketing for steps that were sensitive to oxygen.
Chemical companies that work with flammable liquids, nitrating mixes, or energetic intermediates need tools that get rid of sources of ignition. Bioland's jacketed agitated reactor doesn't explode and meets Exd≡BT4 standards. It has flameproof motors, naturally safe sensors, and PTFE seals that don't conduct electricity. To meet safety rules at a particular site, the glass reactor system can be changed even more by adding fully sealed electrical cabinets, nitrogen purging ports, and tail-gas absorption units. By picking an explosion-proof jacketed agitated reactor, plant managers can keep workers and property safe while still being able to see what's going on inside, which is only possible with glass building.
Plant uptime and worker safety are directly affected by how reliable the machinery is. There are two seals on each Bioland jacketed agitated reactor: a PTFE lip seal and a mechanical face seal. This keeps gas leaks from happening even when there is a high vacuum or positive pressure. The frequency-conversion motor doesn't have brushes, so it doesn't make sparks and the noise level is below 60 dB. A device that lifts and rotates the head makes charging, draining, and cleaning easier. This cuts the time it takes to switch between batches by up to 50 percent. Because of these design choices, the glass reactor system will last for many years with little downtime for maintenance, which is very important for chemical plants that make chemicals all the time.
A European precious metals refiner had a lot of problems with its old stainless steel extraction vessels. They could only handle small batches, didn't separate metals well, and got contaminated with corrosion over time, which slowed down the recovery of gold and platinum. The business needed a jacketed agitated reactor that could be expanded and work in aqua regia and hydrochloric acid.
As a full extraction and purification line, Bioland sent four 200-liter explosion-proof double-layer jacketed agitated reactor units and nine 50-liter rotating evaporators. The Exd-BT4 specifications were used to build the modular glass reactor system, which had automated acid-dosing manifolds built in.
Operators could see phase separation happening during solvent extraction in real time thanks to the clear jacketed agitated reactor bodies. This stopped overmixing, which used to cause emulsion lock-up. Utilizing parallel modular fabrication, delivery was completed 40% faster than planned, allowing the client to start using the new line 15 days early.
The amount of valuable metals processed each year went up by 30%, and in its first year, the jacketed agitated reactor ran for over 1,000 hours without any problems. After that, the client made a second order for an extra jacketed agitated reactor train to increase the amount of gold that could be refined.
Pharmaceutical companies need equipment that meets strict GMP approval standards and can work with different reaction shapes. Bioland's engineering team customizes each jacketed agitated reactor to the client's vessel sizes, port arrangements, jacket configurations, and material-contact needs. Ultrasonic crystallization modules, combined Nutsche filter-reactor units, and multi-stage distillation columns are all non-standard jacketed agitated reactor choices. They are all made from the same high-purity borosilicate glass. Most custom jacketed agitated reactor orders are shipped within 30 business days. Standard stock models, on the other hand, are ready in 5 to 7 days. At Bioland's Xi'an plant, every jacketed agitated reactor goes through a Factory Acceptance Test. Before it is shipped, full picture and video paperwork is given.
A glass reactor system is useful in many fields besides drugs, such as food science, petrochemicals, metals, new materials, and pesticide production. In food preparation, the glass reactor system takes care of extracting flavors, controlling fermentation, and drying out concentrates in a clean environment. The jacketed agitated reactor is used by petrochemical experts to study catalytic cracking and make polymers at high temperatures. The jacketed agitated reactor is used in metallurgical labs for rock washing and metal processing tests where acid protection is very important. The jacketed agitated reactor can be used in a lot of different industries, which makes it a good investment for a chemical company with a lot of different departments.
Chemical companies are always trying to stay within their capital equipment budgets. Bioland solves this problem by providing a jacketed agitated reactor at very low prices without lowering the quality. Costs are controlled by the company's vertically integrated manufacturing facility, which starts with buying the raw borosilicate tube and ends with testing and final assembly. OEM and ODM orders for jacketed agitated reactor are accepted, and logos, color-coding, and paperwork can be changed to fit the needs of the client. Bioland's jacketed agitated reactor has the lowest total cost of ownership in its class thanks to its one-year guarantee and lifetime upkeep support.
Getting a jacketed agitated reactor is only the first step; it will only work well in the long run if you get quick technical support. Bioland gives each order for a jacketed agitated reactor its own project specialist and sends weekly progress reports with photos and videos of the production process. After the jacketed agitated reactor is finished, the customer looks over thorough inspection materials before giving the go-ahead for shipping. Bioland lets buyers from other countries do FAT remotely through live video or in person at the Xi'an factory. Once the glass reactor system is set up, it is supported by a global service network that spans Europe, Southeast Asia, and the Americas. This makes sure that extra parts and expert help are always available.
A jacketed agitated reactor is a must-have for chemical plants that need clear, corrosion-resistant, and precisely controllable reaction platforms. The jacketed agitated reactor meets all the important needs of modern chemical processing, from explosion-proof safety and wide-range temperature control to real-time visual tracking and GMP-compliant design. With more than 15 years of experience, Xi'an Bioland Instrument Co., Ltd. offers jacketed agitated reactor options that cut costs, speed up scale-up, and improve product quality. Bioland offers planning, certification, and lifetime support to make sure your facility's long-term operating success, whether it needs a small unit or a 200 L production-scale glass reactor system.
A double-jacketed glass reactor system from Bioland operates from −80 °C to 300 °C, covering cryogenic and high-temperature reactions.
Yes. Bioland offers ExdⅡBT4-certified explosion-proof glass reactor system configurations with flameproof motors and intrinsically safe sensors.
Custom glass reactor system orders typically ship within 30 business days, while standard models are ready in 5–7 days.
Absolutely. Every glass reactor system complies with GMP/FDA standards and supports Factory Acceptance Testing before delivery.
A glass reactor system is widely used in pharmaceuticals, fine chemicals, food processing, petrochemicals, metallurgy, and new materials.
If your plant is battling corrosion, poor batch consistency, or inefficient scale-up, Xi'an Bioland Instrument Co., Ltd. has the engineering expertise and manufacturing capacity to deliver a glass reactor system tailored to your exact process requirements. With over 15 years of experience, CE and ISO certifications, and a proven track record serving pharmaceutical, chemical, and precious-metal clients across Europe, Southeast Asia, and the Americas, Bioland Instrument is your trusted partner for turnkey reaction solutions.
We offer full OEM/ODM customization—from explosion-proof configurations and PLC automation to integrated distillation and crystallization modules—at industry-leading prices. Our dedicated project team provides weekly production updates, FAT support, and lifetime maintenance to ensure your glass reactor system performs flawlessly from day one. Don't let outdated equipment hold back your production goals. Contact Bioland Instrument today to discuss your sourcing requirements and receive a free process-engineering consultation. Email us at info@biolandequip.com and let us help you achieve first-class results with the lowest total cost of ownership.
