Choosing the right glass biological reactor is no longer a simple purchasing decision — it is a process engineering decision that determines fermentation yield, product purity, batch reproducibility and how smoothly your lab results transfer to pilot production. Xi'an Bioland Instrument Co., Ltd. designs every glass biological reactor as an integrated reaction platform rather than a plain vessel: high-transparency GG17 borosilicate glass for full visual monitoring, double-jacket precision temperature control from -80°C to 300°C, vacuum capability down to -0.095 MPa, strong corrosion resistance without metal-ion leaching, and modular flange ports that let one system perform reaction, distillation, extraction, condensation and crystallization. With more than 15 years of manufacturing experience, CE and ISO certification, GMP/FDA-compliant construction, competitive factory pricing and full OEM/ODM customization, Bioland Instrument supplies a glass biological reactor built around your process — not the other way round.
Biological processes are fragile. Cell cultures, enzyme reactions, fermentation broths and biosynthetic intermediates respond violently to temperature drift, shear stress, dissolved oxygen deficits and trace metal contamination. A glass biological reactor answers all four issues at once. The fully transparent GG17 borosilicate body lets operators watch turbidity shifts, foaming, flocculation, colour change and phase separation in real time, eliminating "black-box" operation. Because the wetted surface is glass and PTFE, no iron, nickel or chromium ions migrate into the broth — critical for chiral intermediates, biologics and high-purity APIs where a few ppm of metal can poison a catalyst or fail a QC release test.
Any credible glass biological reactor must control three parameters simultaneously: temperature, agitation and pressure/vacuum. Bioland's double-layer jacket circulates heating or cooling fluid from an external chiller or oil bath, holding setpoints within ±1°C across a -80°C to 300°C span. A frequency-controlled, spark-free motor drives anchor, paddle or turbine impellers from 0–450 rpm, so shear-sensitive mammalian cultures and viscous fungal broths can each run at their optimum. Vacuum to -0.095 MPa supports low-temperature evaporation and solvent recovery without thermally degrading heat-labile biomolecules.
Laboratories rarely run a single unit operation. A well-configured glass biological reactor with a five-port lid connects a reflux condenser, addition funnel, Pt100 probe, sampling valve and vacuum line at the same time, converting the same vessel into a fermenter, extractor, distillation still or crystallizer. Bioland customers routinely use one glass biological reactor for enzymatic hydrolysis in the morning and solvent extraction of the same batch in the afternoon, avoiding transfer losses and a second capital purchase.
Safe practice matters more in glass than in steel. Bioland supplies each glass biological reactor with tempered borosilicate rated for the stated vacuum and low-pressure duty, PTFE plus mechanical dual sealing, jacket pressure relief, and a lifting-and-rotating frame that lets a single operator discharge and clean the vessel without lifting glassware by hand. Recommended practice — gradual thermal ramping (no more than 3–5°C/min), never applying positive pressure above rating, and quarterly seal inspection — routinely delivers over 1,000 hours of fault-free operation in the field.
The jacket is the heart of thermal performance. Bioland's double-layer glass biological reactor uses a tightly toleranced annular gap that raises circulation velocity and shortens ramp time, so a 50 L working volume can be pulled from 25°C to 4°C for cold-chain crystallization far faster than a wide-gap jacket. For very demanding duties, a triple-layer version adds a vacuum-insulated outer wall that reduces condensation on the sight surface and cuts chiller load — a real energy saving for fermentations that run 96 hours or longer.
Dissolved oxygen limits most aerobic fermentations. In one South American biopharmaceutical project, the client's existing setup suffered poor oxygen transfer, long fermentation cycles, imprecise parameter control and unstable product purity. Bioland engineered a customized 50 L jacketed glass biological reactor with a redesigned impeller and sparger geometry.
Oxygen transfer efficiency rose by 30%, the fermentation cycle shortened accordingly, and the sealed lid supported nitrogen blanketing for an oxidation-sensitive drug intermediate. The customer reported more consistent batch purity and full compliance with their sterile, precisely temperature-controlled synthesis protocol — proof that a properly specified glass biological reactor solves process problems, not just storage problems.
Modern bioprocessing needs traceable data. Bioland can equip a glass biological reactor with PLC and HMI control integrating temperature, stirring speed, torque, pH, dissolved oxygen and vacuum, with recipe storage and data export for GMP documentation. Automatic feeding pumps, sequential dosing and alarm interlocks are available. For solvent-handling bio-labs, a fully explosion-proof configuration to ExdⅡBT4 is offered, including flameproof motor, junction boxes and control cabinet.
Because purification usually follows synthesis, Bioland integrates fractional distillation columns, Nutsche filter bottoms, ultrasonic crystallization probes, tail-gas absorption units and condensate receivers directly onto the glass biological reactor frame. A European fine-chemical customer used this modularity to complete reaction, filtration and crystallization in one skid, cutting intermediate handling steps and reducing product loss between operations.
Sterility in a glass biological reactor is achieved through smooth, non-porous glass surfaces, PTFE gaskets, sanitary sampling valves and sterile-filtered gas inlets (0.22 µm). Glass carries no weld seams, crevices or passivation layers where biofilm can hide, so CIP with alkaline and acid cycles followed by WFI rinsing consistently returns the vessel to a validated clean state. Removable lids and lift-and-rotate frames give operators genuine access for manual inspection — a practical advantage over closed stainless vessels during small-batch GMP validation.

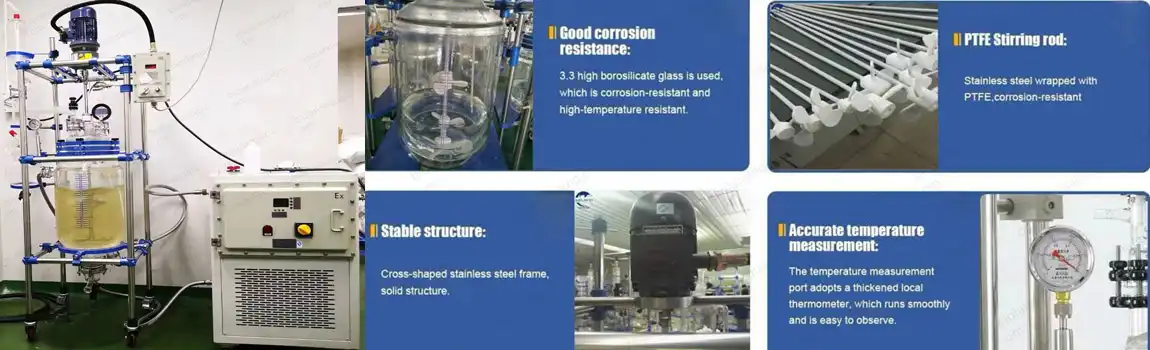

GG17 high borosilicate glass resists strong acids, alkalis, alcohols, ketones, chlorinated solvents and most fermentation broths without swelling, leaching or discolouring. That is why a glass biological reactor is preferred for pharmaceutical intermediates, natural product extracts and biologically active compounds where extractables and leachables are scrutinized. A European precious-metals refiner faced exactly this issue: metal vessels corroded under aggressive solvent extraction, contaminating high-value product with impurities.
Bioland delivered four 200 L explosion-proof double-layer glass reactors plus nine 50 L explosion-proof rotary evaporators for that line. Modular manufacturing shortened delivery by 40%, letting the client start production 15 days early. Annual capacity increased 30%, and the equipment ran more than 1,000 hours without failure. Transparent vessels allowed real-time monitoring of corrosive mixing and phase separation.
Every glass biological reactor from Bioland is manufactured under ISO quality control, CE certified, and built to GMP/FDA-compatible material standards. Material certificates, dimensional records, hydrostatic and vacuum test reports and calibration data accompany delivery, which shortens IQ/OQ work for pharmaceutical clients. Xi'an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider for R&D, production and sales of distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing and drying equipment, together with supporting heating, cooling and vacuum devices — more than 15 years in the field.
Seal choice is where many sterility failures begin. Bioland uses PTFE lip seals backed by a mechanical seal on the agitator shaft of every mid- and large-volume glass biological reactor, holding vacuum overnight without creep. Elastomer-free wetted paths reduce extractables risk, and spare seal kits are stocked so customers can perform a 20-minute changeout instead of waiting weeks for parts.
Scale-up should be stepwise. Bioland supplies a glass biological reactor family from 1 L bench units through 5 L, 10 L, 20 L, 50 L and 100 L development scales up to 200 L pilot vessels, all sharing geometry ratios so impeller tip speed, jacket area per litre and baffle configuration remain comparable. This geometric similarity is what makes lab data predictive: a client validating at 20 L can transfer kLa and heat-removal parameters to a 200 L glass biological reactor with far less re-optimization.
A chemical intermediates manufacturer approached Bioland because batch temperature overshoot during an exothermic biocatalytic step was destroying enzyme activity and forcing rework. Bioland supplied a jacketed glass biological reactor with a high-flow jacket, PLC cascade temperature control and automatic dosing of substrate.
Overshoot was contained within ±1°C, enzyme activity retention improved, and rework batches dropped sharply. The customer later replicated the same glass biological reactor configuration across three parallel lines because the process package was already validated.
Another customer producing nitric acid and acidified glycerine required a corrosion-proof, visible reaction platform. Customized glass reactors from Bioland handled the aggressive media, gave operators direct visual control of the exotherm, and integrated a tail-gas absorption unit to manage nitrogen oxide emissions safely.
Non-standard is normal at Bioland. Size, shape, port layout, material of ancillary parts, lifting and rotating structures, filtration bottoms, crystallization systems, ultrasonic assistance, distillation columns, purification and concentration trains — all can be built into a glass biological reactor on request. OEM and ODM orders are welcome. Customized units typically ship in 30 business days; non-customized units in 5–7 days. Sea, rail and air freight are supported, with a one-year warranty and lifetime maintenance.
During manufacture of a customized glass biological reactor, a dedicated specialist sends weekly photo or video progress updates. On completion, detailed photos or videos are provided for inspection, and shipment is arranged only after your approval — or you may schedule a Factory Acceptance Test at the Xi'an facility. Bioland's R&D personnel and senior technicians remain available for installation guidance, commissioning support and process troubleshooting for the life of the equipment.
Selecting a glass biological reactor for bioprocessing comes down to four questions: can you see the reaction, can you hold the temperature, will the material stay inert, and will the design scale? Bioland Instrument answers all four with transparent GG17 borosilicate construction, -80°C to 300°C jacket control, -0.095 MPa vacuum capability, explosion-proof and PLC automation options, and geometrically consistent volumes from 1 L to 200 L. Backed by CE/ISO certification, GMP-compatible documentation, real customer results in pharmaceuticals, precious metals and chemical intermediates, and 15+ years of engineering experience, a Bioland glass biological reactor delivers a complete process solution — not just a vessel.
Standard sizes run from 1 L to 200 L, with custom volumes and geometries available on request.
-80°C to 300°C with the correct circulating fluid, and vacuum to -0.095 MPa.
Yes. Materials comply with GMP/FDA standards, and CE/ISO documentation supports IQ/OQ work.
Yes — full ExdⅡBT4 explosion-proof systems with PLC control, dosing, filtration and crystallization modules are customizable.
Customized units ship in about 30 business days; standard units in 5–7 days, with a one-year warranty and lifetime maintenance.
If your fermentation cycle is too long, your exotherm is out of control, your metal vessel is contaminating high-purity product, or your lab results simply will not scale, Bioland Instrument wants to hear about it. For over 15 years, Xi'an Bioland Instrument Co., Ltd. has engineered reaction, extraction, distillation, filtration, crystallization and drying systems for customers in pharmaceuticals, biotechnology, food, petroleum, metallurgy, cosmetics and new materials across Europe, Southeast Asia and the Americas. Our CE and ISO certified factory, in-house R&D team and senior process engineers deliver a glass biological reactor configured precisely to your medium, temperature profile, solvent system and throughput target — including full OEM/ODM builds, explosion-proof systems, PLC automation and integrated downstream modules.
You get factory-direct pricing, weekly photo and video production updates, optional Factory Acceptance Testing, a one-year warranty and lifetime maintenance support. Send us your process description, target volume and required parameters, and our team will return a tailored proposal and quotation. Contact Bioland Instrument now at info@biolandequip.com and let our engineers turn your process challenge into a validated, repeatable production solution.
1. Doran, P. M. Bioprocess Engineering Principles, 2nd Edition. Academic Press.
2. Shuler, M. L., Kargi, F., DeLisa, M. Bioprocess Engineering: Basic Concepts, 3rd Edition. Prentice Hall.
3. Villadsen, J., Nielsen, J., Lidén, G. Bioreaction Engineering Principles, 3rd Edition. Springer.
4. Chisti, Y. "Sterile Bioreactor Design and Operation." Biotechnology Advances.
5. ASTM C1464, Standard Specification for Bacterial, Chemical and Thermal Resistance of Borosilicate Glass Apparatus. ASTM International.
6. ISPE Baseline Guide Volume 6: Biopharmaceutical Manufacturing Facilities. International Society for Pharmaceutical Engineering.
