Ask any peptide chemist scaling from milligrams to kilograms and the same question surfaces: can we just run this in the batch reactor we already own? Sometimes yes. Usually no. A solid phase synthesis reactor is engineered around a fundamentally different chemistry — one where the product stays bound to a resin bead and every reagent must be delivered, drained and washed away dozens of times without losing a single gram of that resin. Xi'an Bioland Instrument Co., Ltd. builds its solid phase synthesis reactor on industrial-grade safety standards, merging filtration, agitation and evaporation in one high-borosilicate glass body, fitted with a high-performance PTFE filter assembly whose large-diameter design delivers genuinely fast drainage. Certified explosion-proof construction, high-strength pressure-bearing structure, 20 L to 100 L capacities, CE and ISO certification, GMP/FDA-compliant materials, factory-direct pricing and complete OEM/ODM customization make it the preferred platform for peptide drug R&D, thymopeptide preparation, antimicrobial peptide screening and peptide carrier material synthesis. Here is the honest comparison.

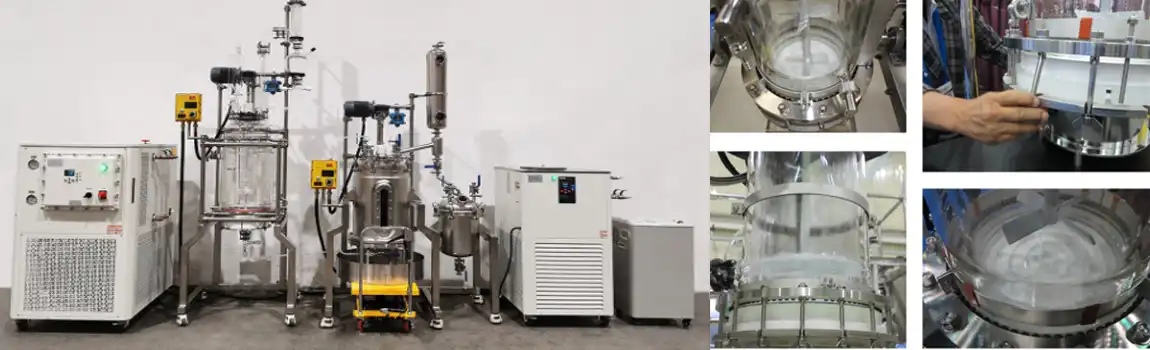

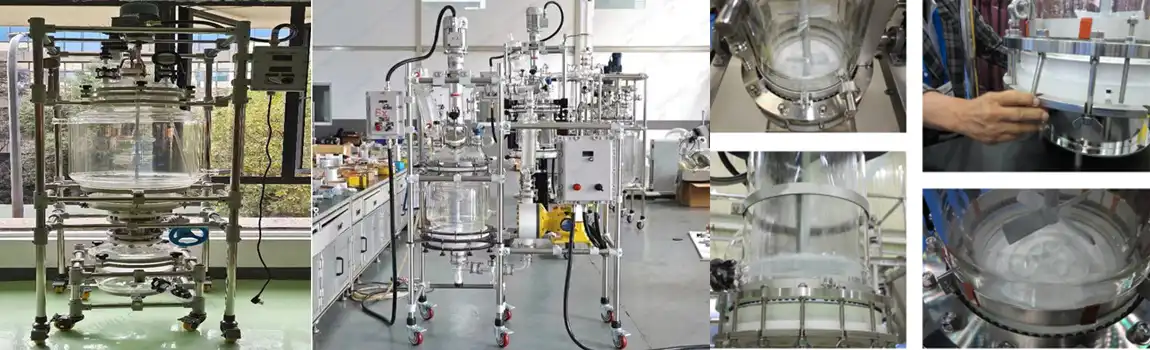

Strip both machines down and the difference is a single component. A batch reactor ends in a discharge valve; a solid phase synthesis reactor ends in a large-diameter PTFE sintered filter plate sealed into the base. That plate is the entire argument. In solid phase peptide synthesis you couple, drain, wash, deprotect, drain, wash — potentially eighty or more liquid exchanges for a twenty-residue sequence. A batch reactor cannot drain liquid while retaining resin. Every cycle would demand an external filter, a transfer line and a resin recovery step. In a solid phase synthesis reactor, the resin bed simply sits on the plate while reagents pass through under vacuum or nitrogen pressure.
The working sequence in a solid phase synthesis reactor is rhythmic. Resin is charged and swollen in DMF or DCM with gentle agitation. Solvent drains through the plate. Fmoc deprotection with piperidine follows, then drains. Three to five DMF washes drain in turn. The activated amino acid and coupling reagent are charged, agitated for the required contact time, then drained. Washes repeat. The cycle turns again for the next residue. Finally, cleavage cocktail is introduced, the product is drained into a receiver, and the spent resin is discharged. Every one of those steps happens inside one solid phase synthesis reactor without breaking containment.
Batch reactors are designed to mix liquids energetically. Polystyrene and PEG-based resin beads are mechanically fragile — a high-shear turbine will fracture them, generating fines that blind the filter and bleed product into the waste stream. A Bioland solid phase synthesis reactor uses programmable low-shear agitation, or optionally nitrogen bubbling, to keep beads suspended and reagent-accessible without attrition. Programmable stirring and temperature control together deliver the uniform reaction environment and high repeatability that GMP peptide manufacturing demands, batch after batch.
Both reactor types can be glass, but the operating expectations differ. Bioland's solid phase synthesis reactor uses high-borosilicate glass with excellent chemical stability and high mechanical strength, handling a broad -20°C to 200°C window when paired with a stainless-steel high-low temperature all-in-one circulator. TFA, piperidine, DIC, DMF and DCM all pass through it without attacking the wetted surfaces, and no metal ions leach into the product — a decisive advantage over stainless batch vessels when the final peptide must meet trace-metal specifications.
Efficiency in solid phase work is measured in handling operations avoided. Run twenty coupling cycles in a batch reactor with external filtration and you have performed roughly forty transfers, each risking resin loss, solvent exposure and operator fatigue. The same twenty cycles in a solid phase synthesis reactor involve zero transfers. Bioland customers moving from improvised setups to a dedicated solid phase synthesis reactor routinely report cycle time reductions in the 20–40% range simply from eliminated handling, alongside noticeably better mass balance because resin never leaves the vessel.
Here is where the large-diameter filter design pays for itself. If each of eighty drain steps takes eight minutes instead of three, you have added nearly seven hours to a single synthesis. The high-performance PTFE filter assembly in a Bioland solid phase synthesis reactor is specified for high-speed filtration precisely because drainage, not chemistry, is often the rate-limiting step in SPPS. Standard configuration is a PTFE sintered core; stainless steel, titanium, and a full range of filter cloths and membranes are available to match resin bead size distribution.
Manual valve operation across eighty steps invites error. Bioland can supply a solid phase synthesis reactor with PLC and touchscreen automation controlling jacket temperature, agitation speed, vacuum, sequential reagent dosing and timed drain cycles, with recipe storage and exportable batch records. Electric lifting, integrated temperature control systems, crystallization and ultrasonic crystallization modules, and combined rectification columns can all be built in. Xi'an Bioland Instrument Co., Ltd. has spent over 15 years engineering exactly this class of reaction, filtration, purification, crystallization and drying equipment.
Scalability is where batch reactors fail quietly. Resin bed depth, drainage flux and wash volume per gram of resin all change unpredictably when you improvise a larger setup. Bioland's solid phase synthesis reactor range — 20 L, 30 L, 50 L and 100 L — maintains consistent geometric proportions, so wash volumes and contact times validated at 20 L transfer sensibly to 100 L. Explosion-proof, high-strength pressure-bearing construction covers all four volumes, so safety qualification does not restart at each scale.
Resin swells two to six fold depending on solvent. Design your charge around the swollen volume, not the dry weight. A practical rule for any solid phase synthesis reactor is to keep the swollen bed between roughly 30% and 60% of the height above the filter plate, leaving headroom for agitation and complete wash coverage. Overloading produces channelling — solvent finds a preferential path and leaves pockets of unwashed resin carrying deletion sequences into the next coupling. Because the vessel is fully transparent, operators can see the bed level and detect channelling immediately.
Applying maximum vacuum from the first second compacts fines against the plate and blinds it. Best practice on a solid phase synthesis reactor is staged suction: gentle initially, increasing once free liquid has passed. Between campaigns, the quick-release filter assembly lets operators remove the PTFE disc, backflush it with compatible solvent, and inspect for embedded resin — a twenty-minute job rather than a workshop visit. Glass walls hold no crevices or weld seams, so cleaning restores a validated clean state fast and cross-contamination between products stays controlled.
The same integrated architecture solves adjacent problems. A European biopharmaceutical developer working on a chiral API intermediate faced incomplete reactions, low crystal purity and yield, strong acid/base media corroding equipment, and cross-contamination from frequent transfers.
Bioland supplied a customized 100 L glass filter-crystallization reactor performing reaction, crystallization and filtration in one vessel. The catalytic step ran at 0–5°C under nitrogen; the transparent body let chemists confirm reaction completion by colour change.
Crystallization followed with -20°C jacket coolant and a controlled 1–2°C per hour cooling ramp, producing uniform crystals without occluded impurities. Filtration switched straight to the PTFE assembly. Mother liquor was recycled, purity exceeded 99.5%, and yield improved 15% with no intermediate transfers whatsoever.
Fairness matters in a comparison. If your chemistry is homogeneous — reagents dissolve, product stays dissolved, and separation happens elsewhere — a standard jacketed batch reactor is simpler, cheaper and entirely appropriate. The verdict flips the moment your product is bound to, or recovered as, a solid. Repeated washing, resin retention, in-situ filtration and vacuum drying are structurally impossible in a plain batch vessel, and improvising them costs more in lost yield and labour than a purpose-built solid phase synthesis reactor ever costs in capital.
Selection starts with three questions. What solvents and temperatures does your route demand? Is the environment solvent-rich enough to require explosion-proof construction? Do you need automation for GMP documentation? Bioland answers each with configurable options: fully explosion-proof systems with authenticated certification, PLC full automation, electric lifting, integrated temperature control, filtration, crystallization, ultrasonic crystallization, combined rectification vessels and tail-gas absorption. Every solid phase synthesis reactor can differ from the standard model in size, shape, material and structure to suit laboratory research, pilot trials, pharmaceutical manufacturing or organic synthesis.
Glass rewards discipline and punishes carelessness. Ramp jacket temperature no faster than about 3–5°C per minute, pre-condition solvents before charging, never exceed rated pressure, and confirm clamp torque and frame level before each campaign. Verify seal integrity daily by pulling vacuum on the empty solid phase synthesis reactor and checking the gauge holds for ten minutes. PTFE plus mechanical dual shaft sealing is standard, spare kits are stocked, and TFA cleavage steps should always be followed by thorough neutralizing rinses to protect gaskets and extend service life.
Bioland welcomes OEM and ODM orders. Customized units, including bespoke solid phase synthesis reactor builds, ship in approximately 30 business days; catalogue items in 5–7 days. Sea, rail and air freight are supported, with a one-year quality warranty and lifetime maintenance. During manufacture a dedicated specialist sends weekly photo or video progress updates. On completion, detailed inspection footage is supplied for your approval before shipment — or you may schedule a Factory Acceptance Test at the Xi'an facility. Senior engineers remain available for commissioning and process troubleshooting afterwards.
So which is better? For homogeneous liquid chemistry, a batch reactor. For anything involving resin-bound synthesis, repeated washing, filtration and in-situ drying, a solid phase synthesis reactor wins decisively — because it eliminates every transfer, retains every bead, drains fast through a large-diameter PTFE plate, and holds -20°C to 200°C with programmable agitation. Bioland's field results speak plainly: 99.5% purity, 15% yield gain, over 90% precious-metal recovery. Backed by CE and ISO certification, GMP/FDA-compliant construction, explosion-proof and PLC options and 15+ years of engineering, Bioland Instrument delivers a complete process solution.
Only with external filtration and repeated transfers, which cost resin, time and reproducibility.
A PTFE sintered core, with stainless steel, titanium, filter cloths and membranes available in multiple pore ratings.
20 L, 30 L, 50 L and 100 L standard, with custom sizes, explosion-proof builds and PLC automation on request.
-20°C to 200°C with a matched high-low temperature circulator; short 150°C solid-phase reactions are proven.
Customized units around 30 business days; standard units 5–7 days, with one-year warranty and lifetime maintenance.
Losing resin at every transfer? Struggling to prove reproducibility for GMP pilot validation? Bioland Instrument engineers the fix. Xi'an Bioland Instrument Co., Ltd. designs each solid phase synthesis reactor around your resin type, solvent system, temperature profile and throughput — including certified explosion-proof construction, PLC full automation, electric lifting, ultrasonic crystallization and integrated rectification modules. You gain CE and ISO certified quality, GMP/FDA-compliant materials, factory-direct pricing, weekly photo and video production updates, optional Factory Acceptance Testing, a one-year warranty and lifetime maintenance. Catalogue units ship in 5–7 days; fully customized systems in 30 business days. Send your synthesis details to info@biolandequip.com and our engineers will return a tailored proposal and quotation.
1. Chan, W. C., White, P. D. Fmoc Solid Phase Peptide Synthesis: A Practical Approach. Oxford University Press.
2. Merrifield, R. B. "Solid Phase Peptide Synthesis I: The Synthesis of a Tetrapeptide." Journal of the American Chemical Society.
3. Amblard, M., Fehrentz, J.-A., Martinez, J., Subra, G. "Methods and Protocols of Modern Solid Phase Peptide Synthesis." Molecular Biotechnology.
4. Tarleton, E. S., Wakeman, R. J. Solid/Liquid Separation: Equipment Selection and Process Design. Butterworth-Heinemann.
5. am Ende, D. J. Chemical Engineering in the Pharmaceutical Industry: R&D to Manufacturing. Wiley.
6. ICH Q7 Good Manufacturing Practice Guide for Active Pharmaceutical Ingredients. International Council for Harmonisation.
