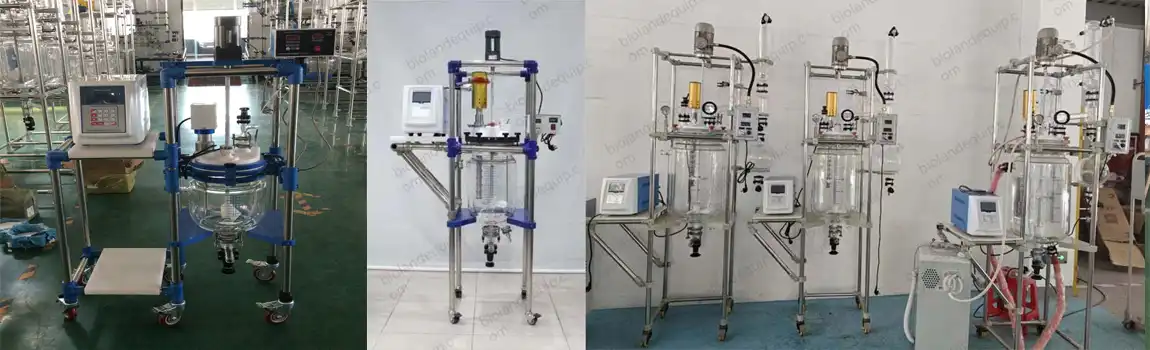

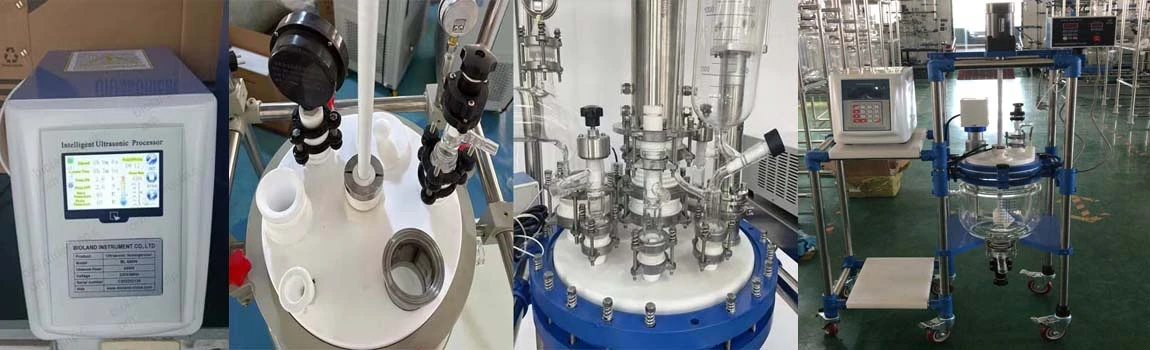

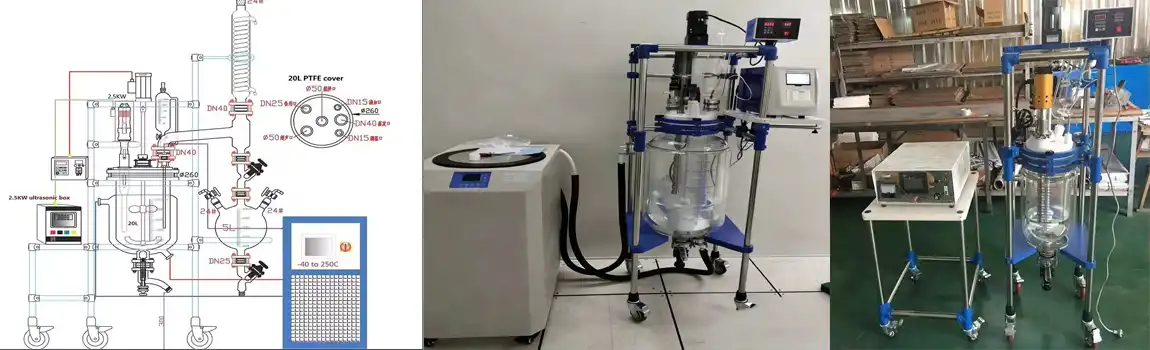

Welcome to a comprehensive guide on advancing renewable energy manufacturing. When scaling green fuel production, maximizing transesterification yield relies heavily on advanced hydrodynamic design. Xi’an Bioland Instrument Co.,Ltd. provides cutting-edge solutions, featuring our flagship ultrasonic biodiesel reactor engineered to revolutionize lipid conversion. Traditional mechanical stirrers often fail to overcome the natural immiscibility of oil and alcohol, leading to extended reaction times and incomplete phase separation. When operators use our cutting-edge ultrasonic biodiesel reactor, they get better mass transfer and instantaneous droplet breaking. This strong ultrasonic biodiesel reactor has high-transparency borosilicate vessels, precise temperature control, and strong titanium alloy horns. Our ultrasonic biodiesel reactor systems are made by a top company with over 15 years of experience in chemical engineering. They ensure high FAME conversion rates, lower energy use, and compliance with strict industry standards.
Nowadays, acoustic cavitation is the main idea behind making biofuels. There are tiny vapour bubbles that quickly grow and then violently burst when high-frequency sound waves travel through a liquid. Inside an ultrasonic biodiesel reactor, these holes closing create areas with temperatures and pressures above 5000 K and 1000 atmospheres. This very strong micro-environment breaks molecular bonds and speeds up the movement of chemicals.
A major industrial bottleneck in biodiesel production is the mass transfer limitation between immiscible vegetable oils and short-chain alcohols like methanol. Conventional agitators create large droplets with poor surface-area-to-volume ratios. Utilizing an advanced ultrasonic biodiesel reactor eliminates this barrier by generating microscopic emulsions, drastically expanding the contact interface between reactants.
The violent collapse of cavitation bubbles produces high-velocity liquid micro-jets that pierce through phase boundaries. When deploying an ultrasonic biodiesel reactor for waste cooking oil feedstock, these micro-jets create uniform sub-micron emulsions. A biodiesel facility in Southeast Asia faced severe mass transfer bottlenecks during winter production cycles, resulting in unreacted triglycerides and low ester yields.
The plant was able to get rid of phase separation lag by adding our special ultrasonic biodiesel reactor with dual-frequency sensors. The reactive interfacial area grew by 300%, which made it possible to convert everything in 15 minutes instead of the usual three hours. The client told us that daily throughput went up by 28% and catalyst use went down by a lot. This proves that we are experts at providing industrial process solutions.
Fine-tuning sound factors is necessary to keep tools from wearing out and to get the most out of reactions. The mechanical shear stress that is put on the reaction mixture is directly related to the horn's volume. When you run an ultrasonic biodiesel reactor at the right intensity, the triglyceride molecules split quickly and without damage, and the polymer doesn't break down.
Different chemical formulations require tailored acoustic frequencies to achieve optimal droplet distribution. Lower frequencies around 20 kHz deliver intense shockwaves ideal for heavy feedstock, while higher frequencies produce milder, highly concentrated micro-streaming. Our engineering team designs every ultrasonic biodiesel reactor with programmable frequency sweeps to adapt to dynamic viscosity shifts.
Excessive ultrasonic energy can cause localized overheating and unwanted side reactions, such as soap formation during alkali-catalyzed transesterification. A pilot-scale biodiesel plant encountered severe thermal spikes when utilizing generic mixing equipment, causing catalyst deactivation and low product purity.
To solve this, we supplied a modified ultrasonic biodiesel reactor featuring integrated dual-jacketed cooling loops and real-time thermocouple feedback. This setup maintained reaction temperatures precisely at 55°C, preventing thermal runaway. The client achieved a 99.1% FAME purity rate and reduced energy wastage by 40%, proving that our intelligent temperature management systems deliver unmatched economic and technical value.
Achieving intimate contact between polar alcohols and non-polar lipids remains a persistent chemical challenge. Standard stirred tanks leave dead zones where stratification occurs. An industrial-grade ultrasonic biodiesel reactor utilizes continuous ultrasonic irradiation to maintain a homogenous dispersion, preventing phase separation throughout the entire residence time.
Homogeneous and heterogeneous catalysts require uniform distribution to initiate rapid esterification and transesterification. When catalyst particles clump together, reaction rates plummet. Incorporating our specialized ultrasonic biodiesel reactor ensures that sodium methoxide or solid acid catalysts are de-agglomerated instantly upon injection.
Scalability dictates commercial viability in modern biorefineries. While batch systems offer flexibility for specialty fats, continuous-flow setups dominate high-volume green fuel plants. A mid-sized biofuel producer struggled with inconsistent fuel quality between batch runs, citing poor catalyst dispersion and settling issues.
We deployed a continuous-flow ultrasonic biodiesel reactor integrated with a high-shear homogenizer mixer and a PLC-controlled automated feed pump. This configuration enabled continuous reactant delivery with a residence time of under 30 seconds. The client witnessed a 35% reduction in methanol molar ratio requirements and achieved consistent ASTM-grade biodiesel output, demonstrating our capability to engineer robust continuous-flow industrial solutions.
Maintaining strict thermal parameters ensures that reaction kinetics remain stable while protecting sensitive organic compounds. Although transesterification is mildly endothermic initially, localized hotspot generation requires sophisticated heat removal mechanisms. Xi’an Bioland Instrument Co.,Ltd. equips every ultrasonic biodiesel reactor with advanced heat exchangers to dissipate excess energy safely.
Volatile alcohol vapors can escape or create hazardous overpressure conditions if reaction vessels lack proper degassing capabilities. Our systems feature integrated vacuum distillation columns and condensation assemblies. This allows any excess methanol to be recovered in-line, improving safety and reducing operational expenses.
Chemical processing environments demand rigorous safety certifications, especially when handling flammable alcohols. A European chemical processor needed a fully automated, explosion-proof reaction platform for biodiesel research. They faced strict regulatory hurdles regarding electrical safety and vapor containment.
We designed a custom, explosion-proof ultrasonic biodiesel reactor system featuring Ex-rated control panels, pneumatic automated valves, and nitrogen purging interlocks. The setup included a high-transparency borosilicate viewing window coupled with remote PLC monitoring. The client successfully passed all local GMP/FDA compliance inspections within two weeks, eliminating safety hazards and accelerating their commercialization timeline by three months.
Process visibility allows operators to detect anomalies before batch failure occurs. Modern smart manufacturing relies on continuous feedback loops. An advanced ultrasonic biodiesel reactor incorporates inline viscosity sensors, pH probes, and spectrophotometric turbidity monitors to evaluate conversion progress dynamically.
Accurate quantification of fatty acid methyl esters (FAME) ensures compliance with international fuel standards like EN 14214 and ASTM D6751. After ultrasonic treatment, rapid glycerol settling is crucial. High-intensity acoustic waves assist in coalescing heavy glycerol droplets, facilitating fast, clean phase separation from the upper FAME layer.
Transitioning from bench-scale testing to pilot manufacturing often exposes hidden engineering flaws. A university-backed green energy laboratory struggled to scale their biodiesel synthesis process, experiencing drastic drops in ester yield when scaling from 1L flasks to 50L pilot reactors.
We provided a modular pilot-scale ultrasonic biodiesel reactor with interchangeable titanium horns and adjustable power output densities. By replicating the exact acoustic energy density at a 50L scale, the researchers successfully duplicated their laboratory results, achieving a 98.5% conversion rate. This seamless scale-up validated our status as a trusted equipment partner dedicated to translating R&D breakthroughs into profitable industrial realities.
Optimizing renewable fuel production requires moving beyond conventional agitation to embrace advanced acoustic engineering. Throughout this guide, we explored how an ultrasonic biodiesel reactor transforms transesterification by overcoming mass transfer limits, enhancing catalyst dispersion, and ensuring rapid phase separation. By partnering with Xi’an Bioland Instrument Co.,Ltd., biofuel producers gain access to customizable, CE-certified, and GMP-compliant industrial solutions. Our 15 years of manufacturing expertise, robust R&D support, and commitment to excellence empower laboratories and large-scale refineries alike to achieve superior FAME yields, lower operational costs, and streamlined manufacturing workflows.
A1: It generates acoustic cavitation, producing micro-jets and high shear forces that shatter oil and alcohol droplets into sub-micron emulsions, drastically expanding contact area and reaction rates.
A2: Yes, we provide full non-standard customisation for dimensions, materials, explosion-proof ratings, and PLC automation to match your exact laboratory or pilot requirements.
A3: Non-customized equipment is ready in 5–7 business days, while fully customized production lines typically require a 30-business-day lead time.
A4: All our systems comply with strict CE, ISO, and GMP/FDA standards, ensuring high safety and quality assurance.
A5: We offer a one-year quality warranty with lifetime maintenance support, backed by weekly photo/video progress tracking and optional Factory Acceptance Testing (FAT).
Ready to eliminate process bottlenecks and maximize your transesterification efficiency? Partner with Bioland Instrument, your trusted global leader in advanced chemical engineering and reaction equipment. Whether you need a laboratory-scale prototype or a fully automated pilot-scale ultrasonic biodiesel reactor, our expert R&D team delivers bespoke OEM/ODM solutions backed by CE and ISO certifications. Contact our customer service center today to discuss your technical requirements, schedule a Factory Acceptance Test, and elevate your production capabilities with our industry-leading technology. Reach out to our engineering specialists now at info@biolandequip.com and let us design a customized process solution tailored precisely to your operational goals.
