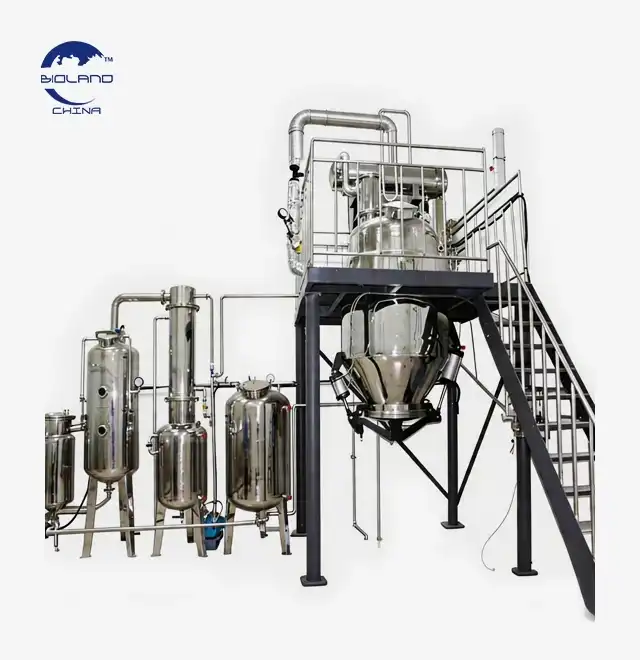

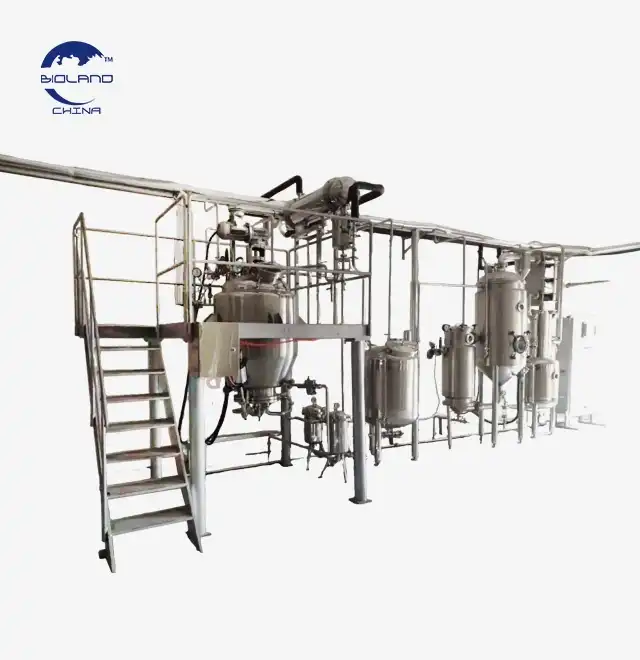

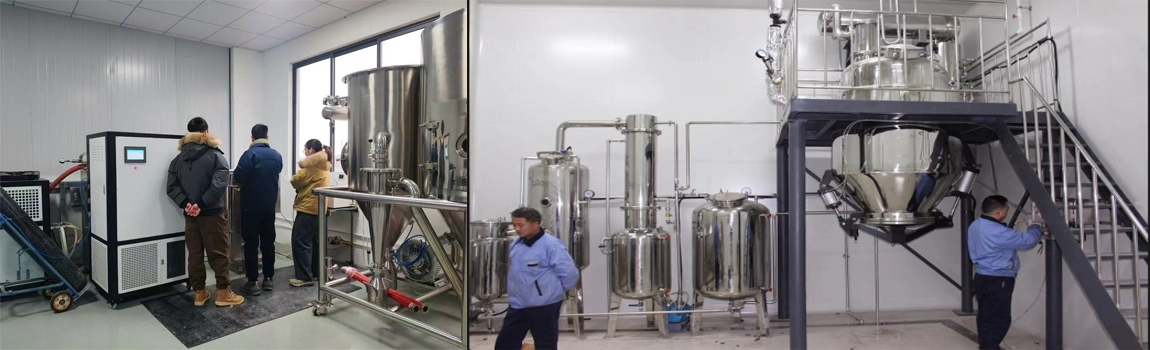

The ultrasonic-assisted extraction concentration equipment is a high-efficiency extraction device that combines the cavitation effect of ultrasound with traditional extraction processes. It utilizes the acoustic energy generated by high-frequency vibrations to disrupt the structural organization of plant cells, enabling rapid release of target components into the solvent. This is then integrated with a concentration system to achieve simultaneous extraction and concentration operations.
From laboratory-scale 20L trials to 1000L industrial production, this type of equipment has been widely applied in various fields such as pharmaceuticals, food, cosmetics, and chemical industries. Compared to traditional decoction and reflux extraction methods, ultrasonic assisted extraction equipment can achieve higher extraction rates in a shorter time while preserving the activity of heat-sensitive components.
Ultrasonic assisted extraction equipment generates cavitation effect in liquid through high-frequency sound waves, instantly forming high-temperature and high-pressure microbubbles that collapse, generating shock waves and microjets to destroy cell walls. At the same time, combined with mechanical vibration and mild thermal effects, the effective ingredients are quickly released into the solvent, achieving efficient, low-temperature, and energy-saving extraction process.
Actual case: Traditional extraction of flavonoids in traditional Chinese medicine takes 6-8 hours, but with ultrasound assistance, it can be completed within 1 hour, significantly improving extraction efficiency.
Frequency range: 20-40kHz, adjustable according to material characteristics
Adjustable power: 500W-6000W, supports continuous/intermittent working mode
Temperature control: The constant temperature system can control temperature fluctuations within a range of ± 0.5 ℃
Material standard: Food/pharmaceutical grade SUS304/316L stainless steel, polished inner and outer welds of 300 mesh

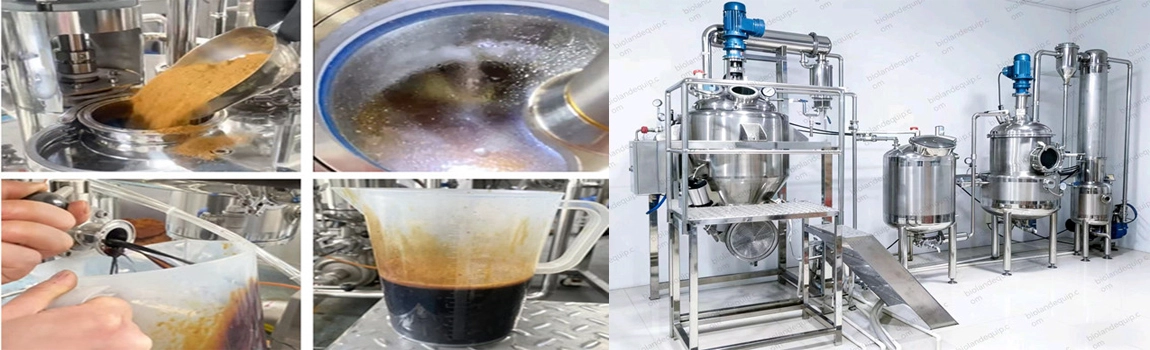

A complete ultrasonic extraction and concentration process usually includes the following steps:
Step 1: Material pretreatment → Cleaning, crushing, sieving
↓
Step 2: Ultrasonic extraction → Add solvent, ultrasonic wall breaking extraction
↓
Step 3: Solid liquid separation → filtration, centrifugation, alcohol precipitation
↓
Step 4: concentration and drying → vacuum concentration and spray drying
Compared with traditional methods, ultrasonic extraction equipment achieves breakthroughs in multiple dimensions:
Extraction time: shortened from hours to tens of minutes
Extraction rate: 20% -40% higher than traditional processes
Energy consumption reduction: Comprehensive energy consumption has decreased by about 25%
ultrasonic assisted extraction equipment can be carried out under normal or low temperature conditions, effectively reducing the loss of thermosensitive components. This is particularly important for active substances such as saponins, anthocyanins, and plant essential oils in traditional Chinese medicine.
By enhancing the mass transfer process, ultrasonic extraction can reduce solvent usage by 30% -50%, lower subsequent concentration energy consumption and waste liquid treatment costs.

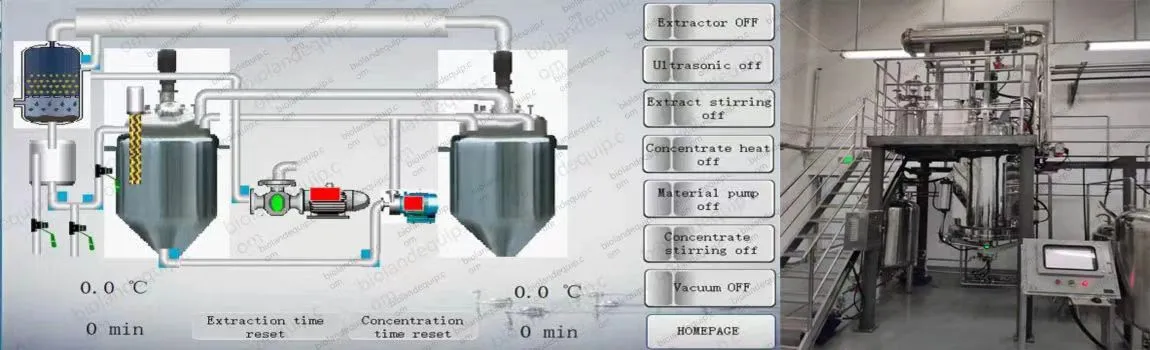

Microcomputer control, capable of storing multiple sets of work data
Continuous adjustable ultrasound power and automatic amplitude adjustment
CIP online cleaning system reduces cleaning time to 15 minutes
Complete fault protection and temperature protection functions

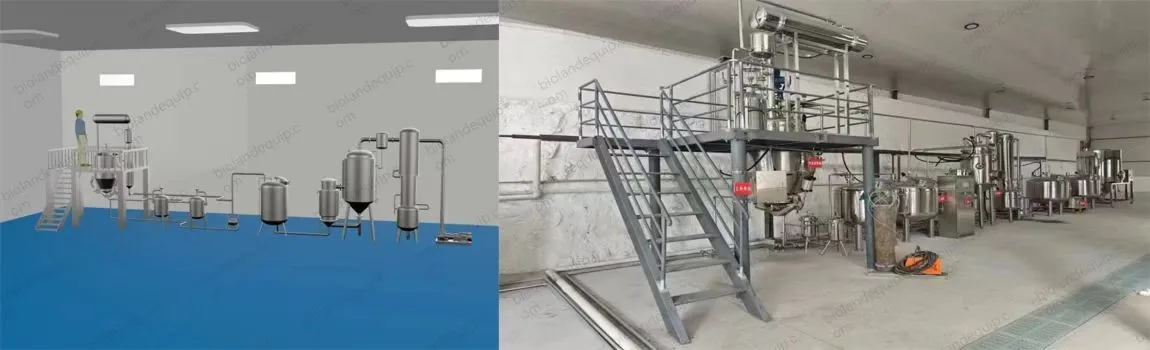

ultrasonic assisted extraction equipment is not limited by component polarity or molecular weight, and is suitable for the extraction of the vast majority of Chinese medicinal materials and various components. The equipment can be expanded from laboratory grade (50L) to industrial grade (6000L) and supports personalized customization.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |

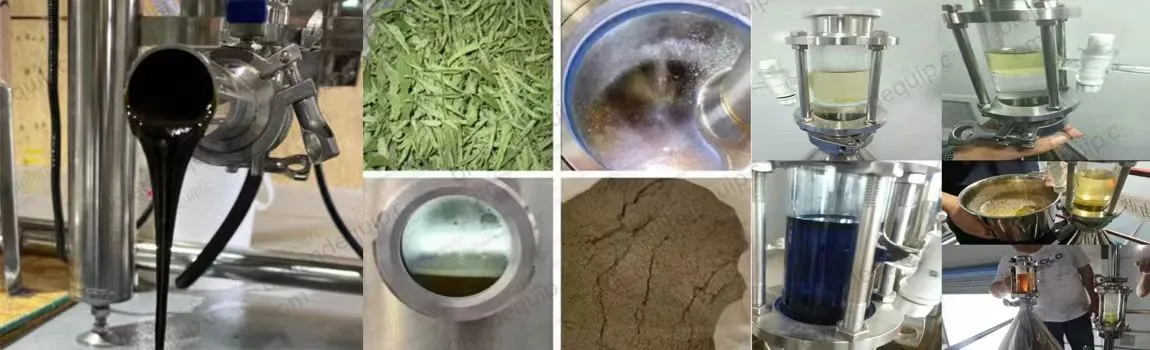

ultrasonic assisted extraction equipment -Ultrasonic technology has replaced some traditional cutting processes in the extraction of traditional Chinese medicinal materials, achieving efficient, energy-saving, and environmentally friendly extraction. For example:
Ginseng and Panax notoginseng: extraction of saponin components, temperature fluctuation controlled within ± 0.5 ℃ to ensure component stability
Flavonoids: Extraction time reduced from 120 minutes to 45 minutes
Traditional Chinese Medicine Micropowder/Nanoparticles: Preparation of New Drug Formulations
Tea: Extracting beneficial components such as tea polyphenols and caffeine
Fruits and vegetables: extracting natural pigments and aroma components
Plant protein: extracting high value-added components from rice bran, wheat bran, soybeans, and corn germ
Natural antioxidants: extracting active ingredients from plants
Moisturizing factor: maintain the biological activity of raw materials
Essential oil extraction: low-temperature extraction to protect aroma components
Biodiesel production: enhancing reaction efficiency
Nanocellulose extraction: extracting from agricultural waste such as sweet potato residue
Traditional method: extraction time 6-8 hours, extraction rate 70%, temperature 80-100 ℃
Ultrasonic extraction: extraction time within 1 hour, extraction rate above 95%, temperature 40-60 ℃
Improvement effect: Time reduced by over 80%, extraction rate increased by over 35%, low-temperature protection for thermosensitive components
Actual effect: After a traditional Chinese medicine enterprise in Ecuador adopted our ultrasonic assisted extraction equipment, the extraction rate increased from 70% to over 95% from laboratory research 50L development to industrial production 500L, and the extraction time was shortened from 6-8 hours to within 1 hour.
Extract ingredients: plant active ingredients, antioxidants
Activity retention: over 95%
Extraction time: reduced by 60% -70%
Product efficacy: Enhanced cosmetic efficacy and safety
A Canadian cosmetics company uses our 100 liter ultrasonic extraction equipment to efficiently extract plant essence, maintain the active ingredients of plant essence, and provide more high-quality raw materials for cosmetics formulations.
A: Calculated based on daily processing volume and batch time. For example, if processing 100kg per day, 50kg per batch, and extraction, separation, and cleaning take a total of 4 hours, then 2-3 devices are required or high-capacity devices can be selected.
A: The recommended power density is 100-500W/L. Small capacity (<100L) can choose 1500-3000W, pilot (100-500L) can choose 3000-6000W, and industrial grade (>500L) requires multiple probes or continuous countercurrent system.
EU: CE certification, Ex explosion-proof (if used for flammable solvents)
United States: UL certification, FDA food grade materials
Chemical industry: ATEX, IECEx, FM certification
Pharmaceutical industry: GMP certification, CNAS laboratory certification
A: Capacity, power, material (304/316L), degree of automation, compatibility with concentration/drying system, certification requirements, customization needs, etc.
Ultrasonic assisted extraction equipment represents the direction of efficient, green, and intelligent development of natural product extraction technology. Whether it is improving the efficiency of existing production lines or developing new product lines, such equipment can provide reliable technical support.
If you have specific process requirements or would like to know the extraction plan for a certain type of material, please feel free to communicate further -info@biolandequip.com. We can provide customized equipment selection suggestions and process optimization solutions based on your material characteristics, production capacity requirements, and budget range.
