For mushroom processors, long soaking cycles, repeated heating, and incomplete cell disruption can limit production capacity and increase energy costs. Ultrasonic extraction equipment of mushroom applications provide a faster, more controlled route for extracting polysaccharides and other active compounds from lingzhi, shiitake, enoki, tremella, and other mushrooms. By combining cavitation, optimized solvent circulation, low-temperature operation, filtration, and vacuum concentration, Xi’an Bioland Instrument Co., Ltd. helps customers solve process problems rather than simply purchase a tank. Its ultrasonic extraction equipment of mushroom is available for laboratory development, pilot production, and customized commercial lines.
The main reason conventional mushroom extraction takes too long is that solvent penetration into compact tissues is slow. In ultrasonic extraction equipment of mushroom, high-frequency sound waves create microscopic cavitation bubbles in the extraction liquid. Their formation and collapse produce local turbulence, microjets, and mechanical stress around the mushroom particles. These effects help open or deform cell structures, allowing water or ethanol to reach intracellular polysaccharides more quickly. The result is faster mass transfer without relying only on higher temperatures.
Different mushrooms present different extraction challenges. Lingzhi has a dense structure, shiitake contains fibrous tissues, and tremella can create viscous suspensions during processing. A properly selected ultrasonic extraction equipment of mushroom system considers drying condition, particle size, moisture, solvent ratio, and target compound. Smaller particles may improve contact area, but excessively fine powder can make filtration difficult. Bioland engineers balance these variables through pilot testing instead of applying one fixed recipe to every mushroom.
Ultrasonic assistance can help shorten extraction cycles to approximately 24–40 minutes after process parameters are optimized. This is often considerably shorter than traditional soaking or repeated decoction. The ultrasonic extraction equipment of mushroom can operate at moderate temperatures, commonly within the 40–60°C range for heat-sensitive botanical materials. Shorter residence time and controlled temperature help reduce unnecessary thermal exposure while supporting the recovery of mushroom polysaccharides and other functional ingredients.
A lingzhi processor faced low daily output because its conventional extraction process required several heating and soaking stages. The extract also varied between batches. Bioland configured ultrasonic extraction equipment of mushroom with a controlled liquid-to-solid ratio, programmed ultrasonic treatment, circulation, and subsequent vacuum concentration. The customer reduced the main extraction period by more than two-thirds during pilot validation and obtained a more consistent liquid feed for filtration and concentration.
Solvent selection strongly affects extraction speed and final concentration. Water is commonly used for mushroom polysaccharides, while ethanol may be introduced for specific components, pretreatment, or precipitation operations. With ultrasonic extraction equipment of mushroom, the solvent ratio can be adjusted according to raw-material moisture, target yield, viscosity, and downstream purification. Too little solvent may cause poor wetting and mixing, while excessive solvent increases pumping, filtration, and evaporation loads.
Higher temperature does not always mean faster or better extraction. Excessive heating can increase energy consumption and may affect heat-sensitive compounds. Bioland instrument’s ultrasonic extraction equipment of mushroom uses jacket heating, temperature monitoring, and adjustable ultrasonic intensity to create a controlled process window. The operator can establish a recipe based on mushroom species, particle size, extraction time, and target polysaccharide concentration. This allows speed improvements without treating temperature as the only process variable.
Uneven contact between solids and solvent is a common cause of extended extraction cycles. The system can use pumps, controlled circulation, and suitable tank geometry to reduce dead zones and improve contact throughout the batch. In ultrasonic extraction equipment of mushroom, ultrasonic energy is combined with fluid movement so that freshly exposed surfaces continuously meet the solvent. This helps avoid a situation in which only the outer layer of mushroom particles is effectively extracted.
Extraction time is only one part of total production time. If the liquid is difficult to filter or concentrate, the apparent benefit of faster extraction may be lost. Bioland instrument integrates ultrasonic extraction equipment of mushroom with filters, storage tanks, liquid pumps, evaporators, condensers, and vacuum systems. Under a vacuum of approximately -0.05 to -0.09 MPa, concentration can proceed at a lower effective boiling temperature. Condensed solvent may be recovered and reused according to the process design.

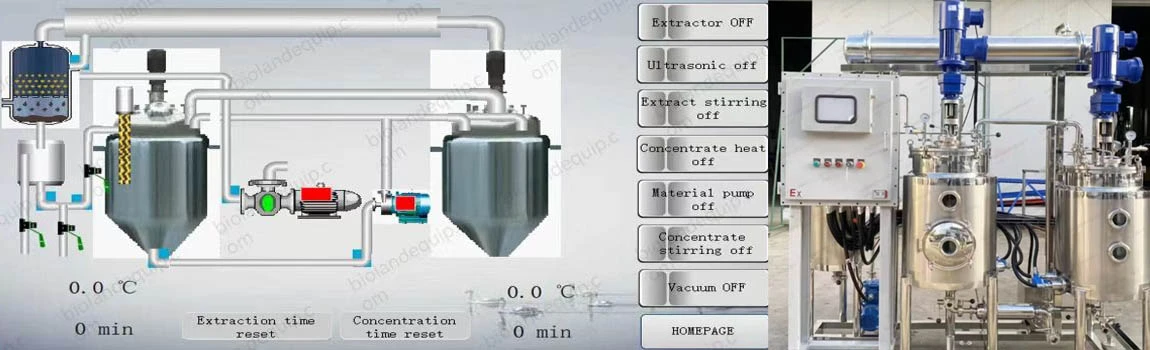

Many small and medium mushroom processors still transfer hot liquid manually between extraction, filtration, and concentration vessels. This creates delays, increases labor requirements, and makes batch quality difficult to repeat. An automated ultrasonic extraction equipment of mushroom line can use PLC control, programmed valve sequences, automatic discharge, online concentration monitoring, and CIP cleaning. These functions reduce unnecessary handling and help operators focus on raw-material preparation, quality checks, and recipe verification.

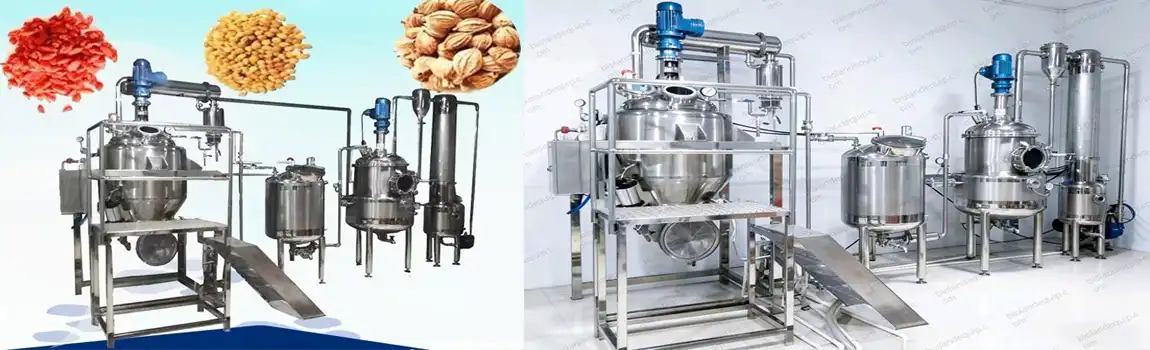

A complete line may include an ultrasonic generator, extraction tank, heating system, tubular heater, evaporator, condenser, demister, oil separator where required, collection tank, filter, vacuum pump, electrical cabinet, and sanitary piping. The ultrasonic extraction equipment of mushroom can operate under atmospheric, positive-pressure, or vacuum conditions, depending on the process. Bioland can also provide a thermal-oil heating option for facilities without a suitable steam supply.
A shiitake processor wanted to expand output but found that longer extraction time caused bottlenecks at filtration and concentration. Bioland instrument reviewed the customer’s raw-material preparation and designed ultrasonic extraction equipment of mushroom with improved circulation and staged liquid transfer. The customer obtained a more concentrated extract before evaporation, reduced repeated transfers, and improved equipment utilization across the working day.
A mushroom producer may later process other natural ingredients. The same platform can support a stevia extraction machine for steviol glycosides, a Chilli Oleoresin Extraction Plant for capsaicin and chili oleoresin, and a tincture extraction machine for ethanol-based herbal extracts. It can also be adapted for tea extraction machine and Coffee Extraction Machine projects involving tea polyphenols, aromatic compounds, amino acids, flavonoids, and caffeine.
Energy is consumed during heating, pumping, evaporation, cooling, and cleaning. When extraction takes several hours, the entire system remains active for longer and heat losses increase. Ultrasonic extraction equipment of mushroom reduces the time required for solvent penetration and cell disruption, allowing the plant to reach the target extraction stage sooner. Shorter cycles can lower the total heating and circulation load, particularly when combined with appropriate insulation and vacuum concentration.
Bioland equipment is designed for controlled low-temperature extraction and vacuum concentration. Three-layer insulation helps reduce heat loss, while jacket heating provides more stable temperature control. In ultrasonic extraction equipment of mushroom, the extraction stage may be conducted at approximately 40–60°C depending on the material and formulation. During concentration, vacuum conditions and condenser design help remove solvent efficiently without unnecessarily heating the entire extract to a high temperature.
For water-based mushroom polysaccharide extraction, solvent recovery may be less central than in alcohol processing. However, for ethanol-based botanical products, recovery can significantly affect operating cost. The ultrasonic extraction equipment of mushroom platform can include condensers, receivers, storage tanks, and compatible piping for solvent recovery. The recovered liquid can be evaluated and reused according to customer quality requirements, reducing solvent loss and supporting a more efficient production model.
The same energy-saving principles are useful in other extraction projects. A tea processor using a tea extraction machine can shorten contact time for tea polyphenols and aroma components. A propolis extraction machine can combine ultrasonic assistance with ethanol extraction and recovery. For extraction of flavonoids or ultrasound assisted extraction of quercetin, moderate temperatures and controlled vacuum concentration help reduce unnecessary thermal demand while maintaining a practical production rhythm.
Bioland instrument offers extraction and concentration configurations with representative volumes of 50, 100, 200, 300, and 500 liters. Evaporation capacities are approximately 20, 50, 70, 100, and 200 kg/h respectively, depending on operating conditions. The ultrasonic extraction equipment of mushroom system can be selected according to batch size, daily production, extraction ratio, and required concentration. Choosing capacity from actual mass balance data helps prevent both under-sizing and unnecessary investment.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |
A reliable scale-up begins with small-scale trials. The customer should confirm mushroom moisture, particle size, solvent ratio, extraction time, temperature, ultrasonic intensity, filtration behavior, and final concentration. Bioland instrument uses this information to configure ultrasonic extraction equipment of mushroom for pilot or commercial production. The objective is to maintain comparable mass transfer and heat-transfer behavior during scale-up, not simply multiply the laboratory volume by a fixed number.
SUS304 or SUS316L stainless steel, sanitary welds, CIP cleaning, insulated vessels, demisters, and controlled transfer lines support food, nutraceutical, pharmaceutical, and cosmetic applications. The ultrasonic extraction equipment of mushroom can be manufactured according to GMP-oriented requirements and adapted for HACCP-related food production. Safety design should include appropriate pressure protection, electrical controls, solvent compatibility, ventilation, and operating procedures based on the selected material and solvent.
Mushroom extraction is only one application. Bioland equipment can support extraction of polysaccharides from lingzhi, shiitake, sweet potato, tremella, and enoki; plant proteins from soybean; active compounds from goji and jujube; natural pigments such as anthocyanins, betalains, carotenoids, and chlorophyll; and essential oils from rose, mint, and other aromatic plants. The ultrasonic extraction equipment of mushroom platform can therefore become a flexible natural-ingredient production asset.
Xi’an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider for R&D production and sales of distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, drying, and ancillary heating, cooling, and vacuum equipment. With more than 15 years in this field, the company serves food, pharmaceutical, biotechnological, chemical, cosmetics, and new-material industries.
Bioland instrument’s technical team includes R&D personnel, senior technicians, and trained engineers responsible for quality control and customer support. The company provides OEM/ODM services, customized production lines, and technical assistance. Standard products may be prepared in approximately 5–7 days, while customized equipment commonly requires around 30 business days. Customers may receive weekly production photographs or videos, review final inspection materials, approve shipment, or arrange a Factory Acceptance Test.
Bioland instrument has supplied solutions for mushroom polysaccharide, stevia, tea polyphenol, chili oleoresin, goji polysaccharide, natural pigment, anthocyanin, and propolis production. Each project begins with the customer’s process difficulty: low yield, slow filtration, unstable concentration, high labor demand, or excessive energy use. The equipment is then selected around the required result. This approach makes ultrasonic extraction equipment of mushroom part of a measurable process solution rather than a standalone product.
Reducing extraction time requires more than adding an ultrasonic generator to a conventional tank. The best results come from coordinating cavitation, particle preparation, solvent ratio, temperature, circulation, filtration, vacuum concentration, automation, and cleaning. Ultrasonic extraction equipment of mushroom from Bioland is designed to help processors extract polysaccharides and other active compounds faster while improving production consistency and energy management. Its modular structure supports laboratory trials, pilot validation, and commercial scale-up. With GMP-oriented stainless-steel construction, CE and ISO quality assurance, OEM/ODM support, solvent recovery options, and professional after-sales service, Bioland provides a complete engineering route from mushroom-processing challenges to a practical and expandable production line.
Optimized ultrasonic processes may achieve effective extraction in approximately 24–40 minutes, depending on the mushroom and recipe.
Lingzhi, shiitake, tremella, enoki, and other mushroom materials can be evaluated for polysaccharide extraction.
Yes. It can be configured for water extraction, ethanol extraction, mixed solvents, reflux, percolation, and recovery.
Yes. SUS304/316L construction, CIP cleaning, sanitary design, insulation, and automation are available.
Yes. Bioland provides process evaluation, equipment design, customization, installation guidance, FAT, and after-sales support.
Are long extraction cycles, inconsistent polysaccharide content, difficult filtration, or high energy consumption limiting your mushroom business? Bioland Instrument can help you design a complete process instead of supplying an isolated machine. Our ultrasonic extraction equipment of mushroom can be configured with ultrasonic cavitation, controlled heating, circulation, filtration, vacuum concentration, solvent recovery, PLC automation, and CIP cleaning. We support lingzhi, shiitake, tremella, enoki, and other botanical applications, as well as OEM/ODM production lines. With CE and ISO certification, GMP-oriented manufacturing, competitive pricing, professional engineering, weekly production updates, FAT support, a one-year warranty, and lifetime maintenance, Bioland Instrument is ready to review your process. Contact us at info@biolandequip.com.
1. Vinatoru, M. “An Overview of the Ultrasonically Assisted Extraction of Bioactive Principles from Herbs.” Ultrasonics Sonochemistry.
2. Chemat, F., Zill-e-Huma, and Khan, M. “Applications of Ultrasound in Food Technology: Processing, Preservation and Extraction.” Ultrasonics Sonochemistry.
3. Wang, J. et al. “Optimization of Ultrasonic-Assisted Extraction of Polysaccharides from Medicinal Mushrooms.” Carbohydrate Polymers.
4. Zhang, M. et al. “Extraction, Structural Characterization and Bioactivities of Mushroom Polysaccharides.” International Journal of Biological Macromolecules.
5. Ma, L. et al. “Advances in the Extraction and Purification of Edible Mushroom Polysaccharides.” Food Chemistry.
6. Rostagno, M. A. and Prado, J. M. Natural Product Extraction: Principles and Applications. Royal Society of Chemistry.
