Sep 11, 2026
Improving curcumin recovery without excessive heating starts with matching turmeric chemistry to a controllable extraction process. Bioland instrument Curcumin Extraction Machine uses ultrasonic low-temperature extraction, solvent extraction, vacuum concentration, PLC control, CIP cleaning, and SUS304/316L contact parts to release curcuminoids efficiently while protecting color and activity. The Curcumin Extraction Machine is not just equipment; it is a scalable process package for laboratories, pilot plants, and GMP-oriented production.
Many buyers approach Bioland after seeing high turmeric throughput but disappointing assay results. Their question is simple: can higher recovery be achieved without pushing the tank to aggressive temperatures? A Curcumin Extraction Machine answers by shifting value from steam intensity to mass-transfer efficiency, so the process releases curcuminoids from turmeric cells while limiting unnecessary thermal load during extraction and downstream concentration.
Curcumin is valued for its bright yellow-orange pigment profile and concentrated curcuminoid fraction, yet prolonged heat can influence color consistency and active content. With a Curcumin Extraction Machine, operators can hold the main extraction stage around 40–60°C, a practical range often used for heat-sensitive botanical compounds. The result is gentler processing, better batch repeatability, and less reliance on long boiling cycles.
Excessive heating may pull more ballast materials into the extract, which raises filtration difficulty and slows purification. Bioland instrument’s Curcumin Extraction Machine combines ultrasound-assisted extraction with orderly filtration and vacuum concentration, helping produce a cleaner liquid that is easier to separate and refine. For turmeric powder, fewer impurities can mean shorter settling time, smoother pump transfer, and more predictable downstream drying or crystallization preparation.
For processors selling standardized extracts, purification cost is often the hidden profit point. If an extract liquid carries fewer unwanted suspended solids, the filter, storage tank, concentrator, and drying stage all work more smoothly. This is why Bioland positions turmeric extraction as a process solution, not a single heated vessel. The goal is stable recovery, stable color, and stable daily operation.
A nutraceutical client processing turmeric slurry reported darker extract color after 90-minute hot reflux cycles. Bioland reviewed the solvent ratio, extraction time, and jacket setting, then supplied a Curcumin Extraction Machine with ultrasound, vacuum concentration, and CIP. After tuning the Curcumin Extraction Machine to 35-minute low-temperature cycles, three pilot batches showed steadier color and smoother capsule-grade concentrate handling.
Temperature is still useful because warm solvent lowers viscosity and diffuses into turmeric particles faster, but it should support extraction rather than dominate it. A Curcumin Extraction Machine lets operators set practical recipes, typically 40–60°C for ultrasonic extraction, instead of relying on extended high-heat decoction. This balance helps curcumin transfer efficiently into ethanol-water solvent while maintaining a gentle product environment.
Recovery is often lost after extraction when dilute liquid is boiled too hard. The Curcumin Extraction Machine links extraction with vacuum concentration, maintaining vacuum commonly around -0.05 to -0.09 MPa and system vacuum about -0.085 MPa in standard models. Because evaporation can occur under reduced pressure, the Curcumin Extraction Machine concentrates extract without demanding the same thermal stress as open boiling.
When condensate returns through the condenser and cooler, solvent can pass again through the material layer, dissolving remaining soluble compounds until the extract becomes clearer. This recycling logic is useful for turmeric processors that need both yield and cost control. It also reduces unnecessary fresh solvent addition, which supports better plant economics and easier batch-to-batch solvent balance.
Bioland instrument’s product range allows temperature strategy to scale with capacity instead of forcing one recipe on every plant. A Curcumin Extraction Machine can be configured from 50 L to 500 L, with evaporation capacity from 20 to 200 kg/h. Motor power options around 2.7–3.5 kW, jacket pressure of 0.09–0.3 MPa, and evaporation settings of 60–100°C help match real production needs.
An extract manufacturer operating a tea extraction machine and Coffee Extraction Machine wanted to add turmeric extract without buying a completely separate process philosophy. Bioland transferred lessons from tea polyphenols, aromatic oils, amino acids, flavonoids, and caffeine extraction into a Curcumin Extraction Machine recipe. The customer gained one supplier for process selection, temperature validation, and operator training across beverage and nutraceutical extracts.
In that project, the client’s earlier tea polyphenol line had already proven the value of moderate temperature and rapid mass transfer. When turmeric was introduced, Bioland instrument helped the team set a pilot batch plan before scaling. The practical benefit was shorter operator learning time, fewer formula mistakes, and faster internal approval for a new botanical extract category.
Curcumin is usually better recovered when solvent polarity is tuned instead of guessed. A Curcumin Extraction Machine supports water, ethanol, methanol, acetone, and other process-approved solvents according to the user’s formula, with ethanol-water systems common for food, supplement, and cosmetic applications. Adjusting solvent concentration improves selectivity, reduces unwanted solids, and helps the extract move into concentration with fewer clarification problems.
For turmeric, Bioland instrument normally recommends starting with laboratory screening before fixing the production recipe. Solvent strength, particle size, temperature, ultrasonic time, and raw-material origin should be evaluated together. A formula that looks efficient in a beaker may behave differently in a 200 L or 500 L tank, so pilot validation helps avoid costly production surprises.
Solvent concentration must work with particle size, solid-liquid ratio, and wetting time. In the Curcumin Extraction Machine, turmeric raw material is loaded into the extraction tank, solvent is added by recipe, and ultrasound improves penetration through cell walls. Because the Curcumin Extraction Machine supports continuous feeding and discharge options, it can be adapted for pilot screening or repeated production campaigns.
One customer first used a stevia extraction machine to recover steviol glycosides from leaves, stems, and roots, then asked Bioland to build a propolis extraction machine for flavonoids and phenolic acids. The same recipe-building logic was applied to a Curcumin Extraction Machine. The Curcumin Extraction Machine helped the team cut trial batches from eight to three by validating ethanol concentration and ultrasonic time.
This matters because botanical factories rarely extract only one ingredient forever. Once a team understands how to tune solvent polarity, it can transfer that knowledge to tincture extraction machine projects, medicinal herb ethanol extraction, plant protein extraction, tea juice extraction, and functional food actives. Bioland’s role is to make process knowledge reusable across multiple products.
The Bioland instrument flow path is designed for practical solvent economy. During concentration, secondary vapor passes through the condenser and cooler, becomes condensate, and can return to the extraction tank as fresh solvent passing through the material layer. A Curcumin Extraction Machine therefore improves recovery while supporting lower solvent waste, reduced energy pressure, and easier cost calculation for commercial turmeric extract production.
Ultrasonic cavitation creates rapid micro-bubbles that collapse near plant tissue, forming shear forces and micro-jets that deform or break cell structures. In a Curcumin Extraction Machine, this physical action accelerates curcumin diffusion from turmeric particles into solvent. Bioland’s Curcumin Extraction Machine uses this mechanism to raise extraction efficiency without simply increasing tank temperature.
Compared with traditional extraction, ultrasonic reinforcement can shorten optimal extraction to about 24–40 minutes in many herbal processes, often reducing time by more than two-thirds. The Curcumin Extraction Machine is designed around that advantage, supporting a yield improvement range reported for ultrasonic botanical extraction from 50% to 500%, depending on raw material, solvent, particle size, and process discipline.
Safe operation is also part of recovery improvement. Operators should confirm solvent level before ultrasonic activation, check seals and grounding, follow explosion-prevention rules for ethanol service, and keep the condenser cooling water stable. Bioland can provide operation training, cleaning guidance, and maintenance reminders, helping factories protect both extract quality and equipment service life.
A spice client planning a Chilli Oleoresin Extraction Plant worried that capsaicin and chilli oleoresin yield would require high heat. Bioland optimized ultrasound intensity, ethanol ratio, and circulation, then used the same engineering approach for a Curcumin Extraction Machine proposal. The customer saw how cavitation could support pungent compounds and turmeric pigments while keeping the heating profile moderate.
Another team focused on ultrasonic extraction mushrooms and extraction of polysaccharides from reishi, shiitake, tremella, enoki, sweet potato, and goji materials. Their pain point was cell-wall resistance, not temperature. Bioland used ultrasonic disruption, low-temperature holding, and vacuum concentration, then translated those lessons to the Curcumin Extraction Machine for turmeric customers needing higher release without harsh thermal cycles.
Plant pigment customers often need orange-peel pigment, anthocyanins, betalains, carotenoids, and chlorophyll with stable color. Bioland also supports extraction of flavonoids from ginkgo leaf, bamboo leaf, ginger, chrysanthemum, lotus leaf, and onion skin, plus ultrasound assisted extraction of quercetin from larch, celery, mulberry leaf, and sophora. These cases reinforce why a Curcumin Extraction Machine and low-temperature cavitation work together.
Consistency begins before the first batch. Bioland instrument helps users define turmeric moisture, mesh size, solvent grade, solid-liquid ratio, ultrasonic time, temperature, filtration endpoint, concentration density, and cleaning records. The Curcumin Extraction Machine then becomes part of a documented SOP rather than a stand-alone tank. With the Curcumin Extraction Machine, production teams can connect assay feedback with recipe adjustment.

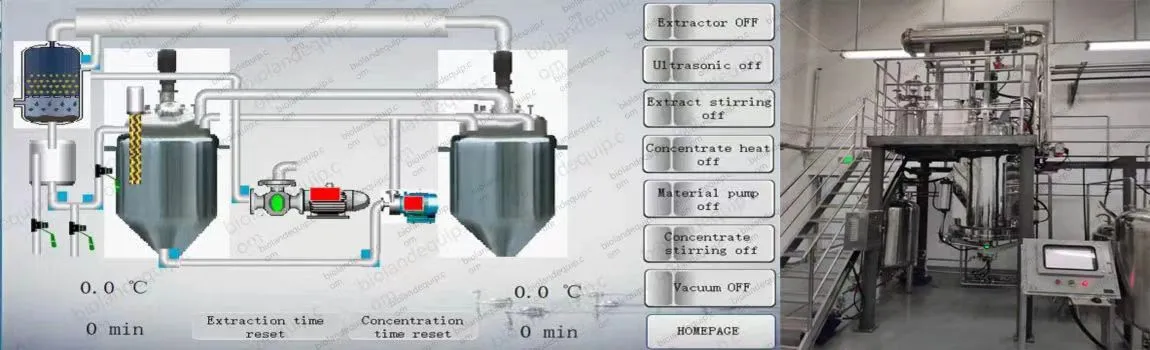

Manual extraction often fails because operators adjust valves and heating differently from shift to shift. A Curcumin Extraction Machine can include intelligent PLC electrical control, online concentration monitoring, automatic discharge, continuous feeding and discharging, pipeline concentration, and online CIP cleaning. The Curcumin Extraction Machine also supports atmospheric, negative-pressure, and positive-pressure operation for water extraction, alcohol extraction, and solvent extraction.
For solvent service, automation is not only convenient; it also improves discipline. Setpoints for jacket temperature, vacuum, feed rate, discharge timing, and concentration endpoint help reduce operator variation. The system can be connected with production records so quality teams can review what happened in each batch, which is especially important for GMP-oriented supplements, cosmetics, and pharmaceutical intermediates.
Bioland’s system structure normally includes an ultrasonic system, extraction tank, tubular heater, evaporator, condenser, oil-water separator, oil receiver, liquid pump, metering tank, storage tank, filter, vacuum pump, and electrical cabinet. A Curcumin Extraction Machine can include demisters at vapor outlets and optional thermal-oil heating where steam is unavailable. The Curcumin Extraction Machine uses SUS304/316L and GMP/HACCP-oriented design.
A cosmetics customer developing turmeric and plant aromatic oil extract needed lab proof, then a pilot line. Bioland supplied process trials, drawing confirmation, weekly photo and video production updates, and FAT scheduling before shipment. After the Curcumin Extraction Machine passed inspection, the customer expanded the formula to rose essential oil, peppermint oil, valerian flavor, and functional food actives with the same service team.

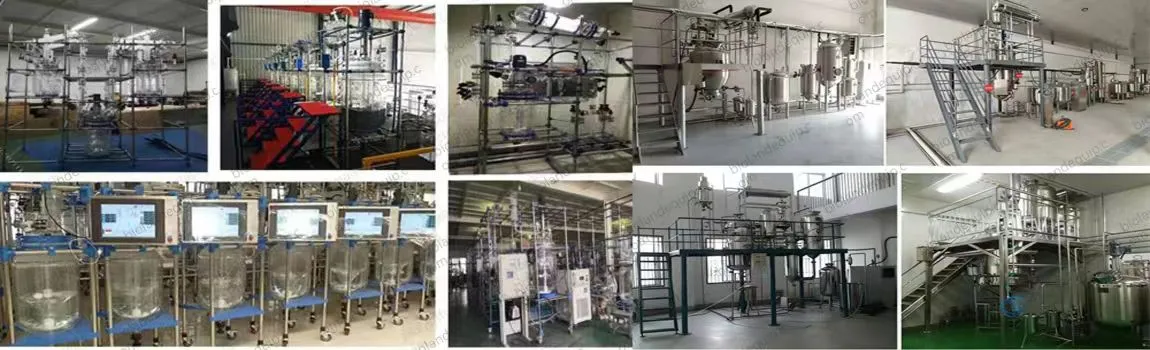

Xi’an Bioland Instrument Co., Ltd. has more than 15 years in distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, drying, and supporting heating, cooling, and vacuum devices. Its CE and ISO certified team provides OEM/ODM equipment, one-year warranty, lifetime maintenance, GMP/FDA-compliant products, and engineering support around each Curcumin Extraction Machine.
Because many buyers compare not only equipment price but project risk, Bioland quotes solution packages with clear configuration, cost-effective pricing, and lead-time choices. Non-customized systems are generally ready in 5–7 days, while customized equipment and production lines typically require about 30 business days, with sea, rail, or air freight arranged after approval.
Bioland instrument’s catalog includes ultrasonic plant extraction machine, Ethanol extraction machine, extraction concentration unit, CO2 extraction machine, supercritical fluid extraction equipment, essential oil distillation equipment, reactors, vacuum filtration, fractional distillation, crystallization reactors, high shear homogenizers, mixing tanks, spray dryers, freeze dryers, and ultrasonic homogenizers. This broad platform helps customers build integrated extraction, concentration, separation, and purification lines.
Improving curcumin recovery without excessive heating is not a single adjustment; it is a coordinated choice of temperature, solvent concentration, ultrasonic intensity, vacuum concentration, and SOP control. By working in the 40–60°C extraction window, recovering solvent through condensation, and using cavitation to open turmeric cells, processors can increase usable extract while protecting color and assay consistency. For buyers who need more than a tank, the Curcumin Extraction Machine provides an integrated route from lab validation to production. Bioland instrument adds CE and ISO assurance, OEM/ODM engineering, weekly production updates, FAT support, warranty, and lifetime maintenance, so customers can turn recovery problems into bankable plant capacity with documented recipes, traceable construction, and responsive technical guidance after commissioning.
A1: Many turmeric processes start at 40–60°C, then adjust by assay.
A2: Yes, 50–500 L standard ranges and OEM/ODM production lines are available.
A3: Ethanol-water is common; Bioland helps validate concentration, ratio, and recovery.
A4: Cavitation opens plant cells, improving diffusion in shorter cycles.
A5: CE/ISO quality, GMP-oriented design, FAT, weekly updates, warranty, and lifetime maintenance.
If your turmeric line is losing value through long heating, unstable color, low assay, or difficult filtration, choose a Bioland Instrument Curcumin Extraction Machine built around your raw material, solvent system, capacity target, and compliance needs. Our R&D engineers can evaluate your current process and propose low-temperature ultrasonic extraction, vacuum concentration, CIP, automation, and solvent-recovery upgrades.
Bioland Instrument supports OEM/ODM orders, CE and ISO certified manufacturing, GMP/FDA-oriented construction, weekly video or photo production tracking, FAT inspection, one-year warranty, and lifetime maintenance. Tell us your turmeric input, desired curcuminoid concentration, batch size, and plant layout, and we will help you design a practical Curcumin Extraction Machine solution. Contact: info@biolandequip.com.
1. Wakte, P. S., Sachin, B. S., Patil, A. A., Mohato, D. M., Band, T. H., & Shinde, D. B. Optimization of microwave, ultra-sonic and supercritical carbon dioxide assisted extraction techniques for curcumin from Curcuma longa. Separation and Purification Technology, 2011.
2. Chemat, F., Rombaut, N., Sicaire, A. G., Meullemiestre, A., Fabiano-Tixier, A. S., & Abert-Vian, M. Ultrasound assisted extraction of food and natural products. Ultrasonics Sonochemistry, 2017.
3. Shirsath, S. R., Sonawane, S. H., & Gogate, P. R. Intensification of extraction of natural products using ultrasonic irradiations. Chemical Engineering and Processing: Process Intensification, 2012.
4. Priyadarsini, K. I. The chemistry of curcumin: from extraction to therapeutic agent. Molecules, 2014.
5. Tonnesen, H. H., & Karlsen, J. Studies on curcumin and curcuminoids: kinetics of curcumin degradation in aqueous solution. Zeitschrift für Lebensmittel-Untersuchung und-Forschung, 1985.
6. Suresh, D., Manjunatha, H., & Srinivasan, K. Effect of heat processing of spices on the concentrations of their bioactive principles: turmeric, red pepper and black pepper. Journal of Food Composition and Analysis, 2007.
