There's more to choosing the best medicine extraction system than just comparing tank size and price. Manufacturers need a solution that keeps sensitive active ingredients safe, supports approved processes, lowers liquid loss, boosts batch accuracy, and can be used for both research in the lab and mass production. This is exactly what a Bioland Instrument medicinal plant extraction machine is made for. It has smart control, ultrasonic-assisted extraction, solvent extraction, filter, vacuum concentration, solvent recovery, and solvent extraction all in one GMP-compliant platform. Bioland helps pharmaceutical and plant processors solve extraction problems from raw material intake through concentrated extract production. Their equipment is made of SUS304/316L, has customisable 50 L to 500 L sizes, and comes with CE and ISO quality assurance. They also offer PLC automation and OEM/ODM engineering support.

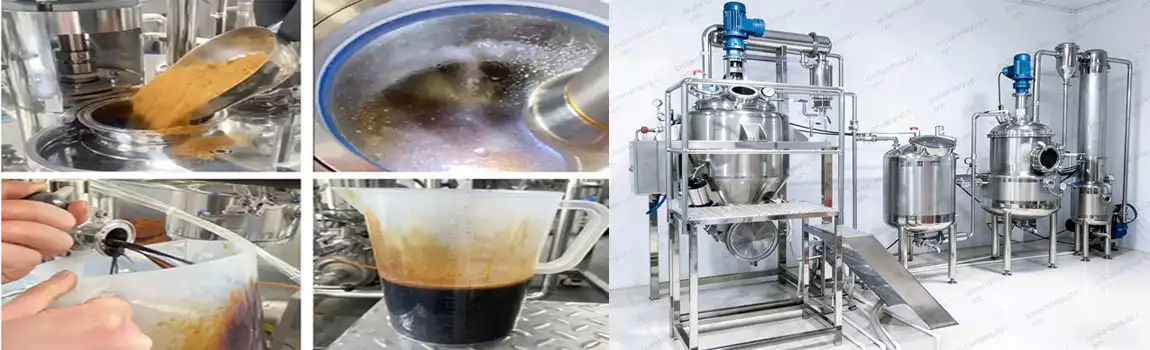

The right medicinal plant extraction machine should do more than just produce a lot of medicinal herbs, herbal ingredients, nutraceuticals, and biological intermediates. It should give a method that can be used over and over to get flavonoids, sugars, alkaloids, polyphenols, essential oils, and other desired parts from complicated plant mixtures. This guide will show you how to pick equipment that fits your material, formulation, capacity goal, regulatory needs, and long-term investment plan.
The first question in the selection process is not "Which machine is the cheapest?" but "What needs to be taken out and what could hurt it?" Flavonoids, polysaccharides, alkaloids, phenolic acids, glycosides, essential oils, pigments, and proteins are some of the active compounds that are found in different medicinal plants. It is important for a medicinal plant extraction machine to fit the chemicals' solubility, molecular structure, temperature stability, and concentration goal.
For instance, ethanol extraction is often chosen for tinctures, propolis, flavonoid-rich herbs, and botanical phenolics. For polysaccharides from reishi, shiitake, tremella, enoki, goji berries, and jujube, water extraction may be best. A low-temperature ultrasonic medicinal plant extraction machine can help move large amounts of material while minimising unnecessary heat exposure for materials that are sensitive to heat.
Capacity planning should consider more than the extraction tank’s nominal volume. A plant must evaluate daily raw material loading, solvent ratio, extraction cycles, filtration capacity, concentration speed, labor availability, and cleaning time. Bioland instrument provides 50 L, 100 L, 200 L, 300 L, and 500 L medicinal plant extraction machine configurations to support laboratory development, pilot-scale trials, and medium-scale production.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |
The 50 L model has an evaporation capacity of approximately 20 kg/h, while the 500 L configuration can reach approximately 200 kg/h. This range allows a manufacturer to validate extraction parameters at a smaller scale before building a larger, more automated line. Choosing scalable equipment reduces the risk of buying a system that quickly becomes too small for market demand.
A pharmaceutical extraction project may require water, ethanol, methanol, acetone, or other approved solvents according to the material and production standard. Bioland instrument’s medicinal plant extraction machine can support water extraction, alcohol extraction, solvent extraction, hot reflux extraction, circulation percolation, ultrasonic extraction, and precipitation processes such as water precipitation or alcohol precipitation.
This flexibility is important for producers developing multiple product lines. One extraction line may process herbal tinctures with ethanol, while another batch may produce water-soluble mushroom polysaccharides. Instead of investing in isolated equipment for every formula, a properly configured medicinal plant extraction machine can create a flexible platform for multiple botanical applications.
A botanical tincture producer faced a common problem: different operators used different soaking times and solvent ratios, causing inconsistent extract strength. The customer needed a more controlled method for ethanol extraction of active compounds from medicinal herbs.
Bioland recommended a medicinal plant extraction machine with programmable solvent charging, ultrasonic treatment, temperature control, circulation extraction, filtration, and vacuum concentration. The solution converted manual experience into defined operating parameters, helping the customer establish a more repeatable extraction workflow suitable for tincture production and later scale-up.
Traditional decoction, soaking, reflux, and percolation methods are widely used in herbal manufacturing. They can be reliable when properly controlled, but they often require longer processing time, greater heating demand, and more operator involvement. For plants with difficult-to-release active ingredients, conventional extraction may not fully utilize the raw material.
A Bioland instrument medicinal plant extraction machine can integrate traditional processing methods with ultrasonic enhancement. This gives manufacturers the option to retain familiar extraction logic while increasing solvent penetration, improving release of active constituents, and reducing overall processing time. The result is a practical modernization path rather than a disruptive change to established formulas.
Ultrasonic extraction uses high-frequency sound waves to create cavitation in the extraction solvent. Tiny bubbles form and collapse, producing micro-turbulence and mechanical force around the plant material. This action can promote plant-cell disruption or deformation, allowing solvent to access active compounds more effectively.
An ultrasonic medicinal plant extraction machine is particularly valuable for flavonoids, polyphenols, polysaccharides, phenolic acids, and other plant-derived functional ingredients. Compared with traditional processes, ultrasonic extraction may improve extraction rates significantly—often cited in practical applications as 50–500% higher, depending on the raw material, solvent, particle size, and process conditions.
Many medicinal plants contain compounds that can be affected by excessive heat, hydrolysis, oxidation, or prolonged exposure to high temperatures. Ultrasonic extraction commonly operates in a moderate range of approximately 40–60°C. This creates a useful balance between extraction efficiency and ingredient protection.
A medicinal plant extraction machine with ultrasonic capability can often achieve an effective extraction result in approximately 24–40 minutes, substantially shorter than many conventional extraction cycles. This process advantage is highly relevant for flavonoid-rich herbal materials, volatile aromatic fractions, heat-sensitive pigments, and botanical ingredients intended for functional foods, cosmetics, and healthcare products.
A customer processing ginkgo leaves, chrysanthemum, lotus leaves, ginger, bamboo leaves, and sophora buds wanted to improve extraction of flavonoids without extending high-temperature reflux time. The challenge was to increase recovery while keeping the extract suitable for downstream purification.
Bioland instrument proposed an ultrasonic medicinal plant extraction machine with low-temperature control, circulation, staged filtration, and vacuum concentration. The customer could optimize extraction parameters around material characteristics rather than forcing every botanical into one high-heat process. This approach also suits ultrasound assisted extraction of quercetin and its precursors.
An extraction vessel alone cannot solve a pharmaceutical production bottleneck. If extraction is fast but filtration, transfer, concentration, or solvent recovery is slow, overall output remains limited. A complete medicinal plant extraction machine should integrate the equipment needed to move material through each critical stage in a controlled manner.

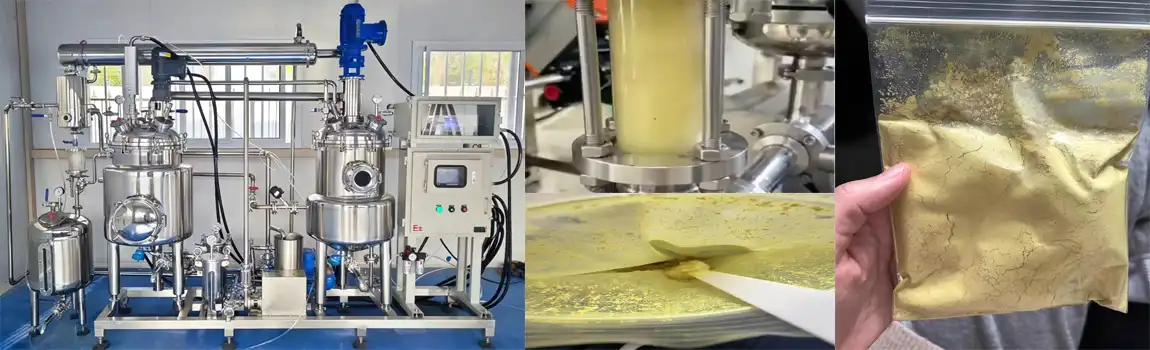

Bioland instrument extraction-concentration systems can include an ultrasonic system, extraction tank, tubular heater, evaporator, condenser, oil separator, collection tank, liquid pump, metering tank, storage tank, filter, vacuum pump, and electrical control cabinet. Anti-foam devices can be installed at extraction-tank and evaporator vapor outlets to improve process stability.
Consistency is vital in pharmaceutical and health-product manufacturing. A PLC-controlled medicinal plant extraction machine can support controlled temperature, timed ultrasonic treatment, automatic discharge, online concentration monitoring, and optional CIP cleaning. This helps manufacturers reduce reliance on manual valve sequencing and individual operator judgment.
Automation also helps establish clearer batch records and operational discipline. For a growing factory, this is important because the production process must remain stable even when staffing changes. A configurable system can support continuous feeding and discharge concepts, pipeline-based concentration, and more efficient workflow planning according to site layout and production volume.
After extraction, the liquid extract generally needs concentration before formulation, drying, or filling. Under vacuum conditions, the boiling temperature can be reduced, which supports gentler concentration. Bioland instrument's equipment can operate with a system vacuum of approximately -0.085 MPa, while concentration processes may be controlled within approximately -0.05 to -0.09 MPa.
In a medicinal plant extraction machine, secondary vapor generated during concentration passes through a condenser and cooler. The condensed solvent can be collected and reused according to validated process requirements. This reduces solvent consumption and supports more economical ethanol-based extraction operations.
A mushroom-extract customer used conventional water extraction for reishi, shiitake, tremella, and enoki mushrooms. Long heating cycles and manual material transfer made it difficult to keep daily production stable. The customer wanted a system suitable for extraction of polysaccharides without adding unnecessary complexity.

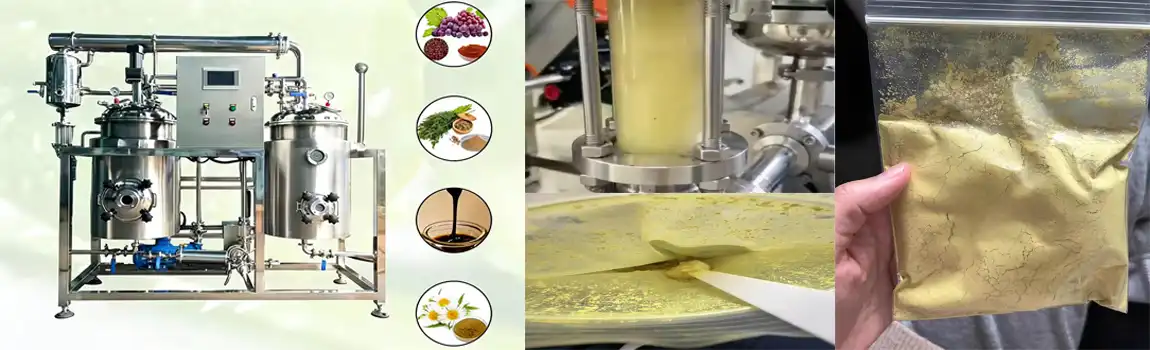

Bioland instrument configured an ultrasonic medicinal plant extraction machine concept with extraction, circulation, filtration, vacuum concentration, and programmable control. The project focused on smoother workflow, not just faster extraction. The same platform can be adapted for goji polysaccharides, sweet-potato polysaccharides, and other water-soluble botanical actives.
Pharmaceutical extraction equipment must be designed for cleanability, material compatibility, and process control. Bioland instrument’s medicinal plant extraction machine is commonly manufactured from SUS304 or SUS316L stainless steel. These materials are widely selected for their durability, corrosion resistance, and suitability for food, pharmaceutical, cosmetic, and botanical-extract processing.
The equipment can include three-layer insulation, sanitary piping arrangements, CIP online cleaning options, and GMP-oriented structural design. These features support operations involving water decoction, wet soaking, hot reflux, circulation percolation, aromatic oil extraction, organic-solvent recovery, and vacuum concentration.
Cross-contamination risks should be considered before installation, particularly when a factory processes several herbs, colors, flavors, or high-value standardized extracts. A medicinal plant extraction machine with CIP capability and well-designed piping can simplify cleaning procedures between batches. Operators should establish cleaning cycles, solvent-handling rules, filter replacement schedules, and inspection records based on product requirements.
Bioland engineering teams can assist in defining equipment configuration according to raw material behavior and planned cleaning needs. This is especially useful for manufacturers producing both strong-color botanical pigments and pharmaceutical-grade herbal extracts within the same facility.
Ethanol-based extraction requires practical attention to ventilation, sealing, electrical control, grounding, solvent storage, and operator procedures. Bioland instrument can configure a medicinal plant extraction machine with appropriate vacuum, condenser, recovery, and control components to support safer solvent processing. Customers should always operate equipment according to validated site safety procedures and applicable local regulations.
For facilities without steam supply, a thermal-oil heating system can be added. Jacket pressure is typically designed within approximately 0.09–0.3 MPa, while compressed-air requirements are generally around 0.5–0.6 MPa. These parameters should be reviewed during engineering design to ensure utility compatibility.
A natural-color producer extracted orange peel pigment and plant pigments including anthocyanins, betacyanins, carotenoids, and chlorophyll. The customer’s challenge was not only recovery; fine suspended solids increased filtration pressure and complicated purification.
Bioland recommended a medicinal plant extraction machine with process-focused extraction conditions, filtration integration, and controlled concentration. By considering extraction and separation together, the customer could build a cleaner downstream workflow. This same strategy supports botanical pigment, polyphenol, and active-ingredient production lines.
The lowest equipment quotation does not always create the lowest operating cost. Buyers should compare extraction time, labor demand, energy use, solvent recovery, cleaning efficiency, maintenance access, spare-part support, and future expansion potential. A well-designed medicinal plant extraction machine can reduce manual handling and support more consistent batch output, improving the real value of the investment.
Ultrasonic extraction can reduce time compared with traditional long-duration processes, while moderate operating temperatures can help manage heating demand. When paired with vacuum concentration and solvent recovery, the system may further improve overall resource utilization for ethanol- and water-based extraction operations.

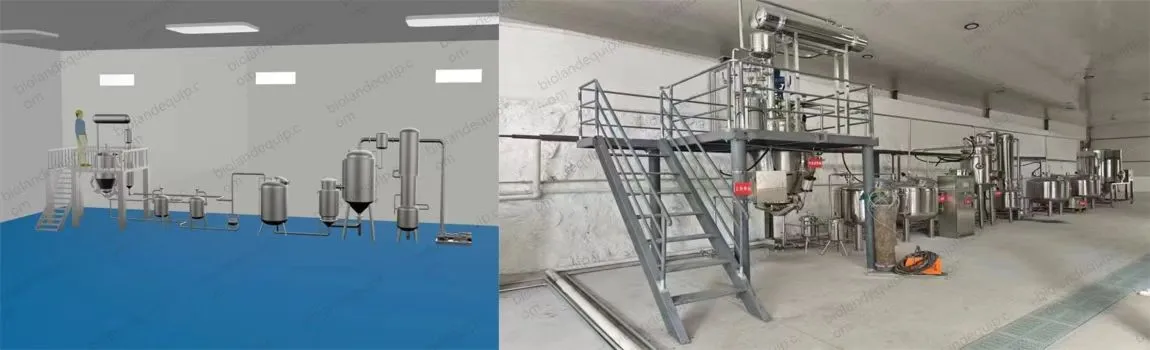

Bioland instrument supports equipment selection from R&D through pilot and commercial production. Universities, research institutes, pharmaceutical startups, and established botanical processors can select a medicinal plant extraction machine based on present capacity and projected market growth. Rather than purchasing an oversized line immediately, customers can validate formulas in 50 L or 100 L systems and scale to 200 L, 300 L, or 500 L production configurations.
This modular thinking is especially useful for new nutraceutical brands. It allows management teams to confirm raw-material supply, extraction yield, product acceptance, and regulatory documentation before committing to a larger line.
A producer planned to extract steviosides from stevia leaves, stems, and roots while also developing tea polyphenol products. The company initially considered separate units but needed to control capital spending and floor-space requirements.
Bioland instrument evaluated the material differences and proposed a flexible medicinal plant extraction machine solution supporting ultrasonic extraction, solvent or water processing, filtration, and concentration. The customer gained a clearer route to develop stevia extraction machine and tea extraction machine applications without building completely isolated systems.
Xi’an Bioland Instrument Co., Ltd. is a professional manufacturer and solution provider with more than 15 years of experience in distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, drying, and supporting heating, cooling, and vacuum equipment. Its products serve laboratory R&D, biopharmaceuticals, pharmaceutical chemicals, food and beverage, cosmetics, new materials, and other industries.
Bioland Instrument supplies ultrasonic plant extraction machines, ethanol extraction machines, CO2 extraction machines, supercritical fluid extraction equipment, essential-oil distillation systems, reactors, filters, vacuum dryers, spray dryers, freeze dryers, and mixing equipment. With CE and ISO certifications, OEM/ODM options, GMP/FDA-oriented standards, sea, rail, and air freight support, one-year quality warranty, and lifetime maintenance, Bioland provides a medicinal plant extraction machine as part of a complete engineering solution.
The ultimate pharmaceutical extraction equipment is the system that fits your material, active compounds, capacity, quality standards, and long-term production plan. A Bioland Instrument medicinal plant extraction machine combines ultrasonic mass transfer, low-temperature processing, filtration, vacuum concentration, solvent recovery, and automation in a flexible GMP-oriented platform. Whether producing flavonoids, polysaccharides, tinctures, tea polyphenols, pigments, or botanical extracts, customers can select a customized solution that improves process consistency and supports scalable growth.
It can process herbs, roots, leaves, mushrooms, tea, stevia, propolis, pigments, essential-oil plants, and other botanical materials.
Yes. The system can support water extraction, ethanol extraction, and other compatible solvent processes.
Typical models include 50 L, 100 L, 200 L, 300 L, and 500 L capacities.
Yes. Bioland offers OEM/ODM engineering, customized layouts, and complete extraction production lines.
Yes. It can be integrated with evaporators, condensers, vacuum pumps, filters, and solvent recovery components.
Your extraction line should do more than process raw materials—it should solve production bottlenecks, protect valuable active ingredients, simplify quality control, and support profitable expansion. Bioland Instrument delivers customized medicinal plant extraction machine solutions built around your herbs, solvent system, target compounds, capacity, and facility requirements. Our experienced engineering team provides CE and ISO-certified equipment, GMP-oriented design, ultrasonic extraction technology, vacuum concentration, solvent recovery, OEM/ODM support, and full pre-sales and after-sales service. During production, a dedicated specialist can provide weekly photos or videos, while final inspection videos and Factory Acceptance Testing are available before shipment. Contact Bioland Instrument today to discuss your extraction challenge and receive a tailored process proposal: info@biolandequip.com.
1. Azmir, J., et al. “Techniques for Extraction of Bioactive Compounds from Plant Materials: A Review.” Journal of Food Engineering, 2013.
2. Chemat, F., Vian, M. A., and Cravotto, G. “Green Extraction of Natural Products: Concept and Principles.” International Journal of Molecular Sciences, 2012.
3. Vinatoru, M. “An Overview of the Ultrasonically Assisted Extraction of Bioactive Principles from Herbs.” Ultrasonics Sonochemistry, 2001.
4. Wang, L., and Weller, C. L. “Recent Advances in Extraction of Nutraceuticals from Plants.” Trends in Food Science & Technology, 2006.
5. Khoddami, A., Wilkes, M. A., and Roberts, T. H. “Techniques for Analysis of Plant Phenolic Compounds.” Molecules, 2013.
6. Sasidharan, S., Chen, Y., Saravanan, D., Sundram, K. M., and Yoga Latha, L. “Extraction, Isolation and Characterization of Bioactive Compounds from Plants’ Extracts.” African Journal of Traditional, Complementary and Alternative Medicines, 2011.
