Small-scale synthesis is where chemistry is hardest: grams are precious, impurities are unforgiving, and every transfer between vessels risks the batch. The instrument that solves this is the glass filter reactor—a vessel that reacts, crystallizes, and filters without the product ever leaving it. Xi'an Bioland Instrument Co., Ltd. has spent more than 15 years perfecting exactly this class of equipment. Our glass filter reactor combines a transparent GG17 borosilicate body, a high-performance sintered-PTFE filter assembly (with stainless steel, titanium, cloth, and membrane options), a −20 °C to 200 °C working window driven by an integrated heating–cooling unit, programmable stirring, electric lifting, and optional explosion-proof construction with PLC automation—CE- and ISO-certified, GMP/FDA-compliant, and priced at the factory direct level for laboratories and pilot plants across Europe and Southeast Asia.
What separates the best glass filter reactor from an ordinary filtration setup is visibility at every stage. Operators watch color changes, nucleation events, crystal growth, and cake formation in real time—no black-box operation, no sampling to guess what the batch is doing. For small-scale synthesis, where a single observation often redirects an entire campaign, this feature compounds in value daily: endpoints are judged by eye and confirmed by data, experimental repeatability improves, and mechanistic conclusions stop being speculation. A glass filter reactor built on fully transparent borosilicate turns observation into a working specification.

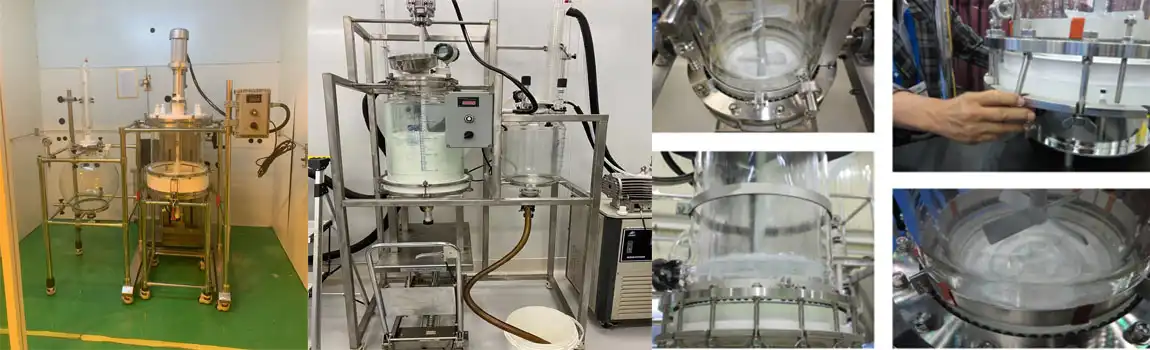

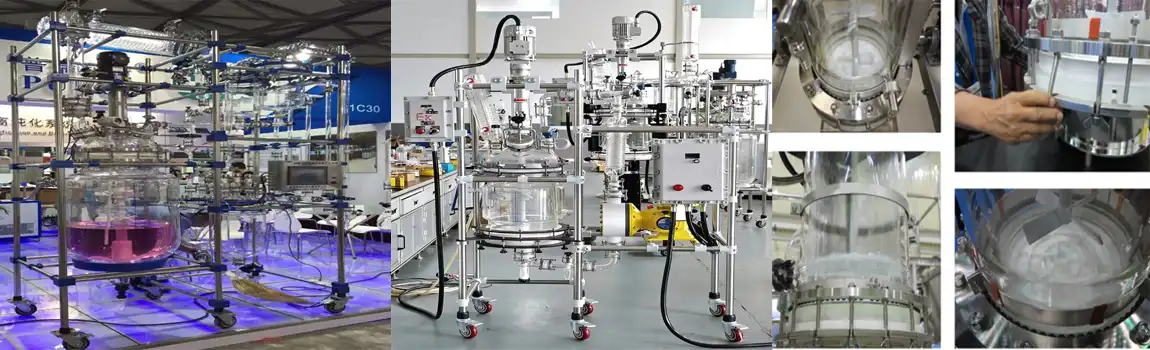

The filter defines the machine. Bioland's standard configuration uses a sintered-PTFE (polytetrafluoroethylene) core chosen for its chemical inertness across strong acids, strong alkalis, and organic solvents, together with a large-diameter design that delivers high filtration throughput even on dense cakes. Stainless steel and titanium plates are available for duties demanding them, and filter cloths and membranes in various specifications fine-tune retention for different crystal sizes. Because the medium is the one component that meets every gram of product, the glass filter reactor treats filter selection not as an accessory choice but as the engineering decision it truly is.
Crystallization is thermal manipulation of solubility: warm the batch to dissolve, cool it in a controlled curve to crystallize, then hold precisely while crystals finish growing. The double-jacketed glass filter reactor executes this across −20 °C to 200 °C, paired with a stainless steel heating–cooling unit that supplies the same precise, wide-range control to pharmaceutical research, organic synthesis, and pilot experiments alike. Programmable stirring synchronized with the temperature program keeps the batch uniform, so results repeat from run to run—high reproducibility being the quiet hallmark of a well-engineered small-scale platform.
Small does not mean casual. Dual PTFE-plus-mechanical sealing supports vacuum and inert-gas duty; the electric lifting frame lowers and tilts the vessel for charging, discharging, and complete cleaning; and certified explosion-proof builds with high-strength pressure structures carry the same chemistry safely into demanding synthesis environments. A glass filter reactor designed to industrial safety standards protects not only operators but schedules—because in small-scale work, the most expensive incident is always the one that erases weeks of synthesis progress.
Efficiency in small-scale synthesis is arithmetic: every vessel change multiplies losses, exposure, and cleaning time. The glass filter reactor collapses the workflow—reaction, crystallization, and solid–liquid separation all occur in the same body. Heat or cool through the jacket to move the solubility curve and crystallize product in place, then switch directly to filtration through the bottom assembly and collect mother liquor for reuse. What used to be three pieces of equipment and two transfers becomes one integrated operation, and the process flow diagram shrinks accordingly.
Once crystals have grown, the same vessel becomes a vacuum filter: the PTFE plate retains solids while the pump draws mother liquor through cleanly, and wash solvent passes through the cake in place—scrubbing impurities without the product ever meeting room air. The large-diameter plate keeps filtration fast even at pilot batch sizes, and because the glass filter reactor is transparent throughout, operators see the cake surface, detect channeling instantly, and know the exact moment washing is complete. Filtration stops being a blind endpoint and becomes a controlled, observable step.
Quantitatively, the gains land where small-scale teams feel them most. Material holdup in transfer lines disappears; cross-contamination between steps drops sharply because product never leaves containment; and batch records simplify because one vessel documents the whole sequence. For programs that must later defend their data—GMP pilot validation, regulatory filings, patent support—a glass filter reactor that produces self-consistent single-vessel records is not merely convenient but strategically valuable.
A European biopharmaceutical team developing a chiral API intermediate struggled with exactly these issues: reaction completeness was unverifiable mid-batch, purity and yield were stuck in mutual decline, corrosive acid/base systems attacked equipment, and frequent transfers bred contamination risk.
Bioland engineered a custom glass filter crystallization reactor from this same platform. Under nitrogen at 0–5 °C, the catalytic step ran while operators tracked color change through the wall—completeness confirmed visually, in real time.
Crystallization followed in place: jacket coolant at −20 °C drove a measured 1–2 °C per hour descent, growing uniform crystals without impurity inclusion. Filtration then proceeded directly through the PTFE assembly, mother liquor recycled.
The numbers: product purity above 99.5%, yield up 15%, and material transfers eliminated—along with the contamination risk they carried. One vessel, three operations, one defensible record.

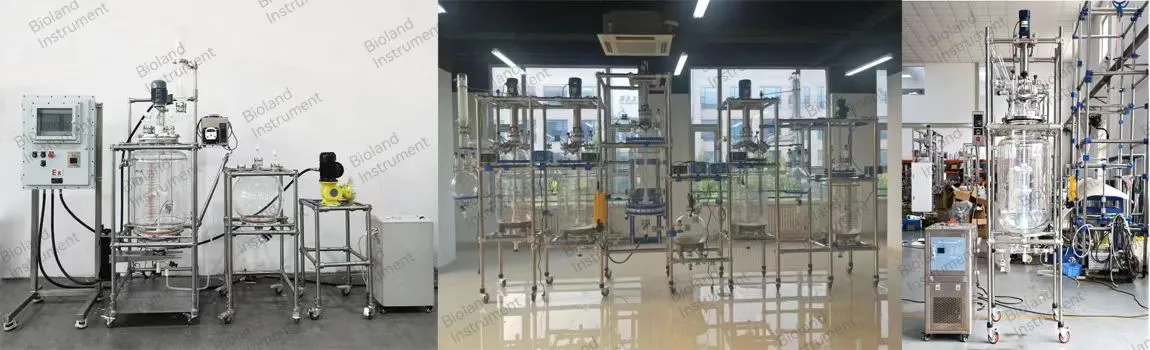

Specification begins with honest throughput math. The Bioland glass filter reactor family spans 20 L, 30 L, 50 L, and 100 L with consistent geometry—covering everything from kilogram-scale pharmaceutical development to small production campaigns—so a protocol validated in one volume transfers predictably to the next. The specification that buyers most often underweight is filtration area relative to cake volume: a large-diameter plate, standard on our units, is what keeps cycle times short when crystals, rather than filtrate, set the pace. Size the vessel to the campaign, and the plate to the cake.
Match the medium to the chemistry before anything else. Sintered PTFE handles nearly the full corrosive inventory—strong acids, alkalis, aggressive solvents—without shedding anything into the product, making it the sensible default for pharmaceutical and fine-chemical work. Stainless steel plates suit mechanically demanding duties; titanium adds corrosion margin for chlorinated and acidic systems; cloths and membranes in various specifications tune retention for fine or needle-like crystals. Getting this single choice right protects both filtration efficiency and crystal purity—getting it wrong taxes every batch that follows.
Beyond the vessel, three options consistently prove their worth. Programmable stirring gives uniform reaction and high reproducibility across synthesis and crystallization phases. The electric lifting-rotation frame converts charging, discharging, and cleaning—historically the least-loved minutes of every batch—into brief, safe operations that extend equipment life. And for hazardous or high-cadence work, the glass filter reactor can be specified with certified explosion-proof construction, PLC-controlled full automation, integrated temperature management, and ultrasonic crystallization or rectification combinations, all engineered to order under our OEM/ODM program in roughly 30 business days.
For GMP-oriented laboratories, a reactor purchase is also a documentation purchase. Every Bioland glass filter reactor ships under CE and ISO certification with GMP/FDA-aligned manufacturing and traceable batch documentation; weekly photo-or-video production updates from a dedicated specialist keep the procurement itself transparent; and a Factory Acceptance Test can be scheduled at our facility before shipment. A one-year quality warranty with lifetime maintenance completes a package designed so that the vessel and its paperwork arrive equally ready for audit.
Solid-phase synthesis is the application this platform was born for. Glass filter reactors offer the chemical stability and mechanical strength that peptide chemistry demands, with reaction speeds well suited to large-scale solid-phase workflows—the vessels run in thymosin preparation, antibacterial peptide screening, and peptide carrier material synthesis programs today. The workflow is inherently cyclical: couple, wash, filter, deprotect, repeat. A glass filter reactor executes each cycle in one closed vessel, with transparency confirming resin behavior at every step and the PTFE plate handling thousands of drain-and-wash operations without complaint.
Wherever an active ingredient must crystallize to reach its purity standard, the same platform applies. Antibiotic production uses crystallization-filtration to strip impurities and collect target compound cleanly; intermediates programs rely on controlled cooling curves to hit polymorph and particle-size targets; and the all-glass wetted path contributes zero metal-ion contamination—the property that keeps high-purity synthesis programs standardized on glass. For pharmaceutical research and pilot experiments, a glass filter reactor functions as the synthesis station and the purification station in a single footprint.
The wider industry footprint tells the same story. Dyes and fragrance chemicals use adjustable crystallization conditions to sculpt crystal shape and size for demanding product specifications; food processing relies on crystallization-filtration for sucrose refining; new-materials developers synthesize and isolate specialties in clean glass environments. Precious-metals work deserves special mention, because it stresses every advantage at once—as the case below shows.
A Polish chemical company developing palladium and platinum catalysts fought a brutal ledger: low precious-metal recovery, corrosive media eating equipment, high-temperature solid-phase reactions deactivating catalyst, sluggish separation, and cleaning costs climbing with every batch.
Bioland delivered a custom 50 L glass filter reactor from the same family. Solid-phase reaction ran at 150 °C—borosilicate construction tolerating the excursion, transparency confirming the ligand reaction visually—then the quick-release PTFE assembly separated catalyst directly, with mother liquor routed to recovery.
Precious-metal reuse from the mother liquor exceeded 90%, and the quick-release filter design cut cleaning between batches to minutes, protecting both the next batch and throughput. Corrosion-related equipment loss simply left the maintenance log.
Performance in service follows preparation discipline. Choose the solvent so solids dissolve fully under heat and crystallize willingly on cooling; set concentration so the metastable zone is wide enough to control; and let the programmable glass filter reactor execute the cooling curve rather than an operator's patience. Temperature and concentration together govern the solubility curve—the thermodynamic rail the whole process rides—and small-scale synthesis is exactly where discipline in these three variables separates 99.5% purity from a re-run.
During separation, the watch-items are filtration speed and differential pressure. Pull vacuum gradually, watch the cake build through the transparent wall, and resist the temptation to force pressure the moment filtration slows—channeling and crystal breakage both cost purity. The large-diameter plate and matched media specified earlier pay off here, keeping flow stable at gentle pressure. And because the glass filter reactor exposes the entire cake to view, end-of-filtration and wash-completeness judgments are visual facts rather than estimates.
Long-term performance is a maintenance story. Clean the filter assembly on a fixed schedule, not on complaint: the quick-release design makes inspection and media exchange tool-light tasks that one technician completes in minutes. Inspect seals weekly, handle gaskets gently, and let the electric lifting frame open every surface for cleaning between campaigns. These rhythms—simple enough to institutionalize—are why our vessels serve corrosive duty for years, backed by the one-year warranty and lifetime maintenance that accompany every shipment.
Finally, the best equipment rewards informed hands. Bioland's senior engineers support commissioning and answer process questions throughout the equipment's life, because a glass filter reactor operated by a trained team produces data as valuable as product. Documented procedures, consistent run logs, and PLC-recorded parameters turn individual skill into institutional capability—the quiet difference between laboratories that outgrow their equipment and those that simply replace it.
The best glass filter reactor for small-scale synthesis is defined by integration: one transparent GG17 vessel where reaction, crystallization, and filtration complete without transfer, driven by a −20 °C to 200 °C thermal program and served by a chemically inert PTFE filter assembly. Selection comes down to matched volume, matched media, and matched options—explosion-proof builds, electric lifting, PLC automation—while performance rests on solvent, cooling, and filtration discipline. Client results tell the story plainly: 99.5% purity with 15% higher yield in Europe, 90%+ precious-metal recovery in Poland. Bioland Instrument delivers this platform with 15 years of engineering, CE/ISO certification, and lifetime support behind it.
A: Sintered PTFE as standard; stainless steel, titanium, and various cloths/membranes optional.
A: −20 °C to 200 °C via the jacket and integrated heating–cooling unit.
A: Yes—designed for it, including thymosin preparation and antibacterial peptide screening cycles.
A: Yes—certified explosion-proof builds with PLC full automation and electric lifting.
A: ~30 business days customized, 5–7 days standard; one-year warranty with lifetime maintenance.
Why settle for a vessel when your process deserves a partner? Bioland Instrument brings more than 15 years of engineering, an in-house R&D team, CE and ISO certification, and GMP/FDA-compliant manufacturing to every glass filter reactor we build—20 L to 100 L, standard or fully customized with explosion-proof systems, PLC automation, electric lifting, and ultrasonic crystallization, all at factory-direct pricing. Weekly photo-and-video production updates, Factory Acceptance Testing, one-year warranty, and lifetime maintenance keep you informed and protected from order to operation. Send your synthesis details to info@biolandequip.com—OEM and ODM inquiries warmly welcomed.
1. Merrifield, R. B. "Solid Phase Peptide Synthesis. I. The Synthesis of a Tetrapeptide." Journal of the American Chemical Society, vol. 85, no. 14, 1963, pp. 2149–2154.
2. Mullin, J. W. Crystallization, 4th Edition. Butterworth-Heinemann, 2001.
3. Myerson, A. S., ed. Handbook of Industrial Crystallization, 2nd Edition. Butterworth-Heinemann, 2002.
4. Svarovsky, L. Solid-Liquid Separation, 4th Edition. Butterworth-Heinemann, 2000.
5. Tung, H.-H., Paul, E. L., Midler, M., and McCauley, J. A. Crystallization of Organic Compounds: An Industrial Perspective. John Wiley & Sons, 2009.
6. Cheremisinoff, N. P. Liquid Filtration. Butterworth-Heinemann, 1998.
