For commercial processors, the contest between static impregnation and a medicinal plant extraction machine is decided by yield, cycle time, process control, and product consistency. Bioland instrument’s ultrasonic system accelerates solvent penetration through cavitation, operates efficiently at approximately 40–60°C, and integrates extraction with filtration, vacuum concentration, solvent circulation, PLC control, and CIP cleaning. This gives growing plants a repeatable alternative to long soaking cycles.
Bioland instrument's medicinal plant extraction machine is not meant to be used by itself; it is part of a process. It can do ultrasonic extraction, solvent extraction, dynamic reflux, water or alcohol precipitation, percolation, and vacuum concentration, depending on the configuration that is chosen. Pharmaceutical, nutraceutical, food, beverage, and cosmetic uses are all supported by construction in SUS304 or SUS316L, sanitary pipelines, three-layer insulation, and GMP-oriented design.
Impregnation is still useful for simple lab work, tinctures with small amounts, and things that need to soak for a long time first. A medicinal plant extraction machine, on the other hand, generally wins when production needs higher output more quickly, working factors that can be measured, liquid recovery, automatic release, and reliable scaling up. The correct choice should be made based on the plant material, the compound being sought, the solvent, the daily capacity, and the needs for purification further down the line.
Active mass transfer, not passive diffusion, is what makes a modern medicinal plant extraction machine the better choice for commercial production. Ultrasonic cavitation makes tiny bubbles that keep forming and bursting in the liquid used for extraction. The turbulence, shear, and pressure changes that happen as a result distort plant tissue and make it easier for solvents to get to chemicals inside cells.
Impregnation mostly relies on how much the solvent touches the material, how porous it is, the time, the temperature, and the concentration variations. A medicinal plant extraction machine adds physical energy that can be controlled. It lets processors change the temperature, ultrasound, length of the extraction, solvent ratio, stirring, and circulation. This makes it easier to do it again if the amount of water in the plants, the size of the particles, or the amount of active compounds changes between deliveries.
Milled plant material is soaked in water, ethanol, or another approved solvent during impregnation, which is also sometimes called soaking or maceration. Compounds that dissolve slowly move from the solid to the liquid. The process is easy to understand and may not require a lot of money, so it can be used for basic study or making small amounts of extract.
Long-term impregnation, on the other hand, can keep tanks full for hours or even days. When powders stick together or roots are too thick to be penetrated, the solvent may not be spread out evenly. A medicinal plant extraction machine can get around these problems by using controlled mixing or circulation along with ultrasound. This makes the machine less reliant on natural diffusion alone and lets the extraction tank go faster for the next batch.
Ultrasound enhances mass movement inside a medicinal plant extraction machine rather than just using high heat. The physical action can break or change the shape of cell structures, make more surfaces accessible to solvents, and lower the resistance of the boundary layer. Bioland instrument says that some traditional plant processes can improve extraction rates by 50% to 500%. However, the real results will depend on the material and the factors that have been tested and proven.
This technology works best with stems, roots, flowers, fruit, fungi, and other plant and animal cells. The medicinal plant extraction machine is set up by Bioland instrument engineers based on the hardness of the tissue, the size of the particles, how well they work with solvents, the level of sensitivity that is needed, and how the machine filters. Because ginger, ginkgo leaves, Ganoderma, and Sophora buds react to ultrasound in different ways, pilot trials are still important.
When impregnating by hand, it's often up to the operator to decide when a batch looks like it's done. A medicinal plant extraction machine that is controlled by a PLC can set the same temperature, treatment time, pump operation, vacuum, concentration, and discharge sequences every time. Online concentration tracking is an extra measured outcome that can be added if desired, and saved recipes help workers make sure that successful conditions are repeated between shifts.
Keeping records of the process also makes it easy to look into differences. With a medicinal plant extraction machine, producers can set acceptable working ranges and write down important factors for quality control. Automation of feeds, discharge, concentration, and CIP tasks cuts down on changes that need to be made by hand and allows for constant or semi-continuous production. The operating facility and its quality team are still in charge of final validation.
The most important yield is not just the amount of liquid that comes out of the tank, but also pure extract that meets the requirements. If you choose the right medicinal plant extraction machine, it will improve liquid contact and help keep tissue breakdown from going too far. This can make an extract with fewer unpleasant solid substances, which makes it easier to filter, precipitate, separate, and clean.
A high crude yield isn't very useful if there are still too many loses during purification. Bioland chooses the medicinal plant extraction machine based on the whole healing process. Engineers think about how well the target compound dissolves, how the raw materials are prepared, the solvent ratio, how strong the extraction is, how much the filter is loaded, the concentration endpoint, and whether the process needs water precipitation, alcohol precipitation, percolation, or another step for refinement.
Ultrasonic botanical extraction usually gets to the best recovery point in 24 to 40 minutes, according to the manufacturer, for the right uses. If you use a medicinal plant extraction machine instead of some other methods, the extraction step may be cut by more than two-thirds. The actual length of time still needs to be found through tests that use the customer's material and critical acceptance criteria.
More than just labour is affected by shorter extraction. It lets the tank go sooner, increases the number of batches that can be made per shift, and cuts down on heating or mixing that takes too long. On the other hand, steady impregnation limits the size of the tank while diffusion takes place. If a plant wants to grow, it should look at the whole batch time, which includes loading, extraction, filter, release, cleaning, and concentrate, not just the extraction step.
A lot of the parts of medicinal plants can be damaged by too much heat, oxidation, or water. The medicinal plant extraction machine usually uses ultrasonic waves at temperatures between 40°C and 60°C, but this depends on the plant material and the recipe. It is not necessary to use high temperatures alone to move mass when mechanical cavitation is present.
Long hot-water cycles may be hard for a producer who wants to get flavonoids from ginkgo, bamboo leaves, chrysanthemum, lotus leaves, ginger, or onion skin. A medicinal plant extraction machine from Bioland instrument can be set up with low-temperature ultrasound, fast contained transfer, filtering, and vacuum concentration. The goal is to improve process control and cut down on unnecessary thermal exposure before purification.
In a production line for mushroom polysaccharides, thick or changeable fungus material made it take a long time for the fluid to get through and caused recovery to be uneven. The controlled ultrasound, water extraction, temperature management, filtering, and pressure concentration were all added to a medicinal plant extraction machine. The system created a consistent way to get mushroom material from being prepared to a concentrated polysaccharide extract.
For carbohydrates from Ganoderma, shiitake, enoki, Tremella, sweet potatoes, or goji berries, the same engineering method can be used. For each material, the solvent ratio, particle size, ultrasound intensity, and filtration must be checked and proven to work. Instead of relying on a long soak that might not finish, the processor gets a recipe that can be scaled up or down.

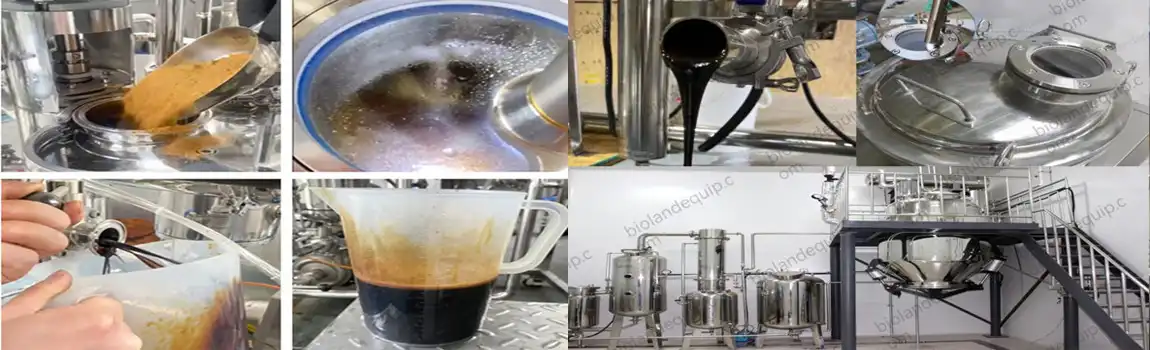

The first step is to put ready-to-use plant material into the medicinal plant extraction machine and add a certain amount of water, ethanol, or another solvent that is approved for the purpose. Based on the tested recipe, the user sets the temperature, time, ultrasound, and movement for the extraction. When the extraction is done, a series of valves open, letting the liquid move through filtering on its way to concentration.
The medicinal plant extraction machine system usually stays at -0.05 to -0.09 MPa during vacuum concentration, but this depends on how it is set up. Condensate is made when secondary vapour goes into the cooler and condenser. When the tested process allows it, the recovered liquid goes back through the material bed, dissolves any leftover soluble parts, and lets the extraction process keep going until the goal is reached.
An ultrasonic system, extraction tank, tubular heater, evaporator, condenser, oil separator, oil receiver, liquid pump, metering tank, storage vessel, filter, vacuum pump, and electrical cabinet are some of the parts that can make up a full medicinal plant extraction machine. At the extraction and evaporation outlets, demisters help keep liquids from getting into the vapour stream.

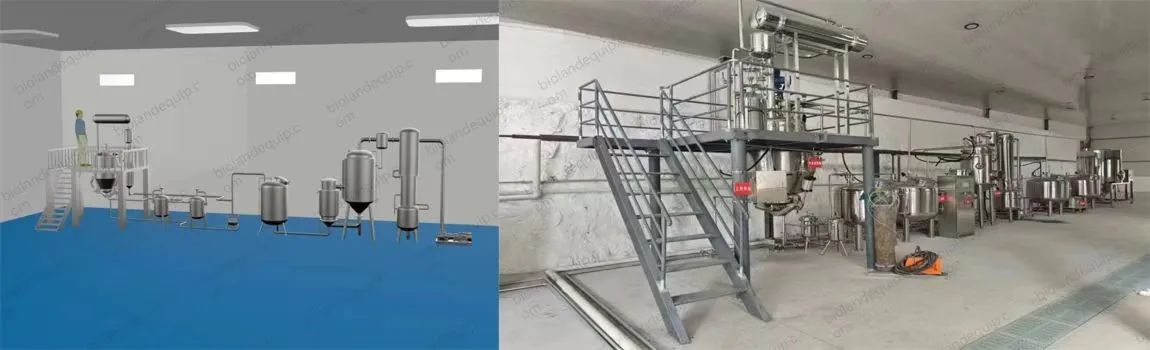

The extracting tank is just one part of the answer. Even if extraction works well, filters, condensers, pumps, or evaporators that are too small can cause bottlenecks. Before suggesting a configuration, Bioland instrument looks at the material's weight, viscosity, solids content, evaporation duty, utilities that are available, cleaning needs, and plant layout. Thermal oil can be used to heat places where steam isn't available.

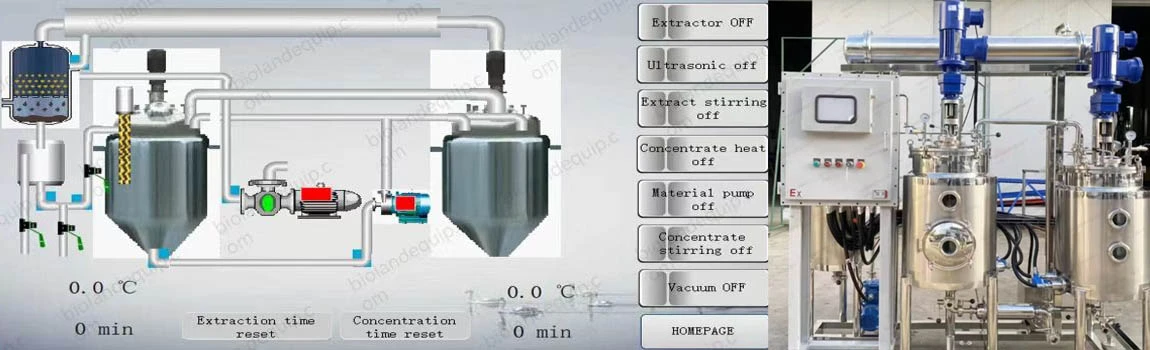

Recipes, temperature, timing, pumps, hoover, alarms and discharge can all be controlled by an intelligent PLC system in the medicinal plant extraction machine. If you choose to test the quantity online, you can get real-time data while the liquid evaporates. Depending on the size of the production and the needs of the site, continuous feeding, continuous discharge, automated pipelines, and CIP cleaning can be added.
People who know how to do things still need to be involved in automation. Instead, the medicinal plant extraction machine turns proven knowledge into steps that can be used again and again. Operators can stick to approved recipes, supervisors can look over deviations, and maintenance staff can find strange readings faster. This is especially helpful in factories with more than one shift, where the consistency of production can't depend on a single experienced worker.
Tinctures, flavonoids, quercetin, tea polyphenols, caffeine, steviol glycosides, plant proteins, pigments, essential oils, and polysaccharides can all be extracted using a multipurpose medicinal plant extraction machine. Wet soaking, heat reflux, dynamic percolation, liquid recovery, air extraction, and vacuum concentration are some of the other ways it can be set up.
Materials that can be used for ultrasound-assisted quercetin extraction are mulberry leaves, larch, celery, Sophora buds, Vaccinium bracteatum, and some medicinal plants. The process could go after quercetin directly or quercitrin and rutin, which are intermediates. For each item, there needs to be a unique solvent rating, extraction mix, testing method, and approved cleaning process.
The simple tools makes static impregnation look like a cheap method. But processors have to think about things like long tank stays, frequent soaking, liquid supplies, warmth, user time, transfer losses, and different levels of recovery. A medicinal plant extraction machine costs more at first, but when production demand is steady, it can cut down on cycle time and make better use of assets.
The right way to compare is the price per kilogram of good extract. People who are looking at buying a medicinal plant extraction machine should figure out how much raw material it will use, how much it will extract, how much it will recover, how much it will cost in steam, cooling water, electricity, labour, filtration, cleaning, rejected batches, and maintenance. Costs for capacity growth should also be taken into account if slow impregnation needs more than one tank set up next to each other.
The Bioland instrument medicinal plant extraction machine comes in five different models: BL-TN-C50L, C100L, C200L, C300L, and C500L. They say that they can evaporate 20, 50, 70, 100, and 200 kg/h, in that order. This range supports research in the lab, testing in a pilot, and small to medium-sized production, and it lets customers plan a clear path for scaling up.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |
The 50–200 L models have a 2.7 kW motor, and the 300–500 L models have a 3.5 kW motor. Every medicinal plant extraction machine on the list has a system pressure of -0.085 MPa. The jacket pressure is between 0.09 and 0.3 MPa, the steam demand is between 25 and 250 kg/h, and the temperature at which the steam evaporates is between 60 and 100°C.
The useful amount of a medicinal plant extraction machine is more important than its stated tank capacity when it comes to size. Plant matter may get bigger after taking a liquid, and some raw materials make foam. Engineers have to figure out the working volume, liquid ratio, heating time, extraction cycle, filter capacity, evaporation load, cleaning time, and the number of runs that need to be made each shift.
The final configuration may depend on which utilities are available. Buyers should make sure they know what the requirements are for steam pressure, cooling water temperature, compressed air, power, drainage, ventilation and hoover. Solvent-based systems might need grounding, seals, electrical protection, and ventilation that are specific to the application. An early study of the utility stops costly changes to the plant from being made after delivery.
Xi'an Bioland Instrument Co., Ltd. has been making systems for more than 15 years that can extract, concentrate, distil, filter, react, separate, crystallise, mix, and dry things. There is an in-house research team for each medicinal plant extraction machine, as well as factory-direct price, OEM/ODM support, CE and ISO certification, and GMP-focused production.

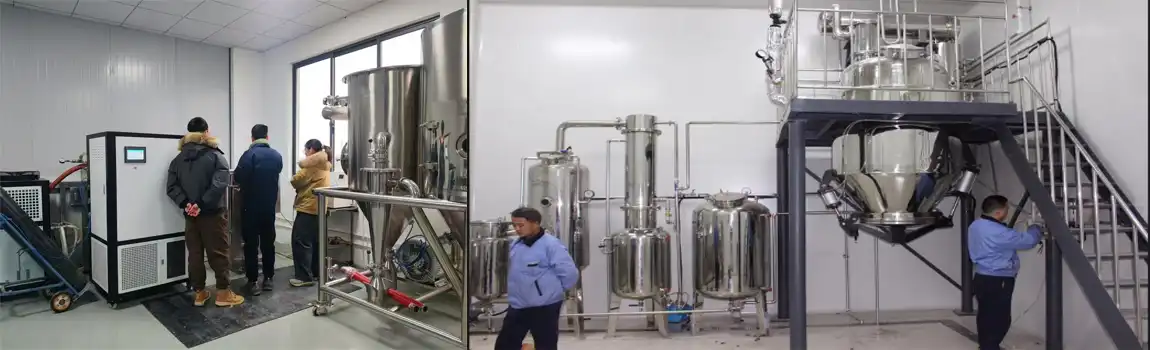

During creation, Bioland instrument sends pictures or movies every week from an expert. Equipment that is finished is marked so that the customer can look it over before it is shipped, and the customer can set up a Factory Acceptance Test. It usually takes about 30 business days to make a custom medicinal plant extraction machine, while standard models can be delivered in 5–7 days, depending on the final specs.
When output volume is low, time for extraction is not important, and the process has already shown good spread and selection, choose impregnation. If your business needs to increase output, keep track of recipes, work at lower temperatures, concentrate vacuums, move solvents around, keep track of parameters, or add more products in the future, you should buy a medicinal plant extraction machine.
Combining the two methods can help with some tasks. Before the ultrasound starts, a short impregnation stage can wet dense roots or dry powders. Bioland instrument's engineers are looking into whether pre-soaking adds value that can be measured or just makes the batch last longer. Extraction graphs, active-compound tests, filtering behaviour, and the total process time should all be used to back up the choice.

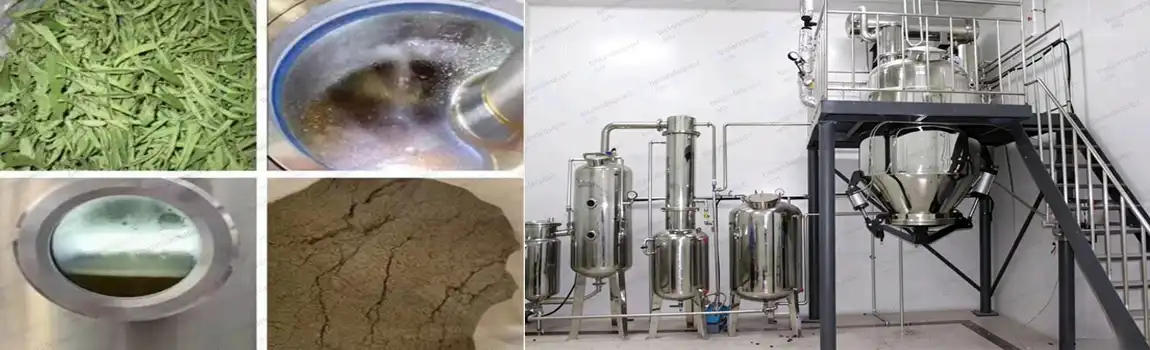

Steviol glycosides may be released slowly from the leaves, stems, and roots of a stevia plant. Some of the things that can be done in a medicinal plant extraction machine are pre-wetting, ultrasound, controlled solvent contact, filtration, and vacuum concentration. The customer gets the whole process of extracting stevia instead of a bunch of separate dishes that have to be moved by hand between steps.
A company that processes propolis has to get flavonoids and phenolic acids out of a sticky feedstock as quickly as possible. The medicinal plant extraction machine can be changed by Bioland instrument to also do sealed transfer, liquid recovery, concentration, and ultrasonic-assisted ethanol extraction. Tea polyphenol, capsaicin, chilli oleoresin, goji polysaccharide, natural colour, and anthocyanin production lines have all been based on similar engineering ideas.
A company that works with colours might need to get back orange-peel colourants, anthocyanins, betalains, carotenoids, chlorophyll, or capsanthin without letting them be exposed to uncontrolled heat for a long time. Ultrasound waves at lower temperatures and vacuum concentration work together to make a way. Specific recipes for each product keep the process flexible, and clean changeover procedures help keep contamination from spreading.
Check the valves, seals, filters, pumps, cooling flow, hoover parts, ultrasound units, instruments and safety interlocks on a medicinal plant extraction machine before using it. Solvents that have been cleared should only be used, and workers must follow the plant's rules for grounding, ventilation, personal safety, pressure limits, and shutting down in an emergency.
As part of routine upkeep, ultrasonic sensors, pump seals, gaskets, filters, vacuum pumps, condensers, instruments and CIP spray devices should all be checked. Contact parts made of SUS304 or SUS316L make cleaning easier, but cleaning conditions still need to be confirmed. Regular inspections help keep heat transfer, hoover stability, clean conditions, and consistent extraction performance.
The best provider asks about the raw materials, target chemicals, solvents, particle size, daily output, services that are accessible, processing steps, and specs for the finished product before they choose a medicinal plant extraction machine. Through OEM and ODM engineering, Bioland makes custom equipment and integrated production lines instead of forcing all of its customers to use the same standard design.
Each medicinal plant extraction machine comes with a one-year quality warranty, updates on the manufacturing process, inspection records, shipping options, and maintenance for life. Freight can be sent by sea, train, or air. Bioland instrument also helps customers move from lab ideas to stable pilot or commercial production by giving them commissioning advice and technical support.
When a medicinal plant extraction machine is put up against impregnation, neither method always wins in the lab, but current ultrasonic equipment is generally more valuable for business. It speeds up mass transfer, reduces tank occupation, manages temperature, helps with vacuum concentration, and turns successful recipes into steps that can be used again and again. Impregnation is still useful for simple, low-volume work or as a quick step before wetting. Bioland instrument expands its equipment choices with 50–500 L models made of sanitary stainless steel, PLC automation, CIP cleaning, OEM/ODM engineering, CE and ISO certifications, FAT support, and maintenance for life. Manufacturers should make their final choice based on tested yield, active-compound recovery, filtration behaviour, utility demand, total cycle time, and cost per kilogram of extract that meets specifications.
Ultrasonic extraction commonly reaches an optimized point within 24–40 minutes for suitable applications.
Yes. Water, ethanol, and other approved solvents can be considered with an appropriate safety configuration.
Standard options include 50, 100, 200, 300, and 500 L.
Yes. Each product needs a validated recipe and cleaning procedure.
Bioland can customize a medicinal plant extraction machine, controls, filtration, concentration, heating, and plant layout.
Are low recovery, long impregnation cycles, difficult filtration, or inconsistent concentration limiting your production? Bioland Instrument can evaluate your botanical material, target compound, solvent, required output, utilities, and quality specification before configuring the right medicinal plant extraction machine.
You receive more than an extraction vessel. Bioland can integrate ultrasound, filtration, vacuum concentration, solvent recovery, PLC automation, CIP cleaning, and downstream support into one coordinated process. With over 15 years of engineering experience, competitive factory pricing, OEM/ODM capability, CE and ISO credentials, weekly production updates, FAT inspection, a one-year warranty, and lifetime maintenance, the team helps reduce both technical and purchasing risk. Send your material data and production bottleneck to info@biolandequip.com to discuss a tailored extraction line.
1. Chemat, F., Rombaut, N., Sicaire, A. G., et al. “Ultrasound Assisted Extraction of Food and Natural Products: Mechanisms, Techniques, Combinations, Protocols and Applications.” Ultrasonics Sonochemistry, vol. 34, 2017, pp. 540–560.
2. Azmir, J., Zaidul, I. S. M., Rahman, M. M., et al. “Techniques for Extraction of Bioactive Compounds from Plant Materials: A Review.” Journal of Food Engineering, vol. 117, no. 4, 2013, pp. 426–436.
3. Vinatoru, M. “An Overview of the Ultrasonically Assisted Extraction of Bioactive Principles from Herbs.” Ultrasonics Sonochemistry, vol. 8, no. 3, 2001, pp. 303–313.
4. Handa, S. S., Khanuja, S. P. S., Longo, G., and Rakesh, D. D., editors. Extraction Technologies for Medicinal and Aromatic Plants. International Centre for Science and High Technology, 2008.
5. World Health Organization. Quality Control Methods for Herbal Materials. World Health Organization, 2011.
6. Zhang, Q. W., Lin, L. G., and Ye, W. C. “Techniques for Extraction and Isolation of Natural Products: A Comprehensive Review.” Chinese Medicine, vol. 13, article 20, 2018.
