Sep 16, 2026
More and more, people who process turmeric are asking a practical question: what is the best way to get curcuminoids for the least amount of money per kilogram? It has been normal to use solvents for extraction, but ultrasonic water extraction is changing the maths. A new curcumin extraction machine from Xi'an Bioland Instrument Co.,Ltd. uses automated control, low-temperature water extraction, ultrasonic cavitation, and vacuum concentration to lower the costs of solvents, energy, and labour.
The benefit isn't just switching water for ethanol. It is switching from an open-ended solvent recovery process to a closed-loop, GMP-compliant curcumin extraction machine. This saves money on buying solvents, fire safety, hazardous waste, and cleaning. Ultrasonic water extraction often wins when buyers look at total cost because it cuts down on cycle time, protects curcuminoids, and makes cleaning further down the line easier.
Xi'an Bioland Instrument Co.,Ltd. is a professional company that makes and sells equipment for reactions, extractions, separations, filtration, purification, crystallisation, emulsification, mixing, drying, and more. They also do research and development and offer solutions for these problems. The company has been in this business for more than 15 years and offers full support for chemical processes, including devices for heating, cooling, and vacuuming.
A lot of companies that make turmeric extract think that ethanol is needed for high curcuminoid recovery. But buying solvents, storing them, recovering vapours, controlling residues, and making sure safety rules are followed all cost more. If you use water-based ultrasonic extraction, you can skip some of these set and changeable costs. A curcumin extraction machine that uses ultrasonic water extraction can get the same or higher yields while making the production process easier. When processors rethink solvent models, they usually look at the total cost per batch as well as how well the solvent is extracted. This led to a switch to water-based methods that cut down on secret costs.
Solvent routes consume ethanol or acetone every cycle. Even with recovery equipment, solvent losses of 5–15% are common during evaporation and transfer. Water costs far less and generally does not require explosion-proof storage or solvent recovery towers in the same way. Cavitation makes tiny jets that break down the cell walls of turmeric and make it easier for water to get inside using an ultrasonic curcumin extraction machine. This speeds up the transfer of mass and lowers the cost of the solvent per batch. Operators also cut down on the handling of toxic trash and solvents by hand, which directly boosts production profits.
Facilities that can withstand fire, ventilation, solvent recovery columns, regulatory reporting, and operator training are some of the solvent costs that are hard to see. These costs don't show up very often in easy extraction comparisons, but they have a big effect on how profitable a project is. Many of these needs are taken away by water extraction.

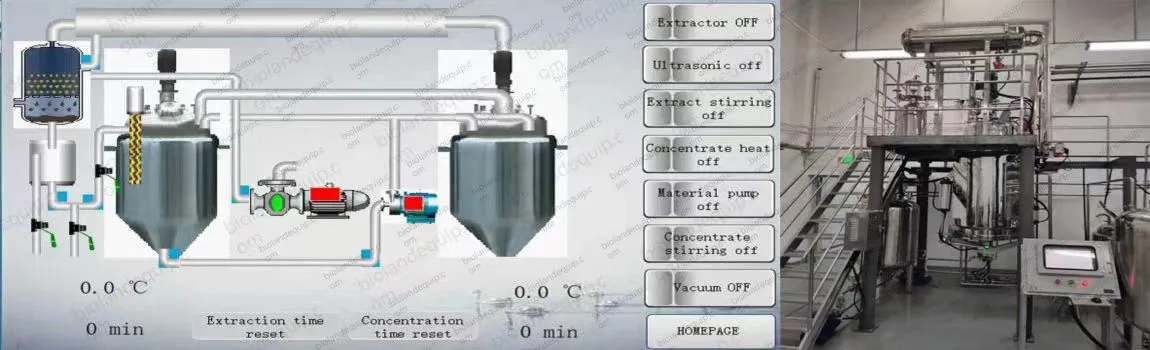

A closed-loop curcumin extraction machine with vacuum concentration can get back water and volatile parts, which cuts down on waste and the need for new solvents. Stainless steel surfaces that are GMP-compliant and CIP cleaning speed up batch changes. For manufacturers, this means fewer failures to follow the rules and a lower cost per kilogram of curcumin extract.
If you use ultrasonic extraction at 40–60°C instead of regular solvent maceration, you can get back 50–500% more curcuminoid. The time it takes to extract often drops to 24 to 40 minutes per cycle. These changes don't just speed things up; they also cut down on waste and energy use. Under hoover, a 500 L curcumin extraction machine can get rid of about 200 kg/h of water, which allows production to go on all the time. The system is more like a production unit than just an extractor because it includes heating, condensation, and solvent return. This means more work gets done and each unit costs less.
There is a wide range in the amount of wetness, curcuminoids, fibre, and particle size in raw turmeric rhizomes. When prepping isn't done right, extraction, channelling, and the use of more raw materials are all uneven. Controlled liquid contact and uniform grinding make recovery better and cut down on failed batches. A well-designed curcumin extraction machine can handle different feedstocks by controlling the temperature, agitation, and ultrasonic distribution. This gives processors the freedom to use cheaper raw materials without lowering the yield of curcumin. Because healing is better, less turmeric is needed per kilogram of extract.
To make curcumin using solvents, you need to store the solvents, use recovery columns, look for leaks, and keep detailed records. For volatile organic compound pollution, you might need more licenses. These safety and regulatory duties make it more expensive to follow the rules and take longer to finish projects. This is easier to do with ultrasonic water extraction since water is the main fluid. A curcumin extraction machine can still use ethanol or aqueous ethanol if the customer wants to get only certain curcuminoid profiles. This allows for both cheap water extraction and solvent-assisted extraction to be used as needed.
Curcuminoids don't like heat. Long solvent flow breaks down active chemicals and makes more steam needed. Ultrasonic extraction works at low temperatures, usually between 40°C and 60°C. This protects the curcuminoids while lowering the energy needed and keeping the antioxidant content. There are heating, cooling and hoover systems built into the curcumin extraction machine. The operators set the temperatures for extraction and evaporation, keep the pressure between -0.05 and -0.09 MPa, and use the condensate as a new solvent. This closed-loop utility design cuts down on the amount of electricity, cooling water, and steam used per batch.
Manual solvent operations demand extensive labor for loading, solvent transfer, recovery, draining, and cleaning. These steps slow batch turnaround and increase contamination risk. High labor cost also makes production planning difficult for multi-product facilities. With PLC automation, a curcumin extraction machine enables continuous feeding, automatic discharge, online concentration monitoring, and CIP cleaning. Fewer manual operations reduce labor and improve production consistency. In GMP facilities, this automation also strengthens batch records and reduces human error.
Solvent plants often require explosion-proof electrical systems, solvent recovery towers, fire suppression, and specialized storage. These additions increase initial investment and project complexity. Water-based ultrasonic systems have fewer auxiliary safety requirements, reducing capital cost. Xi’an Bioland Instrument Co.,Ltd. provides a curcumin extraction machine built from SUS304/316L stainless steel. It can be configured for aqueous or solvent extraction and integrated with vacuum concentration. Customers can start with a 50 L pilot model before scaling to 100 L, 200 L, 300 L, or 500 L.
|
Technology parameter |
|||||
|
Model |
BL-TN-C50L |
BL-TN -C100L |
BL-TN -C200L |
BL-TN -C300L |
BL-TN -C500L |
|
Volume (L) |
50 |
100 |
200 |
300 |
500 |
|
Evaporation capacity (kg/h) |
20 |
50 |
70 |
100 |
200 |
|
Motor power(KW) |
2.7 |
2.7 |
2.7 |
3.5 |
3.5 |
|
Steam consumption(kg/h) |
25 |
60 |
90 |
120 |
250 |
|
System vacuum (MPa) |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
-0.085 |
|
Pressure of jacket(MPa) |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
0.09~0.3 |
|
Compressed air (MPa) |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
0.5~0.6 |
|
Evaporation temperature(°C) |
60~100 |
60~100 |
60~100 |
60~100 |
60~100 |
Energy cost depends on steam, vacuum, and cooling loads. Ultrasonic extraction accelerates release at lower temperature, so steam consumption per batch falls. For example, the BL-TN-C500L model uses approximately 250 kg/h steam consumption for evaporation duty. A curcumin extraction machine with thermal insulation and efficient condenser design returns condensate to the extraction tank. This reuses water and heat, cutting daily utility expenses. With evaporation capacity from 20 to 200 kg/h, operators can match thermal input to actual production demand.
Cross-contamination and residue carryover are costly in GMP facilities. Fixed solvent lines require extensive rinsing and solvent disposal. CIP-enabled equipment reduces downtime between product campaigns and improves validation compliance. The curcumin extraction machine can include CIP online cleaning, automatic drain, and closed transfer. Stainless steel surfaces and polished finishes simplify cleaning and lower maintenance labor. This design is suitable for pharmaceutical, food, cosmetic, and botanical extraction applications.
Scale-up risk is a major hidden cost. A technology that works in the lab may fail in production due to poor ultrasonic distribution or insufficient evaporation capacity. Selecting the right curcumin extraction machine avoids overinvestment and underperformance. Bioland supplies 50 L, 100 L, 200 L, 300 L, and 500 L models with evaporation capacities from 20 to 200 kg/h. Customers can test at pilot scale, then move to production with consistent parameters. This staged approach reduces the cost of scaling and protects capital expenditure.
Raw turmeric is often the largest single cost in curcumin production. If extraction leaves curcuminoids in the marc, the producer loses money on every kilogram. Ultrasonic cavitation breaks cell walls and improves solvent contact, increasing release of curcuminoids. A curcumin extraction machine using ultrasonic water extraction can increase yield by 50–500% over conventional methods. Less raw material is required for the same curcumin output, improving extract margin. This is particularly important when turmeric prices fluctuate.
Traditional solvent extraction can take hours when soaking and reflux are included. Ultrasonic extraction often reaches optimum recovery within 24–40 minutes. Faster cycles allow more batches per shift using the same curcumin extraction machine. Higher throughput lowers labor cost per batch and improves production flexibility. For a manufacturer running multiple turmeric products, shorter cycles free capacity for other botanical extracts. That makes the equipment a multi-purpose production asset rather than a single-product investment.
Lower extraction temperature protects heat-sensitive curcuminoids and other polyphenols. This results in a cleaner extract with fewer degradation products, which simplifies filtration and column purification. Fewer impurities reduce downstream solvent and resin consumption. Because the curcumin extraction machine produces less thermal degradation, downstream purification consumes less solvent and resin. That creates additional savings beyond the extraction stage. The extract also has better color and active content, supporting premium product positioning.
A nutraceutical manufacturer in Southeast Asia struggled with ethanol recovery and low curcuminoid purity. Dried turmeric powder extraction took too long and required repeated solvent washes. Operators faced high solvent cost and inconsistent product quality. Bioland instrument configured a 200 L curcumin extraction machine with ultrasonic extraction, vacuum concentration, and CIP. The customer reduced extraction time by about two-thirds and cut solvent-related operating cost by 35%. Clean-up time between batches also decreased significantly.
They later scaled to a 500 L production unit. Curcuminoid recovery improved by more than 40%, and the extract passed GMP documentation with fewer purification steps. The project demonstrated that ultrasonic water extraction can outperform solvent extraction on both yield and cost.
Not every turmeric feedstock behaves the same. High-oil, high-starch, or high-fiber materials need different temperature, agitation, and solvent ratios. A flexible curcumin extraction machine supports water, ethanol, or mixed-solvent modes without rebuilding the line. This flexibility lets producers target curcumin, demethoxycurcumin, and bisdemethoxycurcumin in one system. Processors can switch between low-cost water extraction and selective solvent extraction when required. That adaptability is essential for toll manufacturers and multi-product botanical facilities.
A standalone extractor only solves part of the cost problem. The real savings come from integrating extraction, filtration, evaporation, and condensate recovery. This avoids product transfer losses and repeated heating. It also reduces footprint and simplifies automation. The Bioland instrument curcumin extraction machine includes ultrasonic tank, condenser, oil-water separator, collection tanks, vacuum pump, and PLC control. Operators can run hot reflux, ultrasonic low-temperature extraction, and vacuum concentration in one skid. This integrated approach lowers capital and operating cost per batch.
Buyers should evaluate whether the supplier can deliver a complete process solution, not just hardware. Xi’an Bioland Instrument Co.,Ltd. has more than 15 years of experience in distillation, concentration, reaction, extraction, separation, filtration, purification, crystallization, emulsification, mixing, and drying equipment.
The company offers CE and ISO certified curcumin extraction machine systems, OEM/ODM support, GMP/FDA compliance, and customized production lines. Main products include ultrasonic plant extraction machines, ethanol extraction machines, extraction concentration units, CO2 extraction machines, supercritical fluid extraction equipment, essential oil distillation equipment, jacketed glass reactors, filter reactors, high shear homogenizers, spray dryers, and freeze dryers.
Scaling from a single extractor to a full turmeric processing line can be complicated. Bioland instrument provides integrated curcumin extraction machine units, storage tanks, filtration, and supporting heating, cooling, and vacuum devices. This turnkey approach reduces installation risk and speeds project completion.
A stevia producer used a similar ultrasonic extraction machine to extract steviol glycosides from stevia leaves, stems, and roots. The system lowered extraction temperature and produced a cleaner sweetener concentrate. It later served as the front end of a stevia production line.
A chilli oleoresin extraction plant upgraded from solvent reflux to ultrasonic extraction. Capsaicin recovery increased, and oleoresin color was more stable. The same curcumin extraction machine configuration was adapted to handle chilli flakes and turmeric powder without major mechanical changes.
Another customer used ultrasonic extraction mushrooms equipment for polysaccharides from shiitake and Ganoderma lucidum. The low-temperature process preserved polysaccharide activity and reduced starch interference. This demonstrates the equipment’s suitability for functional food and mushroom extract production.
For propolis, a manufacturer used a propolis extraction machine configured with ultrasonic assistance and ethanol. It efficiently separated flavonoids and phenolic acids from raw propolis. The same curcumin extraction machine platform supported batch documentation and GMP cleaning.
Tea and coffee processors also benefit from the multi-purpose design. A tea extraction machine or coffee extraction machine can recover tea polyphenols, caffeine, flavonoids, and aromatic fractions. These applications show how one core ultrasonic system can serve multiple high-value botanical products.
Ultrasonic water extraction generally wins on cost when curcumin producers consider solvent purchase, recovery losses, safety compliance, energy, labor, cleaning, and raw material utilization. A modern curcumin extraction machine from Xi’an Bioland Instrument Co.,Ltd. delivers higher recovery at lower temperature, shortens extraction time, and integrates vacuum concentration. Real cases show measurable reductions in solvent cost and batch time. The equipment also supports ethanol extraction when required, giving producers flexibility. For most turmeric processors, investing in a GMP-compliant ultrasonic system offers the lowest total cost per kilogram of curcumin extract and a scalable path to full production.
Yes. Ultrasonic cavitation improves mass transfer and can increase curcuminoid recovery by 50–500%. A curcumin extraction machine can also use ethanol or mixed solvents when selective extraction is needed.
Ultrasonic extraction often reaches optimum recovery within 24–40 minutes. Compared with traditional solvent reflux, extraction time can be reduced by more than two-thirds.
Bioland offers 50 L, 100 L, 200 L, 300 L, and 500 L systems. Evaporation capacity ranges from 20 to 200 kg/h, supporting pilot and production-scale turmeric processing.
Yes. The curcumin extraction machine uses SUS304/316L stainless steel, CIP cleaning, closed transfer, and PLC automation. It complies with GMP/FDA standards and supports CE and ISO quality assurance.
Yes. It is suitable for stevia, chilli oleoresin, mushrooms, tea, coffee, propolis, flavonoids, quercetin, pigments, proteins, and essential oils. This makes it a flexible multi-purpose extraction solution.
Lower your cost per kilogram and scale turmeric production with a GMP-compliant ultrasonic system. Xi’an Bioland Instrument Co.,Ltd. offers CE and ISO certified curcumin extraction machine solutions, OEM/ODM customization, process integration, and lifetime maintenance support. Whether you need a 50 L pilot unit or a complete curcumin production line, our team provides tailored engineering, installation guidance, and weekly production updates with photos or videos. Talk to our process specialists for a cost comparison and a solution matched to your feedstock. Contact us today at info@biolandequip.com.
1. Wakte, P. S., Sachin, B. S., Patil, A. A., Mohato, D. M., Band, T. H., & Shinde, D. B. (2011). Optimization of microwave, ultra-sonic and supercritical carbon dioxide assisted extraction techniques for curcumin from Curcuma longa. Separation and Purification Technology, 79(1), 50–55.
2. Priyadarsini, K. I. (2014). The chemistry of curcumin: from extraction to therapeutic agent. Molecules, 19(12), 20091–20112.
3. Shirsath, S. R., Sable, S. S., Gaikwad, S. G., Sonawane, S. H., Saini, D. R., & Gogate, P. R. (2017). Intensification of extraction of curcumin from Curcuma longa using ultrasound assisted approach. Ultrasonics Sonochemistry, 38, 437–445.
4. Patil, S. S., & Rathod, V. K. (2020). Synergistic effect of ultrasound and enzyme assisted extraction of curcuminoids from Curcuma longa. Chemical Engineering and Processing - Process Intensification, 154, 108017.
5. Xi’an Bioland Instrument Co., Ltd. (2024). Ultrasonic curcumin extraction machine product documentation and technical parameters. Bioland Equipment technical file.
6. Jiang, Y., Li, Z., & Liu, Y. (2021). Comparative evaluation of aqueous and solvent-based ultrasonic extraction for polyphenol recovery from turmeric. Journal of Food Process Engineering, 44(8), e13789.
