When scientists and process engineers move from finding to marketing, they need to know the difference between a tabletop unit and a pilot plant glass reactor. A pilot plant glass reactor is the important step between small-batch testing and full-scale production. It has the same clarity, resistance to corrosion, and precise control as lab models, but it can handle volumes of 20 L to 200 L or more. As a company with more than 15 years of experience, Xi'an Bioland Instrument Co., Ltd. designs each pilot plant glass reactor to have a high-borosilicate GG17 structure, dual-jacket temperature control from -80 °C to 300 °C, and modular expandability for operations like distillation, extraction, crystallization, and vacuuming. Bioland offers complete solutions at the best prices in the industry, with full OEM/ODM support. They can provide a CE-certified pilot plant glass reactor for GMP validation or an explosion-proof setup for processing dangerous chemicals.
The main difference between a lab reactor and a pilot plant glass reactor is the amount of space they can hold. Lab reactors usually work with batches of 0.5 L to 10 L, which is good for initial screening and route scouting. A pilot plant glass reactor, on the other hand, works with batches of 20 L to 200 L, which makes enough material for clinical studies, regulatory applications, and market testing. Because the equipment has to deal with a lot more thermal mass, the heating and cooling circulators have to be much stronger to keep the ±1 °C accuracy that scientists expect. This problem is solved by Bioland's pilot plant glass reactor lineup, which has large dual-jacket surfaces and high-flow thermal fluid connections that keep the temperature even when the system is at full capacity. This makes the system a reliable platform for scaling up processes that are very demanding.
A tabletop lab reactor can fit on a normal fume hood shelf, but a pilot plant glass reactor needs its own floor room, stronger mounting frames, and often a ceiling-hoist or hydraulic lift system to remove the head assembly. The bigger size also changes how utilities are planned for: the power loads go up, the flow rates of cold water go up, and the vacuum pump's capacity has to grow in the same way. Bioland engineers work closely with customers to create a pilot plant glass reactor installation that works with the space they have available. They offer lifting-and-rotating head designs that cut the height of the ceiling needed by up to 30%. This careful planning makes sure that putting the equipment to use doesn't require expensive building changes or a lot of downtime while it's being set up.
Going from a 2 L lab reactor to a 100 L pilot plant glass reactor can make batch output fifty times higher. This cuts the time it takes from developing a process to putting it on the market by a huge amount. The bigger tank makes it possible to do continuous production runs of several kilograms that would normally need hundreds of separate lab-scale batches. This gets rid of the unpredictability that comes from setting up and taking down the equipment over and over again. The pilot plant glass reactor is the workhorse that makes GMP-grade intermediates on time for pharmaceutical businesses that are rushing to meet IND filing dates. Standard units ship in 5 to 7 days, and special orders take 30 business days. Bioland's fast production makes sure that equipment wait times never get in the way of your development process.

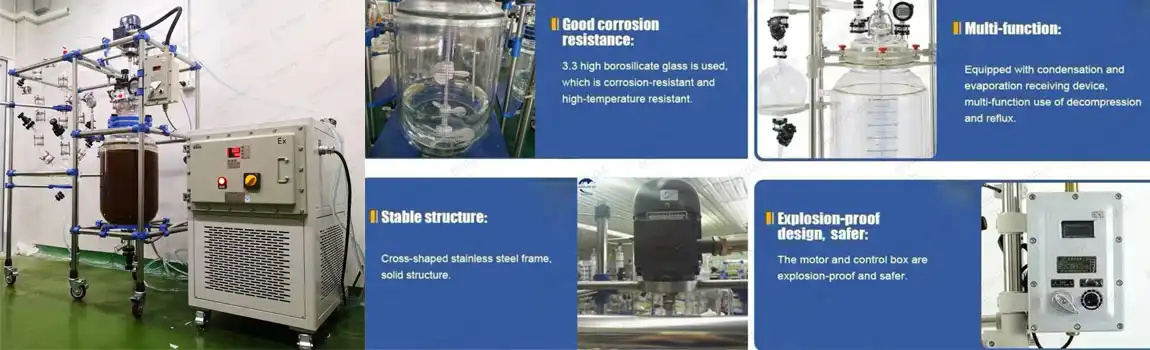

High-borosilicate GG17 glass is used in both lab and pilot plant glass reactor models, which is an advantage because it can withstand strong acids, caustic alkalis, and aggressive organic solvents without introducing metal ions. But a pilot plant glass reactor has a bigger surface area, which makes this benefit even greater: more glass contact area means more chemical inertness across the whole reaction volume, which is very important when making high-purity pharmaceutical intermediates or electronics-grade chemicals. Because every vessel is completely clear, operators can see color changes, the formation of precipitates, and phase separation in real time. This gets rid of the "black box" doubt that comes with metal vessels that aren't clear. Bioland's borosilicate bodies stay clear even after being exposed to corrosive media for thousands of hours.
As the volume of the reactor grows, controlling the temperature gets exponentially more difficult. This means that the jacket design of a pilot plant glass reactor is much more complicated than that of a lab cousin. A 5 L lab reactor might have a single-layer jacket, but Bioland's pilot-scale units have a precision-engineered dual-layer jacket that lets thermal fluid flow from -80 °C to 300 °C and can also work in vacuums as low as -0.095 MPa. With this large thermal range, the pilot plant glass reactor can handle high-heat polycondensation processes, enzymatic conversions at room temperature, and cryogenic lithiation reactions all in one vessel. PT100 temperature probes built in and optional PLC-controlled feedback loops provide the accurate temperature needed for repeatable scaling up of different chemicals.
A pilot plant glass reactor needs to be able to hold more process tools than a lab reactor. These include ultrasonic crystallization probes, Nutsche filter systems, multi-stage distillation columns, and large-diameter condensers. Each unit from Bioland comes with a standard multi-neck flange lid that can have three, four, or five ports and is compatible with ground-glass joints and PTFE adapters for quick setup changes. With this modularity, a single pilot plant glass reactor can be turned into a flexible platform that can do batch synthesis, fractional distillation, liquid-liquid extraction, and vacuum filtration all at the same time. Being able to change how the vessel is set up without having to replace the core body increases the return on investment and decreases the amount of equipment that needs to be stored in the pilot facility.
When working on a small scale, safety concerns grow because the effects of machine failure are worse because there are more solvents and more energy being used. Bioland's pilot plant glass reactors all use dual-seal technology, which combines PTFE lip seals with mechanical face seals to stop gas leaks whether the pressure is positive or negative. Bioland has an explosion-proof setup that meets Exd◡BT4 standards for facilities that work with dangerous liquids or nitrating mixes. This configuration has flameproof motors, fundamentally safe sensors, and anti-static wiring. The variable-frequency drive motor doesn't have brushes, so it doesn't make sparks and doesn't make noise above 60 dB. These features make sure that the pilot plant glass reactor meets the strictest rules in the world for process safety and workplace cleanliness.
It is notoriously hard to go from lab-scale discovery to commercial manufacturing. This is because of problems with heat transfer, mixing, and mass transfer gradients that can lead to yield losses of more than 20%. These risks can be reduced by using a pilot plant glass reactor that has the same shape and fluid dynamics as a production-scale reactor while keeping the glass's chemical inertness and ability to be seen through. Before investing in expensive stainless steel production vessels, process engineers can find and fix problems that change with scale, like hot spots, incomplete reagent dispersion, or foaming, by doing optimization trials at the pilot scale. When a client buys a pilot plant glass reactor from Bioland, the company's engineering team helps them with scale-up issues. They do this by turning lab recipes into strong pilot methods that keep yield and selectivity.
One of the best things about a pilot plant glass reactor over a metal pilot vessel that doesn't get enough credit is that it lets you watch how reactions work at volumes that are relevant to production. In a stainless steel test reactor, operators only use instrument data and offline samples, which means they can miss short-lived events like rapid exotherms or phase inversions that were not predicted. The clear borosilicate body shows these things as they happen, so they can be fixed right away, which stops batch loss. This visible feature is especially useful during the crystallization and precipitation steps, because the shape of the crystals and the distribution of particle sizes have a direct effect on how well the next steps of filtering and drying work. Bioland's pilot plant glass reactor keeps the whole tank optically clear, so there are no blind spots that make it hard to keep an eye on the process.
In its drug-intermediate synthesis process, a South American biopharmaceutical company had problems with chronic low dissolved oxygen, fermentation cycles that took too long, and inconsistent product purity. Chiral chemicals that were easily broken down by oxygen did so quickly in regular stainless steel reactors, leading to batch failures that cost the company more than $200,000 a year.
Bioland created a custom 50 L double-layer pilot plant glass reactor with an improved anchor-impeller shape that increased the flow of dissolved oxygen by 30%. The clear body of the tank let workers see the stages of cell growth and change the air flow rates in real time. Within three months, each batch's fermentation cycle was cut by 18 hours, and the purity of the intermediate reached 99.2 percent. Metal ions couldn't get on the neutral glass surface, and the PTFE dual-seal system helped with nitrogen blanketing for steps that needed to be protected from air.
A European precious metals refiner had a hard time with its gold and platinum recovery process because it could only handle small batches, the separation wasn't very good, and there was a lot of pollution from rust. In aqua regia and hydrochloric acid environments, traditional stainless steel vessels broke down quickly, letting in iron and chromium impurities that made the metal less pure than required.
As a full extraction and purification line, Bioland sent four 200-liter explosion-proof pilot plant glass reactor units and nine 50-liter rotating evaporators. The system met ExdⅡBT4 standards and integrated automated acid-dosing manifolds for hands-free operation in hazardous areas.
Real-time phase-separation tracking was possible thanks to transparent vessel bodies. This got rid of the emulsion lock-up problem that had been a problem with the old equipment for years. Delivery times were cut by 40% thanks to modular production, which let the client start using the product 15 days early and boost annual throughput by 30%. Over 1,000 hours of trouble-free use on the production line in its first year led to a second order for more palladium refining capacity.
Which one you choose between a lab reactor and a pilot plant glass reactor depends on what stage of development you are in and what materials you need. Early route-scouting and catalyst screening work best in 1–5 L lab reactors, where the speed of repetition is very important and chemical use is very low. If you need several kilograms for safety studies or formula development after deciding on a synthetic route, you need a pilot plant glass reactor in the 20–100 L range. A 100–200 L unit gives you the volume and GMP documentation you need to support commercial filings for late-stage process validation and regulatory batch production. Bioland has a full range of setups, from tabletop to pilot-scale, so that you can easily move up within the same family of tools.
There are no two chemistry processes that are exactly the same, and standard equipment often doesn't meet the needs of certain operations. The bioland pilot plant glass reactor can be changed in every way to fit your exact process needs. This includes the shape of the vessels, the design of the jacket, the order of the ports, the type of motion, and the control system. Ultrasonic crystallization modules, Nutsche filter-reactor assemblies, tail-gas absorption units, and fully automated PLC control panels with recipe management are some of the non-standard options that can be chosen. We welcome both OEM and ODM orders, and we can customize the packaging, labels, and colors to fit your needs. With this much flexibility, you can be sure that your pilot plant glass reactor is not just a general tank, but a process solution that was specifically made to solve your unique scale-up problems.
For pharmaceutical and food-grade uses, following the rules is essential, and Bioland makes sure that every pilot plant glass reactor meets GMP and FDA requirements. The borosilicate glass touch surfaces are naturally non-reactive and easy to clean. This makes validation processes easier and lowers the risk of cross-contamination between runs. Each package from Bioland comes with full material tracking, weld inspection records, and pressure-test certificates. Clients can either set up a Factory Acceptance Test (FAT) at the Xi'an plant to make sure the product works before it is sent to the customer, or they can choose a remote FAT via live video. This strict quality framework makes sure that the regulatory checks of your pilot plant glass reactor go off without any delays or expensive repairs.
A pilot plant glass reactor costs more to buy than a lab-scale unit, but it usually ends up being cheaper to own in the long run because it can handle more work, has fewer batch failures, and lasts longer. Bioland's equipment is a great deal because it is priced competitively, uses energy-efficient temperature management, and has brushless motor technology that doesn't need much upkeep. Long-term operating costs are also lowered by the one-year warranty and lifetime maintenance support. Compared to stainless steel pilot reactors that need to be re-passivated and have their linings replaced on a regular basis, Bioland's pilot plant glass reactor has a lower five-year cost profile while providing better product purity and process visibility across all batches.
A lab reactor and a pilot plant glass reactor are mostly different in terms of size, the difficulty of managing heat, and the safety infrastructure. However, both are made of glass, which is the best material for high-purity synthesis because it is clear and doesn't rust. Choose the correct pilot plant glass reactor to speed up scale-up, lower batch inconsistency, and make sure regulatory compliance in chemical, food, and pharmaceutical processing. Xi'an Bioland Instrument Co., Ltd. offers CE-certified and GMP-compliant pilot plant glass reactor solutions that can be fully customized, come at a low price, and come with full lifecycle support to help your facility move from development to production with confidence and ease.
A pilot plant glass reactor from Bioland spans 20 L to 300 L, bridging lab-scale experiments and full production batches.
Yes. Bioland offers ExdⅡBT4-certified explosion-proof pilot plant glass reactor configurations with flameproof motors and intrinsically safe controls.
Standard models ship in 5–7 days; customized pilot plant glass reactor orders require approximately 30 business days.
Every unit complies with GMP/FDA standards and supports Factory Acceptance Testing before shipment.

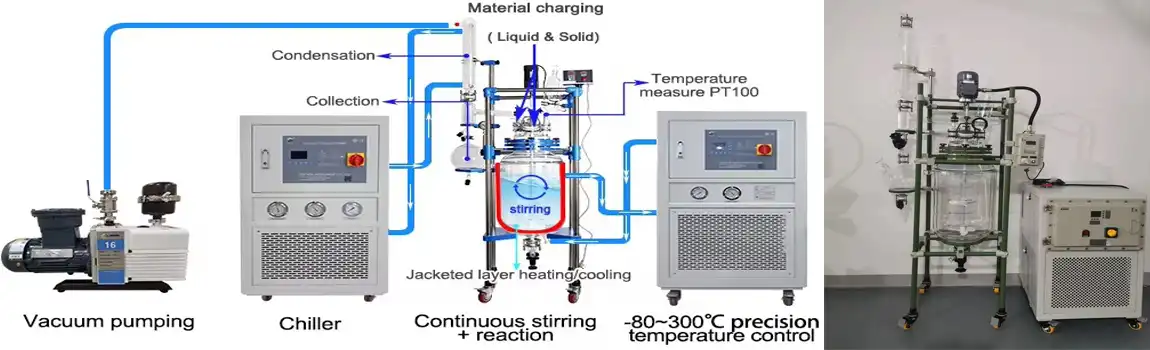

The dual-jacket pilot plant glass reactor operates from −80 °C to 300 °C with vacuum down to −0.095 MPa.
Are you struggling with inconsistent yields, corrosion-related contamination, or prolonged development timelines as you scale from lab to production? Xi'an Bioland Instrument Co., Ltd. is your trusted partner for high-performance pilot plant glass reactor solutions that solve real process challenges. With over 15 years of engineering expertise, CE and ISO certifications, and a proven track record serving pharmaceutical, chemical, precious-metal, and food-industry clients across Europe, Southeast Asia, and the Americas, Bioland Instrument delivers more than equipment—we deliver complete process solutions.
Our pilot plant glass reactor lineup features full-transparency GG17 borosilicate construction, dual-jacket precision temperature control, explosion-proof safety options, and modular expandability for distillation, extraction, crystallization, and vacuum operations. We welcome OEM and ODM orders with lead times as short as 5 days for standard units and 30 days for fully customized systems. Every pilot plant glass reactor includes a one-year warranty, lifetime maintenance, and dedicated weekly production tracking with photo and video updates. Contact Bioland Instrument now to discuss your scale-up requirements and receive a free engineering consultation. Email us at info@biolandequip.com and take the first step toward faster, cleaner, and more profitable production.
1. Perry, R. H., and Green, D. W. Perry's Chemical Engineers' Handbook, 9th Edition, McGraw-Hill Education, 2018.
2. Paul, E. L., Atiemo-Obeng, V. A., and Kresta, S. M. Handbook of Industrial Mixing: Science and Practice, Wiley-Interscience, 2004.
3. Crowl, D. A., and Louvar, J. F. Chemical Process Safety: Fundamentals with Applications, 4th Edition, Pearson, 2019.
4. Bisio, A., and Kabel, R. L. Scaleup of Chemical Processes: Conversion from Laboratory Scale Tests to Full-Scale Plant Design, Wiley, 1985.
5. Oldshue, J. Y. Fluid Mixing Technology, Chemical Engineering Publications, McGraw-Hill, 1983.
6. Thayer, A. M. "Scaling Up Pharmaceutical Processes: Challenges in Moving from Lab to Pilot Plant," Chemical and Engineering News, vol. 93, no. 8, 2015.
