A Soxhlet device is a specialized lab tool that was created in 1879 by Franz von Soxhlet. Its main purpose is to constantly remove compounds from solid materials using organic solvents. From straightforward glass assemblies to complex automatic systems, modern Soxhlet extraction equipment can handle anything from isolating pharmaceutical active ingredients to analyzing environmental contaminants.
This equipment solves important problems in fields that need to collect all compounds completely. It does this by increasing extraction rates while lowering the amount of solvent used, the amount of work that needs to be done, and the safety risks that come with volatile organic compounds. Whether you're moving from study to pilot production or updating old lab equipment, knowing what modern extraction systems can do and how they can be set up will directly affect how efficiently and cheaply you run your business.

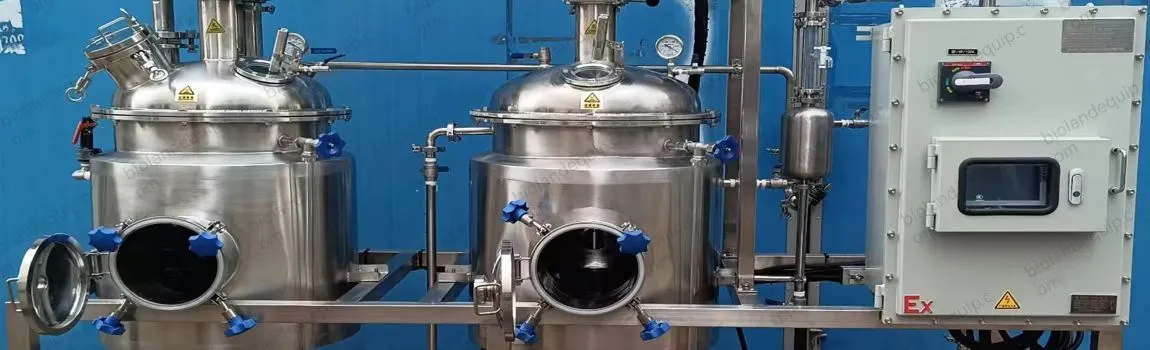

The Soxhlet apparatus works on a concept that is both beautifully simple and amazingly effective: continuous cyclic solvent extraction. Industrial Soxhlet extraction equipment is a large-scale, automated extraction device based on the Soxhlet extraction principle. It is primarily used for efficiently extracting target substances such as fats, pesticide residues, and volatile components from solid raw materials. Widely applied in industrial scenarios like food processing, feed testing, chemical production, and environmental monitoring, its core features include batch processing, automated control, and suitability for industrial-scale production demands
Currently, the mainstream industrial Soxhlet extraction and concentration equipment is divided into two categories: fully automated Soxhlet extraction and concentration integrated machines and ultrasonic Soxhlet extraction and concentration complete sets. The core upgrades focus on the integration of "extraction + concentration," automated control, and efficiency improvement
The fully automatic Soxhlet extraction and concentration machine adopts an integrated process, automatically completing the entire process of "Soxhlet extraction solvent recovery vacuum concentration" without the need for manual transfer of intermediate products, and is suitable for batch production needs.
Adopting multi-mode extraction function, supporting 5 modes including classic Soxhlet extraction, Soxhlet thermal extraction, continuous extraction, etc., it can adapt to the extraction of different target substances such as fat, pesticide residues, volatile components, etc;
Efficient solvent recovery function, built-in condensation recovery system, solvent recovery rate can reach over 80%, significantly reducing the cost of organic solvents (such as ether and petroleum ether); Industrial grade safety design, integrated temperature anomaly alarm, solvent leakage monitoring, explosion-proof heating module, suitable for high safety requirements in chemical, food and other scenarios
How Does the Soxhlet Extraction Work?

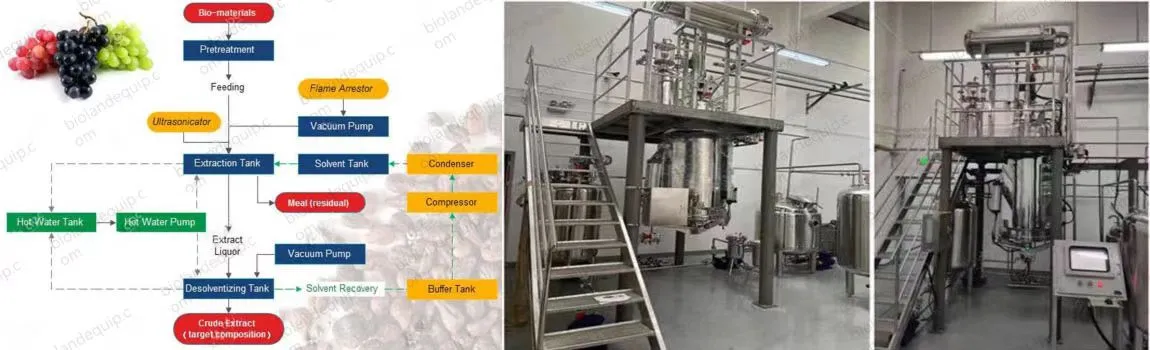

The Soxhlet extraction and concentration process is a complete industrial process of "liquid-solid extraction+solvent removal", with the core goal of efficiently extracting target components (such as fats, active ingredients, pollutants, etc.) from solid raw materials, and removing solvents through concentration to obtain high concentration target products
Modern industrial equipment integrates "extraction+concentration" into an automated integrated process, without the need for manual transfer of intermediate products, greatly improving efficiency and safety. The core process is that the equipment automatically completes the "solvent heating condensation reflux siphon cycle" extraction process, supporting multi-channel parallel (4-6 samples/batch), and the extraction time can be shortened by 20% -80% (ultrasonic models only require 1-2 hours); After extraction, the equipment has a built-in condensation system that automatically recovers solvents (with a recovery rate of 80% -95%), reducing organic solvent waste and environmental pollution; Concentrate the extract at low temperature (40-60 ℃) in a vacuum environment (pressure 0.1-0.5 bar) to avoid the decomposition of thermosensitive components (such as effective ingredients in traditional Chinese medicine and vitamins), and to adapt to the extraction of high value-added raw materials; The concentrated target ingredients (such as fat paste, extract paste) are automatically collected into designated containers, completing the entire automated production process.
Represented by ultrasonic Soxhlet extraction quipment, through the triple strengthening of "ultrasonic cavitation+Soxhlet cycle+vacuum concentration", the efficiency is improved by 60% -80% compared to traditional processes. High frequency ultrasonic vibration is used to destroy plant cell walls, increasing the precipitation rate of target components by 45% and shortening the extraction time by more than 4/5; Remove solvents at low temperatures in a vacuum environment to avoid the decomposition of thermosensitive components while retaining volatile components such as essential oils and aromatic oils; Fully enclosed circulation system, the solvent can be reused multiple times, reducing waste and avoiding the loss of volatile components.
The traditional Chinese medicine industry uses Soxhlet extraction concentration technology, with the core goal of efficiently extracting effective ingredients (such as alkaloids, flavonoids, polysaccharides, volatile oils, etc.) from Chinese herbal medicines while protecting thermosensitive components from damage.
Step 1: Equipment preparation and raw material loading
Equipment inspection: Start the Soxhlet extraction and concentration integrated machine (BL-TN-C100L) and check whether the solvent circulation system, vacuum system, and temperature control system are normal;Raw material loading: Load the pre treated traditional Chinese medicine particles (20-40 mesh) into a filter paper cylinder and place them in the extraction tube of the equipment (4-6 samples per batch, with a maximum of 20g per sample).
Step 2: Automated Soxhlet Extraction
Parameter setting: Extract parameters based on target component settings: Solvent type: Select built-in solvents (such as ethanol, petroleum ether, water);
Extraction mode: Select "Soxhlet standard method" (6-12 hours) or "Soxhlet thermal extraction" (2-4 hours, high-temperature accelerated extraction);
Temperature control: Set the boiling point temperature of the solvent (such as ethanol 78 ℃, petroleum ether 40-60 ℃), and the equipment will automatically control the temperature by ± 1 ℃;
Start extraction: Press the "Start" button, and the device will automatically complete the "solvent heating condensation reflux siphon cycle" process without manual intervention, resulting in a 30% -50% increase in extraction efficiency compared to traditional methods.
Step 3: In situ solvent recovery and concentration
Solvent recovery: After extraction, the equipment has a built-in condensation system that automatically recovers the solvent (recovery rate of 80% -95%). The solvent can be recycled to reduce costs and pollution;
Vacuum concentration: Switch to the "concentration mode", and the equipment will automatically turn on the vacuum system (pressure 0.1-0.5 bar) to concentrate the extract at low temperature (40-60 ℃), avoiding the decomposition of thermosensitive components and shortening the concentration time to 1-2 hours.
Step 4: Automatic collection and post-processing of products
Product collection: Concentrated traditional Chinese medicine extracts (such as polysaccharide paste and volatile oil extract) are automatically collected into the collection bottle built into the equipment, without the need for manual transfer;
Post treatment: further drying (spray drying, freeze drying) or purification (column chromatography, macroporous resin adsorption) is selected according to the needs to obtain the final Chinese medicine extract product.
Raw materials: dried Huangqi granules (20 mesh); Solvent: 80% ethanol; Extraction time: 8 hours; After concentration, a concentrated solution with a polysaccharide content of ≥ 80% is obtained, which is then freeze-dried to obtain Huangqi polysaccharide powder (used for immune regulation preparations).
Ingredients: Fresh mint leaves (dried and crushed); Solvent: Ether; Extraction time: 4 hours; The essential oil of peppermint (containing ≥ 40% menthol, used for traditional Chinese patent medicines and simple preparations and daily chemical products) is obtained after concentration.
Raw materials: dried Angelica sinensis granules (40 mesh); Solvent: petroleum ether (60-90 ℃ distillate); Extraction time: 6 hours; After concentration, the volatile oil of Angelica sinensis (containing ligustilide ≥ 15%) and fat soluble components (used for blood tonic traditional Chinese patent medicines and simple preparations) are obtained.
Before you can choose equipment, you need to be clear about your working needs and quality standards. Certifications provide objective proof of meeting factory standards and legal requirements. Check for CE marking, which means the product meets European safety standards, ISO 9001 certification, which means the company has a strong quality management system, and industry-specific approvals, such as ATEX for electrical tools that won't explode or IEC standards for lab safety. For pharmaceutical and food processing, GMP compliance is a must. This means that equipment must be designed in a way that is sanitary, come with paperwork that supports validation processes, and be made of materials that won't let contaminants out or let germs grow.
Suppliers are judged on more than just the specs of their tools; their technical knowledge and support systems are also taken into account. Soxhlet extraction equipment is a key example of such tools, and companies that have been making it for 15 years or more have a lot of useful process knowledge because they've seen and fixed all of the problems you'll face. Ask customers in your business and similar application areas for examples. Manufacturers you can trust will give you thorough case studies of their stevia purification lines, capsaicin extraction systems, or curcumin recovery operations to show that they understand your unique technical needs.
To get the best extraction yield and purity, you need to pay attention to a lot of different factors, not just follow standard working methods. It is important to be very careful when choosing a solvent. Usually, you should match the polarity of the solvent to the properties of the chemical you want to extract, but in many cases, solvent mixtures or sequential extraction methods work better. An initial hexane extraction gets rid of non-polar fats and lipids that could get in the way of recovering polar active ingredients with ethanol or watery methanol. This step-by-step method makes extracts that are cleaner and need less purification further down the line, which lowers handling costs and raises the quality of the end product.
Finding the best temperature means combining different factors. Higher temperatures make compounds more soluble and speed up the rate of diffusion, which speeds up the extraction process. However, when using soxhlet extraction equipment, too much heat breaks down molecules that are sensitive to heat, causes unwanted chemistry changes, and raises fluid loss through condenser bypass. Essential oils, some alkaloids, and polyunsaturated fatty acids can be extracted best at 40°C to 60°C. This can be done with reduced-pressure methods or careful temperature control. This low-temperature method keeps bioactive qualities for longer, which is why it commands higher prices in the pharmaceutical and nutritional markets.
The Soxhlet device has grown from a simple lab experiment into high-tech soxhlet extraction equipment that is used in biotechnology, medicines, specialty chemicals, and food processing. When procurement managers and technical leads understand the basic ideas behind continuous solvent cycling, exhaustive compound recovery, and automatic operation, they can choose equipment that meets their exact operating needs.
When choosing between manual systems for occasional lab use and fully automated multi-position platforms for production settings, it's important to look at certifications, provider knowledge, technical specs, and the total cost of ownership. Using materials that are GMP-compliant, safety systems that can't explode, integrated solvent recovery, and equipment that can be configured in different ways can improve product outputs, lower processing costs, and speed up the time it takes to get new goods on the market.
The chemical qualities of the material you want to dissolve determine which solvent to use. Hexane or petroleum ether are good ways to get rid of nonpolar substances like fats, oils, and hydrocarbons. Flavonoids, phenolic substances, and alkaloids that are moderately neutral need acetone, methanol, or ethanol. Highly polar chemicals may need solvents or blends of solvents that can mix with water. Always check to see if the fluid is safe for the materials in your Soxhlet extraction equipment, especially the seals and gaskets, to keep chemicals from breaking down.
Of course. These days, companies that make tools have everything from lab-scale units that can handle 1 to 50 g samples to industrial platforms that can hold 10 to 100 kg. The basic idea behind extraction stays the same at all scales, which lets the process be directly translated. Industrial systems with automated controls, built-in solvent recovery, and the ability to run continuously keep the extraction efficiency that was shown in the lab while meeting the needs of production output.
In order to make a choice, you should think about the sample number, the needed throughput, the available labor, and your budget. Manual systems are good for occasional extractions, work on developing new methods, or places that process less than 20 samples a month. Automated equipment saves money when processing more than 50 samples a month, when regulatory paperwork is needed, or when skilled technical staff needs to be freed from doing the same tracking chores over and over again. Figure out the total cost of ownership, which includes labor. In work settings, technology usually pays for itself in 12 to 18 months.
When your facility needs reliable, high-performance extraction systems backed by real technical know-how, BIOLAND INSTRUMENT is ready to be your go-to maker and solution provider for Soxhlet extraction equipment. We've been specializing in process equipment for pharmaceuticals, biotechnology, fine chemicals, and food processing for more than 15 years, so we know exactly what problems you're having, like how to get extraction efficiencies 50–100% higher than usual or how to set up full GMP-compliant production lines.
We make extraction systems that come with full safety designs that can't explode, certificates from CE, ISO, UL, SGS, ATEX, and IEC, and the ability to be set up in any way you want. These systems can include solvent recovery modules, CIP cleaning systems, and automatic release mechanisms. The parts that come into touch with materials are made of 316 stainless steel, which meets FDA and GMP guidelines. Our full PLC automation with tablet screens makes operation easier and keeps track of all process parameters for your quality records.
BIOLAND does more than just sell equipment. They also offer complete turnkey solutions that include workplace planning, equipment selection, installation and commissioning, full user training, and quick support after the sale. Our engineering team offers OEM and ODM services and can tailor extraction systems to your individual process needs, whether you're setting up a propolis extraction line, increasing the amount of curcumin you recover, or upgrading your old pharmaceutical production infrastructure. Get in touch with us at info@biolandequip.com to talk about how our extraction systems can help you make your production more efficient and improve the quality of your products.
1. Luque de Castro, M.D. and García-Ayuso, L.E. (1998). "Soxhlet extraction of solid materials: an outdated technique with a promising innovative future." Analytica Chimica Acta, 369(1-2), pp.1-10.
2. Kaufmann, B. and Christen, P. (2002). "Recent extraction techniques for natural products: microwave-assisted extraction and pressurized solvent extraction." Phytochemical Analysis, 13(2), pp.105-113.
3. Zhang, Q.W., Lin, L.G. and Ye, W.C. (2018). "Techniques for extraction and isolation of natural products: a comprehensive review." Chinese Medicine, 13(1), pp.20-45.
4. Dean, J.R. (2009). "Extraction Techniques in Analytical Sciences." John Wiley & Sons, Chichester, UK.
5. Wang, L. and Weller, C.L. (2006). "Recent advances in extraction of nutraceuticals from plants." Trends in Food Science & Technology, 17(6), pp.300-312.
6. Houghton, P.J. and Raman, A. (1998). "Laboratory Handbook for the Fractionation of Natural Extracts." Chapman & Hall, London, UK.
