1. Ultrasonic technology independently developed ultrasonic generator, with precise and controllable frequency/power, and a 20% increase in cavitation efficiency+ 2. The material and process in contact with the material are made of SUS304/316L stainless steel, with polished welds that comply with GMP and food grade standards 3. Intelligent control PLC+touch screen integrated control, supporting parameter memory, remote monitoring, and data tracing 4. The energy-saving design of the solvent recovery system achieves a thermal efficiency of over 90%, reducing energy consumption and operating costs 5. Multiple protection measures including over temperature/over pressure/low liquid level/explosion-proof, in compliance with CE and ATEX safety standards 6.Process customization: supports various process combinations such as solvent extraction, water extraction, supercritical CO ₂, ultrasound, etc

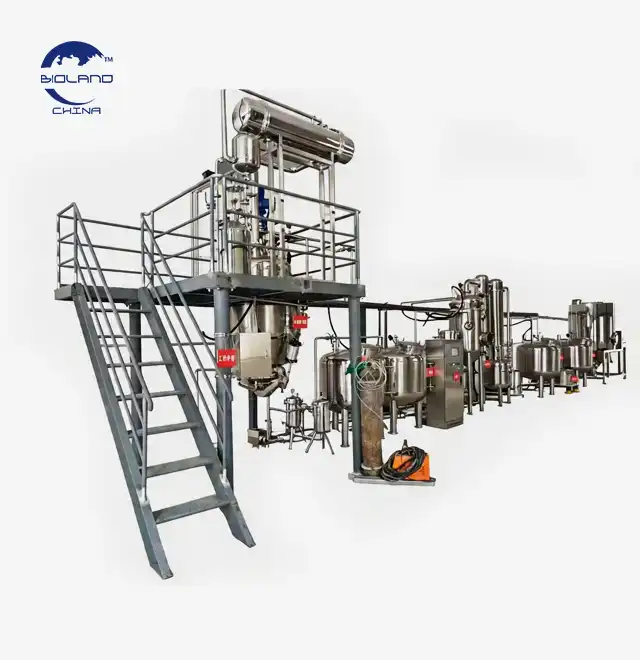

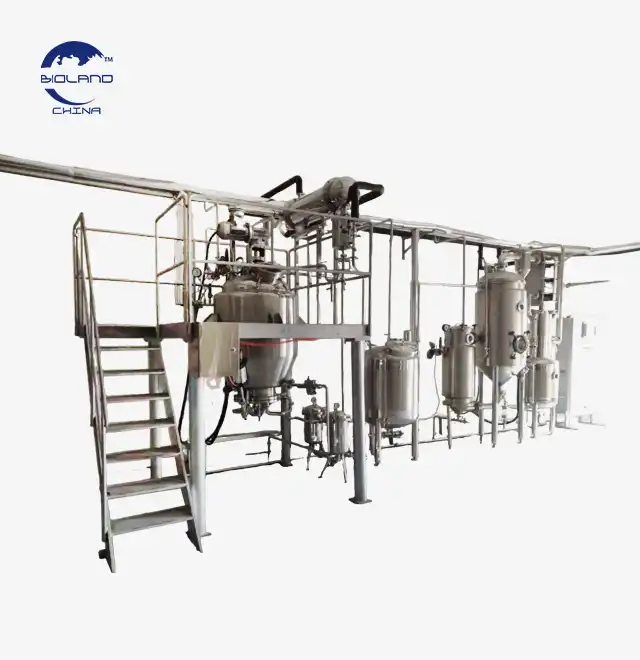

Kratom Extraction Machine is an efficient extraction system designed specifically for the extraction of plant alkaloids, particularly suitable for the extraction and concentration of active ingredients (such as Mitragynine, 7-Hydroxymitragynine, etc.) in Mitragyna speciosa. This device adopts advanced ultrasonic cavitation technology, which can quickly and efficiently release effective ingredients from plant cells under low temperature conditions, while maximizing the integrity of bioactive substances.
This Kratom Extraction Machine is widely used in the fields of health products, natural extracts, functional foods, and scientific research laboratories, and is an ideal choice for modern plant extraction processes.

Why choose us?

Professional focus, leading technology, long-terms service
We have been deeply involved in the field of plant extraction equipment for many years, focusing on providing efficient, stable, and compliant extraction solutions for the chemical, pharmaceutical, health product, and natural extract industries. Choosing us means choosing:

Deep industry experience

1.Over 10 years of experience in the research and manufacturing of plant extraction equipment, with a cumulative delivery of over 100 units
2.Our customer service covers over 30 countries and regions including Europe, America, Southeast Asia, the Middle East, and South America
3.Familiar with the extraction processes and compliance requirements of various industries such as Kratom, traditional Chinese medicine, herbal medicine, functional food, etc
4.We not only provide Kratom Extraction Machine, but also offer process optimization suggestions and production implementation support to help customers smoothly transition from laboratory to industrial production.

Customization capability

We understand that different customers have different production scales, process requirements, and compliance standards, so we provide full process customization services:
Capacity customization: From laboratory small (5L) to industrial large (500L+), any specification is available
Process customization: supports various process combinations such as solvent extraction, water extraction, supercritical CO ₂, ultrasound, etc
Automated customization: semi-automatic/fully automatic/unmanned production lines, supporting MES/ERP system integration
Certification customization: Provide CE, FDA, ISO, GMP and other certification support according to the target market

Product Specification Sheet

Technology parameter
Model	BL-TN-C50L	BL-TN -C100L	BL-TN -C200L	BL-TN -C300L	BL-TN -C500L
Volume (L)	50	100	200	300	500
Evaporation capacity (kg/h)	20	50	70	100	200
Motor power(KW)	2.7	2.7	2.7	3.5	3.5
Steam consumption(kg/h)	25	60	90	120	250
System vacuum (MPa)	-0.085	-0.085	-0.085	-0.085	-0.085
Pressure of jacket(MPa)	0.09~0.3	0.09~0.3	0.09~0.3	0.09~0.3	0.09~0.3
Compressed air (MPa)	0.5~0.6	0.5~0.6	0.5~0.6	0.5~0.6	0.5~0.6
Evaporation temperature(°C)	60~100	60~100	60~100	60~100	60~100

The specific configuration and price need to be inquired from the manufacturer based on factors such as production capacity, process requirements, and automation level.

Working principle

Ultrasonic extraction technology is based on three core physical effects to achieve efficient and gentle extraction of plant components:
1. Cavitation Effect
When ultrasound propagates in liquid media, tens of thousands of microbubbles are generated. These bubbles rapidly expand and instantly close under the action of sound pressure, producing local high temperature and pressure (up to thousands of atmospheres) and strong microjets. This effect can instantly destroy the plant cell wall, allowing active ingredients such as alkaloids, flavonoids, polysaccharides, etc. inside the cell to be quickly released into the solvent.
2. Mechanical Effect
When ultrasound propagates in a medium, it causes high-frequency vibrations of the medium particles, enhancing the diffusion and mass transfer processes of substances. This vibration effect can accelerate the penetration of solvents into plant tissues, while promoting the dissolution and migration of effective components within cells, significantly improving the extraction rate.
3. Thermal Effect
During the propagation of ultrasound, some of the sound energy is absorbed by the medium and converted into thermal energy, causing a moderate increase in material temperature and accelerating the dissolution rate of active ingredients. Due to the instantaneous and localized heating, it does not lead to the degradation of thermosensitive components such as alkaloids, which is beneficial for maintaining the biological activity of the extract.

Product Advantages & Features

1. The extraction time is reduced by 50%~70% compared to traditional methods, and the extraction rate is increased by more than 30%.

2. Low temperature operation can operate under vacuum and low temperature conditions, protecting the activity of thermosensitive components (such as Mitragynine).

3. Less solvent dosage, ultrasound enhanced mass transfer, reducing solvent consumption, lowering production costs and environmental protection pressure
4. Physical extraction without chemical additives, the extraction process is purely physical, in line with natural/organic product standards, and easy to operate

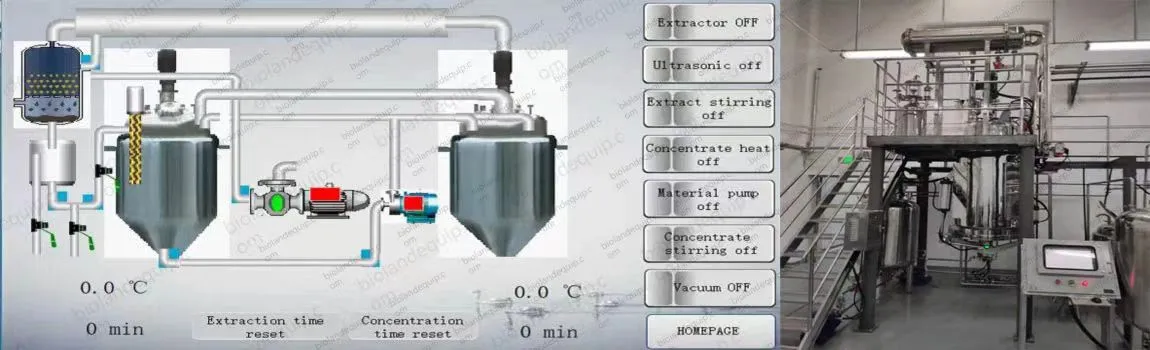

5. Automation control system, PLC/touch screen operation, parameters can be set and memorized
6. Material safety: SUS304/316L stainless steel is used for the parts in contact with the material, which meets GMP and food grade requirements

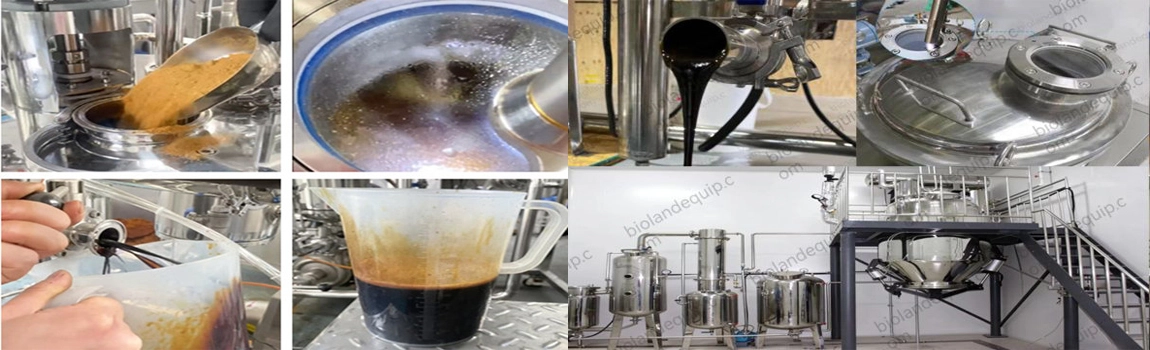

7. Multi functional integration can integrate extraction, filtration, concentration, recycling and other functions to achieve integrated production safety protection
8. Equipped with safety devices such as over temperature alarm, low water level protection, and pressure relief valve

Application Fields & Case

1. Development of functional foods and beverages

Case: Kratom Functional Beverage Development Project

A certain food enterprise developed an energy drink containing Kratom extract and used ultrasonic extraction technology to prepare low concentration extract.

Process features: Low temperature water extraction, retaining natural flavor and activity

Product Form: Liquid Concentrate, Powder Extract

Market feedback: Consumers recognize its "natural, additive free" product positioning

2. Extraction of traditional Chinese medicine/herbal medicine

Case: Multi plant compound extract production line

In addition to Kratom, this device is also suitable for extracting alkaloids or active ingredients from other plants, such as tea, ginseng, ginkgo, etc.

Applicability: Adjustable frequency, power, temperature and other parameters to adapt to different raw materials

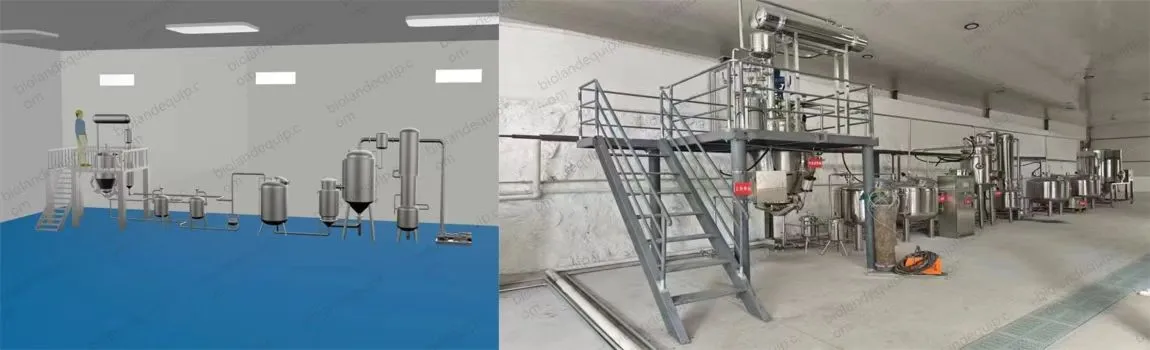

Scalability: Supports scaling up design from laboratory to industrial production

Conclusion

Kratom Extraction Machine has become an important tool in the field of plant alkaloid extraction due to its efficient, mild, and environmentally friendly extraction characteristics. Whether it is laboratory research and development, pilot scale testing, or industrial production, this equipment can provide stable and reliable extraction solutions, helping enterprises improve product quality and production efficiency.

If you need to know the specific configuration, quotation or process plan, please feel free to contact our technical team for customized services. -info@biolandequip.com
